LED Aisle High / Low Bay

    The PBLA is an ideal solution for most warehouse aisles and corridors. Its enhanced specular reflector is designed to provide even vertical illumination on shelving and optimize lighting in the aisleways. It comes in 4-foot (PBLA 4) and 8-foot (PBLA 8) lengths. The PBLA is offered in a wide variety of lumen packages, which allows for flexibility in design and helps maximize energy savings. Multiple control options are available - including occupancy sensors, dimming sensors and photocells. Each PBLA is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
DownloadWattageOutput RangeDimensions
PBLA 474 - 161W11,799 - 24,706 lumens46.00" x 6.319" x 3.570"
PBLA 8148 - 265W23,596 - 41,823 lumens92.00" x 6.319" x 3.570"
DownloadWattage
PBLA 474 - 161W
PBLA 8148 - 265W
  • Applications: Suitable for most commercial, industrial and institutional applications. Ideal for warehouse aisles and corridors
  • Lumen Output: About 12,000 lm to 24,000 lm in 4-footer, 23,000 lm to 49,400 in the 8-footer
  • Max Lumens Per Watt: 168.3
  • Size Options: 4 foot and 8 foot
  • Predicted L70 Lifetime: Up to 189,000 hours (calculated)
  • Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
  • Re-BoardABILITY: Every PBLA is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Click to enlarge

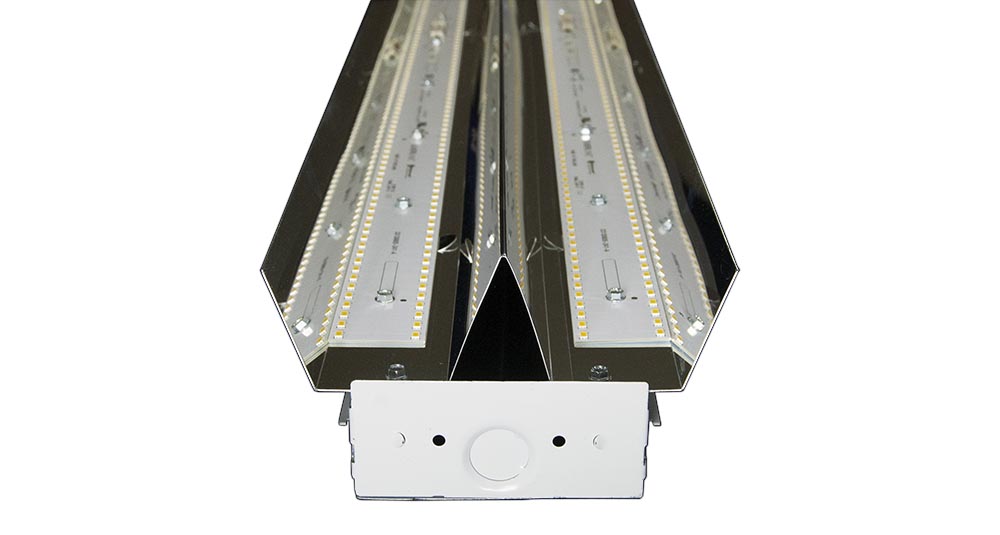

PBLA4 031517 PBLA4 031517

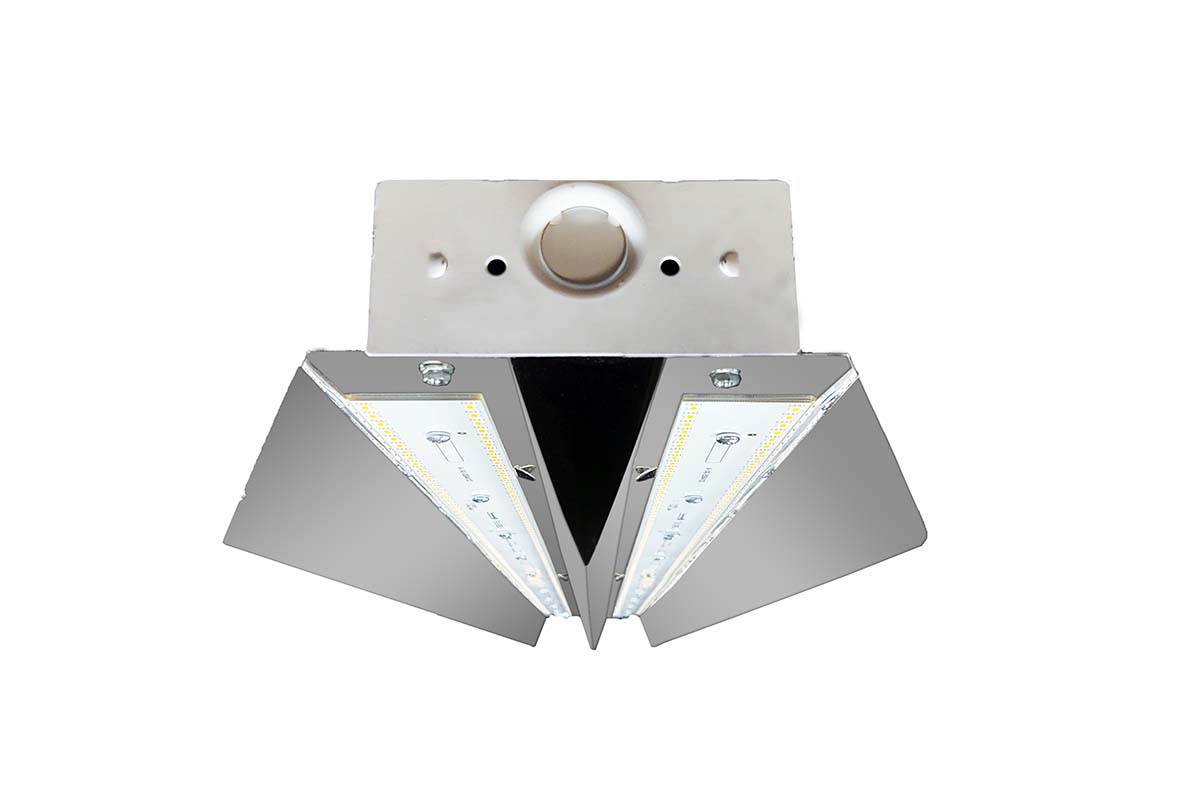

PBLA end view
PBLA-new-revision-WOPT0919 PBLA-new-revision-WOPT0919
Opening in driver compartment grants easy access, allowing for simple installation and maintenance in the field.
PBLA 031517b PBLA 031517b
PBLA
PBLA5 031517b PBLA5 031517b
PBLA
PBLA6 031517b PBLA6 031517b
PBLA
Photometry from spec sheet Photometry from spec sheet
Photometry chart for the PBLA4LWUV840

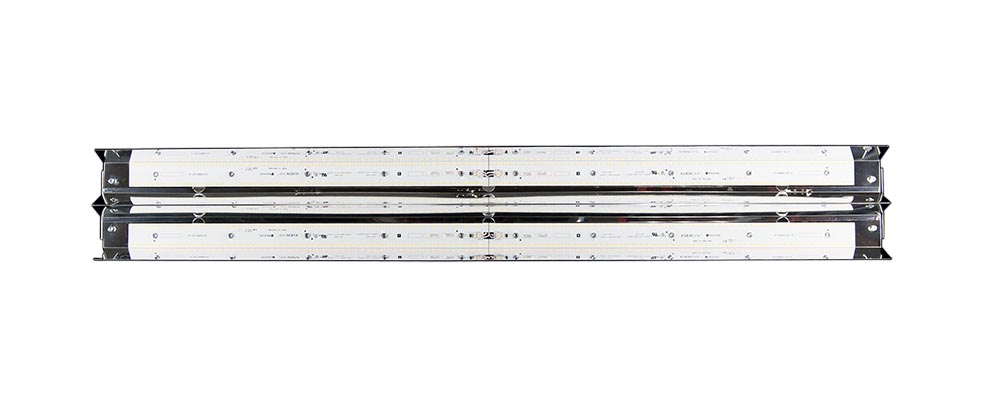

PBLA2 031517 PBLA2 031517
PBLA
Click to enlarge

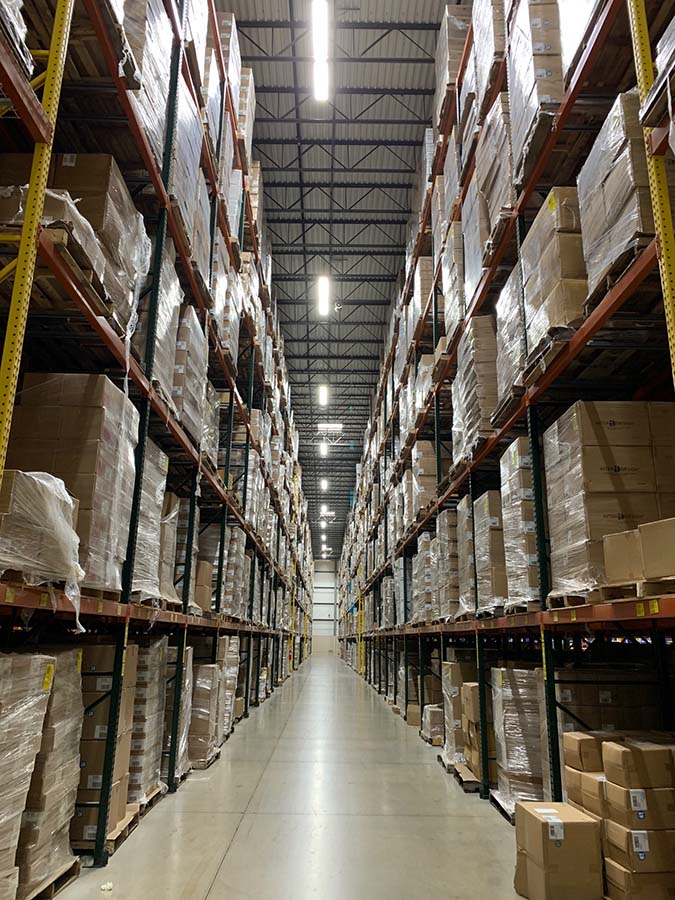

PBLA8After-3_WOPT0919 PBLA8After-3_WOPT0919
PBLA 8-footers in a warehouse aisle

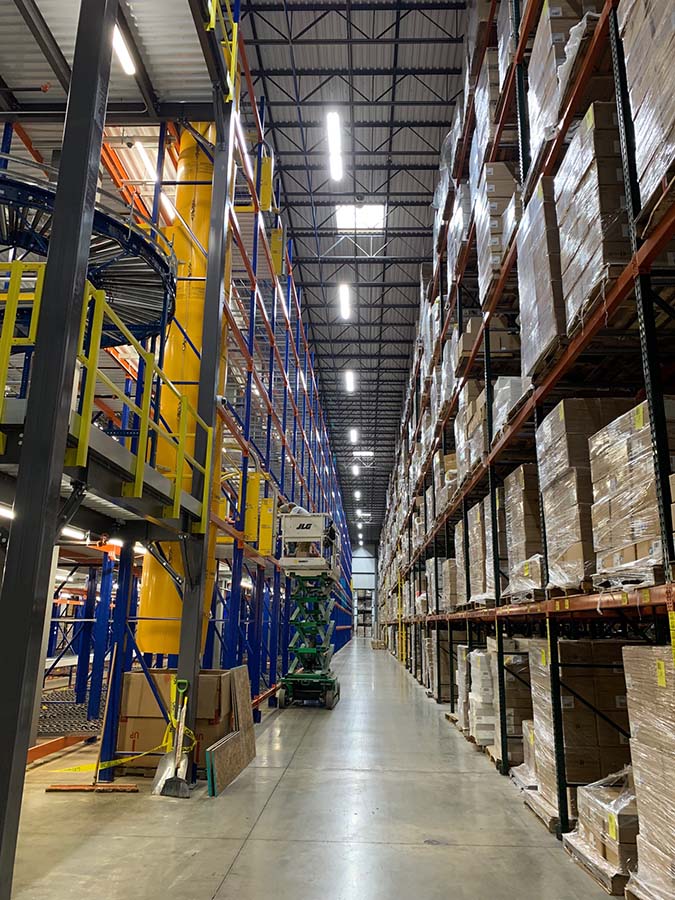

PBLA8After-1_WOPT0919 PBLA8After-1_WOPT0919
PBLA 8-footers in a warehouse aisle

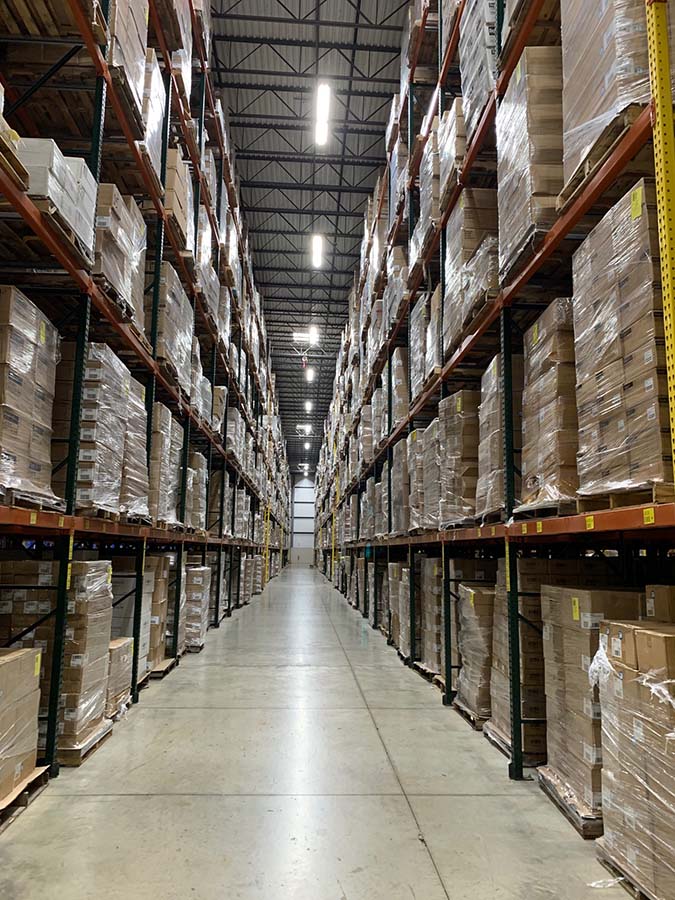

PBLA8After-2_WOPT0919 PBLA8After-2_WOPT0919
PBLA 8-footers in a warehouse aisle

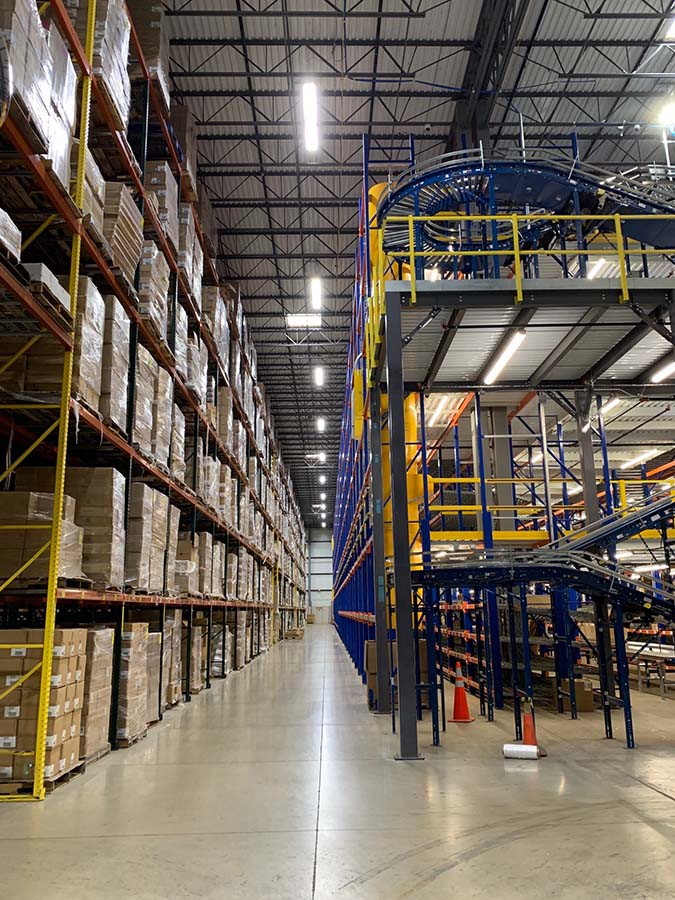

PBLA4After-3_4WOPT0919 PBLA4After-3_4WOPT0919
PBLA 4-footers

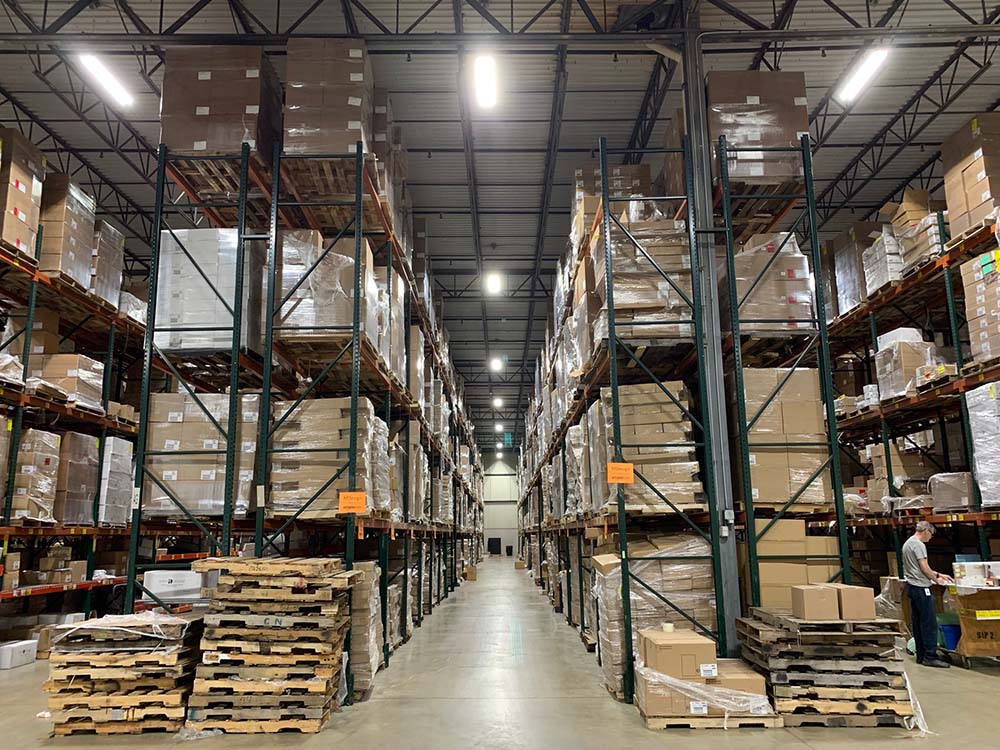

PBLA4After-2_WOPT919 PBLA4After-2_WOPT919
PBLA 4-footers

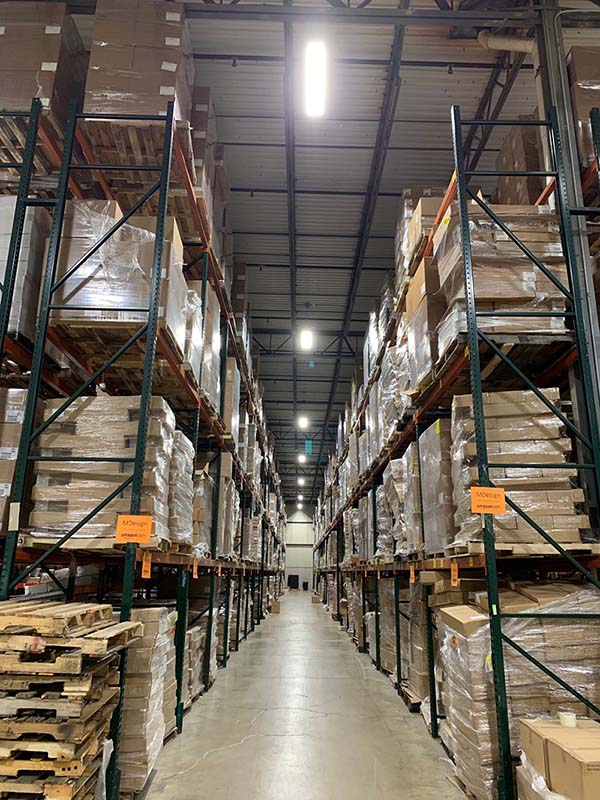

PBLA4After-1_WOPT0919 PBLA4After-1_WOPT0919
PBLA 4-footers
DLC, cULus, MiA, DLC, 10yr 0720

Blog post

    PBL series leads the way for major LED upgrade
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedPredicted L70 Lifetime
PBL A 4 VL UV 8354-foot1179974159.480 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 4 VL UV 840 4-foot1212674163.980 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 VL UV 850 4-foot1245374168.380 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 LW UV 835 4-foot15683103152.380 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 4 LW UV 840 4-foot16118103156.580 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 LW UV 850 4-foot16553103160.780 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 MD UV 835 4-foot19812132150.180 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 4 MD UV 840 4-foot20362132154.380 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 MD UV 850 4-foot20912132158.480 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 HI UV 835 4-foot23406161145.480 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 4 HI UV 840 4-foot24056161149.480 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 4 HI UV 850 4-foot24706161153.580 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 VL UV 8358-foot23596148159.480 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 8 VL UV 8408-foot24251148163.980 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 VL UV 8508-foot24906148168.380 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 LW UV 835 8-foot31366206152.380 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 8 LW UV 8408-foot32236206156.580 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 LW UV 8508-foot33106206160.780 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 MD UV 8358-foot39623265149.580 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 8 MD UV 8408-foot40723265153.780 CRI / 4000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 MD UV 8508-foot41823265157.880 CRI / 5000K120-277, 347V, 480VYesUp to 189,000 hrs (calculated)
PBL A 8 HI UV 8358-foot46813321145.780 CRI / 3500K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 8 HI UV 8408-foot48112321149.780 CRI / 4000K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
PBL A 8 HI UV 8508-foot49411321153.780 CRI / 5000K120-277, 347V, 480VNoUp to 189,000 hrs (calculated)
Catalog #
ImageSpec SheetSell Sheet.ies & .pdf files
PBL A 4 VL UV 835View Download Download Contact Factory
PBL A 4 VL UV 840 View Download Download Download
PBL A 4 VL UV 850 View Download Download Download
PBL A 4 LW UV 835 View Download Download Contact Factory
PBL A 4 LW UV 840 View Download Download Download
PBL A 4 LW UV 850 View Download Download Download
PBL A 4 MD UV 835 View Download Download Contact Factory
PBL A 4 MD UV 840 View Download Download Contact Factory
PBL A 4 MD UV 850 View Download Download Download
PBL A 4 HI UV 835 View Download Download Contact Factory
PBL A 4 HI UV 840 View Download Download Download
PBL A 4 HI UV 850 View Download Download Download
PBL A 8 VL UV 835
Download Download Contact Factory
PBL A 8 VL UV 840
Download Download Contact Factory
PBL A 8 VL UV 850
Download Download Contact Factory
PBL A 8 LW UV 835
Download Download Contact Factory
PBL A 8 LW UV 840
Download Download Contact Factory
PBL A 8 LW UV 850
Download Download Contact Factory
PBL A 8 MD UV 835
Download Download Contact Factory
PBL A 8 MD UV 840
Download Download Contact Factory
PBL A 8 MD UV 850
Download Download Contact Factory
PBL A 8 HI UV 835
Download Download Contact Factory
PBL A 8 HI UV 840
Download Download Contact Factory
PBL A 8 HI UV 850
Download Download Contact Factory
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

PBLAFSPtightcrop_TOP0919
PBLAFSPtightcrop_TOP0919
PBLA4After-2_WOPT919

Ideal for your aisleways

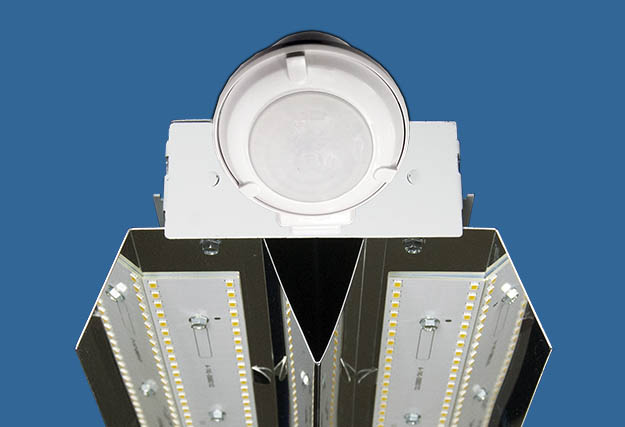

    The PBLA is engineered to provide even vertical illumination on shelving and maximize lighting in the aisleways. Several control options are available to maximize energy savings, including the Wattstopper FSP (pictured). This sensor comes pre-installed, and provides multi-level control based on motion and/or daylight contribution. See spec sheet for more info, and for more control options.
