LED Lensed High Bay

    The PBLX is a general distribution lensed LED high bay. Available in 23-pattern acrylic (clear or frosted), or impact resistant Lexan, the lens provides an aesthetically pleasing uniform look. The PBLX features high performance LED technology, with field-replaceable LED boards and drivers. A wide variety of lumen packages allows for flexibility in design and helps maximize energy savings. Occupancy sensors, dimming sensors and photocells are all optional. Wireguards are also available for extra protection and durability. A version with up-light is also available (click here to view the PBLU). Every PBLX is assembled at our facility in Henderson, NC.
  • Applications: Suitable for most commercial, industrial and institutional applications, including retail, warehousing, manufacturing and gymnasiums
  • Lumen Output: About 8,000 lm to 23,000 lm
  • Max Lumens Per Watt: About 139
  • Size Options: Available in 4-foot and 2-foot
  • Predicted L70 Lifetime: Up to 189,000 hours (calculated)
  • Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
  • Re-BoardABILITY: Every PBLX is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations.
  • Assembled in the USA: Each PBLX is assembled at our facility in Henderson, NC. BAA compliant options are available

Click to enlarge

PBLX2x2-2 PBLX2x2-2

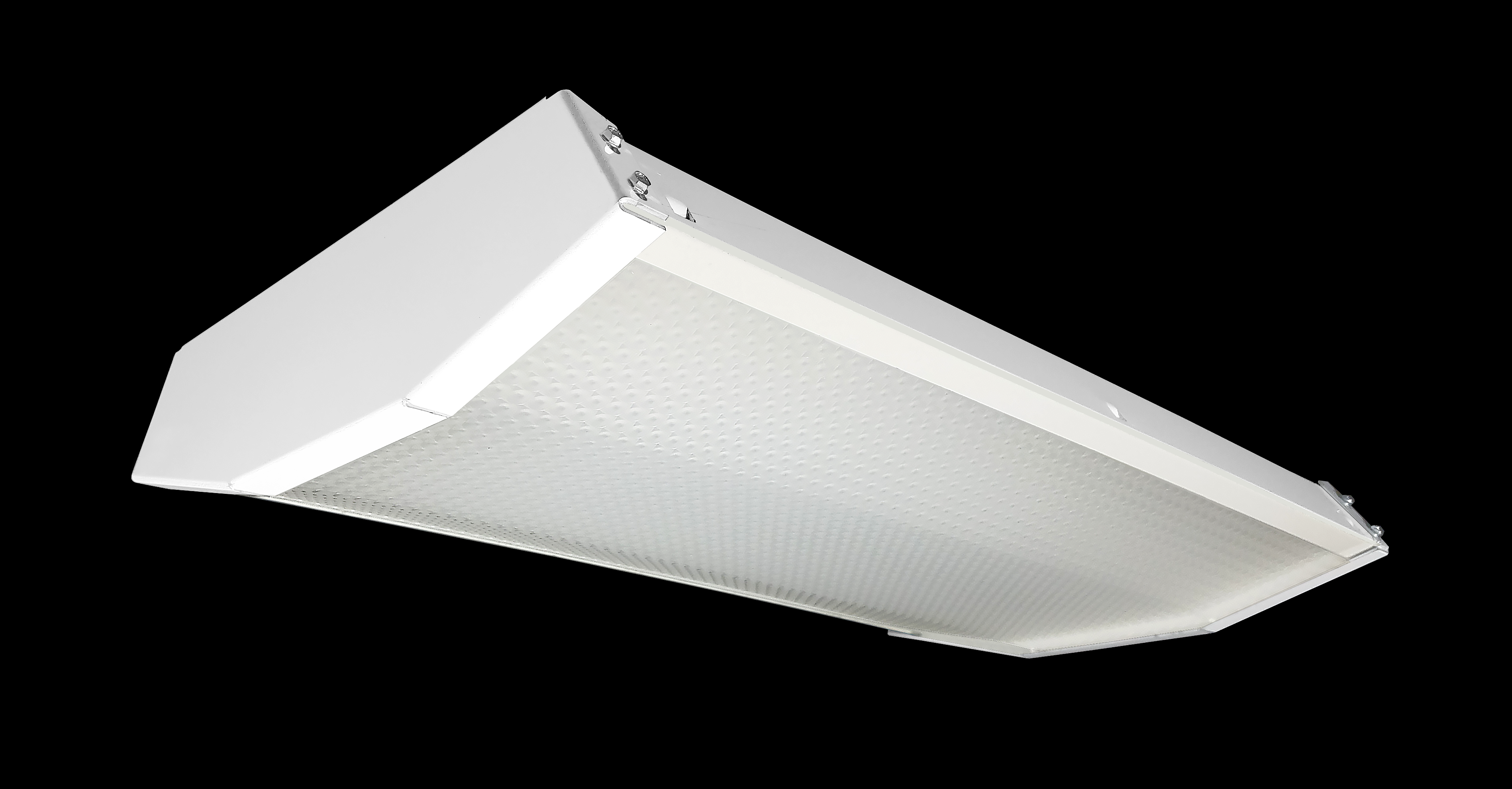

PBLX 2-footer
PBLX2x2-4 PBLX2x2-4

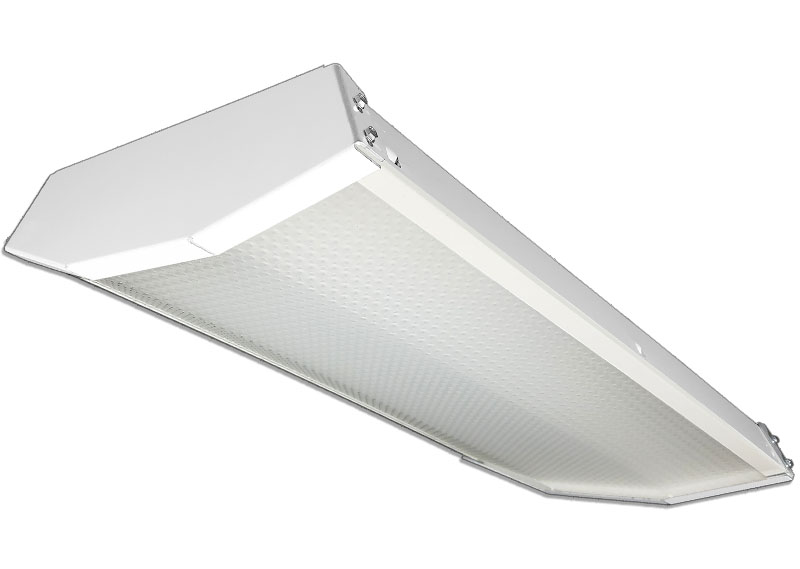

PBLX 2-footer
PBLX2x2-3 PBLX2x2-3
PBLX 2-footer
PBLX2x2 PBLX2x2
PBLX 2-footer
PBLXWG2 jpg PBLXWG2 jpg

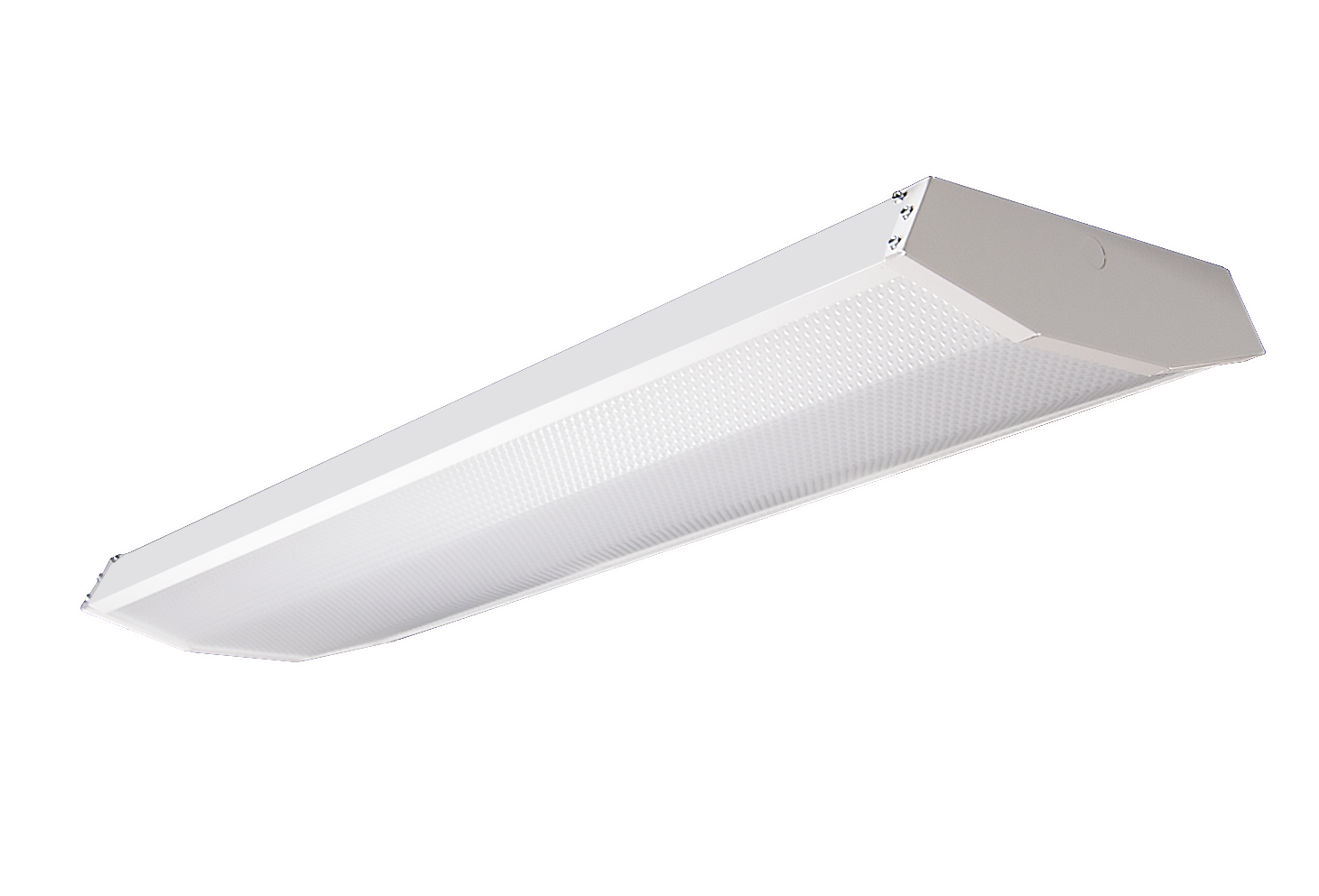

PBLX 4-footer with wireguard
PBLX2x2-5 PBLX2x2-5
PBLX 2-footer
PBLXWG jpg PBLXWG jpg
PBLX 4-footer with wireguard
cULus, AiA, 10yr
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
PBL X 2 LW UV A23F 8352-foot782760130.580 CRI / 3500K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 2 LW UV A23F 8402-foot808660134.880 CRI / 4000K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 2 LW UV A23F 8502-foot832860138.880 CRI / 5000K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 2 MD UV A23F 8352-foot1086987124.980 CRI / 3500K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 2 MD UV A23F 8402-foot1122887129.180 CRI / 4000K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 2 MD UV A23F 8502-foot1156587132.980 CRI / 5000K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 4 VL UV A23F 8354-foot1169391128.980 CRI / 3500K120-277V, 347VNo5 yearsUp to 189,000 hours (calculated)
PBL X 4 VL UV A23F 8404-foot1208091133.280 CRI / 4000K120-277V, 347VNo5 yearsUp to 189,000 hours (calculated)
PBL X 4 VL UV A23F 8504-foot1244291137.280 CRI / 5000K120-277V, 347VNo5 yearsUp to 189,000 hours (calculated)
PBL X 4 LW UV A23F 8354-foot15132123122.980 CRI / 3500K120-277V, 347VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 4 LW UV A23F 8404-foot1563312312780 CRI / 4000K120-277V, 347VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 4 LW UV A23F 8504-foot16101123130.880 CRI / 5000K120-277V, 347VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 4 MD UV A23F 8354-foot19755160123.580 CRI / 3500K120-277V, 347V, 480VNo5 yearsUp to 189,000 hours (calculated)
PBL X 4 MD UV A23F 8404-foot20408160127.580 CRI / 4000K120-277V, 347V, 480VNo5 yearsUp to 189,000 hours (calculated)
PBL X 4 MD UV A23F 8504-foot21020160131.480 CRI / 5000K120-277V, 347V, 480VNo5 yearsUp to 189,000 hours (calculated)
PBL X 4 HI UV A23F 8354-foot21738174124.980 CRI / 3500K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 4 HI UV A23F 8404-foot22456174129.180 CRI / 4000K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
PBL X 4 HI UV A23F 8504-foot23130174132.980 CRI / 5000K120-277V, 347V, 480VNo5 years, 10 years optionalUp to 189,000 hours (calculated)
Catalog #
Equivalency*
PBL X 2 LW UV A23F 835150W MH, 2L T5HO, 3L T8 w/ HBF
PBL X 2 LW UV A23F 840150W MH, 2L T5HO, 3L T8 w/ HBF
PBL X 2 LW UV A23F 850150W MH, 2L T5HO, 3L T8 w/ HBF
PBL X 2 MD UV A23F 835250W MH, 3L T5HO, 4L T8 w/ HBF
PBL X 2 MD UV A23F 840250W MH, 3L T5HO, 4L T8 w/ HBF
PBL X 2 MD UV A23F 850250W MH, 3L T5HO, 4L T8 w/ HBF
PBL X 4 VL UV A23F 835250W MH, 3L T5HO, 4L T8 w/ HBF
PBL X 4 VL UV A23F 840250W MH, 3L T5HO, 4L T8 w/ HBF
PBL X 4 VL UV A23F 850250W MH, 3L T5HO, 4L T8 w/ HBF
PBL X 4 LW UV A23F 835400W MH, 4L T5HO, 6L T8 with HBF
PBL X 4 LW UV A23F 840400W MH, 4L T5HO, 6L T8 with HBF
PBL X 4 LW UV A23F 850400W MH, 4L T5HO, 6L T8 with HBF
PBL X 4 MD UV A23F 835400W PSMH, 5L T5HO, 8L T8 w/ HBF
PBL X 4 MD UV A23F 840400W PSMH, 5L T5HO, 8L T8 w/ HBF
PBL X 4 MD UV A23F 850400W PSMH, 5L T5HO, 8L T8 w/ HBF
PBL X 4 HI UV A23F 835400W PSMH, 6L T5HO, 10L T8 w/ HBF
PBL X 4 HI UV A23F 840400W PSMH, 6L T5HO, 10L T8 w/ HBF
PBL X 4 HI UV A23F 850400W PSMH, 6L T5HO, 10L T8 w/ HBF
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet
PBL X 2 LW UV A23F 835View Download
PBL X 2 LW UV A23F 840View Download
PBL X 2 LW UV A23F 850View Download
PBL X 2 MD UV A23F 835View Download
PBL X 2 MD UV A23F 840View Download
PBL X 2 MD UV A23F 850View Download
PBL X 4 VL UV A23F 835View (with WG) Download
PBL X 4 VL UV A23F 840View (with WG) Download
PBL X 4 VL UV A23F 850View (with WG) Download
PBL X 4 LW UV A23F 835View (with WG) Download
PBL X 4 LW UV A23F 840View (with WG) Download
PBL X 4 LW UV A23F 850View (with WG) Download
PBL X 4 MD UV A23F 835View (with WG) Download
PBL X 4 MD UV A23F 840View (with WG) Download
PBL X 4 MD UV A23F 850View (with WG) Download
PBL X 4 HI UV A23F 835View (with WG) Download
PBL X 4 HI UV A23F 840View (with WG) Download
PBL X 4 HI UV A23F 850View (with WG) Download
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

PBLXWGgreyb

Options and controls

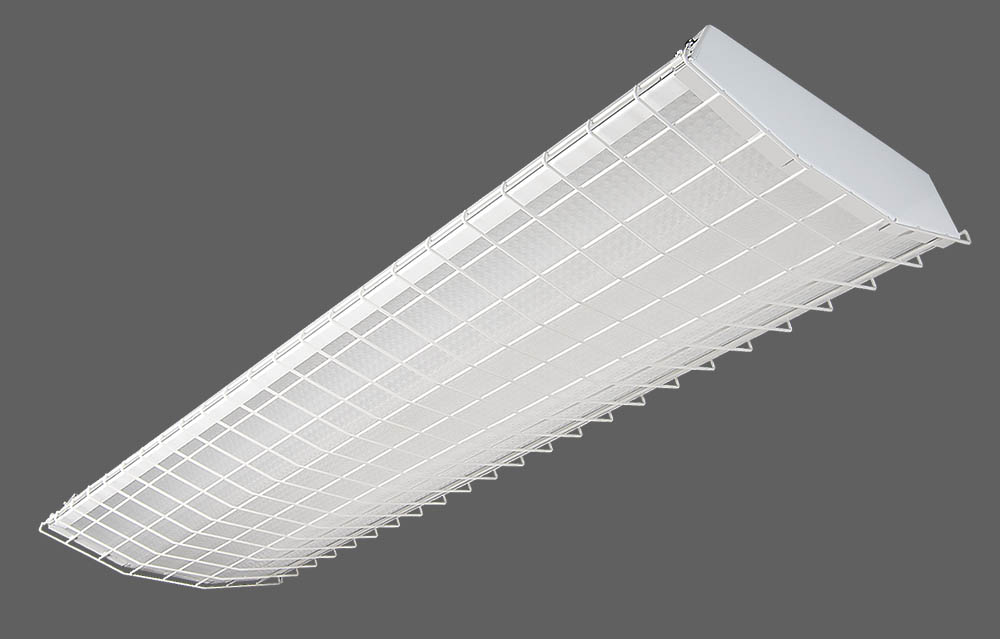

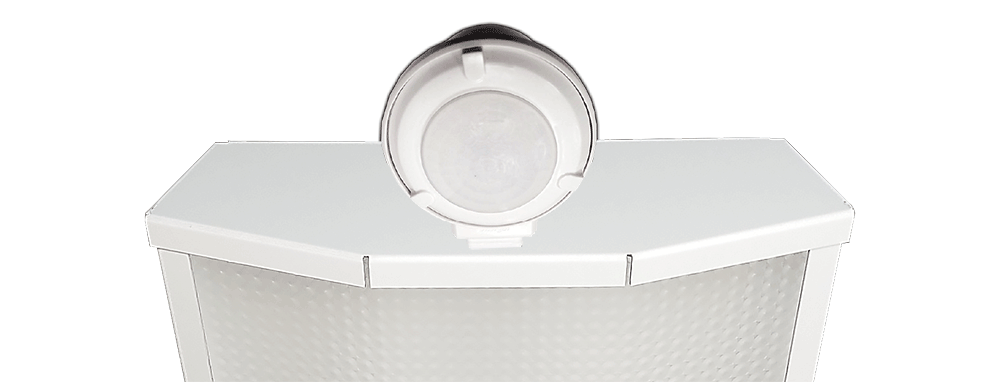

    The PBLX is available with an optional wireguard (pictured) for added protection and durability. Occupancy sensors - including dimming sensors and photocells - are also optional. The Wattstopper FSP sensor provides multi-level control based on motion and/or daylight contribution. See spec sheet for details, and for more available options.
PBLX-fsp-webopt
