LED Power Flood Light

    The PFx is offered in a variety of sizes and lumen packages. Lumen output ranges from 2,030 in the smallest option (PF1), up to nearly 33,000 lumens in the largest option (PF5). A chip and fade resistant power coat finish adorns the die cast aluminum construction. Custom colors are available upon request. A photocell is optional.
Spec Sheet
High Res Images
.ies files
.pdf files
  • Applications: Suitable for most exterior floodlight applications
  • Lumen Output: From 2,200 lumens up to just under 33,000 lumens
  • Max Lumens Per Watt: 110.2
  • Predicted L70 Lifetime: 52,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP66 rated.
Buy Now
Request a Quote

Click to enlarge

PF1 PF1
PF1
PF2 PF2
PF2
PF3 PF3
PF3
PF4 PF4
PF4
PF5jpeg PF5jpeg
PF5
PF1 schematic PF1 schematic
PF1 schematic
PF2 schematic PF2 schematic
PF2 schematic
PF3 schematic PF3 schematic
PF3 schematic
PF4 schematic PF4 schematic
PF4 schematic
PF5 schematic PF5 schematic
PF5 schematic
UL mark converted from Matt jpg use with ER
Buy Now
Request a Quote
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
PF1 MD F UV 8402,03020102.5Flood80 CRI / 4000K120-277V5 years52,000 hrs
PF2 MD F UV 8404,10740101.9Flood80 CRI / 4000K120-277V5 years52,000 hrs
PF3 HI F UV 84010,523102103.6Flood80 CRI / 4000K120-277V5 years52,000 hrs
PF4 HI F UV 84016,390149110.2Flood80 CRI / 4000K120-277V5 years52,000 hrs
PF5 HI F UV 84032,942305107.9Flood80 CRI / 4000K120-277V5 years52,000 hrs
Catalog #
Equivalency*
PF1 MD F UV 84039W MH
PF2 MD F UV 84070W MH
PF3 HI F UV 840250W MH
PF4 HI F UV 840400W MH
PF5 HI F UV 840750W PSMH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
PF1 MD F UV 840View Download Contact Factory
PF2 MD F UV 840View Download Download
PF3 HI F UV 840View Download Download
PF4 HI F UV 840View Download Download
PF5 HI F UV 840View Download Download

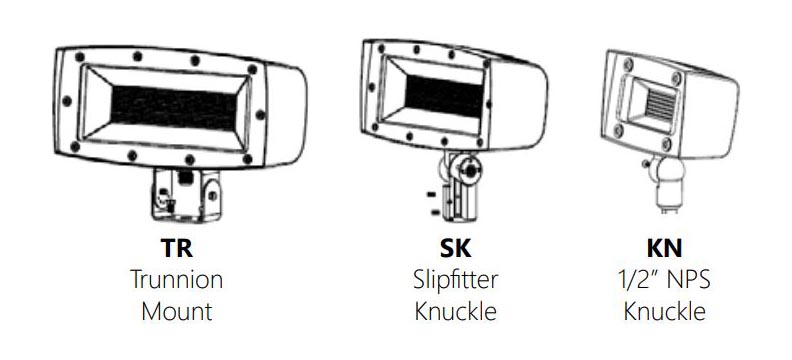

PFx mounting

Mounting options

    The PF1 and PF2 is mounted via the 1/2" NPS locking swivel knuckle. For the PF3, PF4 and PF5, either the slipfitter knuckle or the trunnion mount are available.
