LED Economy Flood Light

    The PFxE is an efficient LED flood light suitable for exterior use. It comes in two sizes. The PF1E is a 20-watt luminaire producing 2,148 lumens. the PF2E is a 50-watt unit producing 5,006 lumens. The PFxE features wide beam flood distribution, providing even illumination over the target area. A premium version, with additional sizes and options, is available as the PFx (learn more about the PFx here).
Spec Sheet
High Res Images
.ies files
.pdf files
  • Applications: Suitable for most exterior floodlight applications
  • Lumen Output: 2,148 lumens in the PF1E, 5,006 in the PF2E
  • Max Lumens Per Watt: 108.5 (PF1E)
  • Predicted L70 Lifetime: >50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP66-rated
Buy Now
Request a Quote

Click to enlarge

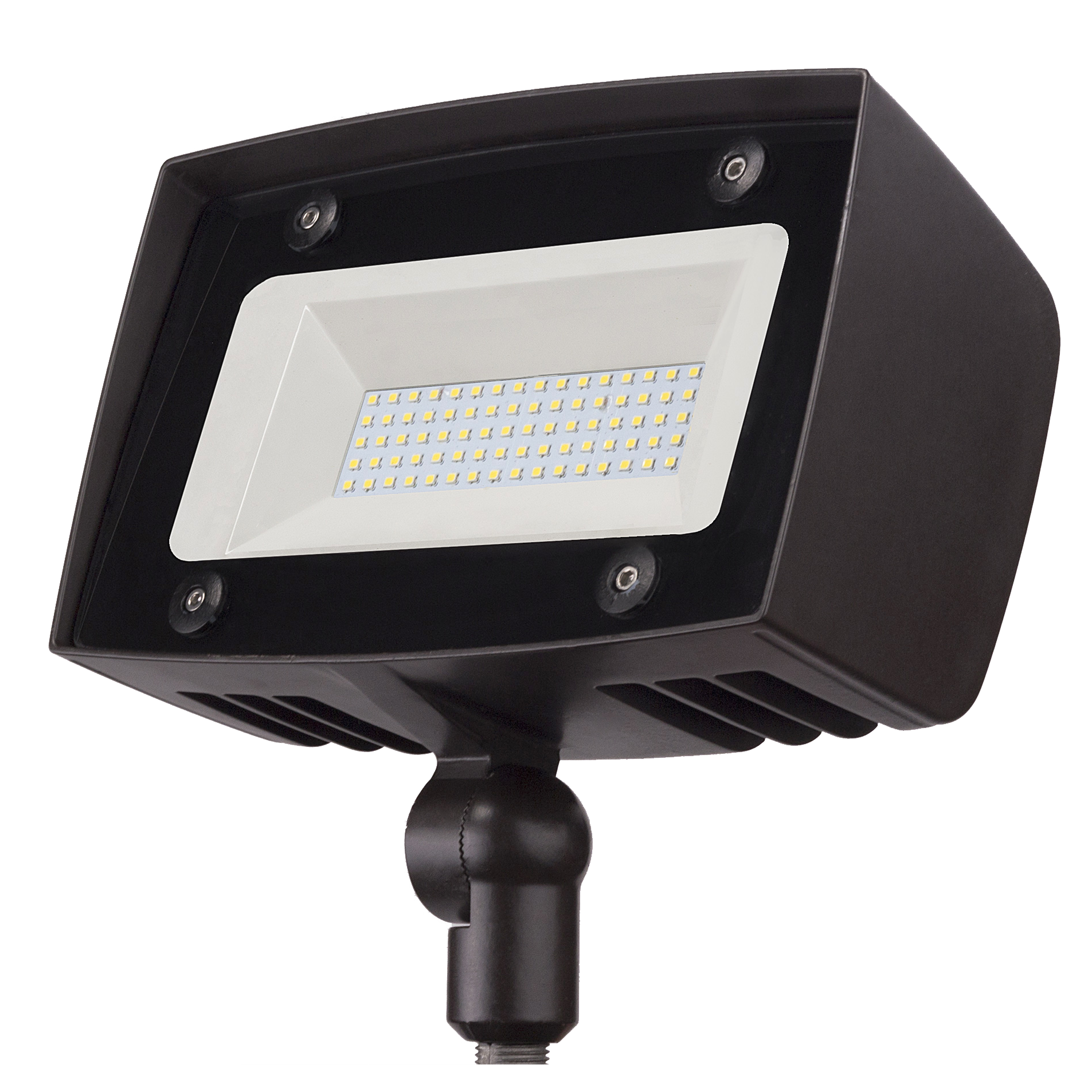

PF2E jpg PF2E jpg
PF2E

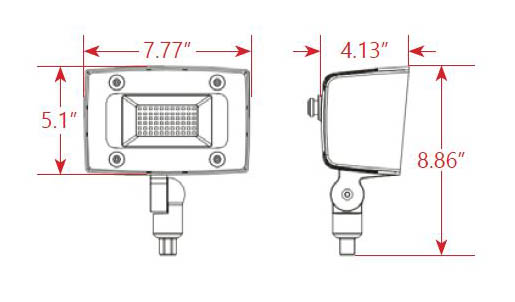

PF1E schematic PF1E schematic
PF1E schematic

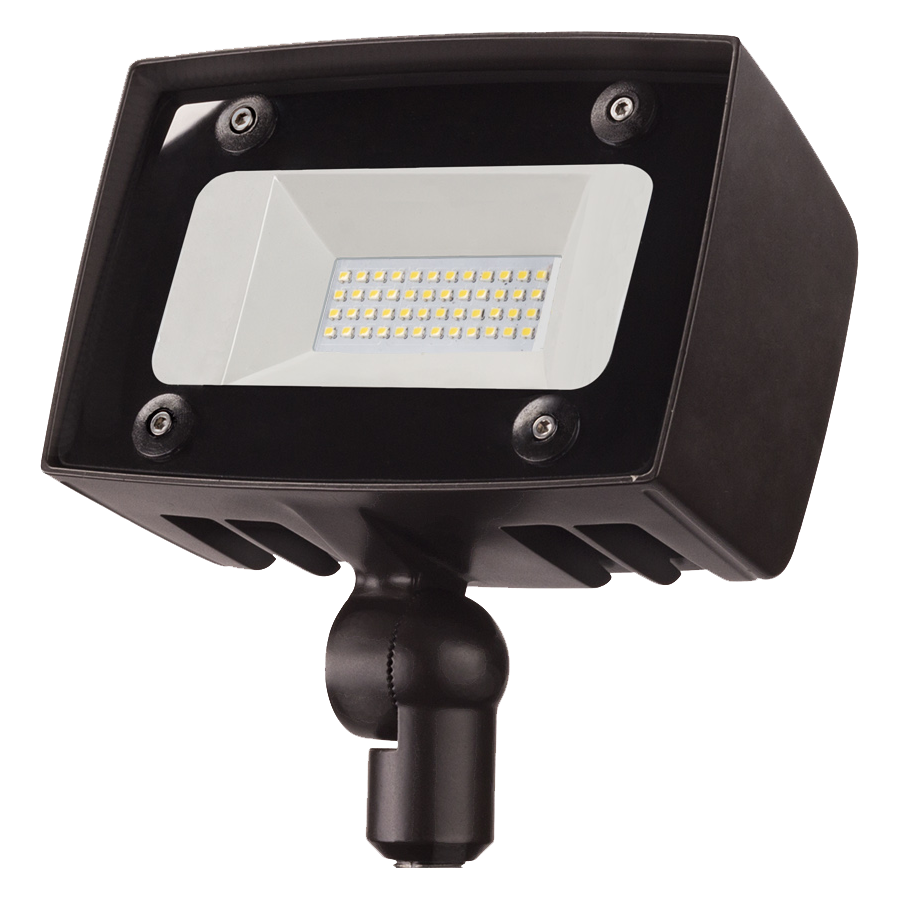

PF1E jpg PF1E jpg
PF1E

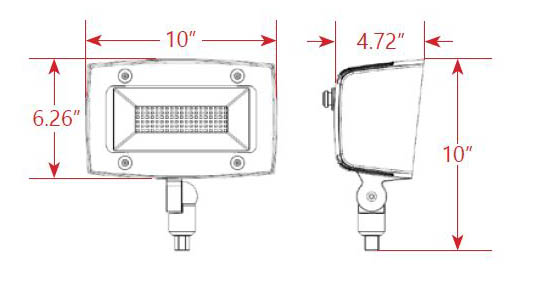

PF2E schematic PF2E schematic
PF2E schematic
PBLU 3
Buy Now
Request a Quote
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
PF1E MD F UV 8402,14820108.5Forward80 CRI / 4000K120-277V5 years>50,000 hrs
PF2E HE F UV 8405,00650100.9Forward80 CRI / 4000K120-277V5 years>50,000 hrs
Catalog #
Equivalency*
PF1E MD F UV 84039W MH
PF2E HE F UV 840100W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
PF1E MD F UV 840View Download Download
PF2E HE F UV 840View Download Download

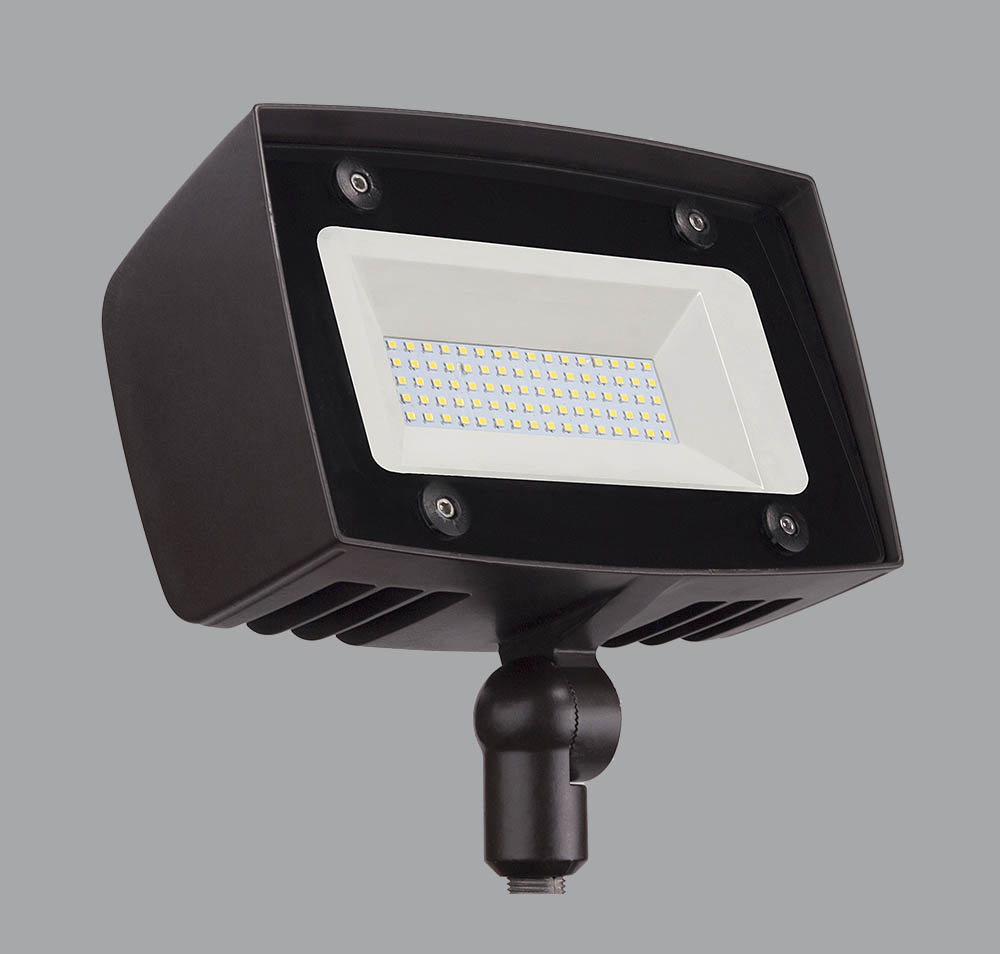

PF2E lightgreybg

Durable construction

    The PFxE features a die cast aluminum housing with a chip and fade resistant textured polyester powdercoat finish and an integral heat sink. Each PFxE ships with a 1/2" NPS locking swivel knuckle.
