LED Parking Garage Canopy Light

The PGx is a highly efficient LED canopy light suitable for most parking garage and canopy applications. It is available in two sizes - small (PGS - 9.5" x 9.5") and medium (PGM - 11.8" x 11.8"). An optional microwave sensor maximizes energy savings by providing multi-level control based on motion and/or daylight detection. The housing is constructed of die cast aluminum, and it comes in a bronze or white powdercoat finish. The lens is polycarbonate.

  • Applications: Suitable for most parking garage and canopy applications
  • Lumen Output: From 3,100 in the PGS up to 12,700 in the PGM
  • Max Lumens Per Watt: 131
  • Predicted L70 Lifetime: >150,000 hrs
  • Warranty: 5 year limited system warranty
  • Certifications: cULus listed for wet locations. IP65 rated
https://www.lumenfocus.com/wp-content/uploads/2019/01/PGxSchematics.jpg
PGS (left) and PGM (right) size comparison
https://www.lumenfocus.com/wp-content/uploads/2019/01/PGSjpg1forslider.jpg

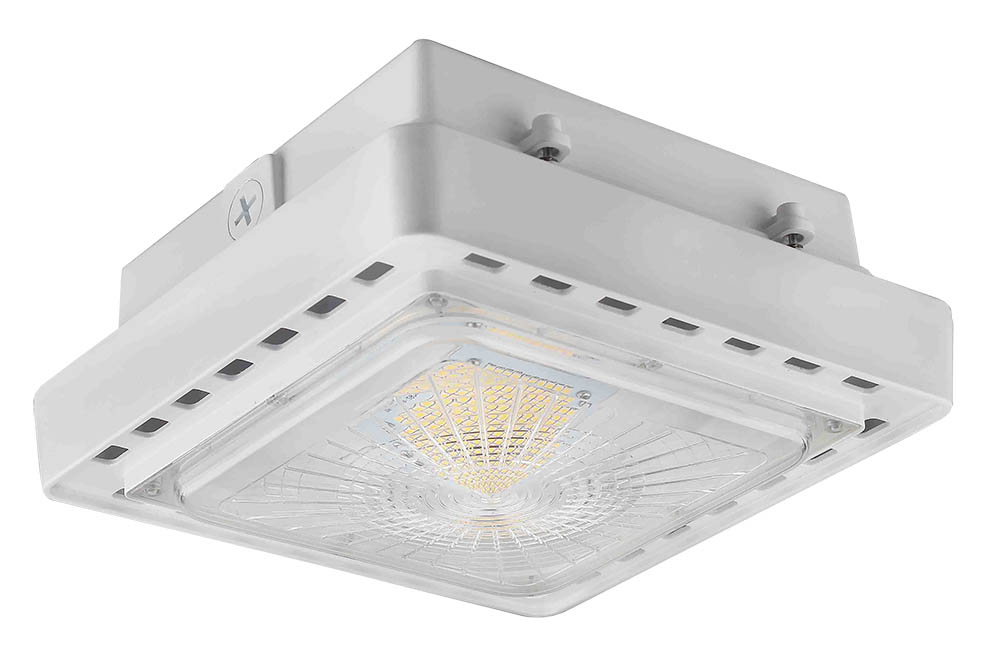

PGS
https://www.lumenfocus.com/wp-content/uploads/2019/01/PGMjpg1forslider.jpg
PGM

PGx Performance Chart

Catalog #
LumensWattsLPWBUG RatingOpticCRI / Color TempShieldingVoltages AvailableWarrantyPredicted L70 LifetimeEquivalency*
PGS LW 5 UV CP 840
Photometry Files | Image
3,13724131B2-U2-G1Type V80 CRI / 4000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 50W MH
PGS LW 5 UV CP 850
Photometry Files | Image
3,14924131B2-U2-G1Type V80 CRI / 5000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 50W MH
PGS MD 5 UV CP 840
Photometry Files | Image
4,94340124B2-U2-G1Type V80 CRI / 4000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 100W HPS
PGS MD 5 UV CP 850
Photometry Files | Image
5,02440126B2-U2-G1Type V80 CRI / 5000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 100W HPS
PGS HI 5 UV CP 840
Photometry Files | Image
7,00256125B3-U2-G1Type V80 CRI / 4000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 150W MH
PGS HI 5 UV CP 850
Photometry Files | Image
7,07756126B3-U2-G1Type V80 CRI / 5000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 150W MH
PGM VH 5 UV CP 840
Photometry Files | Image
12,516102123B3-U3-G2Type V80 CRI / 4000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 250W PSMH
PGM VH 5 UV CP 850
Photometry Files | Image
12,708102125B3-U3-G2Type V80 CRI / 5000KClear Polycarbonate Lens120-277V5 years>150,000 hrsReplaces 250W PSMH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
