LED Premium Cutoff Wall Pack

The PPC is a high performance wall pack that features the latest LED technology. With 0-10V dimming drivers standard, the PPC can produce up to 20,000 lumens at efficacies over 100 lumens per watt. The PPC mounts directly over a 4" recessed outlet box using the hands-free "Easy-Hang" wall mount bracket with built-in level (included with the luminaire). Microwave sensors are available. The PPC features a die cast aluminum housing, with a full cutoff front frame and an integral heat sink. The lens is made of vandal resistant polycarbonate.

  • Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
  • Lumen Output: From about 9,700 lm to over 21,000 lm
  • Max Lumens Per Watt: 113.7
  • Predicted L70 Lifetime: >100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations. IP66 rated
https://www.lumenfocus.com/wp-content/uploads/2018/04/PPC-slider.jpg
PPC
https://www.lumenfocus.com/wp-content/uploads/2018/04/PPC-schematic.jpg

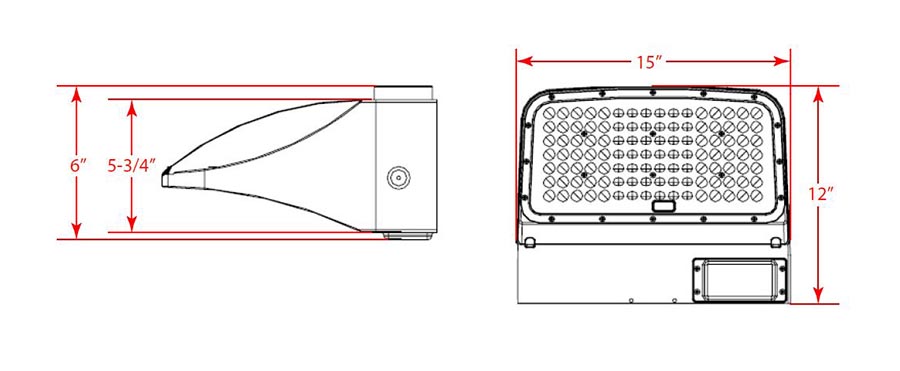

PPC schematic

PPC Performance Chart

Catalog #
LumensWattsLPWCRI / Color TempBUG RatingOpticVoltages AvailableWarrantyPredicted L70 Lifetime
PPC LW F UV CP 840
Photometry Files | Image
9,70093104.380 CRI / 4000KB3-U3-G3Forward120-277V, 347V, 480V5 years>100,000 hrs (calculated)
PPC LW F UV CP 850
Photometry Files | Image
10,40293111.880 CRI / 5000KB3-U3-G3Forward120-277V, 347V, 480V5 years>100,000 hrs (calculated)
PPC MD F UV CP 840
Photometry Files | Image
13,697131104.680 CRI / 4000KB3-U3-G3Forward120-277V, 347V, 480V5 years>100,000 hrs (calculated)
PPC MD F UV CP 850
Photometry Files | Image
14,689131112.180 CRI / 5000KB3-U3-G3Forward120-277V, 347V, 480V5 years>100,000 hrs (calculated)
PPC HI F UV CP 840
Photometry Files | Image
19,93118810680 CRI / 4000KB3-U3-G3Forward120-277V, 347V, 480V5 years>100,000 hrs (calculated)
PPC HI F UV CP 850
Photometry Files | Image
21,374188113.780 CRI / 5000KB3-U3-G3Forward120-277V, 347V, 480V5 years>100,000 hrs (calculated)
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
