LED Channel Retrofit Kit

The RCL retrofit is a great application to save on installation cost, material cost and waste all while getting the benefit of upgrading your fluorescent luminaire to a highly efficient LED system. With a customer-provided width, the RCL can retrofit most existing strips. A "Variable" width option is available as well, which fits channel widths from 4.00 inches up to 5.00 inches. A wide variety of lumen packages and lengths allows for flexibility in design and helps maximize energy savings. Optional frosted diffuser lenses help minimize glare and improve aesthetics. Every RCL is made in the USA - in our facility in Henderson, NC, utilizing mostly domestic and some foreign components.

Applications: Suitable for most commercial, industrial and institutional applications - office, retail, warehouses, coves, valences
Lumen Output: From 800 lm in the 2-foot version to 18,000 lm in the 8-footer
Max Lumens Per Watt: Over 150
Size Options: 2-foot, 3-foot, 4-foot, 6-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every RCL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Buy Now

Request a Quote

Luminaire Photos
Installation Instructions

Click to enlarge

Exploded view of RCL2, with diffuser lens (FR) option, existing housing in green

Exploded view of RCL2, existing housing in green

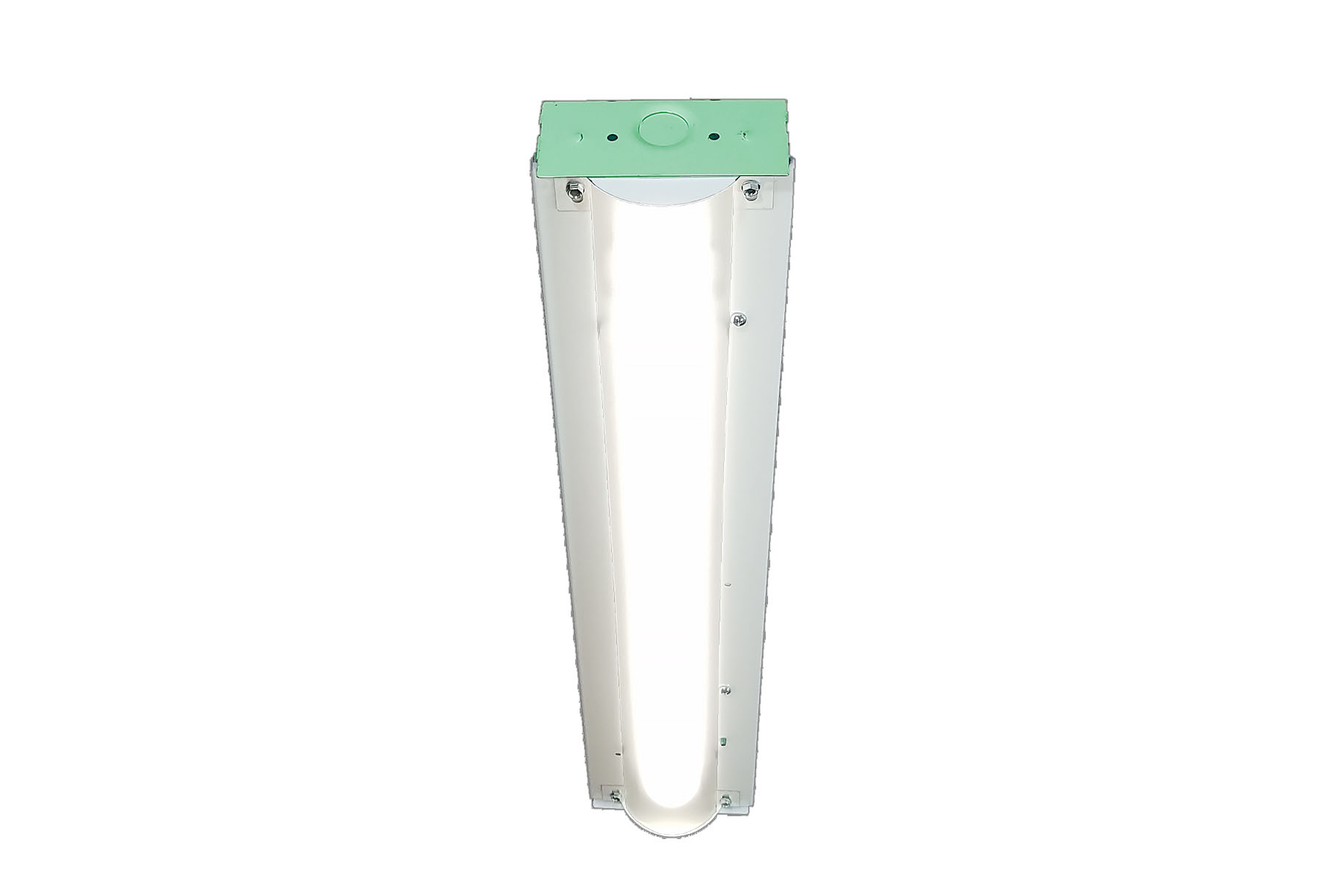

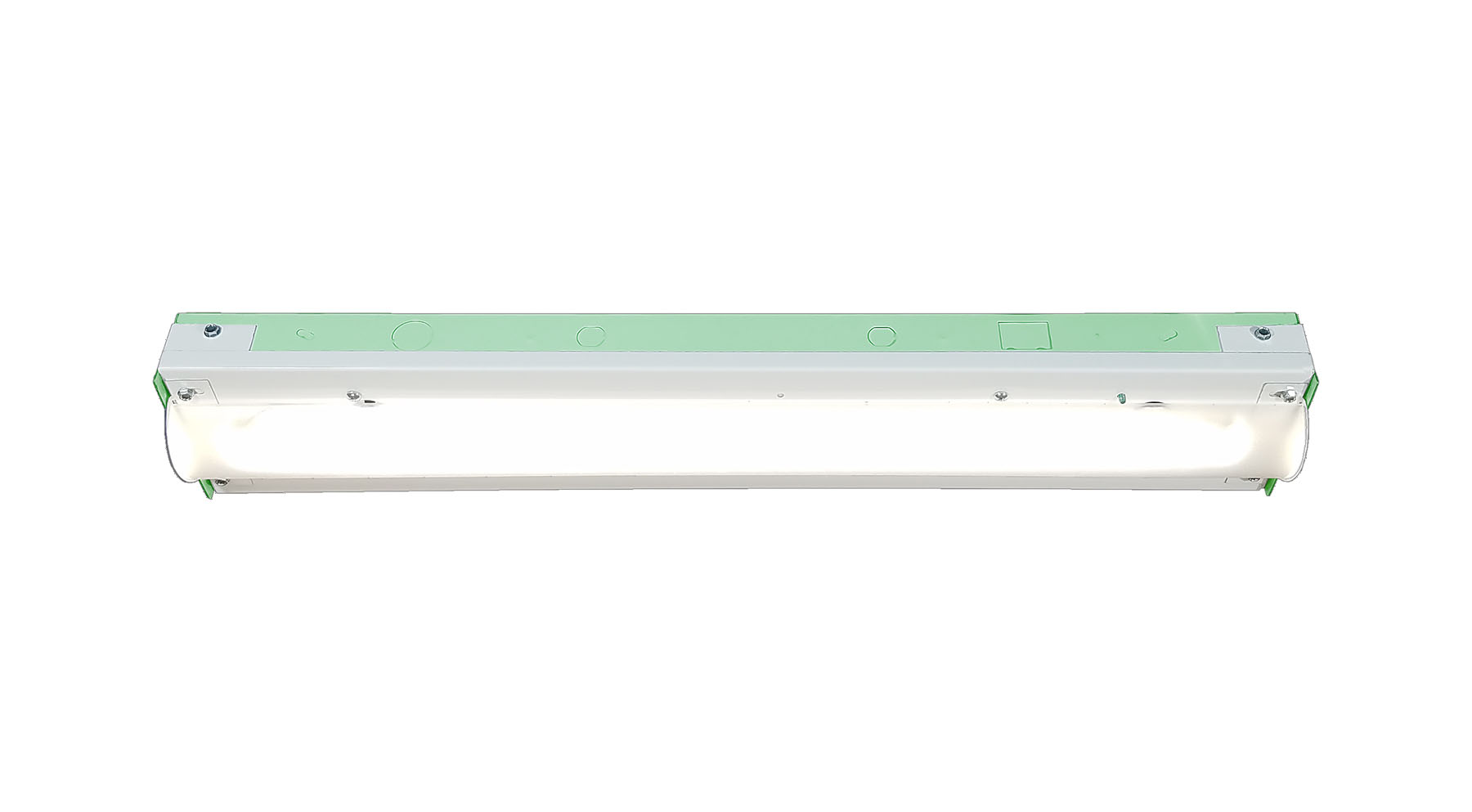

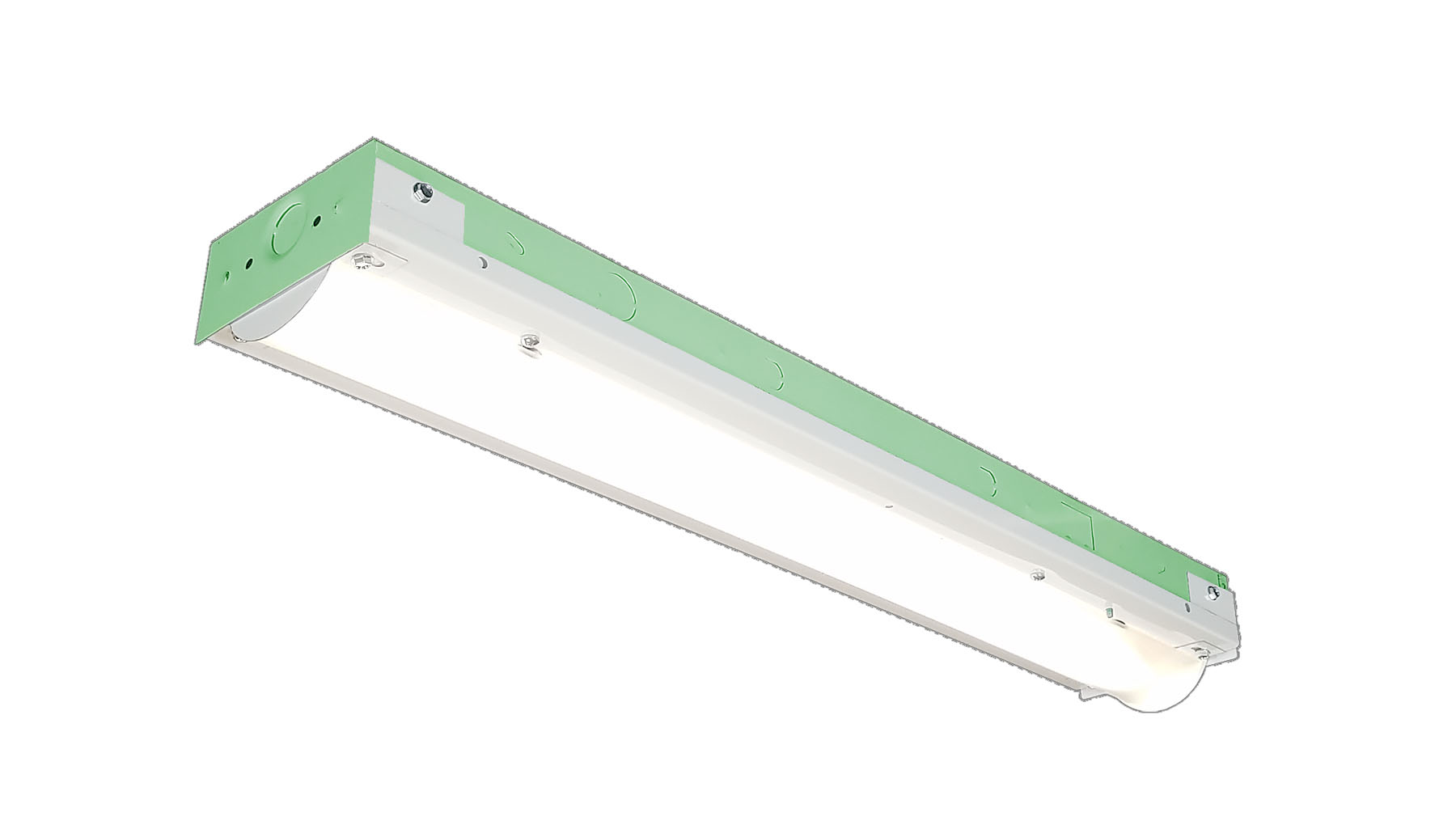

RCL2 with diffuser lens, existing housing in green

RCL2 with diffuser lens, existing housing in green

RCL2 with diffuser lens, existing housing in green

RCL4

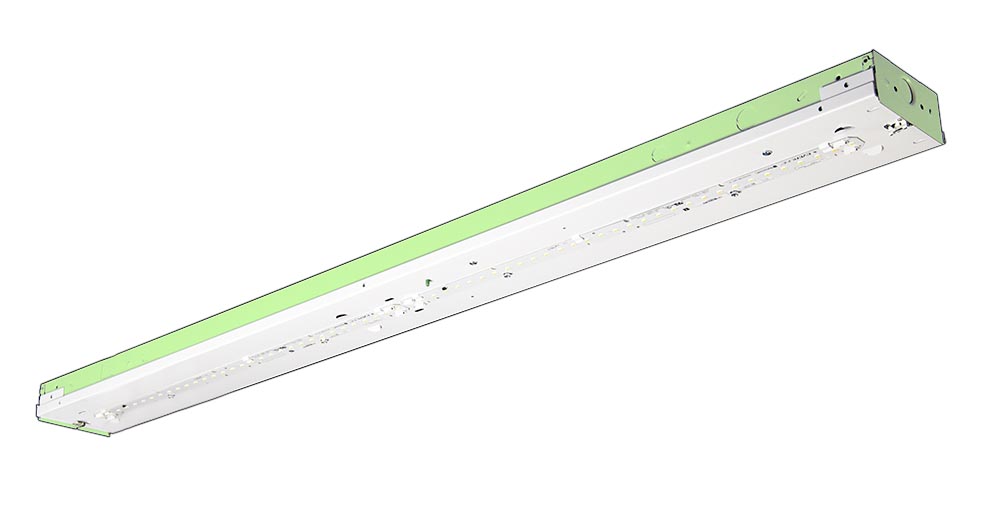

RCL4 with existing housing in green

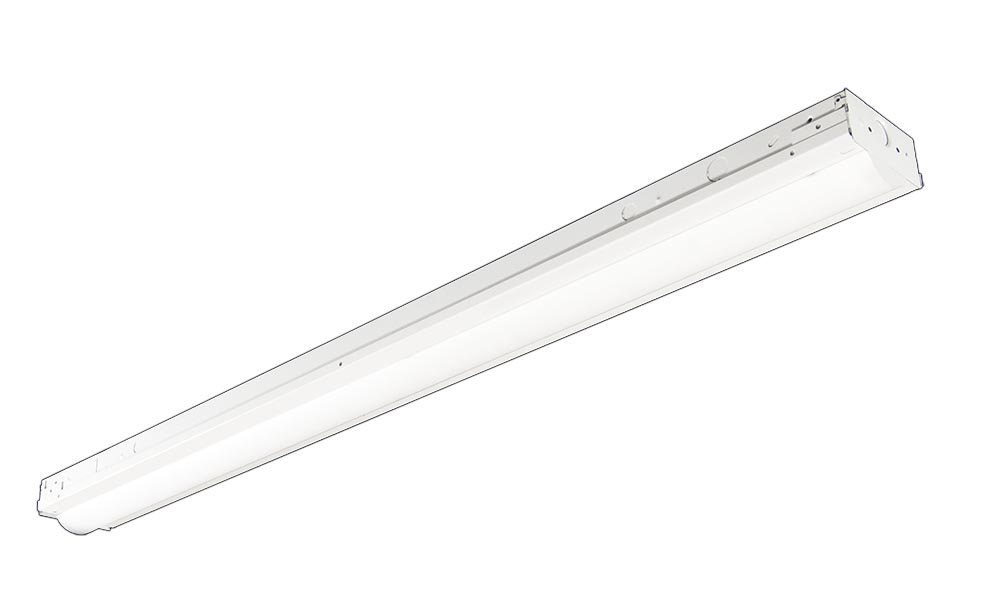

RCL4 with white diffuser lens

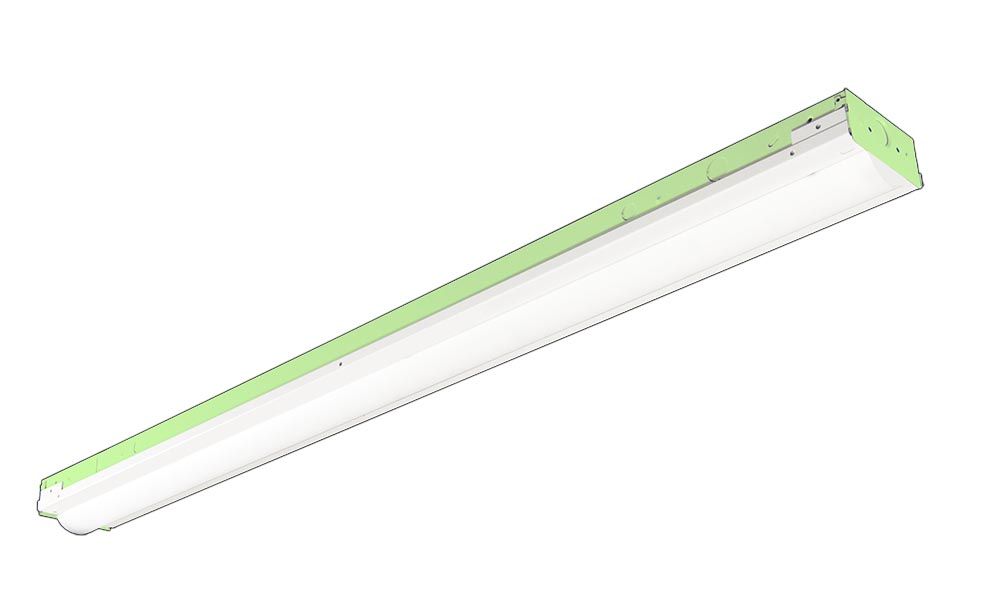

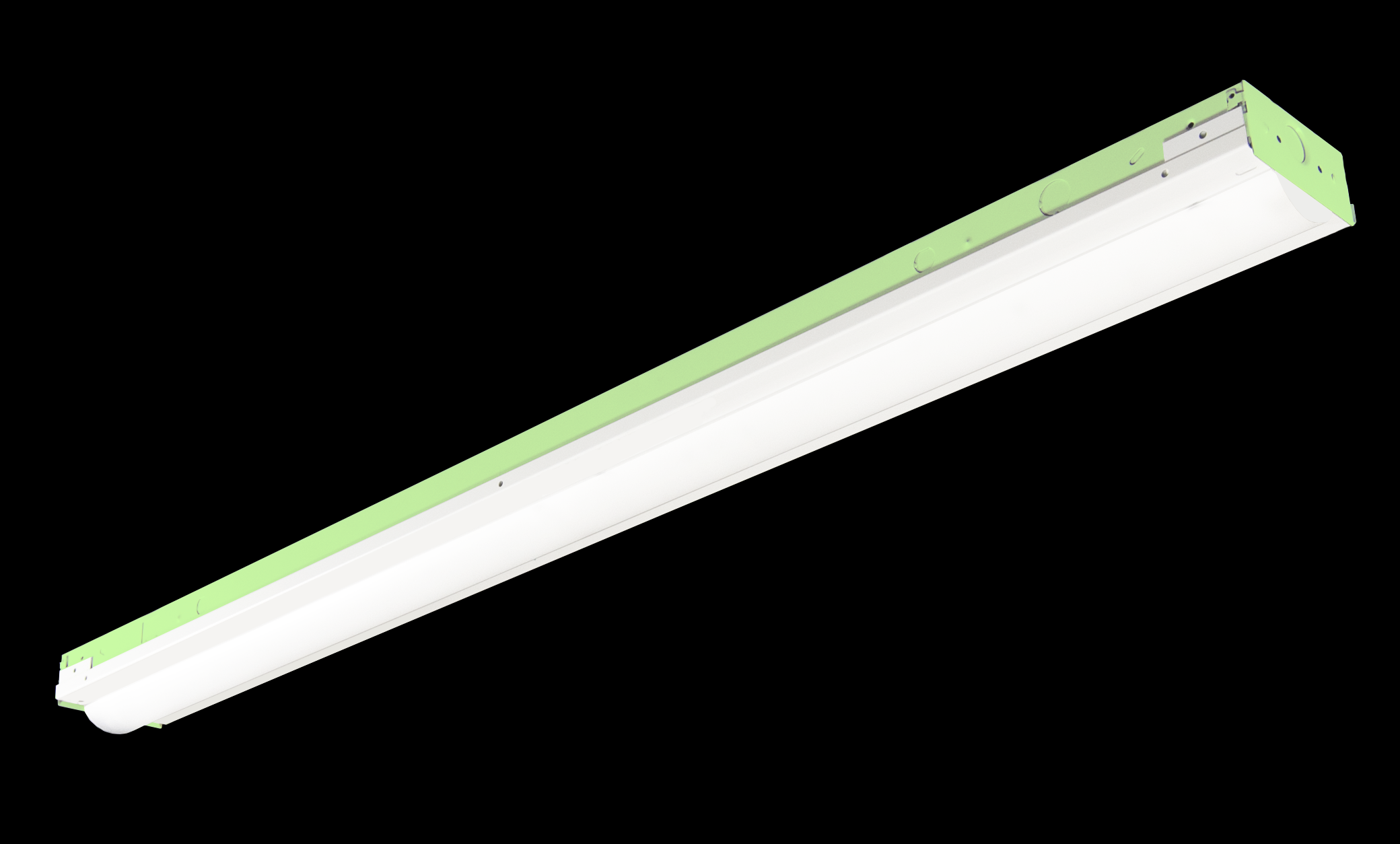

RCL4 with diffuser lens, existing housing in green

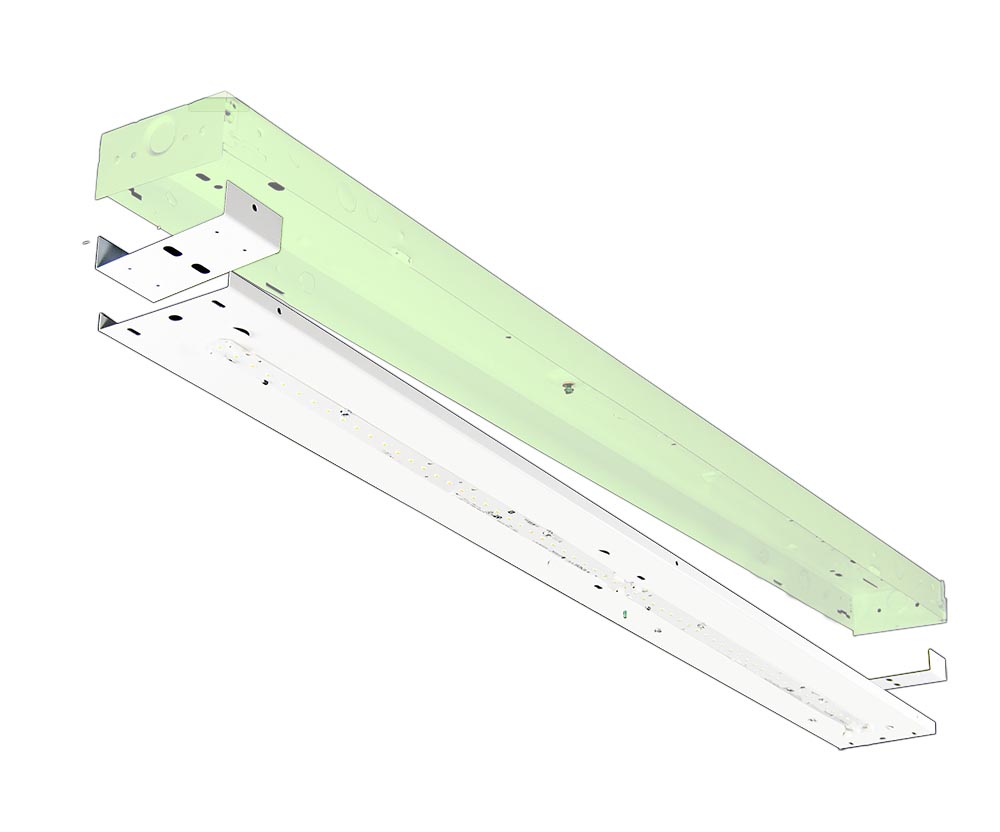

The RCL4 kit, with existing strip housing in green

RCL8, end view

RCL8, end view, with existing housing in green

RCL8

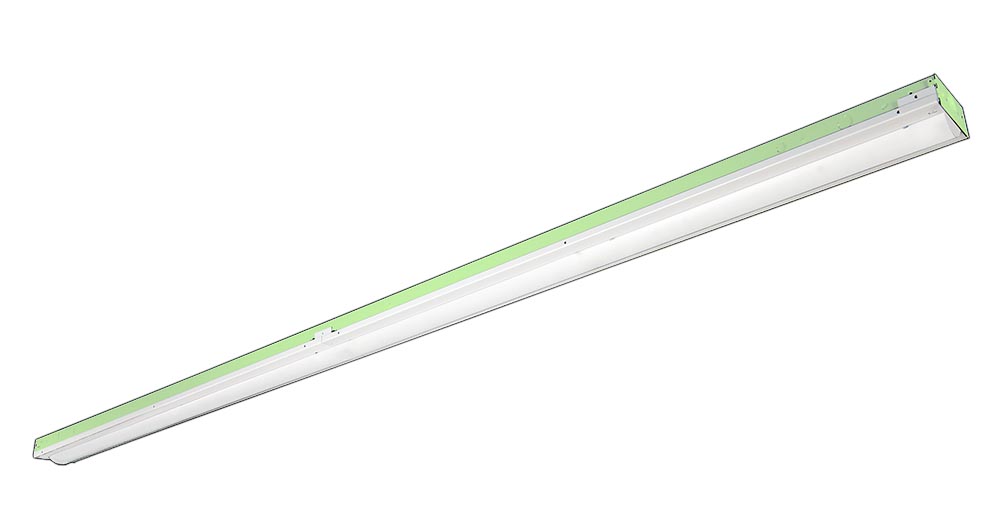

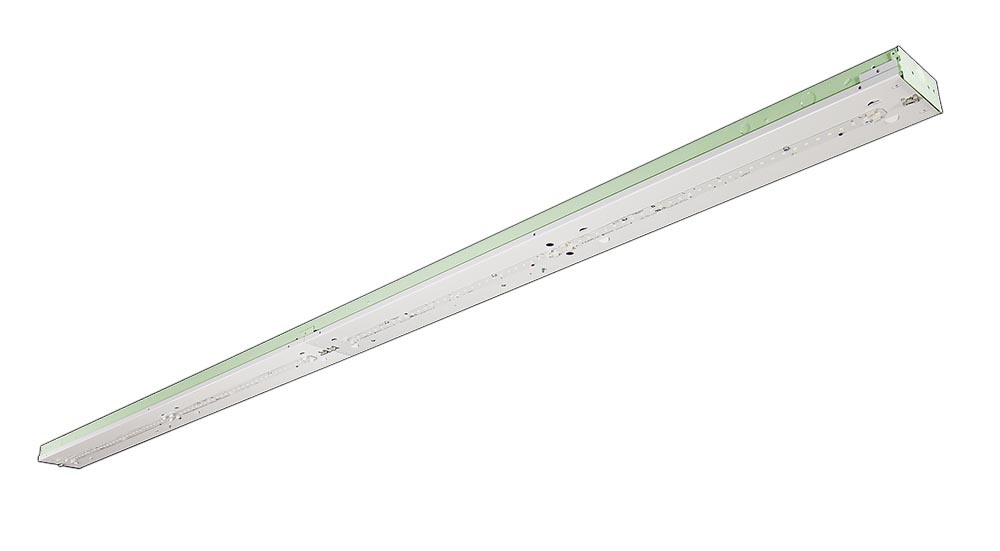

RCL8 with existing housing in green

RCL8 with white diffuser lens

RCL8 with diffuser lens, existing housing in green

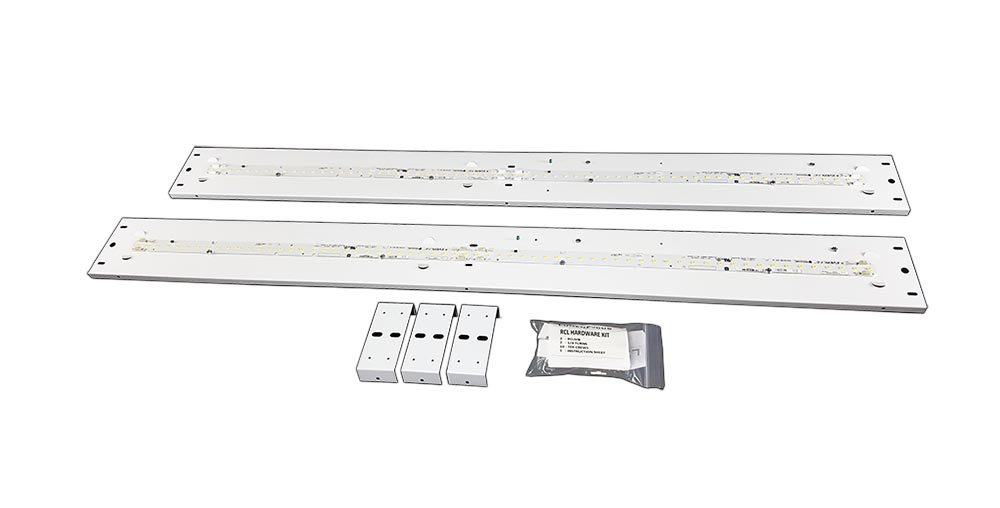

RCL kits come boxed with all the necessary hardware

Click to download
RCL 4-footer and 8-footer
RCL 4-footer and 8-footer (adjustable width)

Buy Now

Request a Quote

Note: Table scrolls horizontally

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Voltages Available	DLC Listed	Predicted L70 Lifetime
RCL 2 LW UV 835	2-foot	837	8	104.7	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 2 LW UV 840	2-foot	863	8	107.9	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 2 LW UV 850	2-foot	889	8	111.1	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 2 MD UV 835	2-foot	1,950	17.5	111.4	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 MD UV 840	2-foot	2,011	17.5	114.9	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 MD UV 850	2-foot	2,071	17.5	118.3	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 HI UV 835	2-foot	3,085	23	134.1	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 HI UV 840	2-foot	3,180	23	138.3	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 HI UV 850	2-foot	3,275	23	142.4	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 VH UV 835	2-foot	3,963	32	123.9	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 VH UV 840	2-foot	4,086	32	127.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 VH UV 850	2-foot	4,208	32	131.5	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 3 LW UV 835	3-foot	1,241	11	112.8	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 LW UV 840	3-foot	1,279	11	116.3	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 LW UV 850	3-foot	1,318	11	119.8	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 MD UV 835	3-foot	3,183	23	138.4	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 MD UV 840	3-foot	3,282	23	142.7	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 MD UV 850	3-foot	3,380	23	147	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 4 LW UV 835	4-foot	2,305	18	128	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 LW UV 840	4-foot	2,376	18	132	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 LW UV 850	4-foot	2,447	18	136	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MD UV 835	4-foot	3,832	32	119.7	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MD UV 840	4-foot	3,950	32	123.4	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MD UV 850	4-foot	4,069	32	127.1	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MH UV 835	4-foot	4,829	36	134.1	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MH UV 840	4-foot	4,978	36	138.3	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MH UV 850	4-foot	5,128	36	142.4	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 HI UV 835	4-foot	6,705	46	145.8	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 HI UV 840	4-foot	6,913	46	150.3	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 HI UV 850	4-foot	7,120	46	154.8	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 VH UV 835	4-foot	8,901	68	130.9	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 VH UV 840	4-foot	9,177	68	134.9	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 VH UV 850	4-foot	9,452	68	139	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 6 LW UV 835	6-foot	3,119	22	141.8	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 LW UV 840	6-foot	3,216	22	146.2	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 LW UV 850	6-foot	3,312	22	150.5	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 MD UV 835	6-foot	6,482	54	120	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 MD UV 840	6-foot	6,682	54	123.7	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 MD UV 850	6-foot	6,883	54	127.5	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 HI UV 835	6-foot	9,854	70	140.8	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 HI UV 840	6-foot	10,159	70	145.1	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 HI UV 850	6-foot	10,463	70	149.5	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 VH UV 835	6-foot	12,423	95	130.8	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 VH UV 840	6-foot	12,807	95	134.8	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 VH UV 850	6-foot	13,192	95	138.9	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 8 LW UV 835	8-foot	4,240	30	141.3	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 LW UV 840	8-foot	4,371	30	145.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 LW UV 850	8-foot	4,503	30	150.1	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 ML UV 835	8-foot	6,125	44	139.2	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 ML UV 840	8-foot	6,314	44	143.5	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 ML UV 850	8-foot	6,504	44	147.8	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD UV 835	8-foot	8,033	64	125.5	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD UV 840	8-foot	8,281	64	129.4	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD UV 850	8-foot	8,530	64	133.3	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD HE UV 835	8-foot	8,050	56	143	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD HE UV 840	8-foot	8,299	56	147.4	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD HE UV 850	8-foot	8,548	56	151.9	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MH UV 835	8-foot	10,765	78	138	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MH UV 840	8-foot	11,098	78	142.3	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MH UV 850	8-foot	11,431	78	146.5	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 HI UV 835	8-foot	12,988	92	141.2	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 HI UV 840	8-foot	11,389	92	145.5	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 HI UV 850	8-foot	13,791	92	149.9	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 VH UV 835	8-foot	17,316	135	128.3	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 VH UV 840	8-foot	17,852	135	132.2	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 VH UV 850	8-foot	18,388	135	136.2	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 LW UV FR 835	2-foot	804	8	100.5	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 2 LW UV FR 840	2-foot	828	8	103.6	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 2 LW UV FR 850	2-foot	853	8	106.7	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 2 MD UV FR 835	2-foot	1,852	17.5	105.8	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 MD UV FR 840	2-foot	1,910	17.5	109.1	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 MD UV FR 850	2-foot	1,967	17.5	112.4	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 HI UV FR 835	2-foot	2,960	23	128.7	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 HI UV FR 840	2-foot	3,052	23	132.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 HI UV FR 850	2-foot	3,143	23	136.7	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 VH UV FR 835	2-foot	3,804	32	118.9	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 VH UV FR 840	2-foot	3,921	32	122.5	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 2 VH UV FR 850	2-foot	4,039	32	126.2	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 3 LW UV FR 835	3-foot	1,191	11	108.3	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 LW UV FR 840	3-foot	1,228	11	111.6	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 LW UV FR 850	3-foot	1,265	11	115	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 MD UV FR 835	3-foot	3,055	23	132.8	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 MD UV FR 840	3-foot	3,150	23	136.9	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 3 MD UV FR 850	3-foot	3,244	23	141.1	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 4 LW UV FR 835	4-foot	2,212	18	122.9	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 LW UV FR 840	4-foot	2,280	18	126.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 LW UV FR 850	4-foot	2,349	18	130.5	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MD UV FR 835	4-foot	3,640	32	115.5	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MD UV FR 840	4-foot	3,752	32	119.1	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MD UV FR 850	4-foot	3,865	32	122.7	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MH UV FR 835	4-foot	4,635	36	128.7	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MH UV FR 840	4-foot	4,778	36	132.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 MH UV FR 850	4-foot	4,921	36	136.7	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 HI UV FR 835	4-foot	6,436	46	139.9	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 HI UV FR 840	4-foot	6,635	46	144.2	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 HI UV FR 850	4-foot	6,834	46	148.6	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 VH UV FR 835	4-foot	8,543	68	125.6	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 VH UV FR 840	4-foot	8,807	68	129.5	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 4 VH UV FR 850	4-foot	9,071	68	133.4	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 6 LW UV FR 835	6-foot	2,994	22	136.1	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 LW UV FR 840	6-foot	3,086	22	140.3	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 LW UV FR 850	6-foot	3,179	22	144.5	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 MD UV FR 835	6-foot	6,221	54	115.2	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 MD UV FR 840	6-foot	6,413	54	118.8	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 MD UV FR 850	6-foot	6,606	54	122.3	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 HI UV FR 835	6-foot	9,457	70	135.1	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 HI UV FR 840	6-foot	9,750	70	139.3	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 HI UV FR 850	6-foot	10,042	70	143.5	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 VH UV FR 835	6-foot	11,923	95	125.5	80 CRI / 3500K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 VH UV FR 840	6-foot	12,292	95	129.4	80 CRI / 4000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 6 VH UV FR 850	6-foot	12,660	95	133.3	80 CRI / 5000K	120-277V, 347V	No	Up to 189,000 hrs (calculated)
RCL 8 LW UV FR 835	8-foot	4,070	30	135.7	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 LW UV FR 840	8-foot	4,195	30	139.8	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 LW UV FR 850	8-foot	4,321	30	144	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 ML UV FR 835	8-foot	5,878	44	133.6	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 ML UV FR 840	8-foot	6,060	44	137.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 ML UV FR 850	8-foot	6,242	44	141.9	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD UV FR 835	8-foot	7,709	64	120.5	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD UV FR 840	8-foot	7,948	64	124.2	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD UV FR 850	8-foot	8,186	64	127.9	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD HE UV FR 835	8-foot	7,726	56	137.3	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD HE UV FR 840	8-foot	7,965	56	141.5	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MD HE UV FR 850	8-foot	8,204	56	145.7	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MH UV FR 835	8-foot	10,331	78	132.5	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MH UV FR 840	8-foot	10,651	78	136.6	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 MH UV FR 850	8-foot	10,971	78	140.6	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 HI UV FR 835	8-foot	12,465	92	135.5	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 HI UV FR 840	8-foot	12,850	92	139.7	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 HI UV FR 850	8-foot	13,236	92	143.9	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 VH UV FR 835	8-foot	16,619	135	123.1	80 CRI / 3500K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 VH UV FR 840	8-foot	17,133	135	126.9	80 CRI / 4000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)
RCL 8 VH UV FR 850	8-foot	17,647	135	130.7	80 CRI / 5000K	120-277V, 347V	Yes	Up to 189,000 hrs (calculated)

Catalog #	Equivalency*
RCL 2 LW UV 835	1L F17 T8 w/ LBF
RCL 2 LW UV 840	1L F17 T8 w/ LBF
RCL 2 LW UV 850	1L F17 T8 w/ LBF
RCL 2 MD UV 835	2L F17 T8 w/ NBF, 1L F24 T5HO
RCL 2 MD UV 840	2L F17 T8 w/ NBF, 1L F24 T5HO
RCL 2 MD UV 850	2L F17 T8 w/ NBF, 1L F24 T5HO
RCL 2 HI UV 835	2L F24T5HO
RCL 2 HI UV 840	2L F24T5HO
RCL 2 HI UV 850	2L F24T5HO
RCL 2 VH UV 835	3L F17 T8 w/ HBF
RCL 2 VH UV 840	3L F17 T8 w/ HBF
RCL 2 VH UV 850	3L F17 T8 w/ HBF
RCL 3 LW UV 835	1L F25 T8 w/ LBF
RCL 3 LW UV 840	1L F25 T8 w/ LBF
RCL 3 LW UV 850	1L F25 T8 w/ LBF
RCL 3 MD UV 835	2L F25 T8 w/ NBF
RCL 3 MD UV 840	2L F25 T8 w/ NBF
RCL 3 MD UV 850	2L F25 T8 w/ NBF
RCL 4 LW UV 835	1L F32 T8 w/ NBF
RCL 4 LW UV 840	1L F32 T8 w/ NBF
RCL 4 LW UV 850	1L F32 T8 w/ NBF
RCL 4 MD UV 835	2L F32 T8 w/ NBF, 1L F54 T5HO
RCL 4 MD UV 840	2L F32 T8 w/ NBF, 1L F54 T5HO
RCL 4 MD UV 850	2L F32 T8 w/ NBF, 1L F54 T5HO
RCL 4 MH UV 835	3L F32 T8 w/ LBF
RCL 4 MH UV 840	3L F32 T8 w/ LBF
RCL 4 MH UV 850	3L F32 T8 w/ LBF
RCL 4 HI UV 835	4L F32 T8 w/ LBF
RCL 4 HI UV 840	4L F32 T8 w/ LBF
RCL 4 HI UV 850	4L F32 T8 w/ LBF
RCL 4 VH UV 835	4L F32 T8 w/ HBF
RCL 4 VH UV 840	4L F32 T8 w/ HBF
RCL 4 VH UV 850	4L F32 T8 w/ HBF
RCL 6 LW UV 835	2L F25 T8 w/ LBF
RCL 6 LW UV 840	2L F25 T8 w/ LBF
RCL 6 LW UV 850	2L F25 T8 w/ LBF
RCL 6 MD UV 835	4L F25 T8 w/ NBF
RCL 6 MD UV 840	4L F25 T8 w/ NBF
RCL 6 MD UV 850	4L F25 T8 w/ NBF
RCL 6 HI UV 835	6L F25 T8 w/ NBF
RCL 6 HI UV 840	6L F25 T8 w/ NBF
RCL 6 HI UV 850	6L F25 T8 w/ NBF
RCL 6 VH UV 835	8L F25 T8 w/ NBF
RCL 6 VH UV 840	8L F25 T8 w/ NBF
RCL 6 VH UV 850	8L F25 T8 w/ NBF
RCL 8 LW UV 835	2L F32 T8 w/ NBF
RCL 8 LW UV 840	2L F32 T8 w/ NBF
RCL 8 LW UV 850	2L F32 T8 w/ NBF
RCL 8 ML UV 835	1L F96 T8HO, 1L F96 T12HO
RCL 8 ML UV 840	1L F96 T8HO, 1L F96 T12HO
RCL 8 ML UV 850	1L F96 T8HO, 1L F96 T12HO
RCL 8 MD UV 835	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD UV 840	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD UV 850	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD HE UV 835	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD HE UV 840	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD HE UV 850	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MH UV 835	4L F32 T8 w/ HBF, 2L F96 T12HO
RCL 8 MH UV 840	4L F32 T8 w/ HBF, 2L F96 T12HO
RCL 8 MH UV 850	4L F32 T8 w/ HBF, 2L F96 T12HO
RCL 8 HI UV 835	2L F96 T8HO
RCL 8 HI UV 840	2L F96 T8HO
RCL 8 HI UV 850	2L F96 T8HO
RCL 8 VH UV 835	4L F54 T5HO
RCL 8 VH UV 840	4L F54 T5HO
RCL 8 VH UV 850	4L F54 T5HO
RCL 2 LW UV FR 835	1L F17 T8 w/ LBF
RCL 2 LW UV FR 840	1L F17 T8 w/ LBF
RCL 2 LW UV FR 850	1L F17 T8 w/ LBF
RCL 2 MD UV FR 835	2L F17 T8 w/ LBF, 1L F24 T5HO
RCL 2 MD UV FR 840	2L F17 T8 w/ LBF, 1L F24 T5HO
RCL 2 MD UV FR 850	2L F17 T8 w/ LBF, 1L F24 T5HO
RCL 2 HI UV FR 835	2L F17 T8 w/ HBF, 2L F24 T5HO
RCL 2 HI UV FR 840	2L F17 T8 w/ HBF, 2L F24 T5HO
RCL 2 HI UV FR 850	2L F17 T8 w/ HBF, 2L F24 T5HO
RCL 2 VH UV FR 835	3L F17 T8 w/ HBF
RCL 2 VH UV FR 840	3L F17 T8 w/ HBF
RCL 2 VH UV FR 850	3L F17 T8 w/ HBF
RCL 3 LW UV FR 835	1L F25 T8 w/ LBF
RCL 3 LW UV FR 840	1L F25 T8 w/ LBF
RCL 3 LW UV FR 850	1L F25 T8 w/ LBF
RCL 3 MD UV FR 835	2L F25 T8 w/ NBF
RCL 3 MD UV FR 840	2L F25 T8 w/ NBF
RCL 3 MD UV FR 850	2L F25 T8 w/ NBF
RCL 4 LW UV FR 835	1L F32 T8 w/ NBF
RCL 4 LW UV FR 840	1L F32 T8 w/ NBF
RCL 4 LW UV FR 850	1L F32 T8 w/ NBF
RCL 4 MD UV FR 835	2L F32 T8 w/ LBF, 1L F54 T5HO
RCL 4 MD UV FR 840	2L F32 T8 w/ LBF, 1L F54 T5HO
RCL 4 MD UV FR 850	2L F32 T8 w/ LBF, 1L F54 T5HO
RCL 4 MH UV FR 835	3L F32 T8 w/ LBF
RCL 4 MH UV FR 840	3L F32 T8 w/ LBF
RCL 4 MH UV FR 850	3L F32 T8 w/ LBF
RCL 4 HI UV FR 835	4L F32 T8 w/ LBF
RCL 4 HI UV FR 840	4L F32 T8 w/ LBF
RCL 4 HI UV FR 850	4L F32 T8 w/ LBF
RCL 4 VH UV FR 835	4L F32 T8 w/ HBF
RCL 4 VH UV FR 840	4L F32 T8 w/ HBF
RCL 4 VH UV FR 850	4L F32 T8 w/ HBF
RCL 6 LW UV FR 835	2L F25 T8 w/ LBF
RCL 6 LW UV FR 840	2L F25 T8 w/ LBF
RCL 6 LW UV FR 850	2L F25 T8 w/ LBF
RCL 6 MD UV FR 835	4L F25 T8 w/ NBF
RCL 6 MD UV FR 840	4L F25 T8 w/ NBF
RCL 6 MD UV FR 850	4L F25 T8 w/ NBF
RCL 6 HI UV FR 835	6L F25 T8 w/ NBF
RCL 6 HI UV FR 840	6L F25 T8 w/ NBF
RCL 6 HI UV FR 850	6L F25 T8 w/ NBF
RCL 6 VH UV FR 835	8L F25 T8 w/ NBF
RCL 6 VH UV FR 840	8L F25 T8 w/ NBF
RCL 6 VH UV FR 850	8L F25 T8 w/ NBF
RCL 8 LW UV FR 835	2L F32 T8 w/ NBF
RCL 8 LW UV FR 840	2L F32 T8 w/ NBF
RCL 8 LW UV FR 850	2L F32 T8 w/ NBF
RCL 8 ML UV FR 835	1L F96 T8HO, 1L F96 T12HO
RCL 8 ML UV FR 840	1L F96 T8HO, 1L F96 T12HO
RCL 8 ML UV FR 850	1L F96 T8HO, 1L F96 T12HO
RCL 8 MD UV FR 835	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD UV FR 840	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD UV FR 850	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD HE UV FR 835	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD HE UV FR 840	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MD HE UV FR 850	4L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
RCL 8 MH UV FR 835	4L F32 T8 w/ HBF, 2L F96 T12HO
RCL 8 MH UV FR 840	4L F32 T8 w/ HBF, 2L F96 T12HO
RCL 8 MH UV FR 850	4L F32 T8 w/ HBF, 2L F96 T12HO
RCL 8 HI UV FR 835	2L F96 T8HO
RCL 8 HI UV FR 840	2L F96 T8HO
RCL 8 HI UV FR 850	2L F96 T8HO
RCL 8 VH UV FR 835	4L F54 T5HO
RCL 8 VH UV FR 840	4L F54 T5HO
RCL 8 VH UV FR 850	4L F54 T5HO

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.

Catalog #	Image	Spec Sheet	Sell Sheet	.ies & .pdf files
RCL 2 LW UV 835	View	Download	Download	Contact Factory
RCL 2 LW UV 840	View	Download	Download	Contact Factory
RCL 2 LW UV 850	View	Download	Download	Contact Factory
RCL 2 MD UV 835	View	Download	Download	Download
RCL 2 MD UV 840	View	Download	Download	Contact Factory
RCL 2 MD UV 850	View	Download	Download	Contact Factory
RCL 2 HI UV 835	View	Download	Download	Contact Factory
RCL 2 HI UV 840	View	Download	Download	Contact Factory
RCL 2 HI UV 850	View	Download	Download	Contact Factory
RCL 2 VH UV 835	View	Download	Download	Contact Factory
RCL 2 VH UV 840	View	Download	Download	Contact Factory
RCL 2 VH UV 850	View	Download	Download	Contact Factory
RCL 3 LW UV 835		Download	Download	Contact Factory
RCL 3 LW UV 840		Download	Download	Contact Factory
RCL 3 LW UV 850		Download	Download	Contact Factory
RCL 3 MD UV 835		Download	Download	Contact Factory
RCL 3 MD UV 840		Download	Download	Contact Factory
RCL 3 MD UV 850		Download	Download	Contact Factory
RCL 4 LW UV 835	View	Download	Download	Contact Factory
RCL 4 LW UV 840	View	Download	Download	Download
RCL 4 LW UV 850	View	Download	Download	Download
RCL 4 MD UV 835	View	Download	Download	Download
RCL 4 MD UV 840	View	Download	Download	Download
RCL 4 MD UV 850	View	Download	Download	Download
RCL 4 MH UV 835	View	Download	Download	Contact Factory
RCL 4 MH UV 840	View	Download	Download	Contact Factory
RCL 4 MH UV 850	View	Download	Download	Contact Factory
RCL 4 HI UV 835	View	Download	Download	Contact Factory
RCL 4 HI UV 840	View	Download	Download	Download
RCL 4 HI UV 850	View	Download	Download	Download
RCL 4 VH UV 835	View	Download	Download	Contact Factory
RCL 4 VH UV 840	View	Download	Download	Download
RCL 4 VH UV 850	View	Download	Download	Download
RCL 6 LW UV 835		Download	Download	Contact Factory
RCL 6 LW UV 840		Download	Download	Contact Factory
RCL 6 LW UV 850		Download	Download	Contact Factory
RCL 6 MD UV 835		Download	Download	Contact Factory
RCL 6 MD UV 840		Download	Download	Contact Factory
RCL 6 MD UV 850		Download	Download	Contact Factory
RCL 6 HI UV 835		Download	Download	Contact Factory
RCL 6 HI UV 840		Download	Download	Contact Factory
RCL 6 HI UV 850		Download	Download	Contact Factory
RCL 6 VH UV 835		Download	Download	Contact Factory
RCL 6 VH UV 840		Download	Download	Contact Factory
RCL 6 VH UV 850		Download	Download	Contact Factory
RCL 8 LW UV 835	View	Download	Download	Contact Factory
RCL 8 LW UV 840	View	Download	Download	Contact Factory
RCL 8 LW UV 850	View	Download	Download	Download
RCL 8 ML UV 835	View	Download	Download	Contact Factory
RCL 8 ML UV 840	View	Download	Download	Contact Factory
RCL 8 ML UV 850	View	Download	Download	Download
RCL 8 MD UV 835	View	Download	Download	Contact Factory
RCL 8 MD UV 840	View	Download	Download	Contact Factory
RCL 8 MD UV 850	View	Download	Download	Download
RCL 8 MD HE UV 835	View	Download	Download	Contact Factory
RCL 8 MD HE UV 840	View	Download	Download	Contact Factory
RCL 8 MD HE UV 850	View	Download	Download	Contact Factory
RCL 8 MH UV 835	View	Download	Download	Contact Factory
RCL 8 MH UV 840	View	Download	Download	Contact Factory
RCL 8 MH UV 850	View	Download	Download	Download
RCL 8 HI UV 835	View	Download	Download	Contact Factory
RCL 8 HI UV 840	View	Download	Download	Contact Factory
RCL 8 HI UV 850	View	Download	Download	Download
RCL 8 VH UV 835	View	Download	Download	Contact Factory
RCL 8 VH UV 840	View	Download	Download	Contact Factory
RCL 8 VH UV 850	View	Download	Download	Download
RCL 2 LW UV FR 835	View	Download	Download	Contact Factory
RCL 2 LW UV FR 840	View	Download	Download	Contact Factory
RCL 2 LW UV FR 850	View	Download	Download	Contact Factory
RCL 2 MD UV FR 835	View	Download	Download	Download
RCL 2 MD UV FR 840	View	Download	Download	Contact Factory
RCL 2 MD UV FR 850	View	Download	Download	Contact Factory
RCL 2 HI UV FR 835	View	Download	Download	Contact Factory
RCL 2 HI UV FR 840	View	Download	Download	Contact Factory
RCL 2 HI UV FR 850	View	Download	Download	Contact Factory
RCL 2 VH UV FR 835	View	Download	Download	Contact Factory
RCL 2 VH UV FR 840	View	Download	Download	Contact Factory
RCL 2 VH UV FR 850	View	Download	Download	Contact Factory
RCL 3 LW UV FR 835		Download	Download	Contact Factory
RCL 3 LW UV FR 840		Download	Download	Contact Factory
RCL 3 LW UV FR 850		Download	Download	Contact Factory
RCL 3 MD UV FR 835		Download	Download	Contact Factory
RCL 3 MD UV FR 840		Download	Download	Contact Factory
RCL 3 MD UV FR 850		Download	Download	Contact Factory
RCL 4 LW UV FR 835	View	Download	Download	Contact Factory
RCL 4 LW UV FR 840	View	Download	Download	Download
RCL 4 LW UV FR 850	View	Download	Download	Download
RCL 4 MD UV FR 835	View	Download	Download	Contact Factory
RCL 4 MD UV FR 840	View	Download	Download	Download
RCL 4 MD UV FR 850	View	Download	Download	Download
RCL 4 MH UV FR 835	View	Download	Download	Contact Factory
RCL 4 MH UV FR 840	View	Download	Download	Contact Factory
RCL 4 MH UV FR 850	View	Download	Download	Contact Factory
RCL 4 HI UV FR 835	View	Download	Download	Contact Factory
RCL 4 HI UV FR 840	View	Download	Download	Download
RCL 4 HI UV FR 850	View	Download	Download	Download
RCL 4 VH UV FR 835	View	Download	Download	Contact Factory
RCL 4 VH UV FR 840	View	Download	Download	Download
RCL 4 VH UV FR 850	View	Download	Download	Download
RCL 6 LW UV FR 835		Download	Download	Contact Factory
RCL 6 LW UV FR 840		Download	Download	Contact Factory
RCL 6 LW UV FR 850		Download	Download	Contact Factory
RCL 6 MD UV FR 835		Download	Download	Contact Factory
RCL 6 MD UV FR 840		Download	Download	Contact Factory
RCL 6 MD UV FR 850		Download	Download	Contact Factory
RCL 6 HI UV FR 835		Download	Download	Contact Factory
RCL 6 HI UV FR 840		Download	Download	Contact Factory
RCL 6 HI UV FR 850		Download	Download	Contact Factory
RCL 6 VH UV FR 835		Download	Download	Contact Factory
RCL 6 VH UV FR 840		Download	Download	Contact Factory
RCL 6 VH UV FR 850		Download	Download	Contact Factory
RCL 8 LW UV FR 835	View	Download	Download	Contact Factory
RCL 8 LW UV FR 840	View	Download	Download	Contact Factory
RCL 8 LW UV FR 850	View	Download	Download	Contact Factory
RCL 8 ML UV FR 835	View	Download	Download	Contact Factory
RCL 8 ML UV FR 840	View	Download	Download	Contact Factory
RCL 8 ML UV FR 850	View	Download	Download	Download
RCL 8 MD UV FR 835	View	Download	Download	Contact Factory
RCL 8 MD UV FR 840	View	Download	Download	Download
RCL 8 MD UV FR 850	View	Download	Download	Download
RCL 8 MD HE UV FR 835	View	Download	Download	Contact Factory
RCL 8 MD HE UV FR 840	View	Download	Download	Contact Factory
RCL 8 MD HE UV FR 850	View	Download	Download	Contact Factory
RCL 8 MH UV FR 835	View	Download	Download	Contact Factory
RCL 8 MH UV FR 840	View	Download	Download	Download
RCL 8 MH UV FR 850	View	Download	Download	Contact Factory
RCL 8 HI UV FR 835	View	Download	Download	Contact Factory
RCL 8 HI UV FR 840	View	Download	Download	Contact Factory
RCL 8 HI UV FR 850	View	Download	Download	Contact Factory
RCL 8 VH UV FR 835	View	Download	Download	Contact Factory
RCL 8 VH UV FR 840	View	Download	Download	Download
RCL 8 VH UV FR 850	View	Download	Download	Download

Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

Wide array of sizes, output packages

The RCL is available in five different lengths - from 2 feet up to 8 feet - and can be purchased in a wide array of lumen output packages. This adds to its versatility and ensures we can get you the exact output you need for your retrofit project. These kits are designed to be easy and quick to install in the field. Each kit ships with the required hardware in the carton, as well as instructions. The frosted acrylic lens (FR) option adds an aesthetic touch, and helps to minimize glare.
