LED Remote Lamp Head

    The REH provides illumination from ultra-bright, long-life white LED lamp heads. There are eight LEDs per head (1 watt total per head). The lamps heads are adjustable to allow for optimal center-to-center spacing. A low voltage 9.6V power source powers the unit. The REH is compatible with the LumenFocus EMEEMX and LEM exit/emergency units with RC option. The outdoor "WP" model is constructed of die cast aluminum, and is sealed and gasketed with a glass lens. The REH can be wall or ceiling mounted.
  • Applications: Suitable for most indoor and outdoor (with WP option) applications
  • Lumen Output: From 45 lm - 130 lm
  • Warranty: 5 year limited warranty on housing and electronics
  • Certifications: UL listed with approved LumenFocus products. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA

Click to enlarge

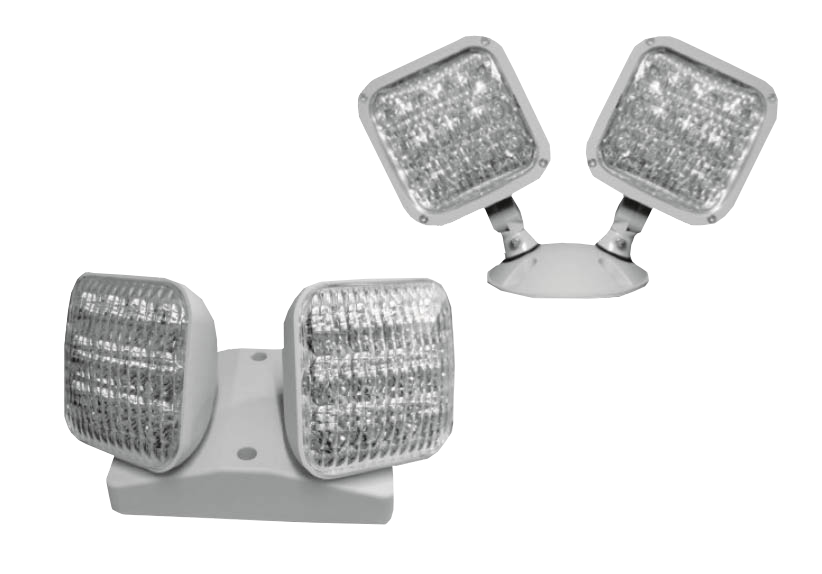

REH 2 9.6 and REH 2 9.6-WP REH 2 9.6 and REH 2 9.6-WP
REH 2 9.6 and REH 2 9.6-WP

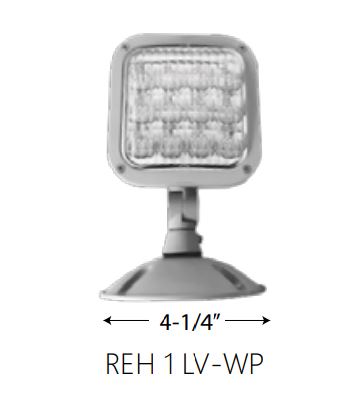

REH 1 9.6-WP schematic REH 1 9.6-WP schematic
REH 1 9.6-WP schematic

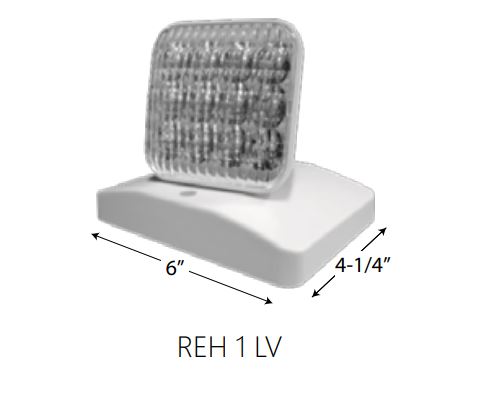

REH 1 9.6 schematic REH 1 9.6 schematic
REH 1 9.6 schematic

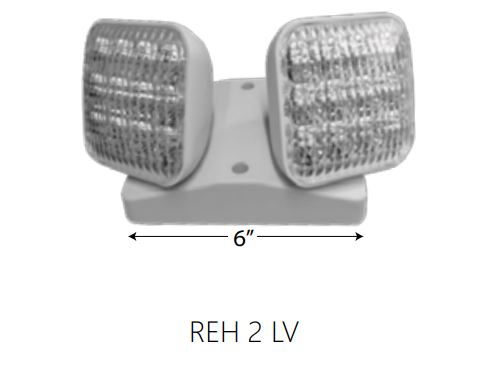

REH 2 9.6 schematic REH 2 9.6 schematic
REH 2 9.6 schematic

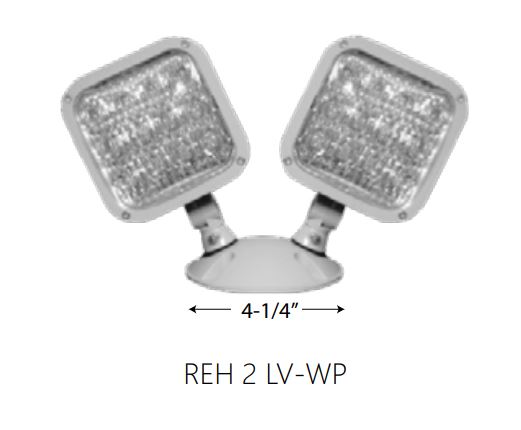

REH 2 9.6-WP schematic REH 2 9.6-WP schematic
REH 2 9.6-WP schematic
UL listed

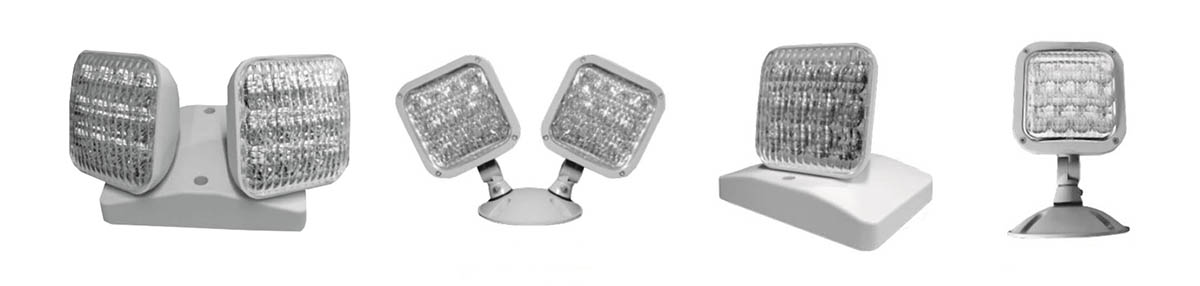

REH all sizes

Indoor or outdoor options

    The REH is available with one or two LED lamp heads. A weather-proof option is available for outdoor use. The indoor models are constructed of injection molded 5VA flame retardant, high-impact resistant thermoplastic, with a plastic lens. The outdoor "WP" model is made of die-cast aluminum, sealed and gasketed, with a glass lens.
REH all sizes

For indoor or outdoor use

    The REH is available with one or two LED lamp heads. A weather-proof option is available for outdoor use. The indoor models are constructed of injection molded 5VA flame retardant, high-impact resistant thermoplastic, with a plastic lens. The outdoor "WP" model is made of die-cast aluminum, sealed and gasketed, with a glass lens.
