LED Premium Cutoff Wall Pack

    The SPC is an attractive LED wall pack suitable for most exterior wall mount applications. With 0-10V dimming drivers standard, the SPC can produce up to 9,000 lumens with efficacies over 100 lumens per watt. The SPC mounts directly over 4-inch recessed outlet boxes using the included hands-free "Easy-Hang" wall mount bracket with built-in level. An optional trim plate helps cover wall surface blemishes. The SPC is constructed of die cast aluminum. The lens is made of vandal-resistant polycarbonate.
  • Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
  • Lumen Output: From about 3,000 lm to just over over 9,200 lm
  • Max Lumens Per Watt: 119.9
  • Predicted L70 Lifetime: >100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations. IP66 rated

Click to enlarge

SPC schematic SPC schematic
SPC schematic
SPC MSD microwave sensor SPC MSD microwave sensor
MSD microwave sensor for the SPC
cCSAus-Mark
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWCRI / Color TempBUG RatingOpticVoltages AvailableWarrantyPredicted L70 Lifetime
SPC LW F UV CP 8403,15128111.980 CRI / 4000KB1-U1-G1Forward120-277V5 years>100,000 hrs
SPC LW F UV CP 8503,42428119.980 CRI / 5000KB1-U1-G1Forward120-277V5 years>100,000 hrs
SPC MD F UV CP 8404,45942106.380 CRI / 4000KB1-U1-G1Forward120-277V5 years>100,000 hrs
SPC MD F UV CP 8504,60442110.780 CRI / 5000KB1-U1-G1Forward120-277V5 years>100,000 hrs
SPC HI F UV CP 8409,16684109.680 CRI / 4000KB2-U1-G2Forward120-277V5 years>100,000 hrs
SPC HI F UV CP 8509,27884110.880 CRI / 5000KB2-U1-G2Forward120-277V5 years>100,000 hrs
Catalog #
Equivalency*
SPC LW F UV CP 84050W MH
SPC LW F UV CP 85050W MH
SPC MD F UV CP 84070W MH
SPC MD F UV CP 85070W MH
SPC HI F UV CP 840250W MH
SPC HI F UV CP 850250W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
SPC LW F UV CP 840View Download Download
SPC LW F UV CP 850View Download Download
SPC MD F UV CP 840View Download Download
SPC MD F UV CP 850View Download Download
SPC HI F UV CP 840View Download Download
SPC HI F UV CP 850View Download Download

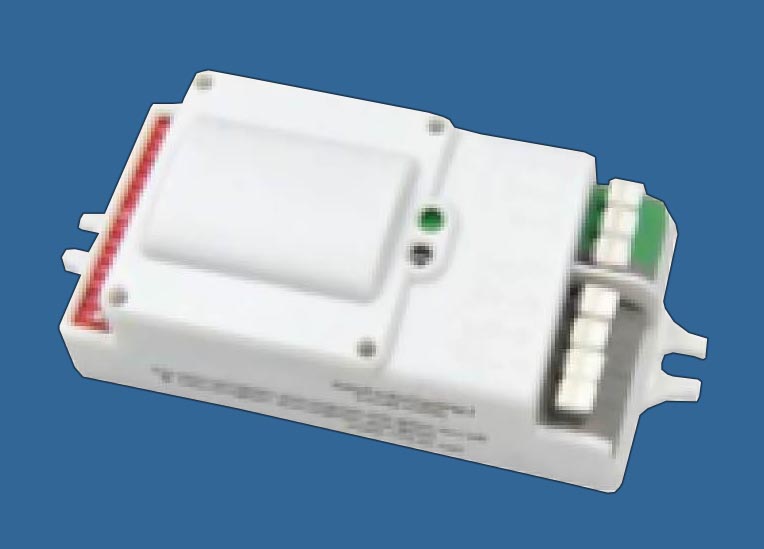

SPC MSD microwave sensor bluebg

Optional sensor

    The MSD is an optional microwave sensor that allows for motion or daylight sensing, with five different light level settings for daylight harvesting. The MSD is internally mounted in the SPC behind the lens. See spec sheet for more info.
