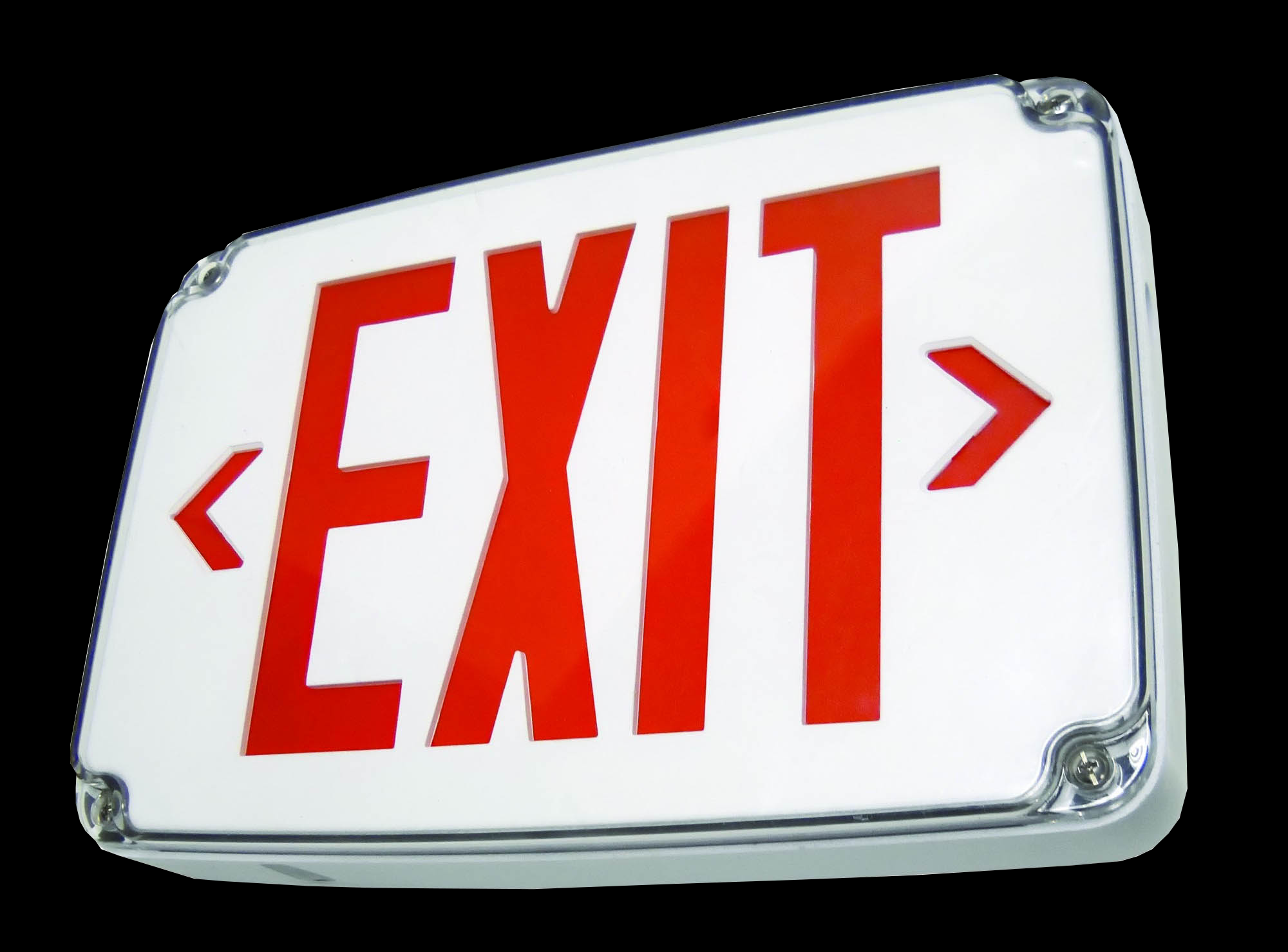

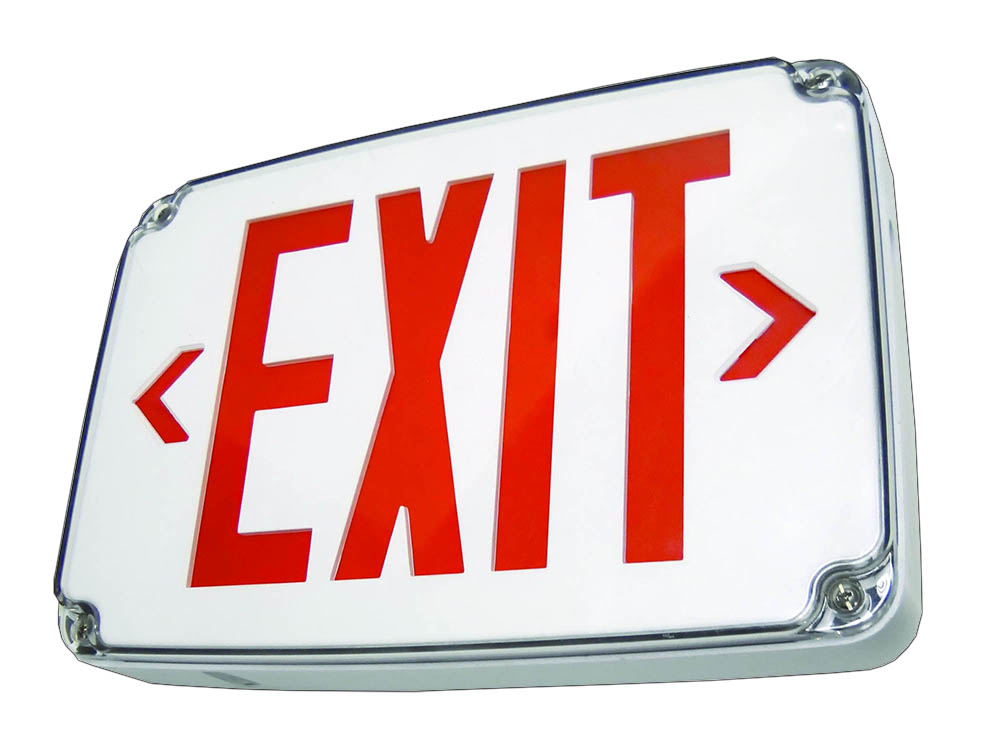

LED Wet Location Exit

    The WLE provides ultra-bright, long-life red or green LED exit sign illumination and is designed to withstand damp or wet locations. It has a corrosion-resistant enclosure with engineer-grade silicone gasket. The WLE possesses a 4.8V long life, maintenance-free rechargeable NiCd battery. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. Custom signs are available with custom wording.
  • Applications: Damp or wet locations where exit signage is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for wet locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Click to enlarge

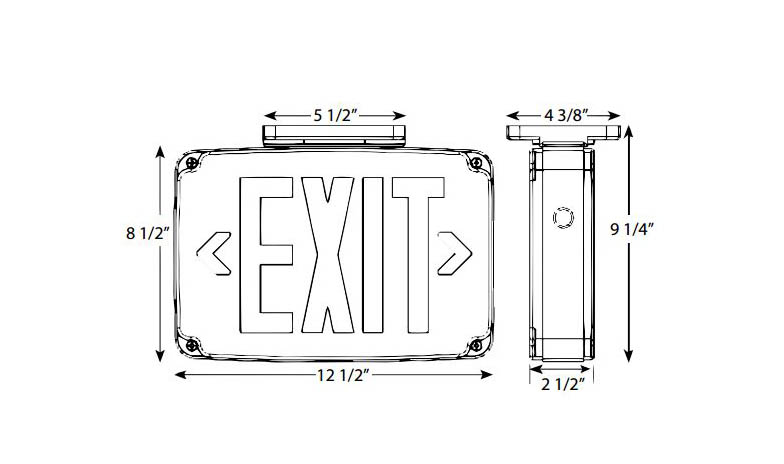

WLE schematic WLE schematic
WLE schematic
UL listed

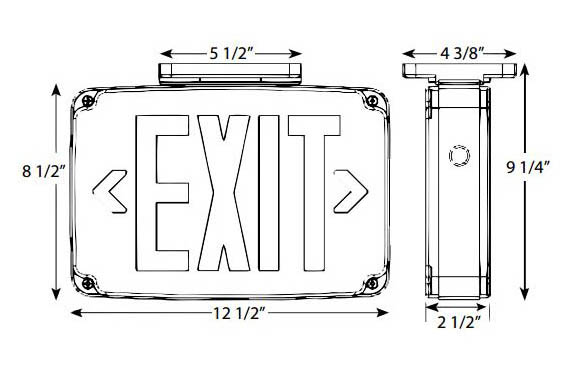

WLE schematic tightcrop

Installation and construction

Installation & construction

    The WLE includes a polycarbonate mounting canopy for top or end mount. There is a universal K/O pattern on the back plate for wall mounting. The WLE housing is constructed of injection-molded 5VA flame retardant, high impact polycarbonate. The clear external lens is impact resistant polycarbonate.
