WPP - Efficient LED Wall Pack with integrated photocell

LED Wall Pack

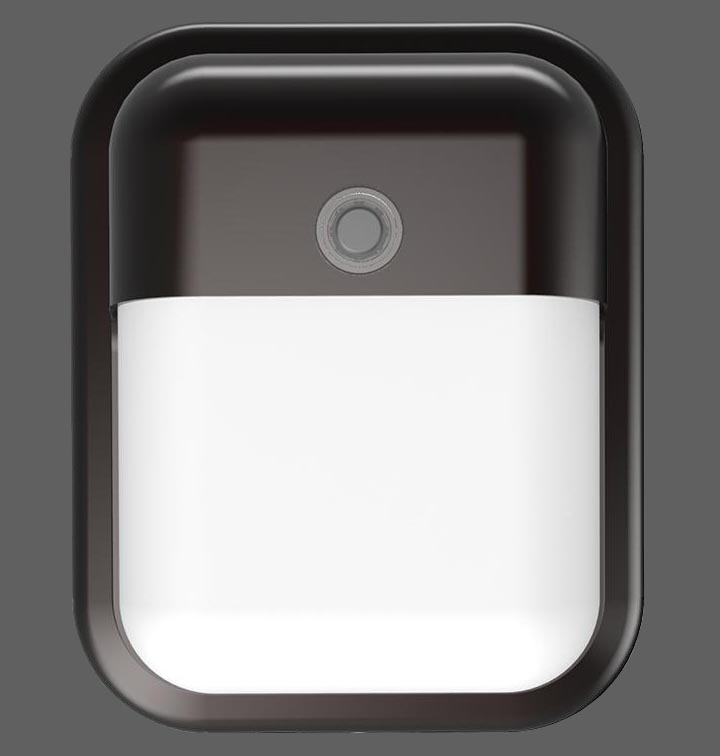

The WPP is a high performance LED wall pack suitable for commercial or residential exterior wall mount applications. It features an integral photocell and attractive architectural styling. Both the housing and the frosted white lens are constructed out of impact resistant, UV-stabilized polycarbonate.

Applications: Suitable for commercial or residential exterior wall mount applications: entryways, perimeter/security lighting
Lumen Output: 958 lumens
Max Lumens Per Watt: 81.2
Predicted L70 Lifetime: >50,000 hours
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP65 rated

Buy Now

Request a Quote

Click to enlarge

WPP schematic

Buy Now

Request a Quote

Note: Table scrolls horizontally

Catalog #	Lumens	Watts	LPW	Optic	CRI / Color Temp	Voltages Available	Warranty	Predicted L70 Lifetime
WPP MD F 12 FP 830	958	11.8	81.2	Forward	80 CRI / 3000K	120V	5 years	>50,000 hrs

Catalog #	Equivalency*
WPP MD F 12 FP 830	26W CFL

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.

Catalog #	Image	Spec Sheet	.ies & .pdf files
WPP MD F 12 FP 830	View	Download	Download

Easy to install

The WPP features a detachable mounting plate with hanging wire for simple hands-free installation when making electrical connections.
