LED Select Wall Pack

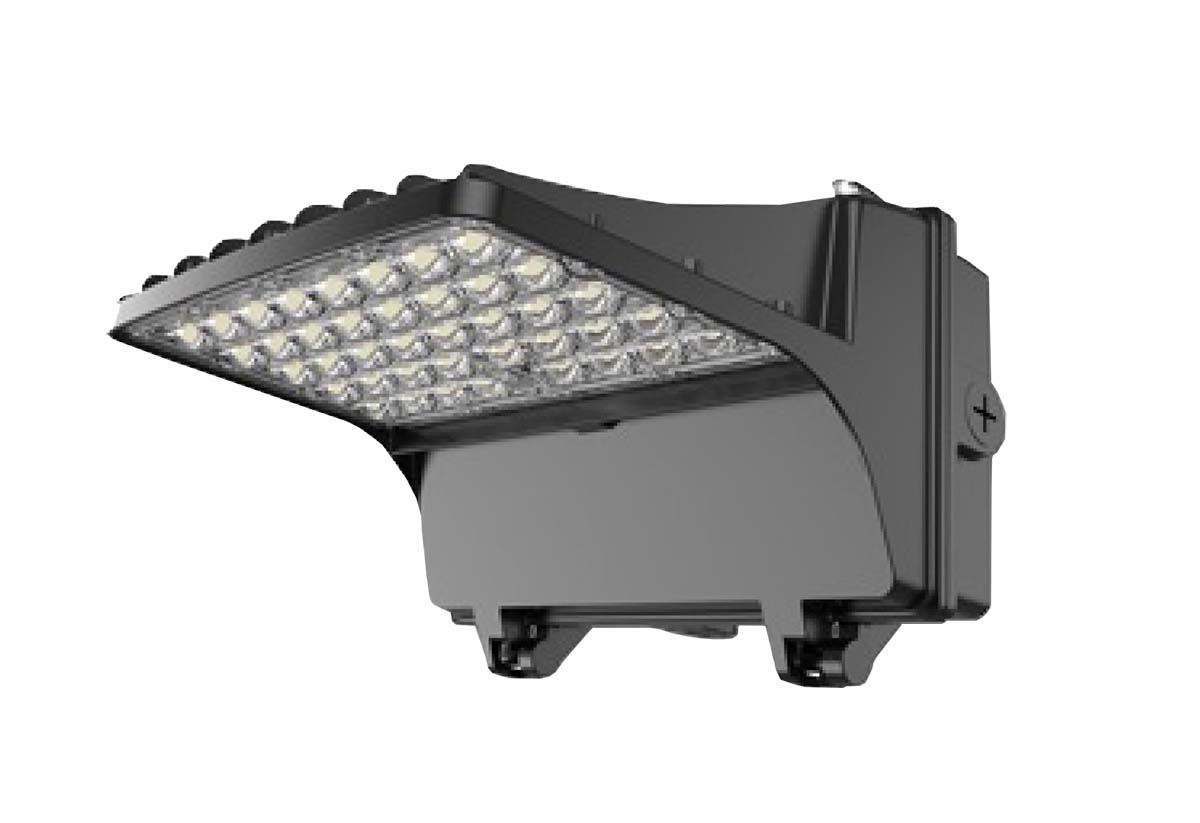

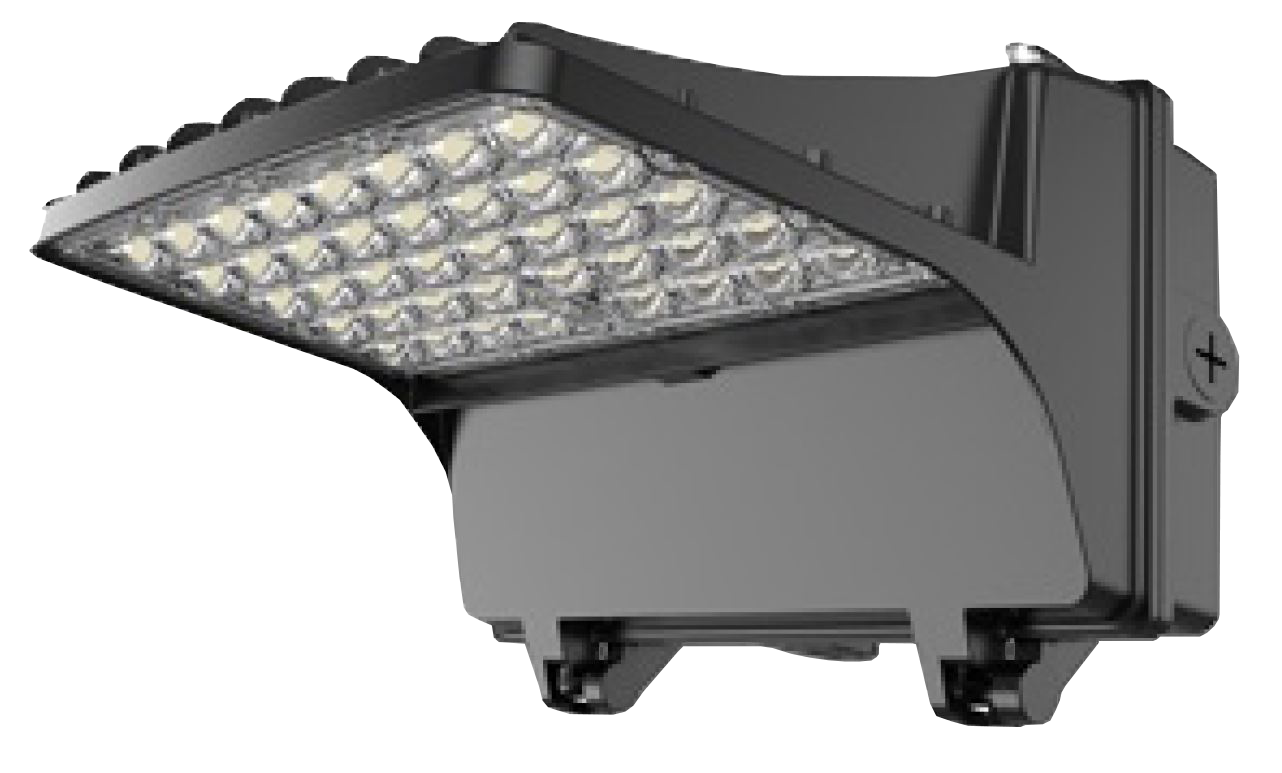

The WPS LED select wall pack is a high performance wall pack with field-adjustable color temperature and output settings. It is available in two sizes - small (WPS S) and large (WPS L). Each has four output settings - 20W/30W/40W/50W for the WPS S, and 80W/90W/100W/120W for the WPS L. There are three CCT settings - 3000K, 4000K and 5000K. The WPS housing is constructed of durable weather resistant, die-cast aluminum. The lens is UV-resistant polycarbonate. The WPS is available in white or bronze finish.
- Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
- Lumen Output: 2,300 to 6,300 in the WPS S; 9,600 to 14,500 in the WPS L
- Max Lumens Per Watt: 127.0
- Predicted L70 Lifetime: 50,000 hours
- Warranty: 5 year limited system warranty
- Certifications: ETL listed for wet locations. IP65 rated

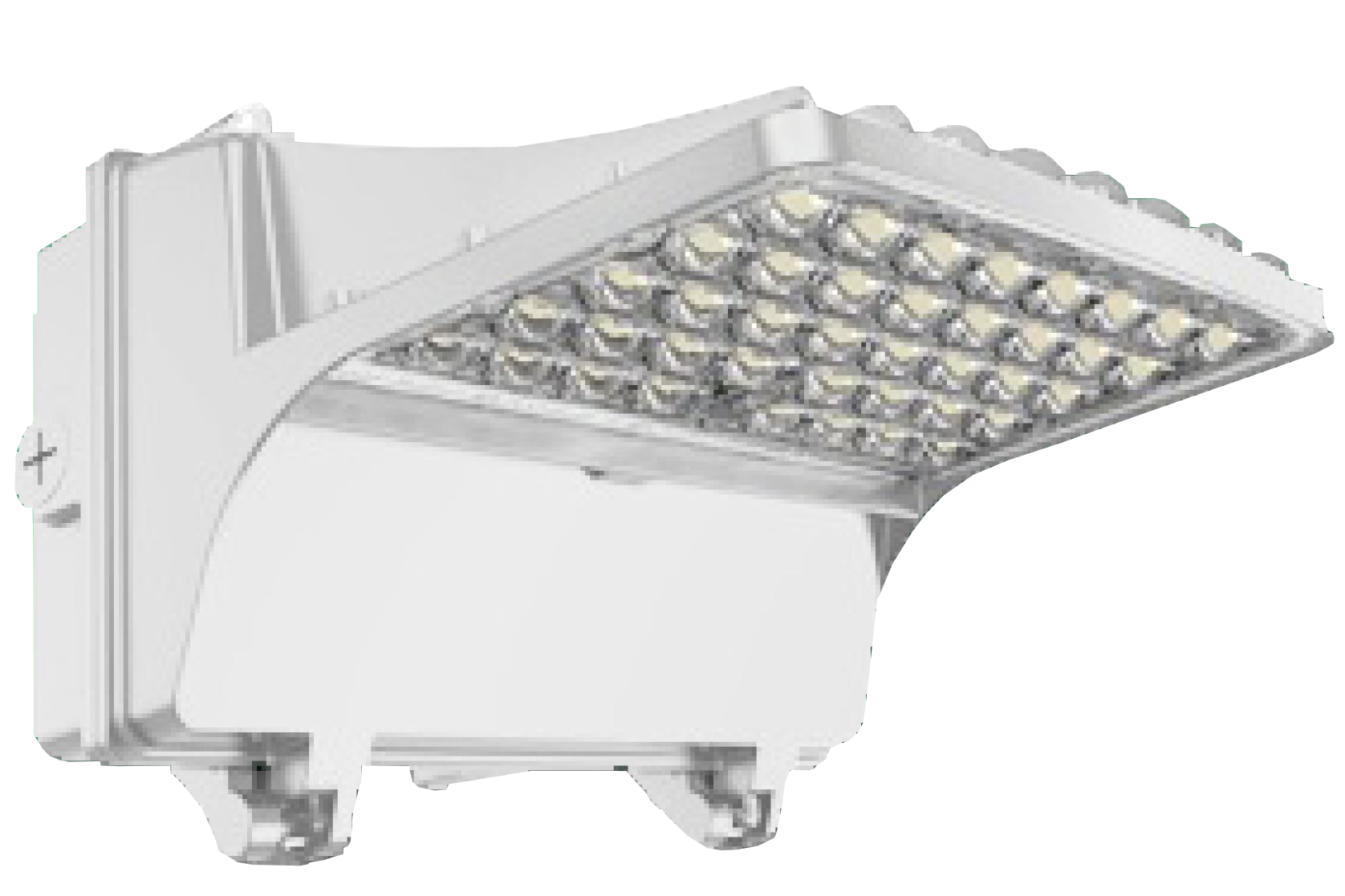

WPS in white
Note: Table scrolls horizontally
| Selected Output | Lumens | Watts | LPW | BUG Rating | Optic | Voltages Available | Warranty | Predicted L70 Lifetime | |
|---|---|---|---|---|---|---|---|---|---|
| WPS S SEL 3 UV CP 7SEL | Low | 2312 | 20 | 115.6 | B1-U1-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS S SEL 3 UV CP 7SEL | Medium | 3764 | 31 | 122.8 | B1-U1-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS S SEL 3 UV CP 7SEL | High | 4879 | 40 | 123.3 | B1-U1-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS S SEL 3 UV CP 7SEL | Very High | 6346 | 50 | 127 | B1-U2-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS L SEL 3 UV CP 7SEL | Low | 9638 | 80 | 121 | B1-U2-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS L SEL 3 UV CP 7SEL | Medium | 10958 | 90 | 121.7 | B1-U2-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS L SEL 3 UV CP 7SEL | High | 12111 | 98 | 123.2 | B1-U2-G1 | Type III | 120-277V | 5 years | 50,000 hrs |
| WPS L SEL 3 UV CP 7SEL | Very High | 14500 | 121 | 120.2 | B2-U2-G2 | Type III | 120-277V | 5 years | 50,000 hrs |
| Selected Output | Equivalency* | |
|---|---|---|
| WPS S SEL 3 UV CP 7SEL | Low (20W) | 50W MH |
| WPS S SEL 3 UV CP 7SEL | Medium (31W) | 70W MH |
| WPS S SEL 3 UV CP 7SEL | High (40W) | 100W HPS |
| WPS S SEL 3 UV CP 7SEL | Very High (50W) | 150W MH |
| WPS L SEL 3 UV CP 7SEL | Low (80W) | 250W PSMH |
| WPS L SEL 3 UV CP 7SEL | Medium (90W) | 200W HPS |
| WPS L SEL 3 UV CP 7SEL | High (98W) | 320W PSMH |
| WPS L SEL 3 UV CP 7SEL | Very High (121W) | 400W MH |
| Image | Spec Sheet | .ies & .pdf files | |
|---|---|---|---|
| WPS S SEL 3 UV CP 7SEL (20W) | View | Download | Download |
| WPS S SEL 3 UV CP 7SEL (31W) | View | Download | Download |
| WPS S SEL 3 UV CP 7SEL (40W) | View | Download | Download |
| WPS S SEL 3 UV CP 7SEL (50W) | View | Download | Download |
| WPS L SEL 3 UV CP 7SEL (80W) | View | Download | Download |
| WPS L SEL 3 UV CP 7SEL (90W) | View | Download | Download |
| WPS L SEL 3 UV CP 7SEL (98W) | View | Download | Download |
| WPS L SEL 3 UV CP 7SEL (121W) | View | Download | Download |

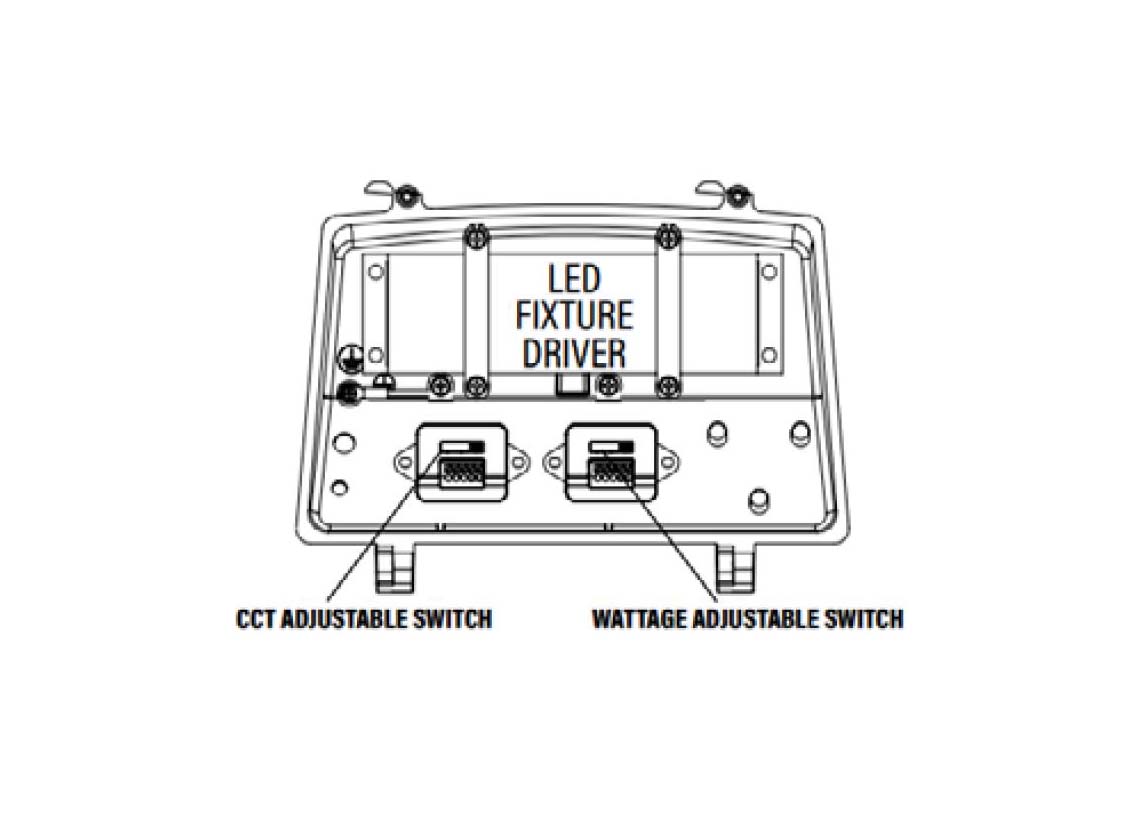

Field-selectable wattage and CCT
The wattage/output and color temperatures on the WPS are easily adjustable in the field via switches on the unit. There are four output settings, and three CCT settings (3000K, 4000K, 5000K).
