LED Wall Sconce

    The WSC is a high performance LED wall sconce suitable for exterior wall mount applications. A photocell comes standard with each luminaire, as does 0-10V dimming drivers. The housing is made of precision die cast aluminum. It is coated in a chip and fade resistant textured powdercoat finish. The lens is frosted glass.
Spec Sheet
High Res Image
.ies files
.pdf files
  • Applications: Suitable for exterior wall mount applications
  • Lumen Output: 5,126
  • Max Lumens Per Watt: 103.8
  • Predicted L70 Lifetime: >50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65 rated
Buy Now
Request a Quote

Click to enlarge

WSC-1jpg WSC-1jpg
WSC-2jpg WSC-2jpg
WSC-3jpg WSC-3jpg
WSC schematic WSC schematic
WSC schematic
PBLU 3
Buy Now
Request a Quote
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWCRI / Color TempOpticVoltages AvailableWarrantyPredicted L70 Lifetime
WSC MD F UV 8405,12649.4103.880 CRI / 4000KForward120-277V5 years>50,000 hrs
Catalog #
Equivalency*
WSC MD F UV 840100W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
WSC MD F UV 840View Download Download

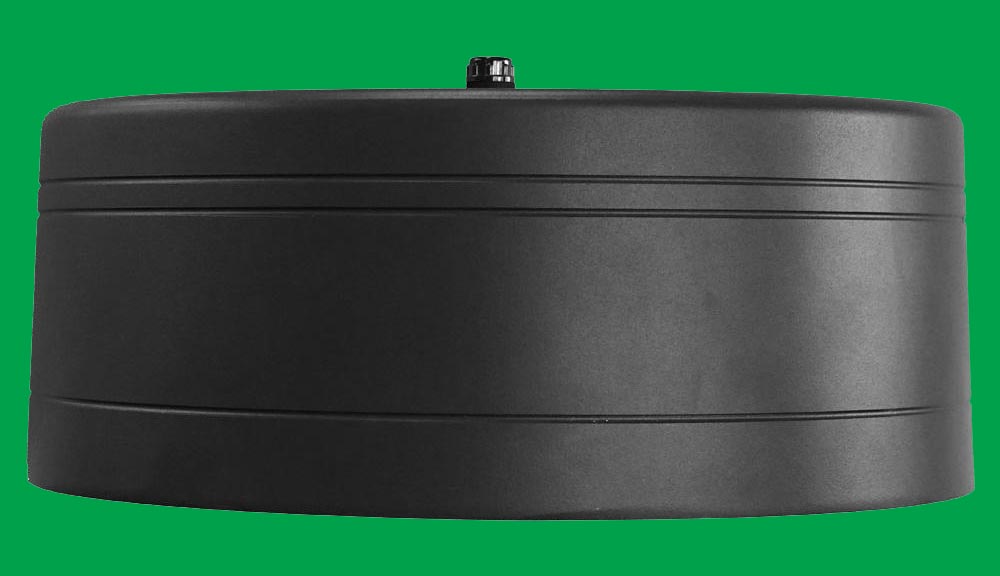

WSCjpggreenbg

Easy installation

    The WSC is mounted via a detachable mounting plate on the back box, with a built-in bubble level. It mounts to any standard 3 1/2" to 4" square or octagonal, or 4" round junction box.
