LED Adjustable Wall Sconce

    The WSx is a highly efficient LED wall sconce available in four sizes and lumen output packages. This sconce mounts to a standard 4" square electrical junction box. Alternate junction box mounting is possible via a universal mounting ring. A chip and fade resistant powder coat finish covers the die cast aluminum housing. The lens is UV stabilized polycarbonate.
  • Applications: Suitable for exterior wall mount applications
  • Sizes: Small (WSS), medium (WSM), large (WSL) and extra large (WSX)
  • Lumen Output: From around 1,600 lm to 7,800 lm
  • Max Lumens Per Watt: 110.5
  • Predicted L70 Lifetime: 60,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65 rated

Click to enlarge

WSS 062917jpg WSS 062917jpg
WSS
WSL 062917jpg WSL 062917jpg
WSL
WSx2 WSx2
WSX
WS1 schematic WS1 schematic
WSS schematic
WS2 schematic WS2 schematic
WSM schematic
WS3 schematic WS3 schematic
WSL schematic
WS4 schematic WS4 schematic
WSX schematic
UL mark converted from Matt jpg use with ER
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWSizeOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
WSS MD F UV 8401,64614.9110.5SmallForward80 CRI / 4000K120-277V5 years60,000 hrs (calculated)
WSM HI F UV 8403,17530.8103.1MediumForward80 CRI / 4000K120-277V5 years60,000 hrs (calculated)
WSL HI F UV 8404,99449.7100.5LargeForward80 CRI / 4000K120-277V5 years60,000 hrs (calculated)
WSX HI F UV 8407,80477.6100.6Extra LargeForward80 CRI / 4000K120-277V5 years60,000 hrs (calculated)
Catalog #
Equivalency*
WSS MD F UV 84039W MH
WSM HI F UV 84050W MH
WSL HI F UV 840100W MH or 100W HPS
WSX HI F UV 840150W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
WSS MD F UV 840View Download Download
WSM HI F UV 840
Download Download
WSL HI F UV 840View Download Download
WSX HI F UV 840View Download Download

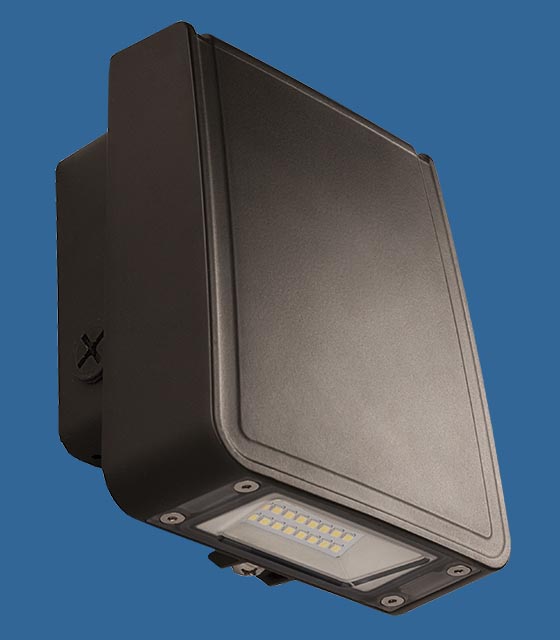

WSS jpg bluebg

Sizes and controls

    The four different size options of the WSx add to its versatility, allowing you to choose the lumen output level you need. At around 15W, the WSS produces around 1,600 lumens. The largest, the 77.6W WSX, products just over 7,800 lumens. For controls, an optional photocell is available.
