LED Economy Wall Sconce

    The WSxE is available in two sizes: small (WSSE) and medium (WSME). It features high performance LED technology, with 0-10V dimming drivers standard. It can be mounted in an upward or downward orientation. The housing is die cast aluminum with a chip and fade resistant powder coat finish. The lens is UV stabilized polycarbonate. A premium version, with additional sizes and options, is available as the WSx (learn more about the WSx here).
  • Applications: Suitable for exterior wall mount applications
  • Lumen Output: 1,646 in the WSSE and 2,880 in the WSME
  • Max Lumens Per Watt: 110.5 (WSSE)
  • Predicted L70 Lifetime: >50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65-rated

Click to enlarge

WSSE schematic WSSE schematic
WSSE schematic
WSSEjpgslider WSSEjpgslider
WSSE
WSxE side view WSxE side view
WSxE side view
WSME schematic WSME schematic
WSME schematic
PBLU 3
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWSizeOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
WSSE MD F UV 8401,64614.9110.5SmallForward80 CRI / 4000K120-277V5 years>50,000 hrs
WSME MD F UV 8402,88027.6104.4MediumForward80 CRI / 4000K120-277V5 years>50,000 hrs
Catalog #
Equivalency*
WSSE MD F UV 84039W MH
WSME MD F UV 84050W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
WSSE MD F UV 840View Download Download
WSME MD F UV 840View Download Download

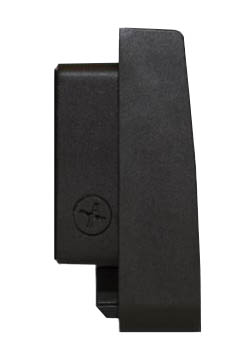

WSxE side view tight

Easy to mount

    The WSxE can be mounted upward or downward. It mounts to a standard 3-1/2" to 4" square electrical junction box. Alternate junction box mounting is possible via a universal mounting ring.
