LED Vaportight High Bay

Durable materials and craftsmanship allow the compact and efficient WVL2 vaportight to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. It is available in 4-foot or compact 2-foot lengths. Multiple hanging options are also available, including surface, chain and aircraft cable, for easy installation (more info below). Impact resistant acrylic and UV stabilized polycarbonate lenses are available as well. Every WVL is made in the USA - in our Henderson, NC facility, using mostly domestic and some foreign components.

Applications: Suitable for most industrial, retail and recreational low bay and high bay applications - warehouses, manufacturing facilities, food processing, freezers, gymnasiums, car washes.
Lumen Output: From 8,000 lm to 18,000 lm in the WVL2; 16,000 lm to 32,000 lm in the WVL4
Max Lumens Per Watt: 159 in the WVL4
Size Options: 2-foot and 4-foot lengths
Predicted L70 Lifetime: > 100,000 hours (calculated)
Warranty: 5 year limited system warranty
Re-BoardABILITY: Every WVL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: IP65, IP66, IP67 (optional on WVL2), IP69 (WVL2 only), NEMA 4X, NSF, PSI 1500, RoHS.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Click to enlarge

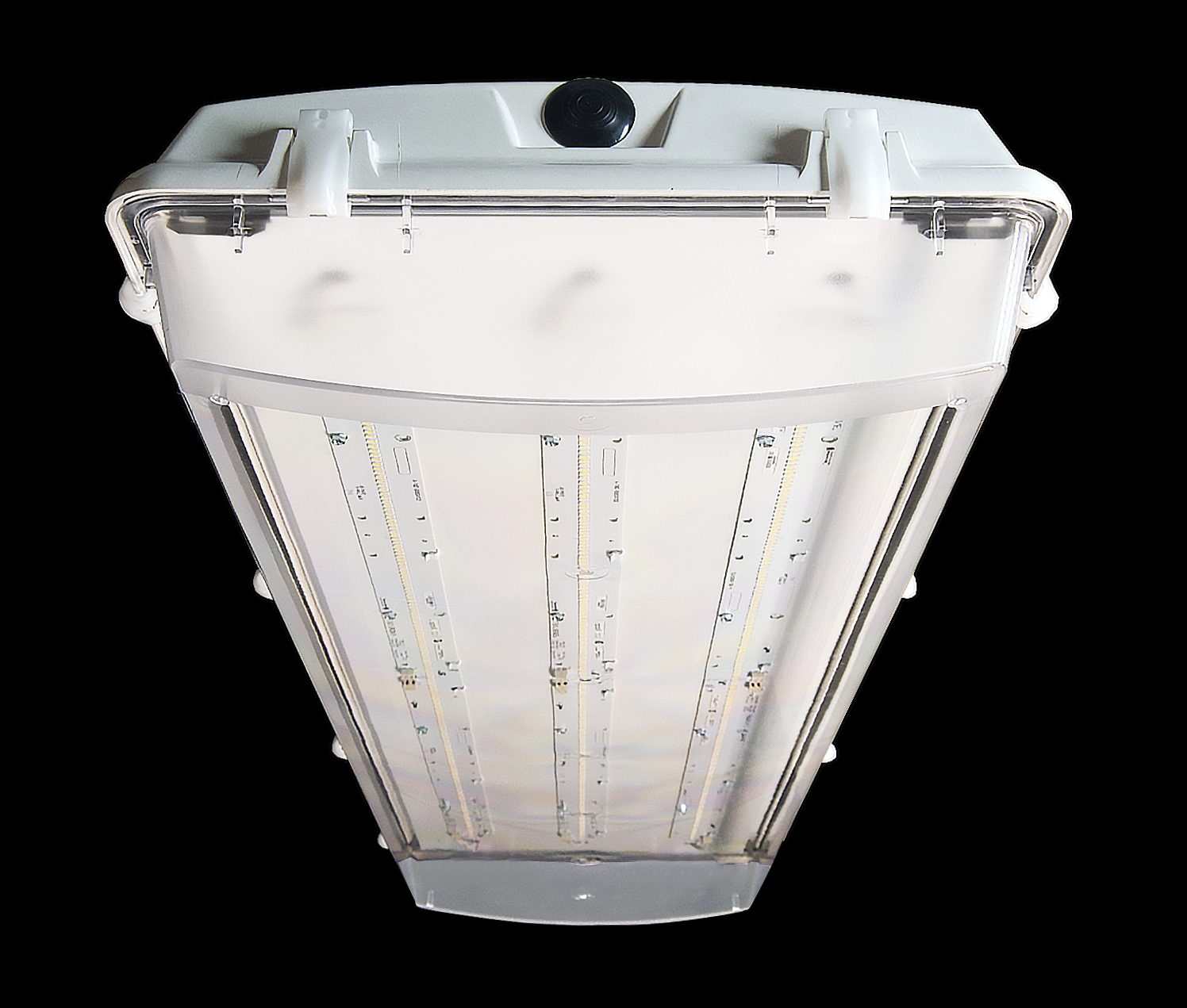

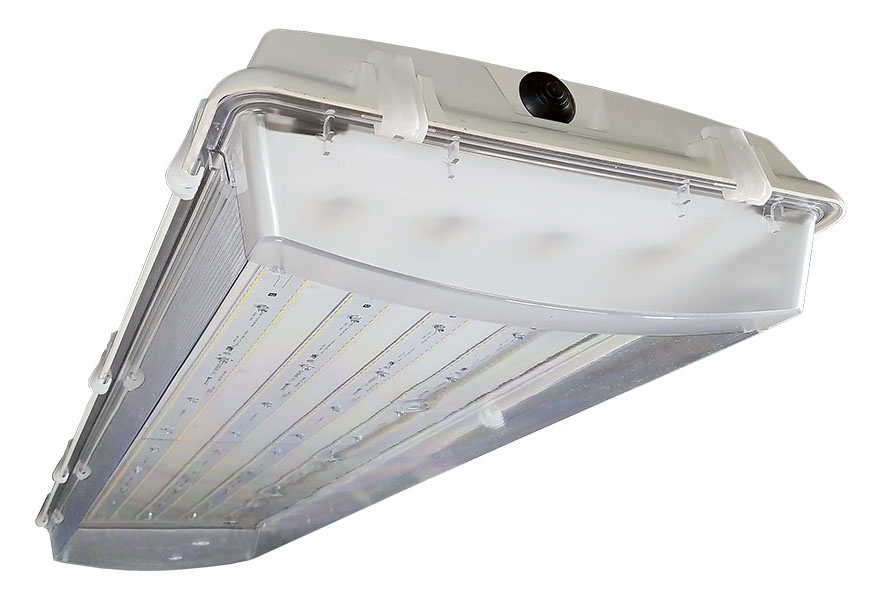

WVL4 with clear lens

WVL4 with clear lens

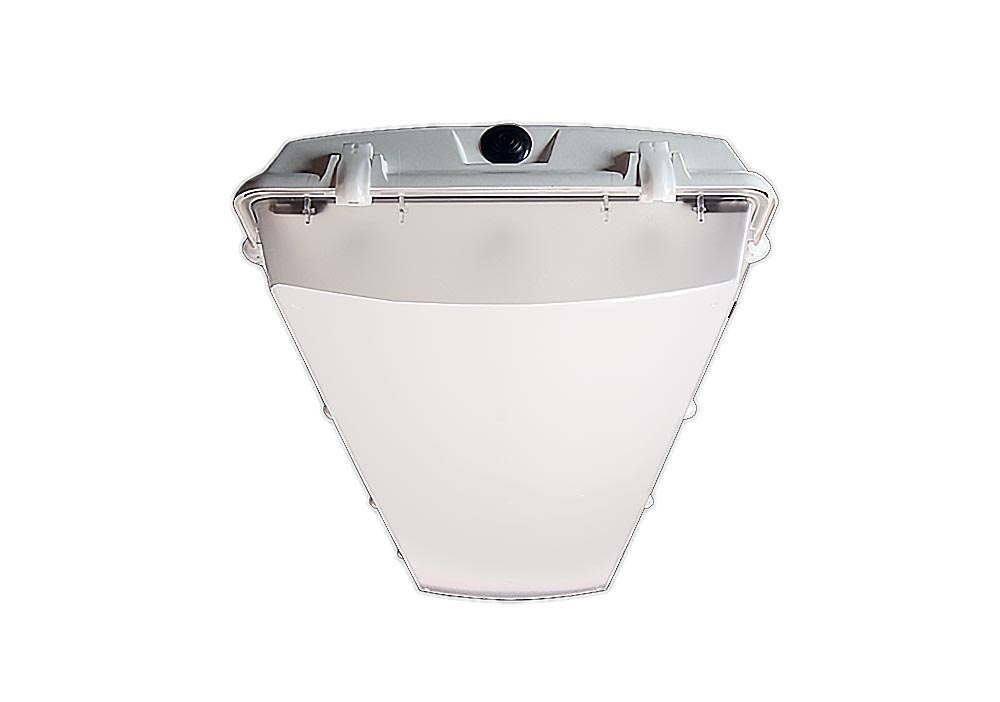

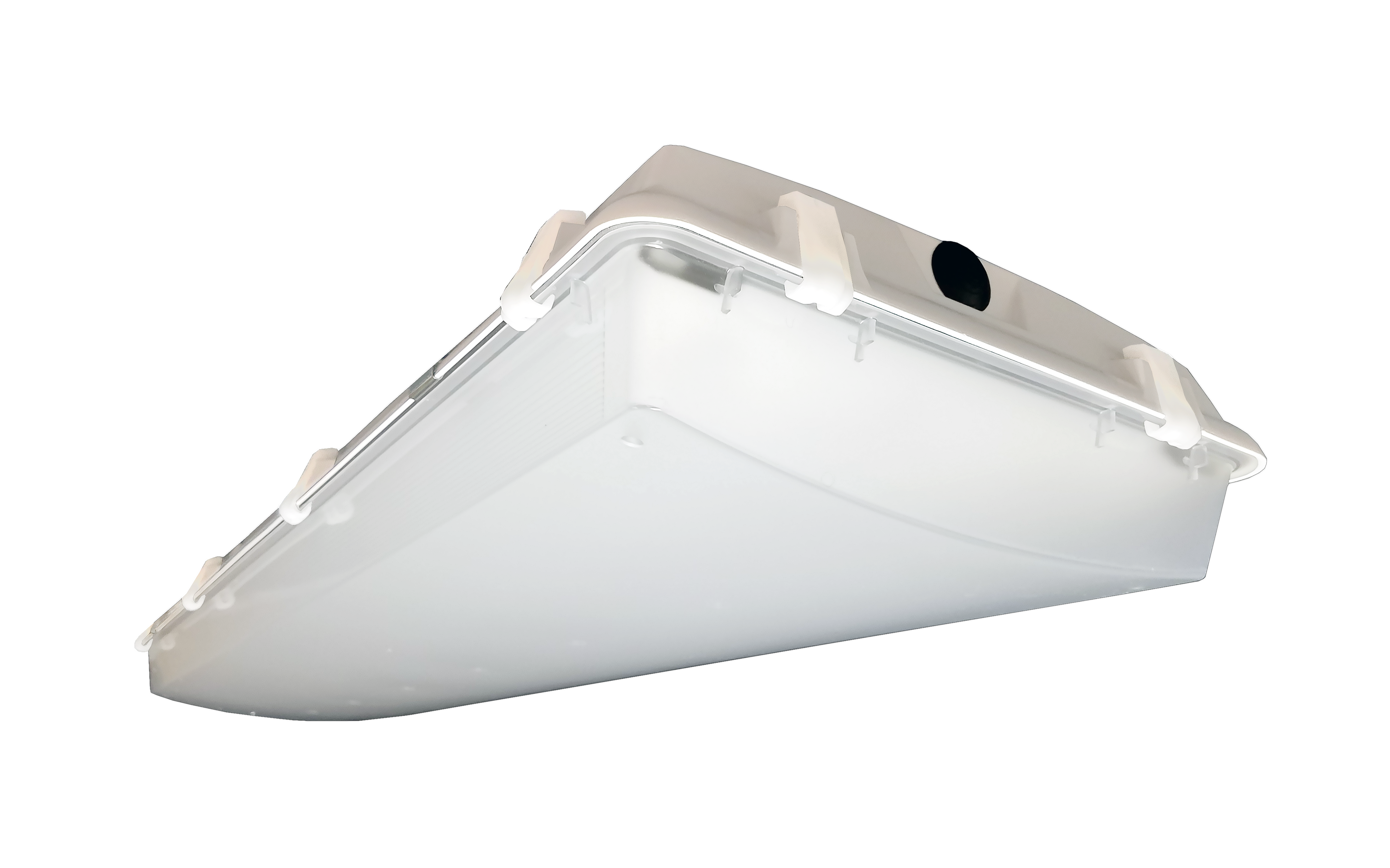

WVL4 with frosted acrylic lens

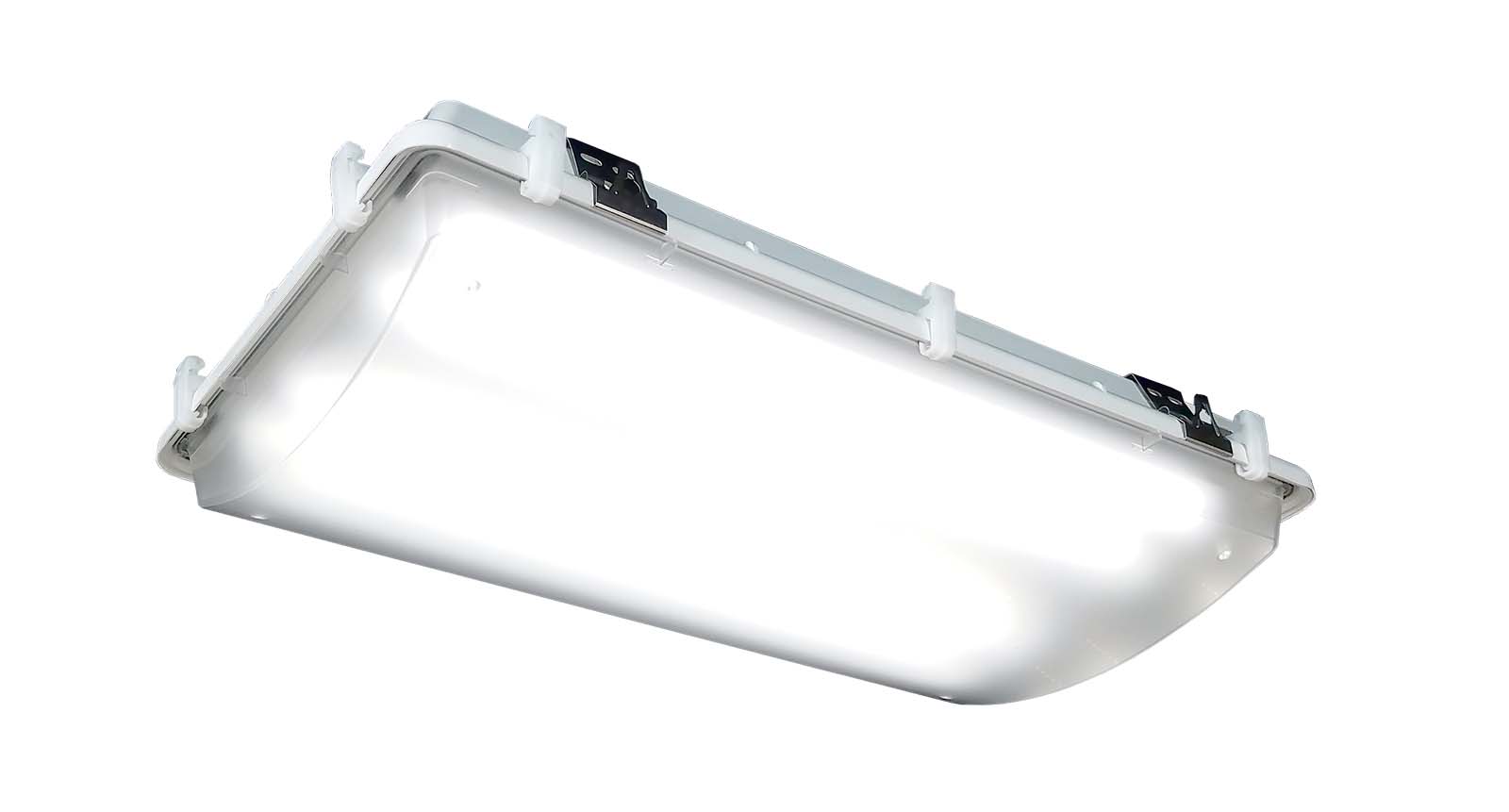

WVL2 with frosted acrylic lens

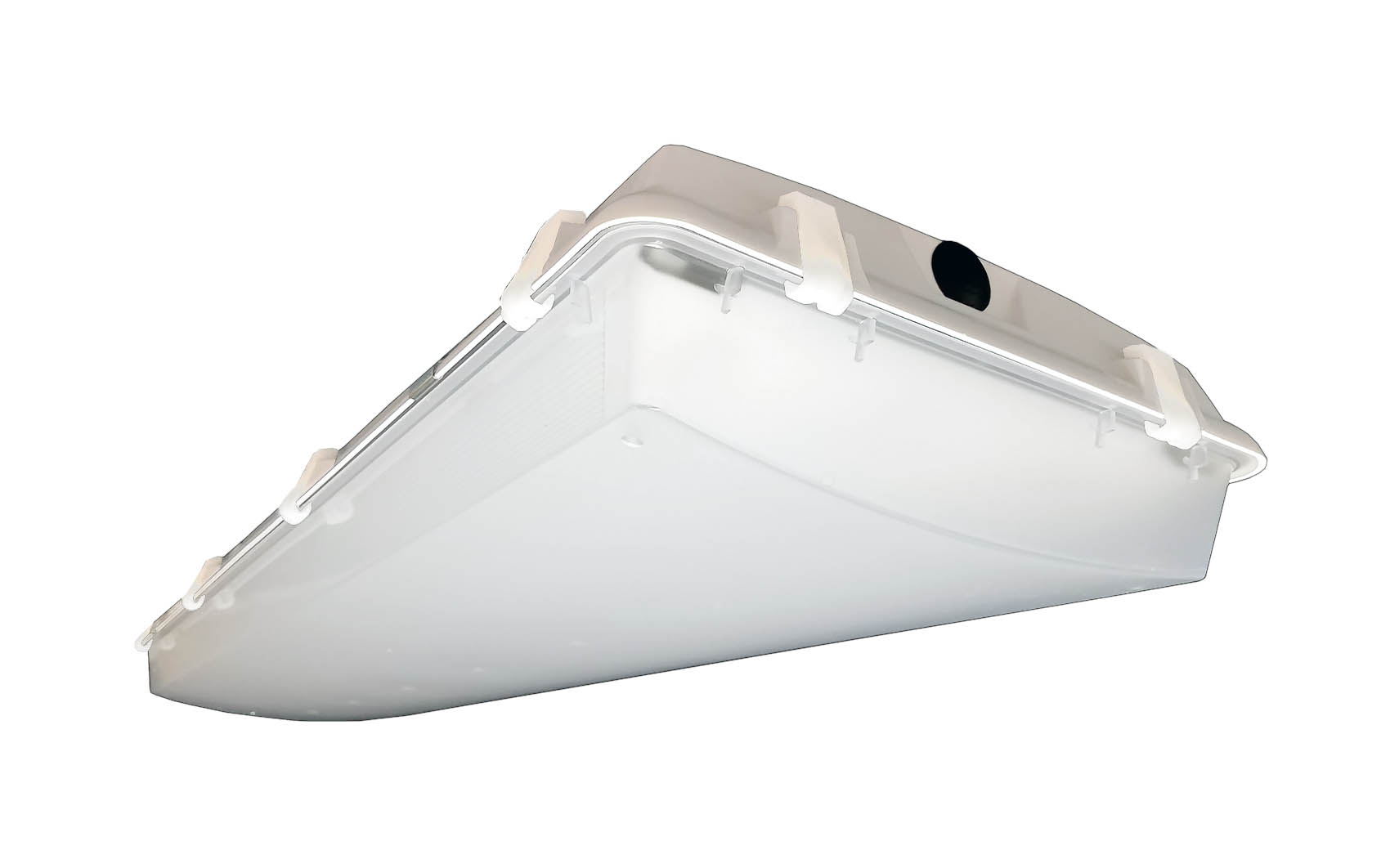

WVL4 frosted lens stroke lightened 1217 for WP

WVL4 with frosted acrylic lens

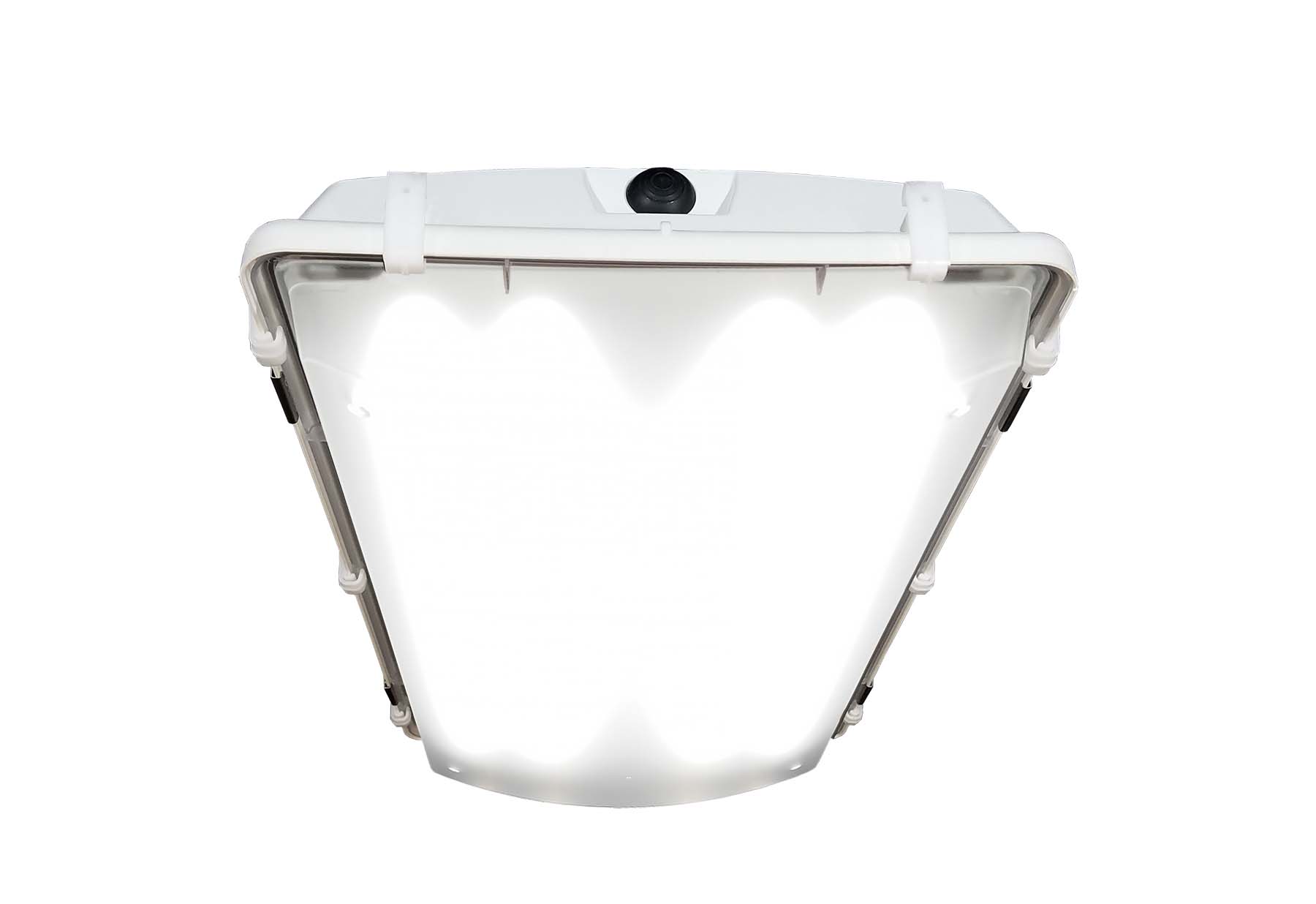

WVL2 with frosted acrylic lens

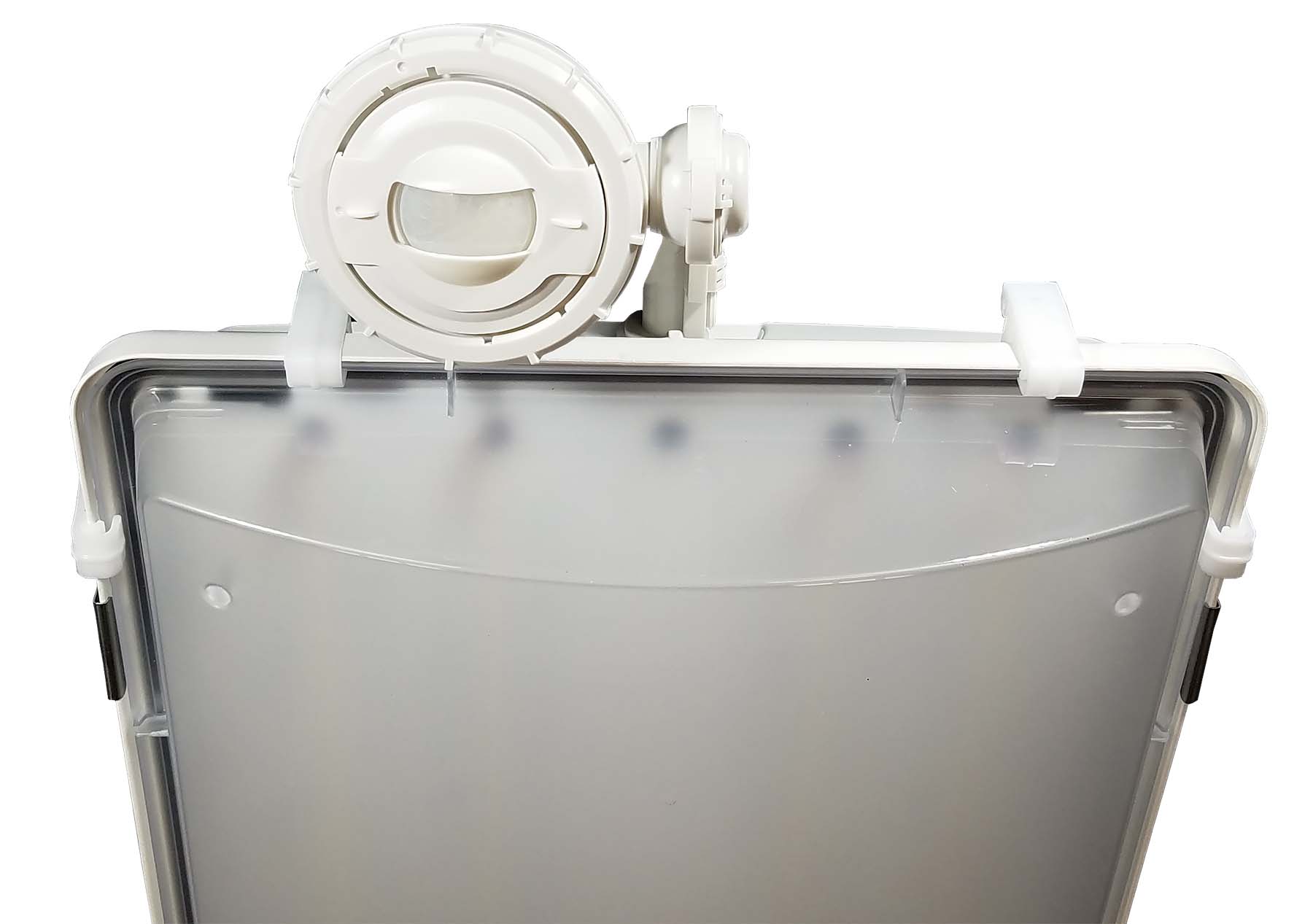

WVL2 with OS option

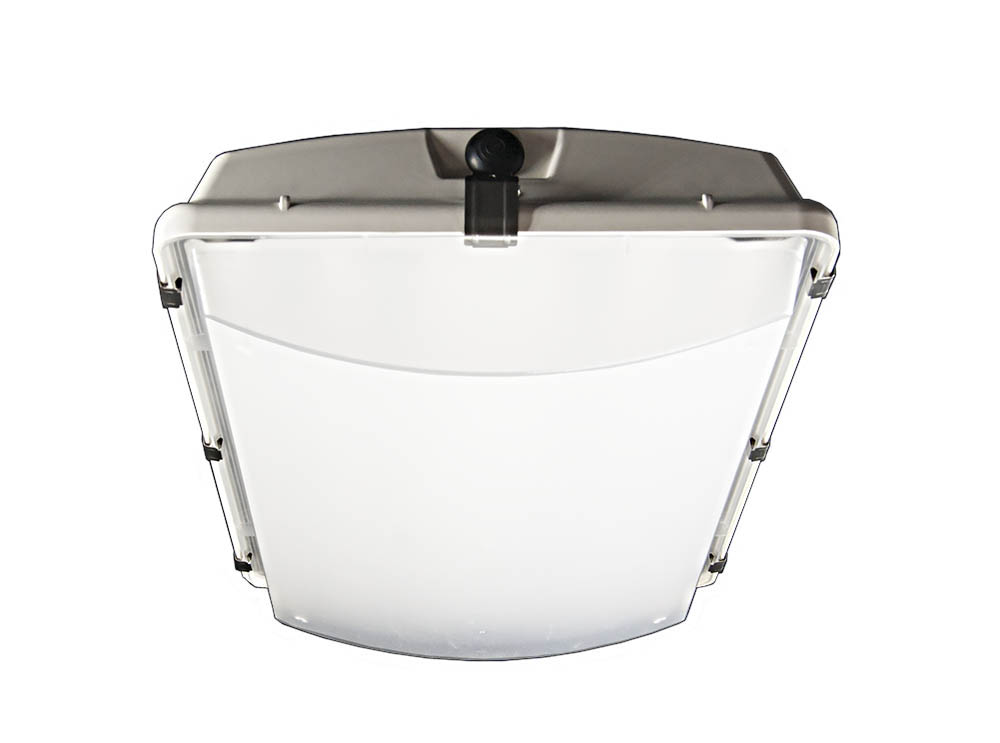

WVL2 with frosted acrylic lens

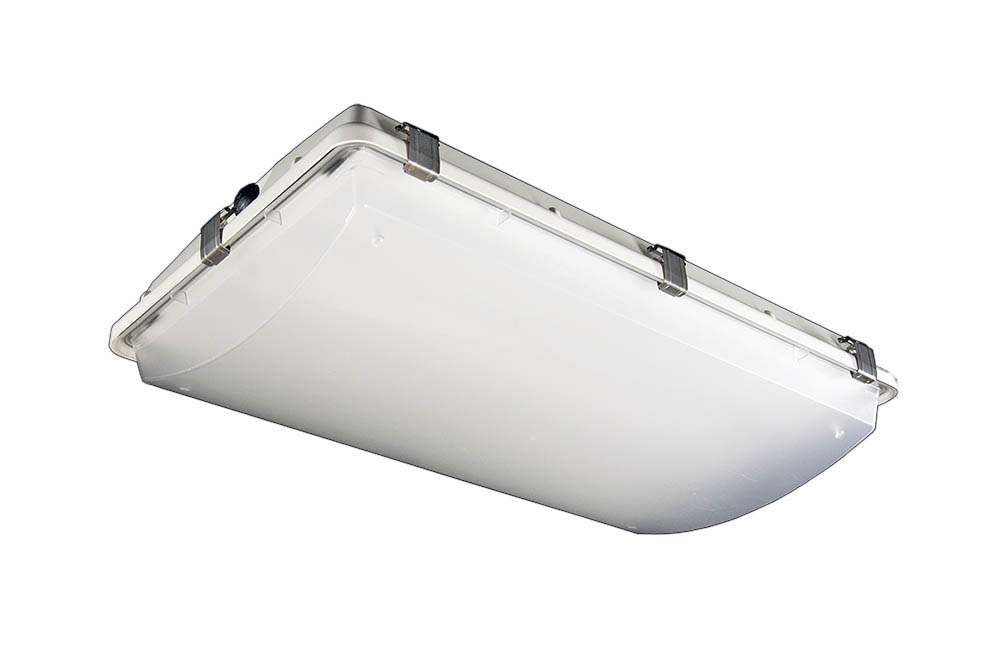

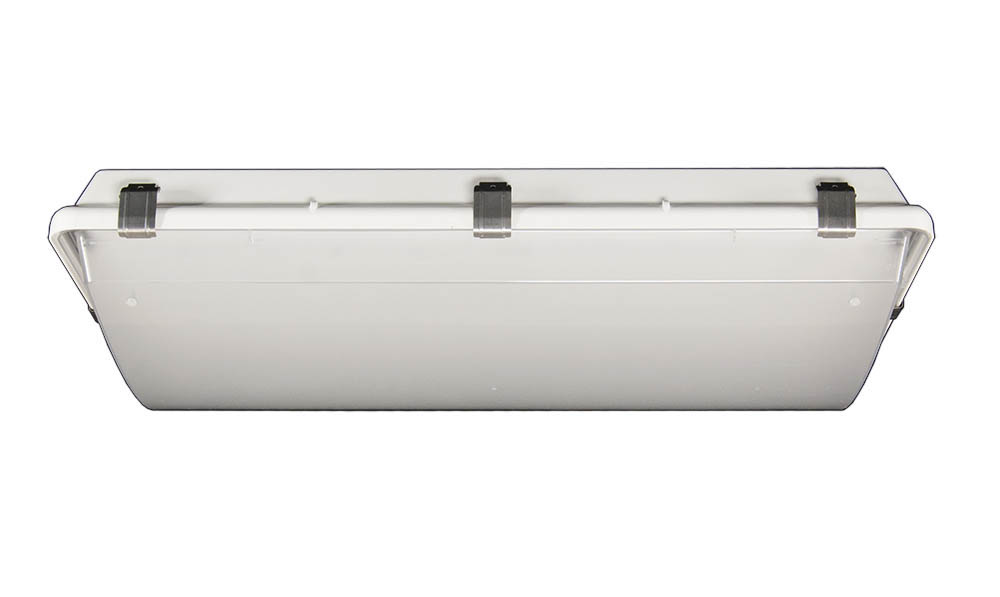

WVL2 with frosted acrylic lens and stainless steel latches

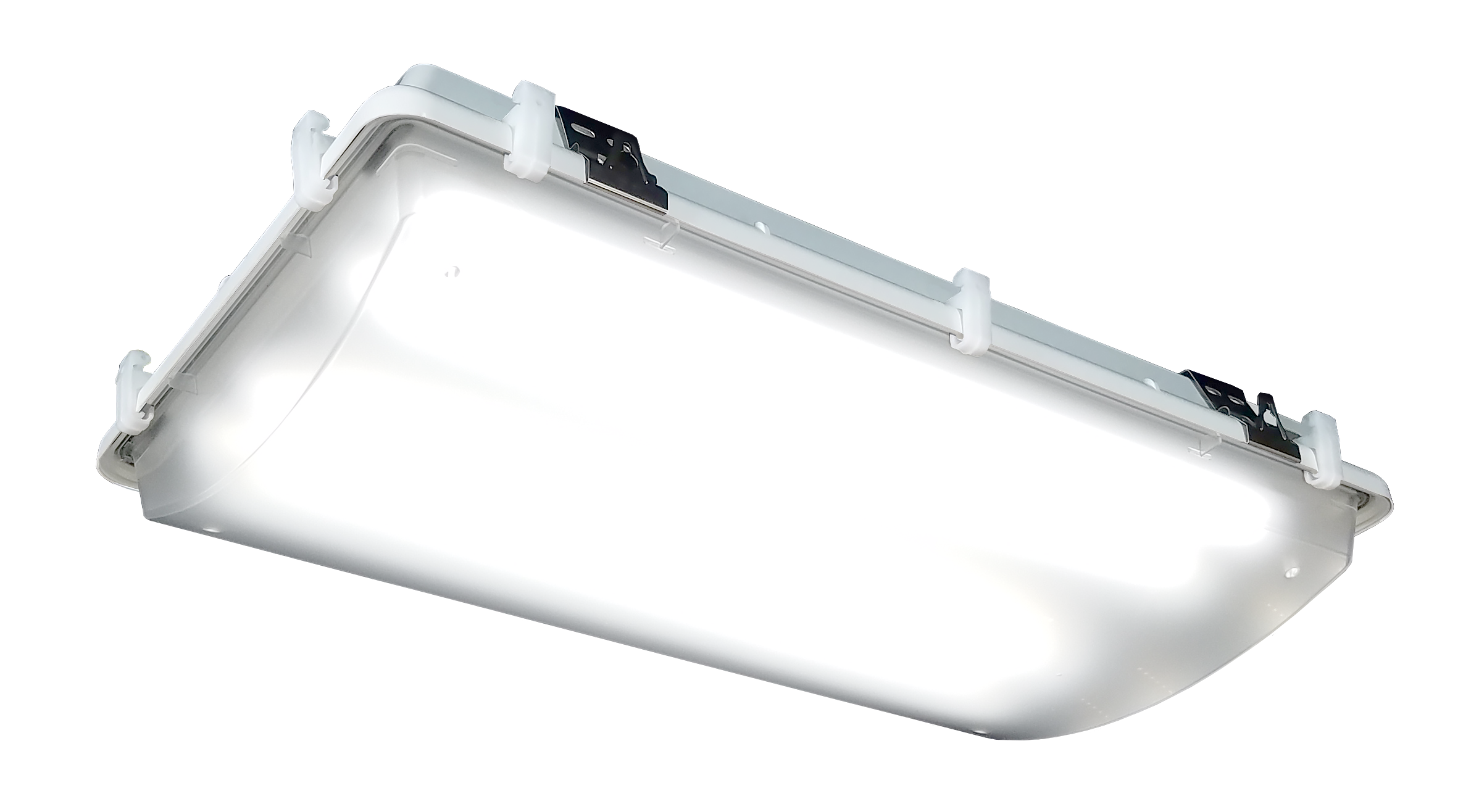

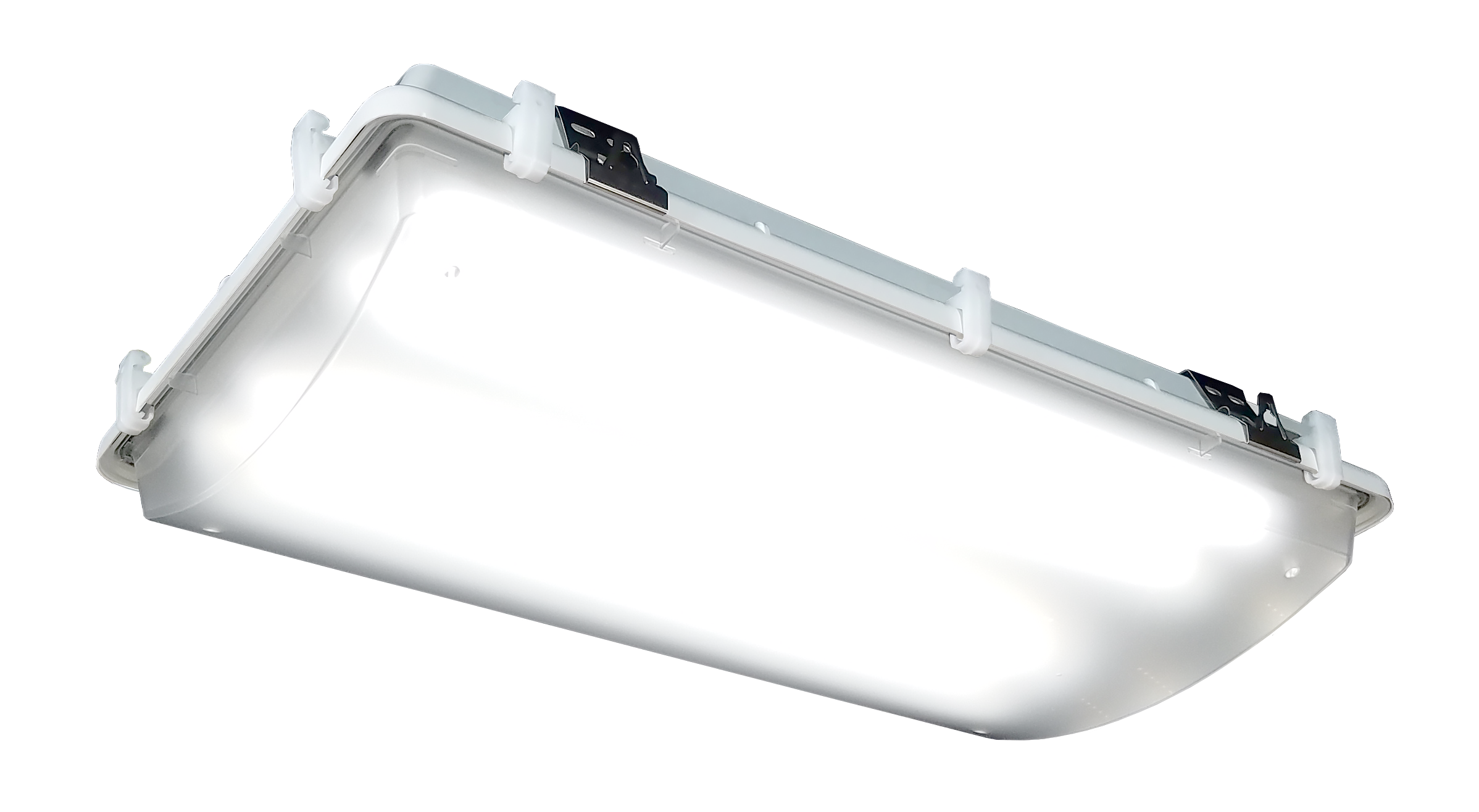

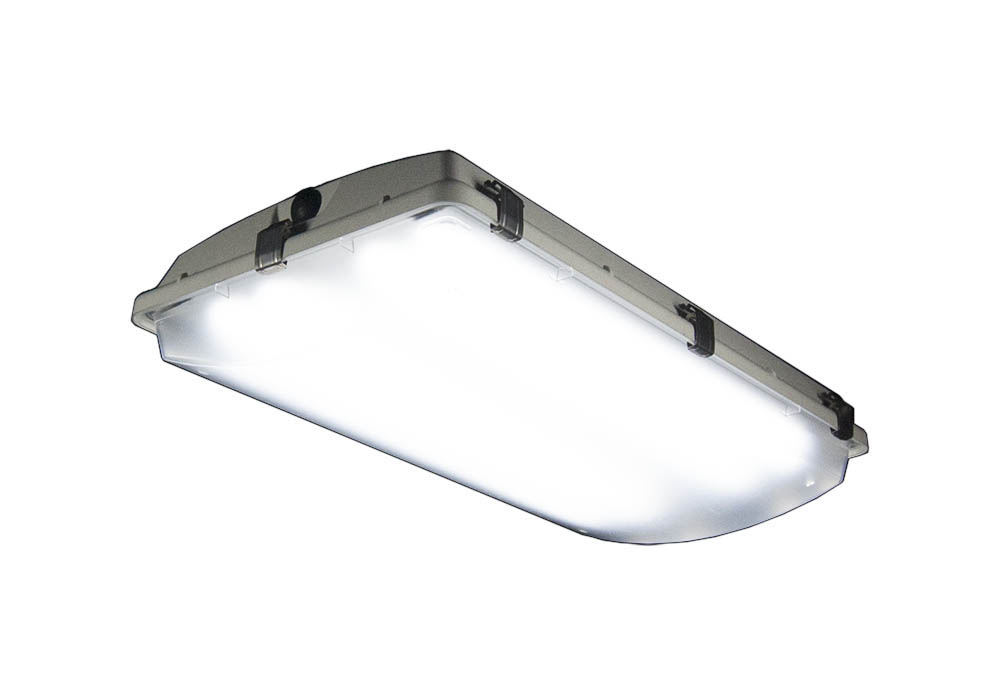

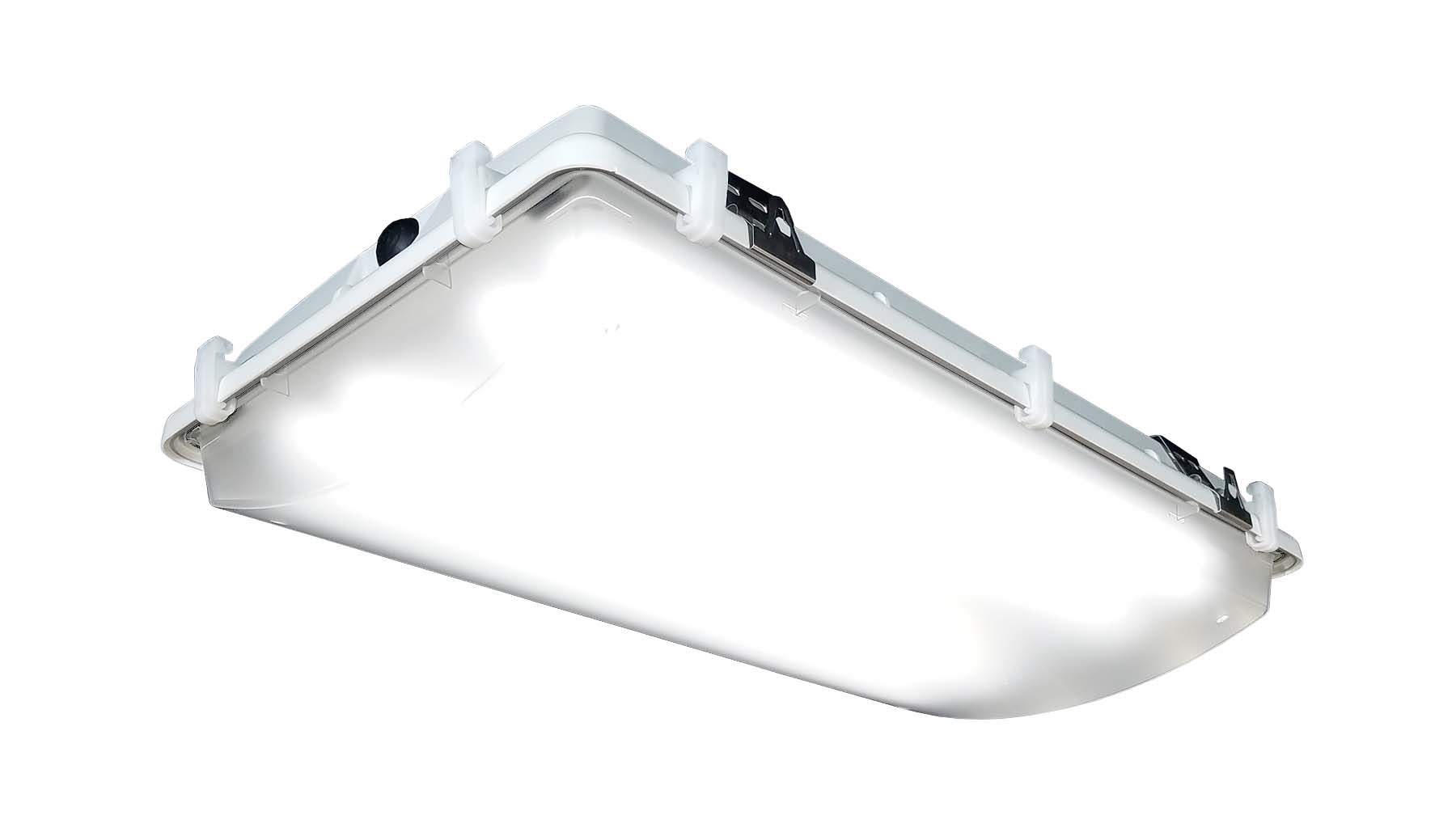

WVL2 with frosted acrylic lens and stainless steel latches, illuminated

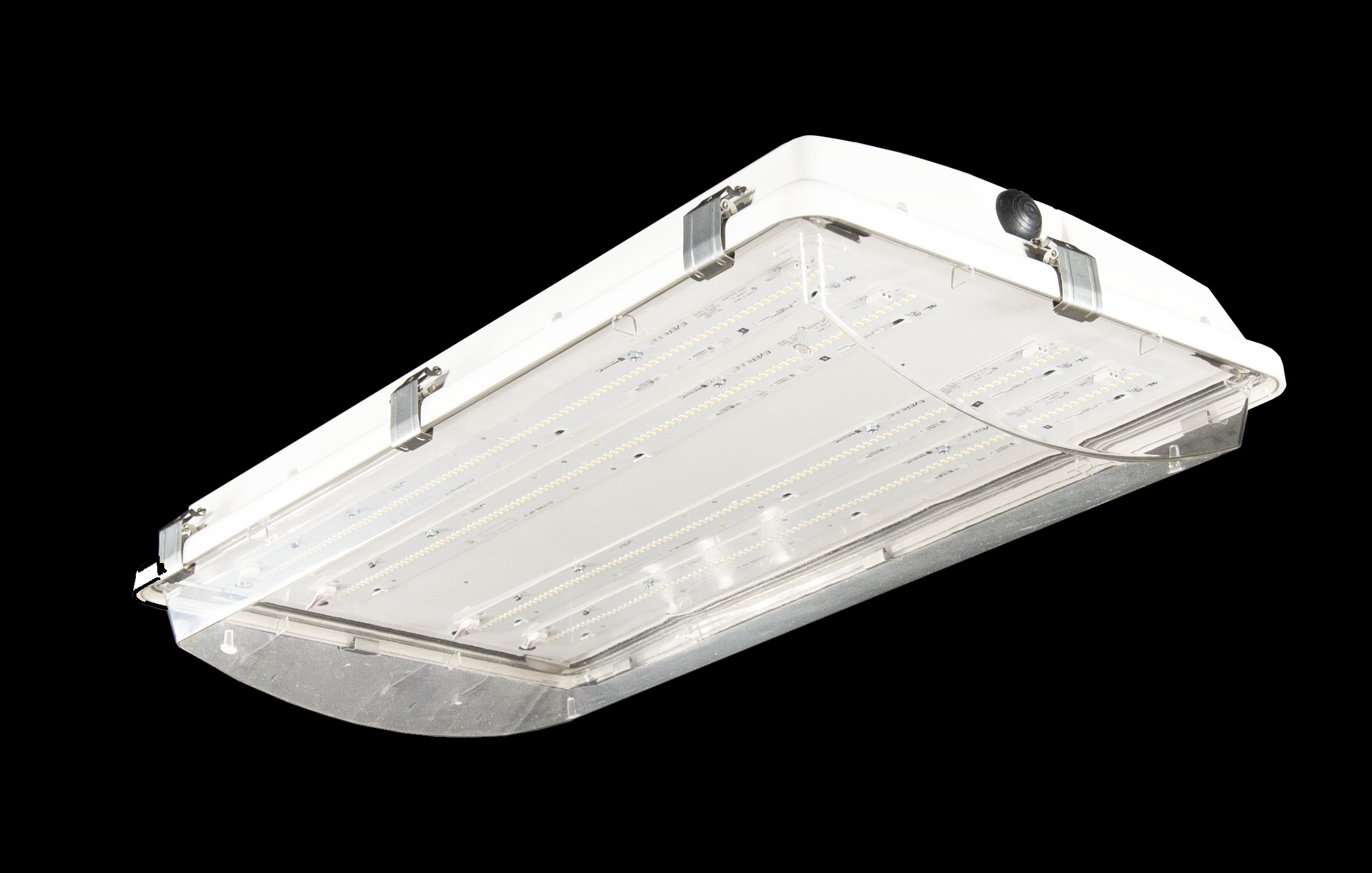

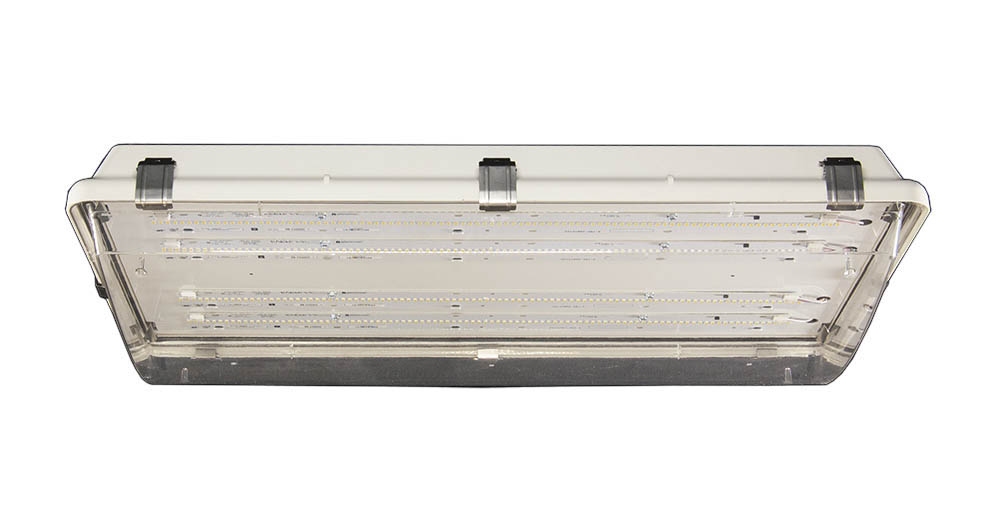

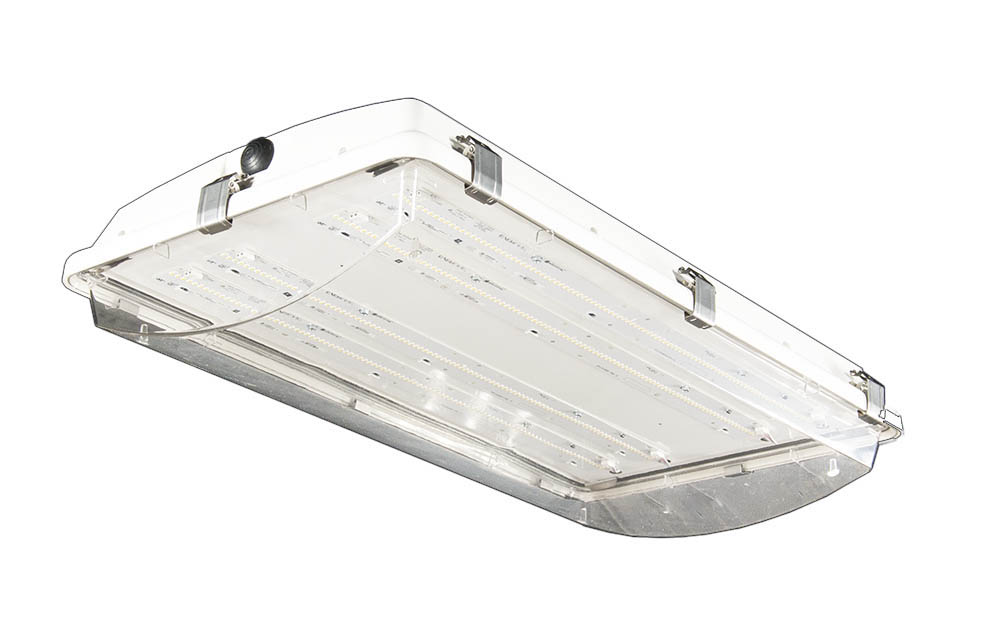

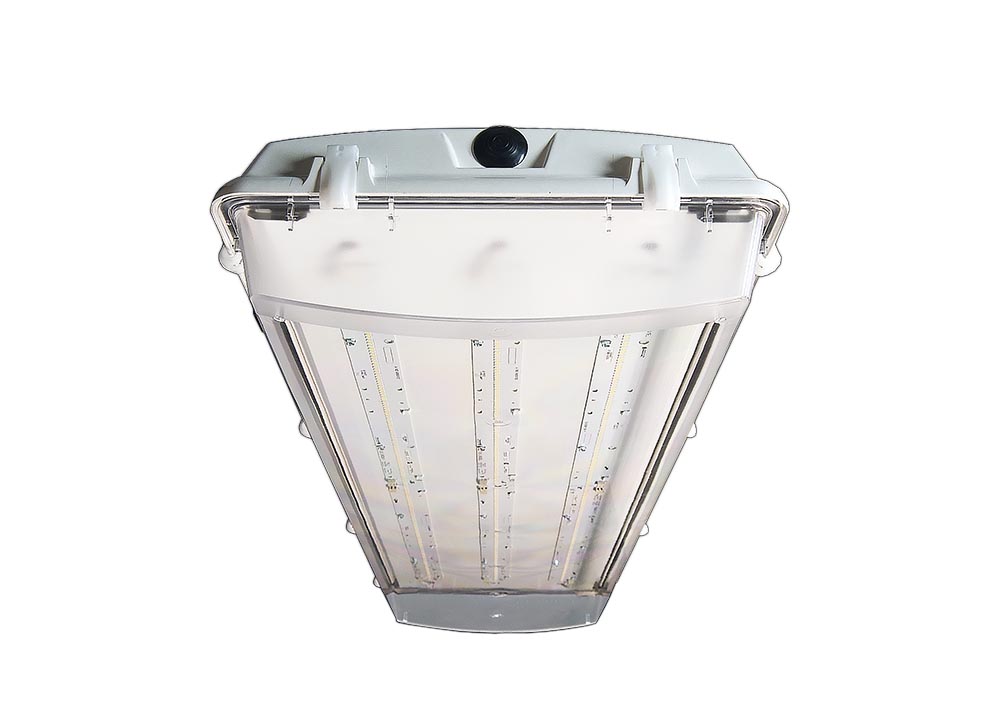

WVL2 with clear acrylic lens and stainless steel latches

Note: Table scrolls horizontally

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Shielding	Voltages Available	DLC Listed	Predicted L70 Lifetime
WVL 2 LW UV FA 835	2-foot	8,319	65	128.2	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV FA 840	2-foot	8,594	65	132.4	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV FA 850	2-foot	8,852	65	136.4	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV FA 835	2-foot	12,563	89	140.5	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV FA 840	2-foot	12,912	89	144.4	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV FA 850	2-foot	13,261	89	148.3	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV FA 835	2-foot	16,638	129	129	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV FA 840	2-foot	17,188	129	133.2	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV FA 850	2-foot	17,704	129	137.2	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV CA 835	2-foot	8,514	65	131.2	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV CA 840	2-foot	8,796	65	135.5	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV CA 850	2-foot	9,059	65	139.6	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV CA 835	2-foot	12,858	89	143.8	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV CA 840	2-foot	13,215	89	147.8	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV CA 850	2-foot	13,571	89	151.8	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV CA 835	2-foot	17,028	129	132	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV CA 840	2-foot	17,591	129	136.4	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV CA 850	2-foot	18,119	129	140.5	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV CP 835	2-foot	8,466	65	130.4	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV CP 840	2-foot	8,746	65	134.7	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 LW UV CP 850	2-foot	9,009	65	138.8	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV CP 835	2-foot	12,785	89	143	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV CP 840	2-foot	13,140	89	146.9	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 MD UV CP 850	2-foot	13,495	89	150.9	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV CP 835	2-foot	16,932	129	131.3	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV CP 840	2-foot	17,492	129	135.6	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 2 HI UV CP 850	2-foot	18,017	129	139.7	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV FA 835	4-foot	16,109	122	131.8	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV FA 840	4-foot	16,642	122	136.2	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV FA 850	4-foot	17,141	122	140.2	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV FA 835	4-foot	20,051	156	128.5	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV FA 840	4-foot	20,714	156	132.8	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV FA 850	4-foot	21,335	156	136.8	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV FA 835	4-foot	22,687	169	134.4	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV FA 840	4-foot	23,437	169	138.8	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV FA 850	4-foot	24,140	169	143	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV FA 835	4-foot	30,546	206	148.2	80 CRI / 3500K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV FA 840	4-foot	31,394	206	152.4	80 CRI / 4000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV FA 850	4-foot	32,242	206	156.5	80 CRI / 5000K	Frosted acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV CA 835	4-foot	16,366	122	133.9	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV CA 840	4-foot	16,907	122	138.3	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV CA 850	4-foot	17,415	122	142.5	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV CA 835	4-foot	20,371	156	130.6	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV CA 840	4-foot	21,044	156	134.9	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV CA 850	4-foot	21,676	156	138.9	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV CA 835	4-foot	23,049	169	136.5	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV CA 840	4-foot	23,811	169	141	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV CA 850	4-foot	24,526	169	145.3	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV CA 835	4-foot	31,034	206	150.6	80 CRI / 3500K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV CA 840	4-foot	31,895	206	154.8	80 CRI / 4000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV CA 850	4-foot	32,756	206	159	80 CRI / 5000K	Clear acrylic	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV CP 835	4-foot	16,071	122	131.5	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV CP 840	4-foot	16,603	122	135.8	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 LW UV CP 850	4-foot	17,101	122	139.9	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV CP 835	4-foot	20,004	156	128.2	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV CP 840	4-foot	20,665	156	132.5	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 MD UV CP 850	4-foot	21,285	156	136.4	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV CP 835	4-foot	22,634	169	134.1	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV CP 840	4-foot	23,382	169	138.5	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 HI UV CP 850	4-foot	24,084	169	142.7	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV CP 835	4-foot	30,475	206	147.9	80 CRI / 3500K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV CP 840	4-foot	31,320	206	152	80 CRI / 4000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)
WVL 4 SH UV CP 850	4-foot	32,166	206	156.1	80 CRI / 5000K	Clear polycarbonate	120-277V, 347V, 480V	Yes	>100,000 hrs (calculated)

Catalog #	Equivalency*
WVL 2 LW UV FA 835	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV FA 840	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV FA 850	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 MD UV FA 835	4L F32 T8 w/ HBF, 3L T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV FA 840	4L F32 T8 w/ HBF, 3L T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV FA 850	4L F32 T8 w/ HBF, 3L T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 HI UV FA 835	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV FA 840	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV FA 850	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 LW UV CA 835	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CA 840	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CA 850	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 MD UV CA 835	4L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CA 840	4L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CA 850	4L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 HI UV CA 835	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CA 840	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CA 850	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 LW UV CP 835	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CP 840	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CP 850	3L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 MD UV CP 835	4L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CP 840	4L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CP 850	4L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 HI UV CP 835	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CP 840	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CP 850	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV FA 835	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV FA 840	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV FA 850	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV FA 835	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV FA 840	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV FA 850	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 HI UV FA 835	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV FA 840	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV FA 850	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 SH UV FA 835	8L T5HO, 400W HPS
WVL 4 SH UV FA 840	8L T5HO, 400W HPS
WVL 4 SH UV FA 850	8L T5HO, 400W HPS
WVL 4 LW UV CA 835	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CA 840	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CA 850	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CA 835	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CA 840	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CA 850	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 HI UV CA 835	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CA 840	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CA 850	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 SH UV CA 835	8L T5HO, 400W HPS
WVL 4 SH UV CA 840	8L T5HO, 400W HPS
WVL 4 SH UV CA 850	8L T5HO, 400W HPS
WVL 4 LW UV CP 835	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CP 840	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CP 850	6L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CP 835	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CP 840	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CP 850	7L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 HI UV CP 835	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CP 840	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CP 850	8L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 SH UV CP 835	8L T5HO, 400W HPS
WVL 4 SH UV CP 840	8L T5HO, 400W HPS
WVL 4 SH UV CP 850	8L T5HO, 400W HPS
