LED 2' Vaportight High Bay

Durable materials and craftsmanship allow the compact and efficient WVL2 2' vaportight to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. Multiple hanging options are also available, including surface, chain and aircraft cable, for easy installation (more info below). Impact resistant acrylic and UV stabilized polycarbonate lenses are available as well.

  • Applications: Suitable for most industrial, retail and recreational low bay and high bay applications - warehouses, manufacturing facilities, food processing, freezers, gymnasiums, parking garages and car washes.
  • Lumen Output: From 8,000 lm to 18,000 lm
  • Max Lumens Per Watt: 145
  • Size Options: 2-foot. 4-foot available also - as the WVL4 (click here for WVL4 page).
  • Predicted L70 Lifetime: > 200,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: IP65, IP66, IP67 (optional), IP69, NEMA 4X, NSF, PSI 1500, RoHS.
MountingOptionsUpdated2

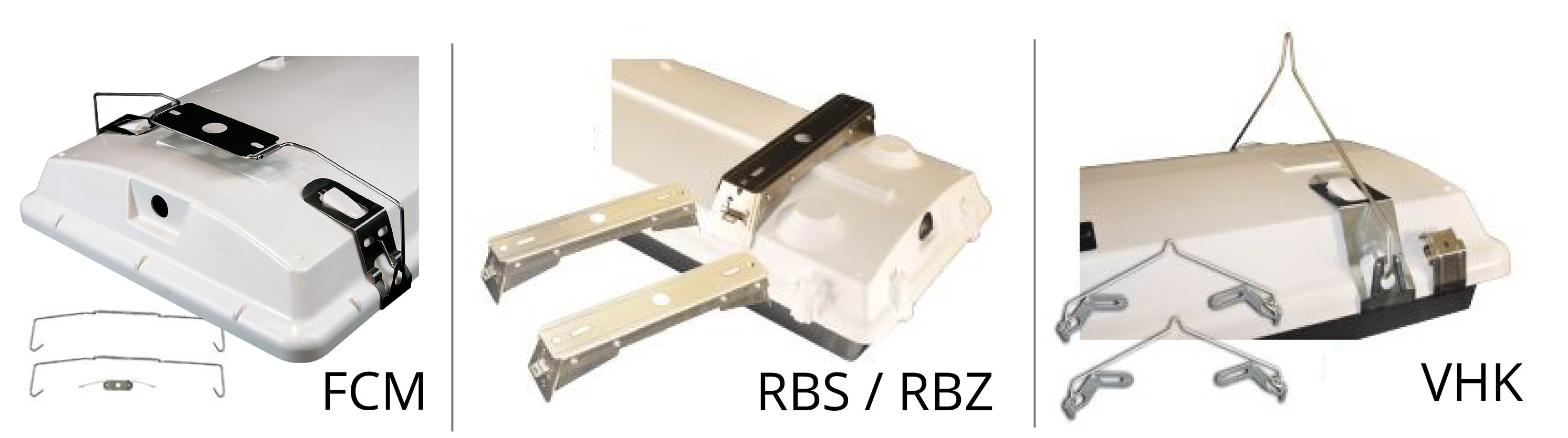

    The WVL2 features multiple hanging options, including the Flexible Ceiling Mount (FCM). The Rigid Mounting Beam is another option, available in both stainless steel and zinc-plated variations (RBS and RBZ). Also, the V-hook (VHK) can be purchased for chain or cable mounting.
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-3-031717.jpg
WVL2 with frosted acrylic lens
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-5-031717.jpg
WVL2 with frosted acrylic lens
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-2-031717.jpg
WVL2 with frosted acrylic lens
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-4-031717.jpg
WVL2 with frosted acrylic lens illuminated
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-031717.jpg
WVL2 with clear acrylic lens
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-6-031717.jpg
WVL2 with clear acrylic lens
https://www.lumenfocus.com/wp-content/uploads/2017/03/WVL2-7-031717.jpg
WVL2 with clear acrylic lens

WVL2 Performance Chart

Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailableDLC ListedWarrantyPredicted L70 LifetimeEquivalency*
WVL 2 LW UV FA 835
Photometry Files | Image
2-foot860164133.980 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 LW UV FA 840
2-foot88677013880 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 LW UV FA 850
Photometry Files | Image
2-foot913370142.180 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 MD UV FA 835
Photometry Files | Image
2-foot12471102122.680 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 MD UV FA 840
2-foot12857100126.480 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 MD UV FA 850
Photometry Files | Image
2-foot13242100130.280 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 HI UV FA 835
2-foot16673129129.480 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 HI UV FA 840
2-foot17189130133.580 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 HI UV FA 850
Photometry Files | Image
2-foot17704130137.580 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 LW UV CA 835
2-foot88036413780 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 LW UV CA 840
2-foot907564141.280 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 LW UV CA 850
Photometry Files | Image
2-foot934764145.580 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 MD UV CA 835
2-foot12763102125.580 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 MD UV CA 840
2-foot13158102129.480 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 MD UV CA 850
Photometry Files | Image
2-foot13552102133.380 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 HI UV CA 835
2-foot17063129132.580 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 HI UV CA 840
2-foot17591129136.680 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 HI UV CA 850
Photometry Files | Image
2-foot18119129140.780 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 LW UV CP 835
2-foot875364136.280 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 LW UV CP 840
2-foot902464140.480 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 LW UV CP 850
Photometry Files | Image
2-foot929564144.680 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 3-lamp F32 T8 with HBF, or 2-lamp F54 T5HO in a 2-foot vaportight
WVL 2 MD UV CP 835
2-foot12691102124.880 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 MD UV CP 840
2-foot13084102128.780 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 MD UV CP 850
Photometry Files | Image
2-foot13476102132.580 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 4-lamp F32 T8 with HBF, 3-lamp F54 T5HO, or 250W PSMH in a 2-foot vaportight
WVL 2 HI UV CP 835
2-foot16968129131.780 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 HI UV CP 840
2-foot17492129135.880 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
WVL 2 HI UV CP 850
Photometry Files | Image
2-foot18017129139.980 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)Replaces 6-lamp F32 T8 with HBF, 4-lamp T5HO, or 400W MH in a 2-foot vaportight
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
