LED 2' Vaportight High Bay

    Durable materials and craftsmanship allow the compact and efficient WVL2 2' vaportight to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. Multiple hanging options are also available, including surface, chain and aircraft cable, for easy installation (more info below). Impact resistant acrylic and UV stabilized polycarbonate lenses are available as well. The WVL2 is assembled in the USA - in our Henderson, NC facility.
  • Applications: Suitable for most industrial, retail and recreational low bay and high bay applications - warehouses, manufacturing facilities, food processing, freezers, gymnasiums, car washes.
  • Lumen Output: From 8,000 lm to 18,000 lm
  • Max Lumens Per Watt: 151.8
  • Size Options: 2-foot. 4-foot available also - as the WVL4 (click here for WVL4 page).
  • Predicted L70 Lifetime: > 100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Re-BoardABILITY: Every WVL2 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: IP65, IP66, IP67 (optional), IP69, NEMA 4X, NSF, PSI 1500, RoHS.
  • Assembled in the USA: Each WVL2 is assembled at our facility in Henderson, NC. BAA compliant options are available

Click to enlarge

WVL2-1119-2JPG WVL2-1119-2JPG
WVL2 with frosted acrylic lens
WVL2-1119-3JPG WVL2-1119-3JPG
WVL2 with frosted acrylic lens
WVL2-1119-4JPGwithOSFHW-CTW WVL2-1119-4JPGwithOSFHW-CTW
WVL2 with OS option
WVL2-1119-1JPG WVL2-1119-1JPG
WVL2 with frosted acrylic lens
WVL2-3 031717 WVL2-3 031717
WVL2 with frosted acrylic lens and stainless steel latches
WVL2-5 031717 WVL2-5 031717
WVL2 with frosted acrylic lens and stainless steel latches
WVL2-2 031717 WVL2-2 031717
WVL2 with frosted acrylic lens and stainless steel latches
WVL2-4 031717 WVL2-4 031717
WVL2 with frosted acrylic lens and stainless steel latches, illuminated
WVL2 031717 WVL2 031717
WVL2 with clear acrylic lens and stainless steel latches
WVL2-6 031717 WVL2-6 031717
WVL2 with clear acrylic lens and stainless steel latches
WVL2-7 031717 WVL2-7 031717
WVL2 with clear acrylic lens and stainless steel latches
DLC, cULus, AiA, NSF
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
WVL 2 LW UV FA 8352-foot8,31965128.280 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV FA 8402-foot8,59465132.480 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV FA 8502-foot8,85265136.480 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV FA 8352-foot12,56389140.580 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV FA 8402-foot12,91289144.480 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV FA 8502-foot13,26189148.380 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV FA 8352-foot16,63812912980 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV FA 8402-foot17,188129133.280 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV FA 8502-foot17,704129137.280 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV CA 8352-foot8,51465131.280 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV CA 8402-foot8,79665135.580 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV CA 8502-foot9,05965139.680 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV CA 8352-foot12,85889143.880 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV CA 8402-foot13,21589147.880 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV CA 8502-foot13,57189151.880 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV CA 8352-foot17,02812913280 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV CA 8402-foot17,591129136.480 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV CA 8502-foot18,119129140.580 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV CP 8352-foot8,46665130.480 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV CP 8402-foot8,74665134.780 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 LW UV CP 8502-foot9,00965138.880 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV CP 8352-foot12,7858914380 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV CP 8402-foot13,14089146.980 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 MD UV CP 8502-foot13,49589150.980 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV CP 8352-foot16,932129131.380 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV CP 8402-foot17,492129135.680 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 2 HI UV CP 8502-foot18,017129139.780 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
Catalog #
Equivalency*
WVL 2 LW UV FA 8353L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV FA 8403L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV FA 8503L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 MD UV FA 8354L F32 T8 w/ HBF, 3L T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV FA 8404L F32 T8 w/ HBF, 3L T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV FA 8504L F32 T8 w/ HBF, 3L T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 HI UV FA 8356L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV FA 8406L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV FA 8506L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 LW UV CA 8353L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CA 8403L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CA 8503L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 MD UV CA 8354L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CA 8404L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CA 8504L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 HI UV CA 8356L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CA 8406L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CA 8506L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 LW UV CP 8353L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CP 8403L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 LW UV CP 8503L F32 T8 w/ HBF, 2L F54 T5HO
WVL 2 MD UV CP 8354L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CP 8404L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 MD UV CP 8504L F32 T8 w/ HBF, 3L F54 T5HO, 250W PSMH
WVL 2 HI UV CP 8356L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CP 8406L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 2 HI UV CP 8506L F32 T8 w/ HBF, 4L T5HO, 400W MH
Catalog #
ImageSpec Sheet.ies & .pdf files
WVL 2 LW UV FA 835View Download Download
WVL 2 LW UV FA 840View Download Contact Factory
WVL 2 LW UV FA 850View Download Download
WVL 2 MD UV FA 835View Download Download
WVL 2 MD UV FA 840View Download Contact Factory
WVL 2 MD UV FA 850View Download Download
WVL 2 HI UV FA 835View Download Contact Factory
WVL 2 HI UV FA 840View Download Contact Factory
WVL 2 HI UV FA 850View Download Download
WVL 2 LW UV CA 835View Download Contact Factory
WVL 2 LW UV CA 840View Download Contact Factory
WVL 2 LW UV CA 850View Download Download
WVL 2 MD UV CA 835View Download Contact Factory
WVL 2 MD UV CA 840View Download Contact Factory
WVL 2 MD UV CA 850View Download Download
WVL 2 HI UV CA 835View Download Contact Factory
WVL 2 HI UV CA 840View Download Contact Factory
WVL 2 HI UV CA 850View Download Download
WVL 2 LW UV CP 835View Download Contact Factory
WVL 2 LW UV CP 840View Download Contact Factory
WVL 2 LW UV CP 850View Download Download
WVL 2 MD UV CP 835View Download Contact Factory
WVL 2 MD UV CP 840View Download Contact Factory
WVL 2 MD UV CP 850View Download Download
WVL 2 HI UV CP 835View Download Contact Factory
WVL 2 HI UV CP 840View Download Contact Factory
WVL 2 HI UV CP 850View Download Download
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

MountingOptionsUpdated3

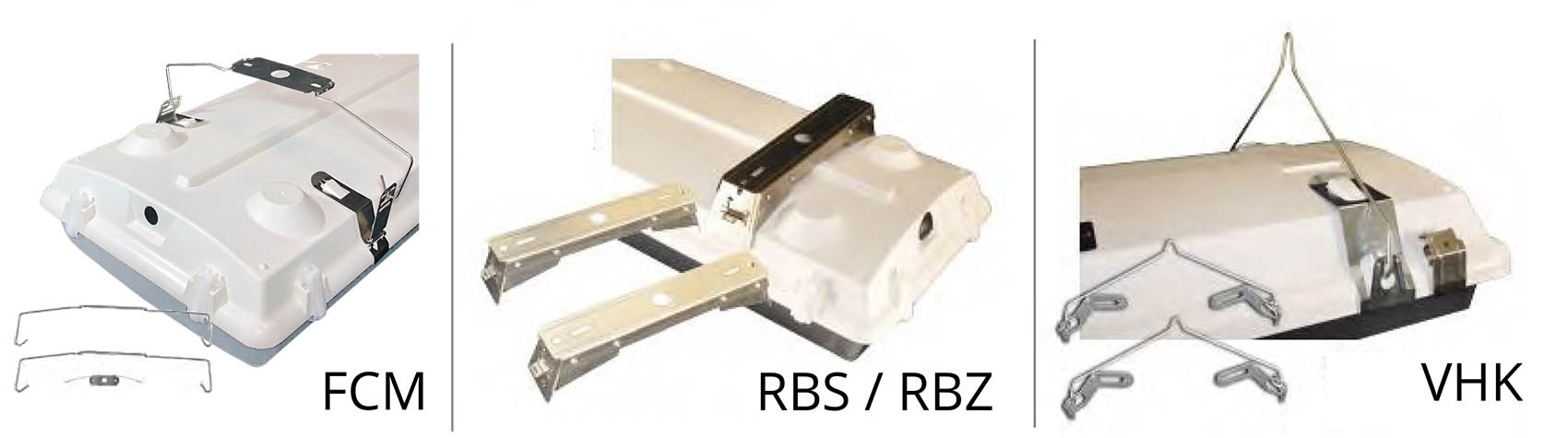

Mounting options

    The WVL2 is available with multiple hanging options, including the Flexible Ceiling Mount (FCM). The Rigid Mounting Beam is another option, available in both stainless steel and zinc-plated variations (RBS and RBZ). Also, the V-hook (VHK) can be purchased for chain or cable mounting.
MountingOptionsUpdated3

Mounting options

    The WVL2 is available with multiple hanging options, including the Flexible Ceiling Mount (FCM). The Rigid Mounting Beam is another option, available in both stainless steel and zinc-plated variations (RBS and RBZ). Also, the V-hook (VHK) can be purchased for chain or cable mounting.

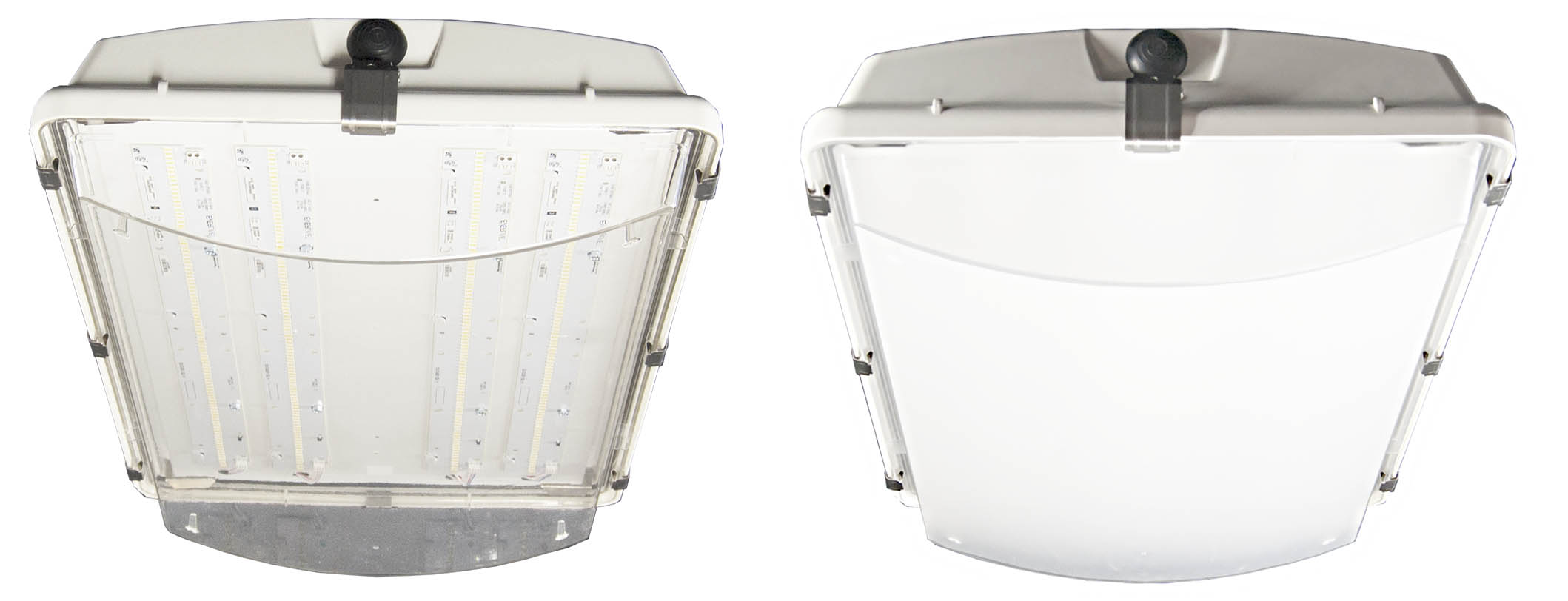

Your choice of lens

    The WVL2 has three shielding options to choose from: UV-stabilized clear polycarbonate, along with impact-resistant clear or frosted acrylic.
bothlensesjpg
WVL2 IP69 logo

Certifications

    The WVL2 has numerous certifications - including an IP69 rating, meaning it is dust-tight and can stand up to high pressure and high temperature water jets. Other certifications include: IP65, IP66, IP67 (optional), NEMA 4X, PSI 1500, RoHS, and DLC QPL (specific configurations).
