LED 4' Vaportight High Bay

    Durable materials and craftsmanship allows the WVL4 to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. Multiple hanging options available, including surface, chain and aircraft cable, for easy installation (more info below). Impact resistant acrylic and UV stabilized polycarbonate lenses are available as well. The WVL4 is assembled in the USA - in our Henderson, NC facility.
  • Applications: Suitable for most industrial, retail and recreational low bay and high bay applications - warehouse, manufacturing facility, food processing, freezer, gymnasium
  • Lumen Output: From 16,000 lm - 32,000 lm
  • Max Lumens Per Watt: 159
  • Size Options: 4-foot. 2-footer available as WVL2 (click here for WVL2 page)
  • Predicted L70 Lifetime: > 100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Re-BoardABILITY: Every WVL4 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: IP65, IP66, IP67, NEMA 4X, NSF, PSI 1500, RoHS
  • Assembled in the USA: Each WVL4 is assembled at our facility in Henderson, NC. BAA compliant options are available

Click to enlarge

WVL4 frosted lens stroke lightened 1217 for WP WVL4 frosted lens stroke lightened 1217 for WP
WVL4 with frosted lens
WVL4 frosted lens3JPG WVL4 frosted lens3JPG
WVL4 with frosted lens
WVL2 clear lens WP readyJPG WVL2 clear lens WP readyJPG
WVL4 with clear acrylic lens
WVL Frosted lens4jpg WVL Frosted lens4jpg
WVL4 with frosted lens
WVL2 clear lens 2 WP readyJPG WVL2 clear lens 2 WP readyJPG
WVL4 with clear acrylic lens
WVL Frosted lens2jpg WVL Frosted lens2jpg
WVL4 with frosted lens
WVL4 clear lens WPready 041817 WVL4 clear lens WPready 041817
WVL4 with clear acrylic lens
<font face=WVL4" class="image_1919" /> <font face=WVL4"/>
WVL4 with frosted lens
DLC, cULus, AiA, NSF
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
WVL 4 LW UV FA 8354-foot16,109122131.880 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV FA 8404-foot16,642122136.280 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV FA 8504-foot17,141122140.280 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV FA 8354-foot20,051156128.580 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV FA 8404-foot20,714156132.880 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV FA 8504-foot21,335156136.880 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV FA 8354-foot22,687169134.480 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV FA 8404-foot23,437169138.880 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV FA 8504-foot24,14016914380 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV FA 8354-foot30,546206148.280 CRI / 3500KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV FA 8404-foot31,394206152.480 CRI / 4000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV FA 8504-foot32,242206156.580 CRI / 5000KFrosted acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV CA 8354-foot16,366122133.980 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV CA 8404-foot16,907122138.380 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV CA 8504-foot17,415122142.580 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV CA 8354-foot20,371156130.680 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV CA 8404-foot21,044156134.980 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV CA 8504-foot21,676156138.980 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV CA 8354-foot23,049169136.580 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV CA 8404-foot23,81116914180 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV CA 8504-foot24,526169145.380 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV CA 8354-foot31,034206150.680 CRI / 3500KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV CA 8404-foot31,895206154.880 CRI / 4000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV CA 8504-foot32,75620615980 CRI / 5000KClear acrylic120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV CP 8354-foot16,071122131.580 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV CP 8404-foot16,603122135.880 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 LW UV CP 8504-foot17,101122139.980 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV CP 8354-foot20,004156128.280 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV CP 8404-foot20,665156132.580 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 MD UV CP 8504-foot21,285156136.480 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV CP 8354-foot22,634169134.180 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV CP 8404-foot23,382169138.580 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 HI UV CP 8504-foot24,084169142.780 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV CP 8354-foot30,475206147.980 CRI / 3500KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV CP 8404-foot31,32020615280 CRI / 4000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
WVL 4 SH UV CP 8504-foot32,166206156.180 CRI / 5000KClear polycarbonate120-277V, 347V, 480VYes5 years>100,000 hrs (calculated)
Catalog #
Equivalency*
WVL 4 LW UV FA 8356L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV FA 8406L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV FA 8506L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV FA 8357L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV FA 8407L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV FA 8507L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 HI UV FA 8358L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV FA 8408L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV FA 8508L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 SH UV FA 8358L T5HO, 400W HPS
WVL 4 SH UV FA 8408L T5HO, 400W HPS
WVL 4 SH UV FA 8508L T5HO, 400W HPS
WVL 4 LW UV CA 8356L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CA 8406L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CA 8506L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CA 8357L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CA 8407L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CA 8507L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 HI UV CA 8358L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CA 8408L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CA 8508L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 SH UV CA 8358L T5HO, 400W HPS
WVL 4 SH UV CA 8408L T5HO, 400W HPS
WVL 4 SH UV CA 8508L T5HO, 400W HPS
WVL 4 LW UV CP 8356L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CP 8406L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 LW UV CP 8506L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CP 8357L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CP 8407L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 MD UV CP 8507L F32 T8 w/ HBF, 4L T5HO, 400W MH
WVL 4 HI UV CP 8358L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CP 8408L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 HI UV CP 8508L F32 T8 w/ HBF, 5L T5HO, 400W PSMH
WVL 4 SH UV CP 8358L T5HO, 400W HPS
WVL 4 SH UV CP 8408L T5HO, 400W HPS
WVL 4 SH UV CP 8508L T5HO, 400W HPS
Catalog #
ImageSpec Sheet.ies & .pdf files
WVL 4 LW UV FA 835View Download Contact Factory
WVL 4 LW UV FA 840View Download Contact Factory
WVL 4 LW UV FA 850View Download Download
WVL 4 MD UV FA 835View Download Download
WVL 4 MD UV FA 840View Download Contact Factory
WVL 4 MD UV FA 850View Download Download
WVL 4 HI UV FA 835View Download Contact Factory
WVL 4 HI UV FA 840View Download Contact Factory
WVL 4 HI UV FA 850View Download Download
WVL 4 SH UV FA 835View Download Contact Factory
WVL 4 SH UV FA 840View Download Contact Factory
WVL 4 SH UV FA 850View Download Download
WVL 4 LW UV CA 835View Download Contact Factory
WVL 4 LW UV CA 840View Download Contact Factory
WVL 4 LW UV CA 850View Download Download
WVL 4 MD UV CA 835View Download Download
WVL 4 MD UV CA 840View Download Contact Factory
WVL 4 MD UV CA 850View Download Download
WVL 4 HI UV CA 835View Download Contact Factory
WVL 4 HI UV CA 840View Download Contact Factory
WVL 4 HI UV CA 850View Download Download
WVL 4 SH UV CA 835View Download Contact Factory
WVL 4 SH UV CA 840View Download Contact Factory
WVL 4 SH UV CA 850View Download Download
WVL 4 LW UV CP 835View Download Contact Factory
WVL 4 LW UV CP 840View Download Contact Factory
WVL 4 LW UV CP 850View Download Download
WVL 4 MD UV CP 835View Download Download
WVL 4 MD UV CP 840View Download Contact Factory
WVL 4 MD UV CP 850View Download Download
WVL 4 HI UV CP 835View Download Contact Factory
WVL 4 HI UV CP 840View Download Contact Factory
WVL 4 HI UV CP 850View Download Download
WVL 4 SH UV CP 835View Download Contact Factory
WVL 4 SH UV CP 840View Download Contact Factory
WVL 4 SH UV CP 850View Download Download
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

MountingOptionsUpdated3

Mounting options

    The WVL4 is available with multiple hanging options, including the Flexible Ceiling Mount (FCM). The Rigid Mounting Beam is another option, available in both stainless steel and zinc-plated variations (RBS and RBZ). Also, the V-hook (VHK) can be purchased for chain or cable mounting.
MountingOptionsUpdated3

Mounting options

    The WVL4 is available with multiple hanging options, including the Flexible Ceiling Mount (FCM). The Rigid Mounting Beam is another option, available in both stainless steel and zinc-plated variations (RBS and RBZ). Also, the V-hook (VHK) can be purchased for chain or cable mounting.

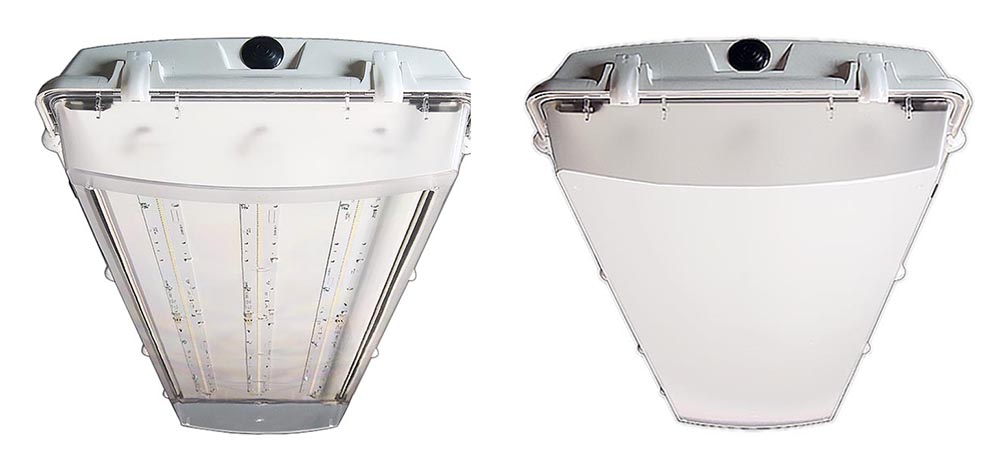

Your choice of lens

    The WVL2 has three shielding options to choose from: UV-stabilized clear polycarbonate, along with impact-resistant clear or frosted acrylic.
WVLbothlenses2
WVL4 SH JPG smaller black bg

Up to 32,000+ lumens

    There are many lumen packages to choose from, so you can get the exact light level you need out of your WVL4. Our "Super High (SH)" lumen output package produces 30,000-32,000 lumens, with efficacies still ranging from 133-141.5 lumens per watt! Controls (including on/off/dim sensors) are also available to maximize energy savings. See spec sheet for more details about controls and other options.
