Premium LED High Bay

    The PBL is better than ever! This line of premium high bay luminaires is available in many of the same output packages as our standard PBL, but with even higher efficacies! Improved LED technology has allowed us to increase lumens per watt across the board. Like the standard PBL, the G2 is available in a wide variety of sizes, lumen output packages and control options. Diffuser lenses are available to minimize glare and improve aesthetics. The housing is precision brake formed from aluminum and pre-painted with a highly durable, highly reflective white finish. Several control options - including IoT-compatible sensors - can be incorporated. Every PBL G2 is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
    At up to 179.5 lumens per watt, it's our most efficient product to date!
DownloadWattageOutput RangeDimensions
PBL G2 271 and 85W11,700 - 14,160 lumens24.06" x 11.68" x 2.765"
PBL G2 2W99 - 142W17,100 - 24,200 lumens24.06" x 15.244" x 2.925"
PBL G2 4115 - 167W19,700 - 28,000 lumens45.56" x 11.168" x 2.765"
PBL G2 4W181 - 320W31,200 - 53,800 lumens45.56" x 15.244" x 2.925"
DownloadWattage
PBL G2 271 and 85W
PBL G2 2W99 - 142W
PBL G2 4115 - 167W
PBL G2 4W181 - 320W
PBL G2 2: .ies files | .pdf files
PBL G2 2W: .ies files | .pdf files
PBL G2 4: .ies files | .pdf files
PBL G2 4W: .ies files | .pdf files
  • Applications: Suitable for most commercial, industrial and institutional applications - retail, warehouse, manufacturing, cold/frozen storage
  • Lumen Output: From around 11,000 in the PBL G2 2 to over 53,000 in the PBL G2 4W
  • Max Lumens Per Watt: 179.5 LPW in the 2W model; 170.1 in the standard 2'; 179.0 LPW in the 4W model; 178.4 in the standard 4'
  • Size Options: Available in 4-foot and 2-foot, standard and wide widths
  • Finish Options: Available in White (Standard), Matte Black and Metallic Silver
  • Predicted L70 Lifetime: Greater than 188,000 hours (calculated)
  • Predicted L90 Lifetime: Greater than 60,000 hours (reported)
  • Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
  • Re-BoardABILITY: Every PBL G2 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Click to enlarge

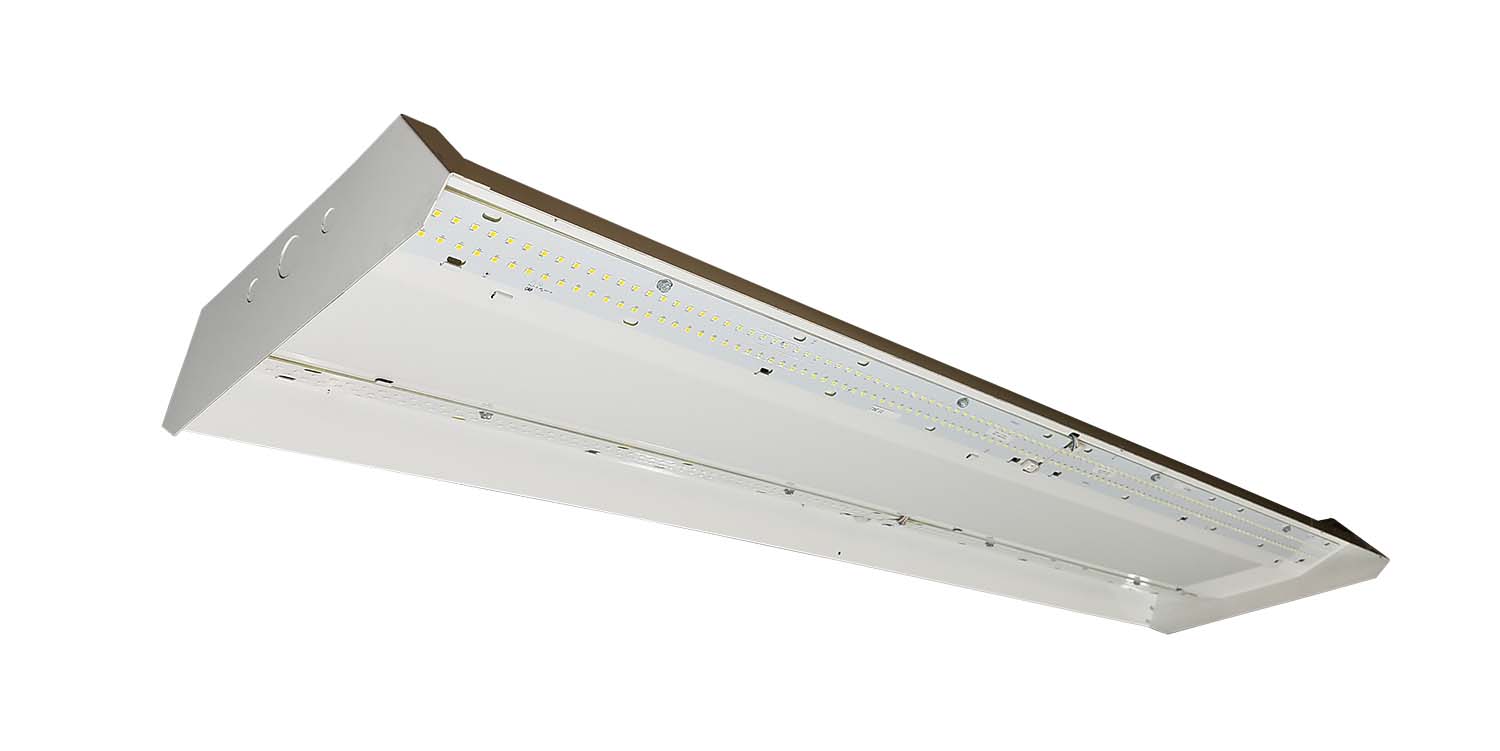

PBLG24-JPG2 PBLG24-JPG2
PBL G2 4, no lenses

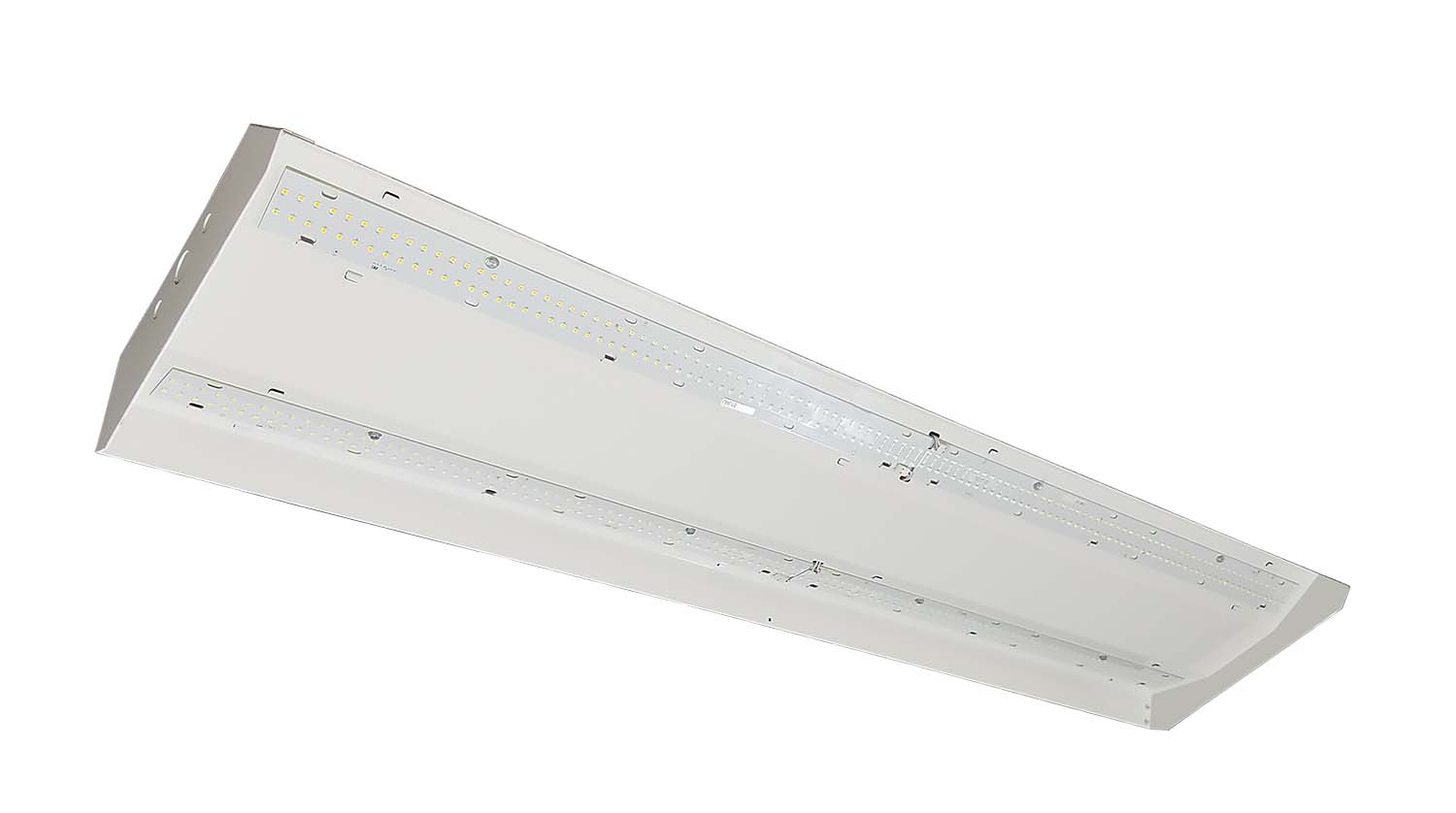

PBLG24-JPG3 PBLG24-JPG3
PBL G2 4, no lenses
PBLG24FR-JPG2 PBLG24FR-JPG2
PBL G2 4, with lenses

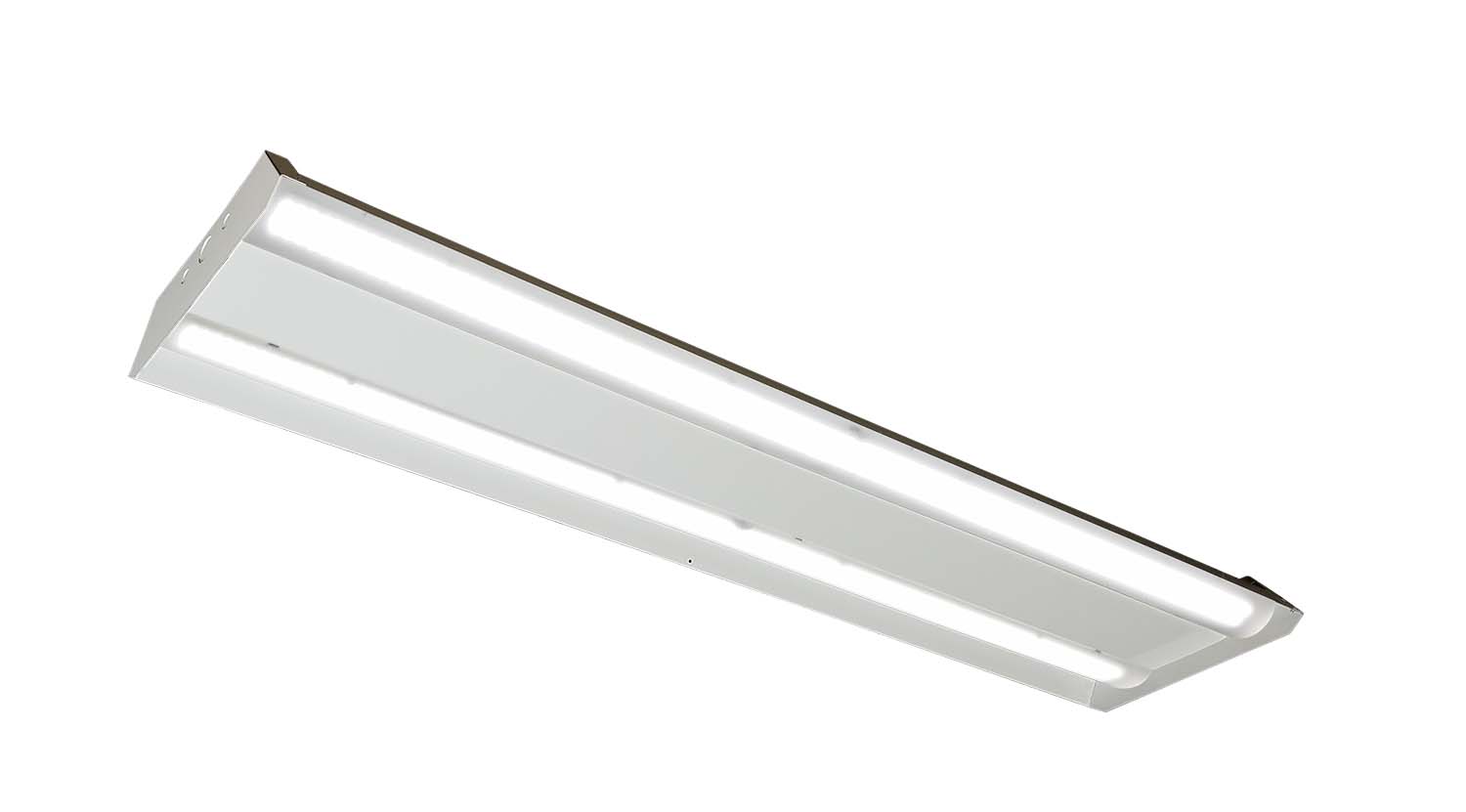

PBLG24FR-JPG1 PBLG24FR-JPG1
PBL G2 4, with lenses
PBLG24FR-JPG3 PBLG24FR-JPG3
PBL G2 4, with lenses

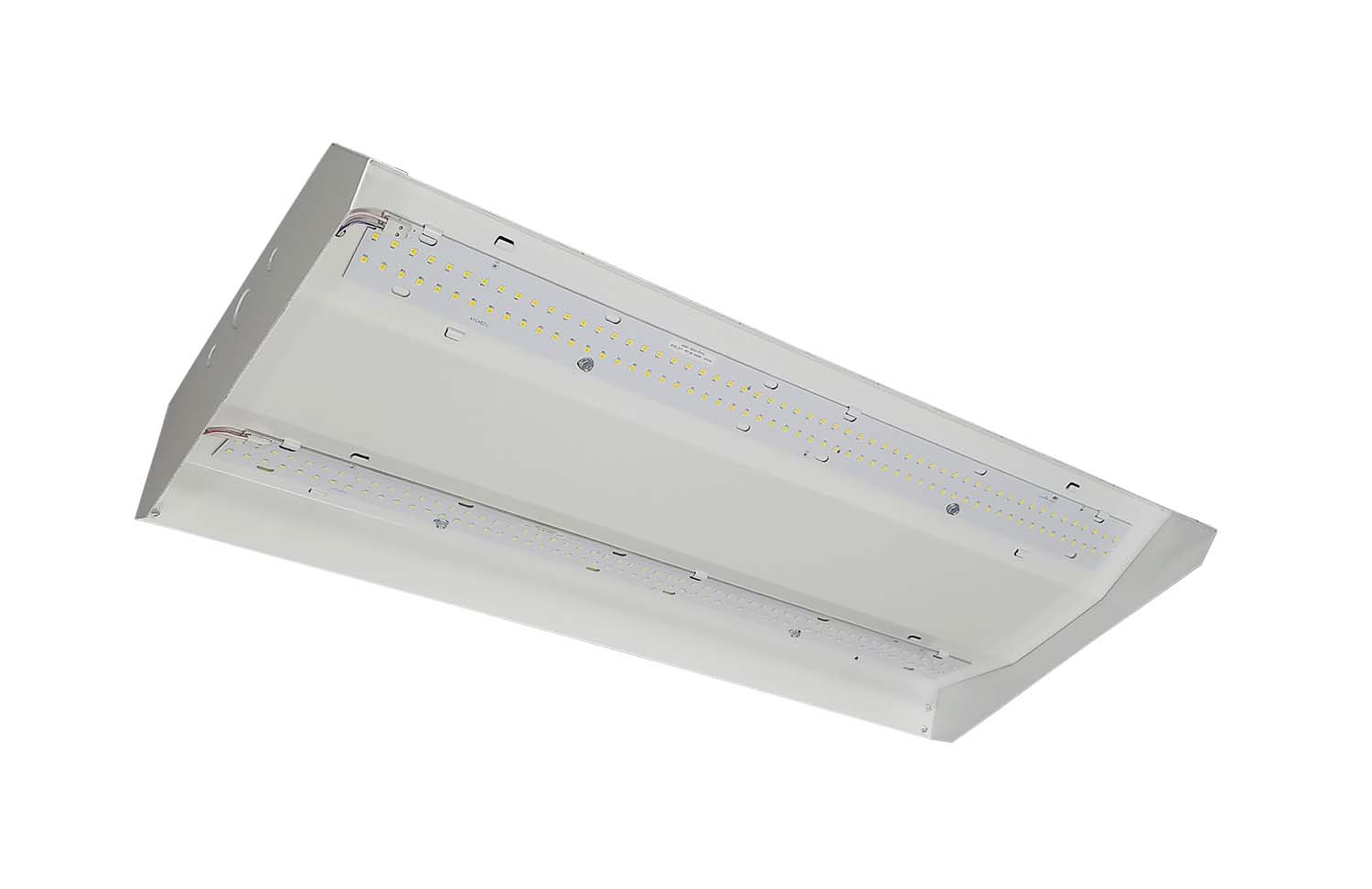

PBLG22-JPG3 PBLG22-JPG3
PBL G2 2, no lenses

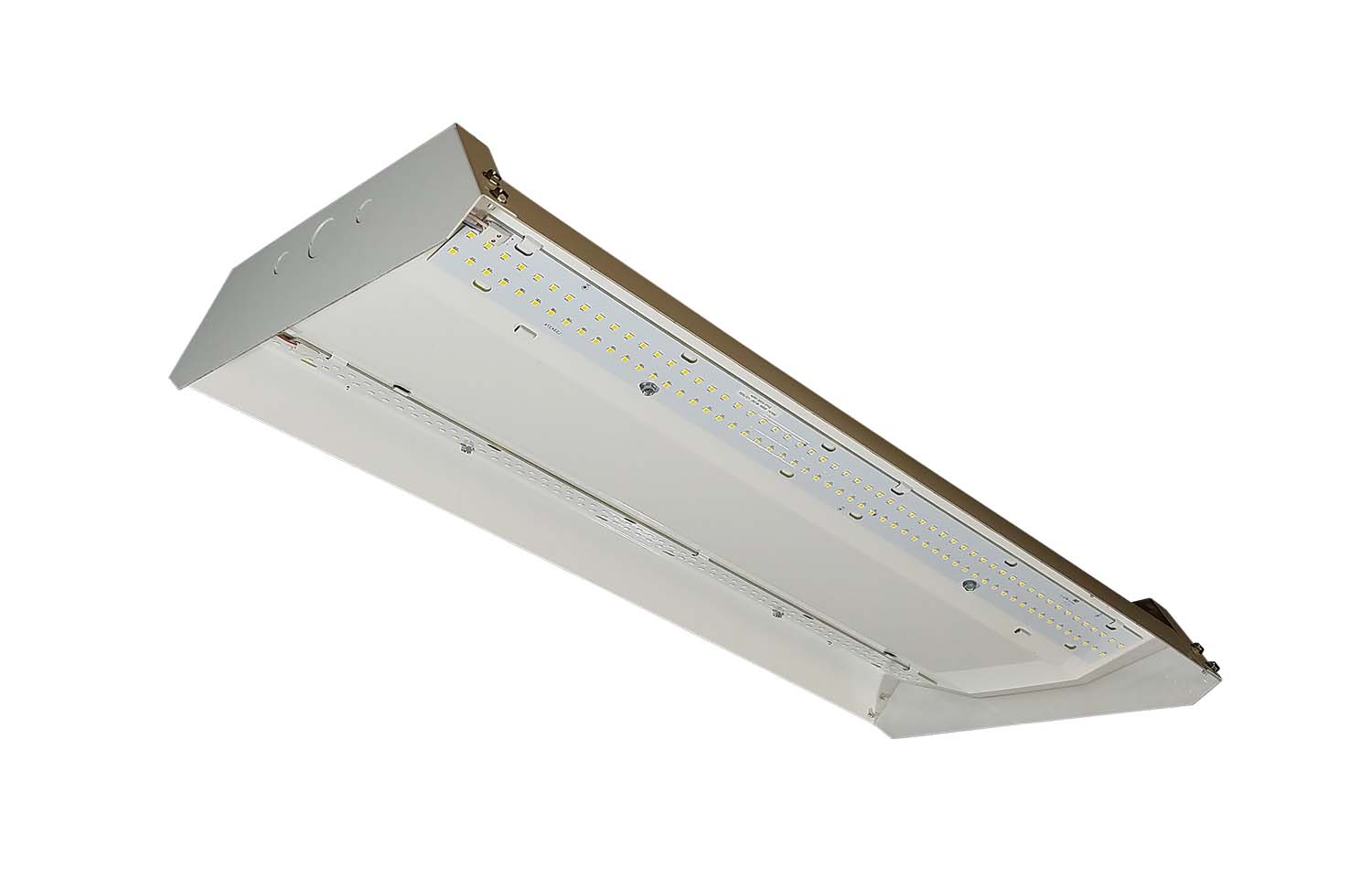

PBLG22-JPG2 PBLG22-JPG2
PBL G2 2, no lenses

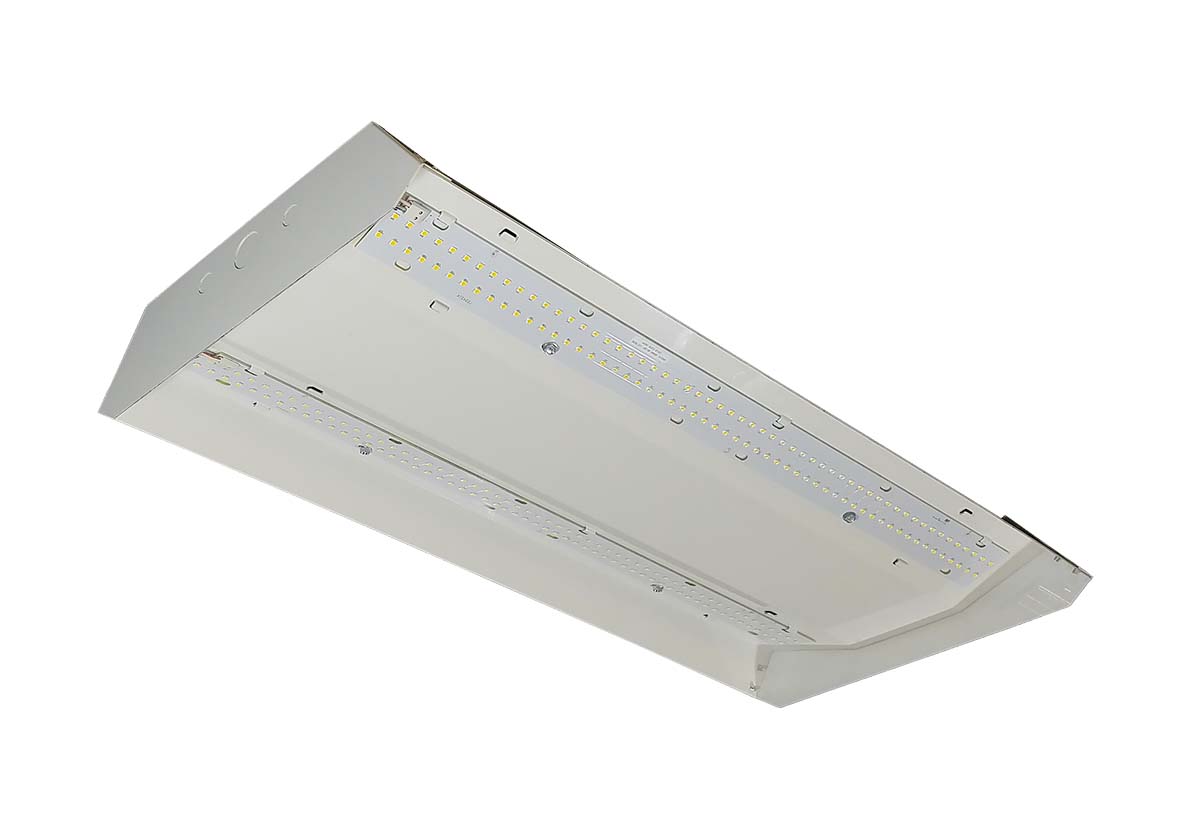

PBLG22-JPG1 PBLG22-JPG1
PBL G2 2, no lenses

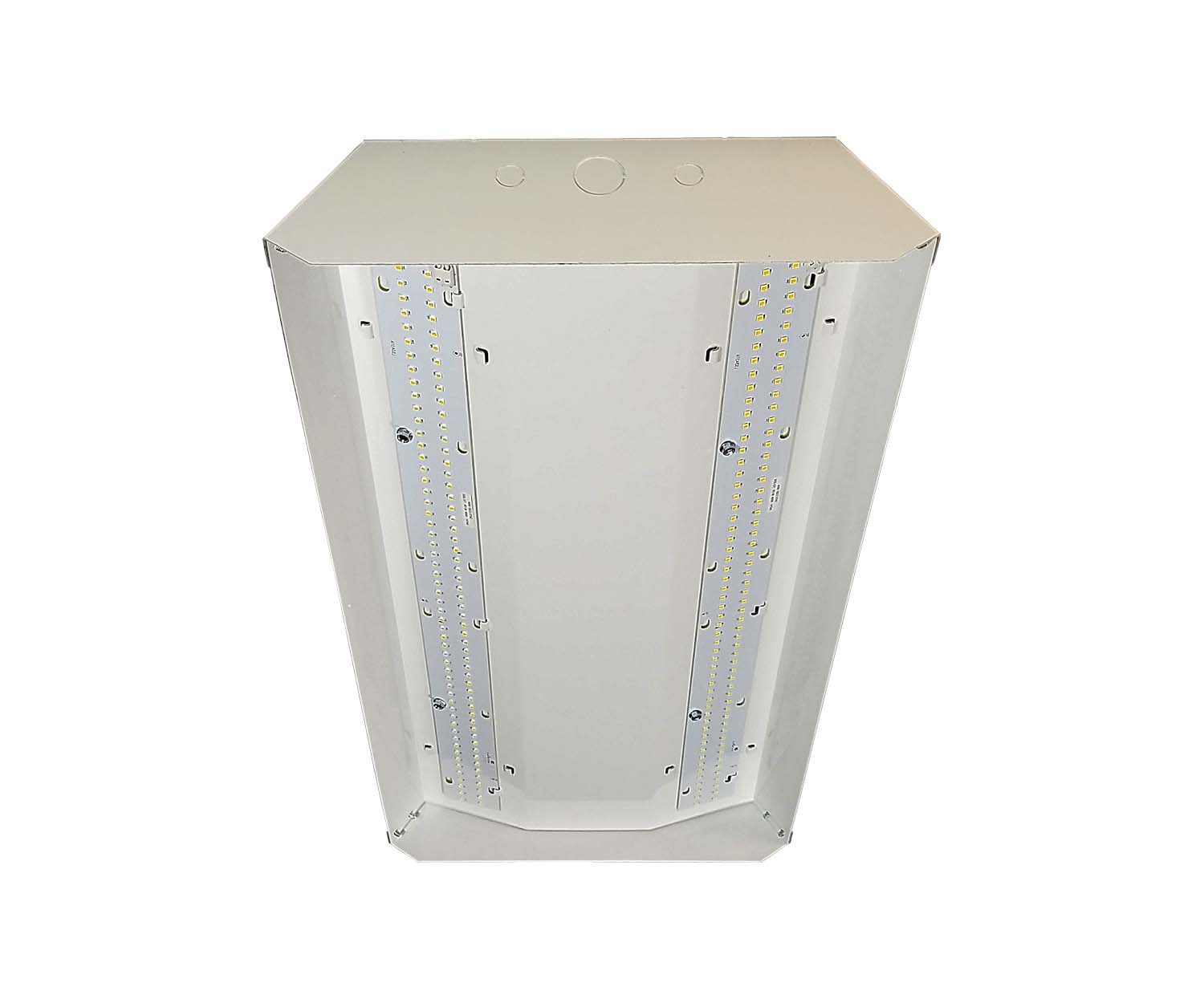

PBLG22-JPG4 PBLG22-JPG4
PBL G2 2, no lenses
PBL2WFR-1119-3JPG PBL2WFR-1119-3JPG

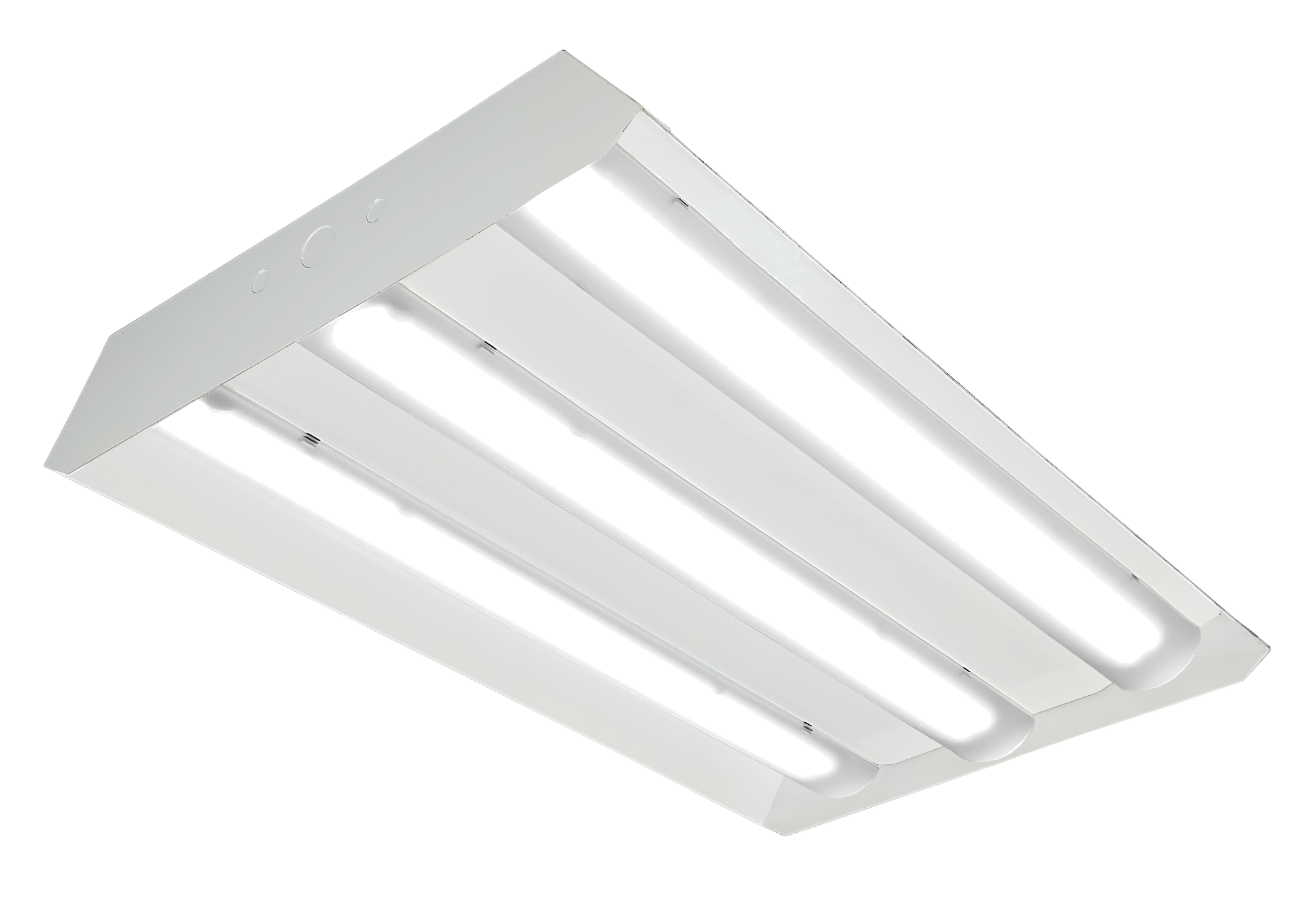

PBL G2 2W, with lenses

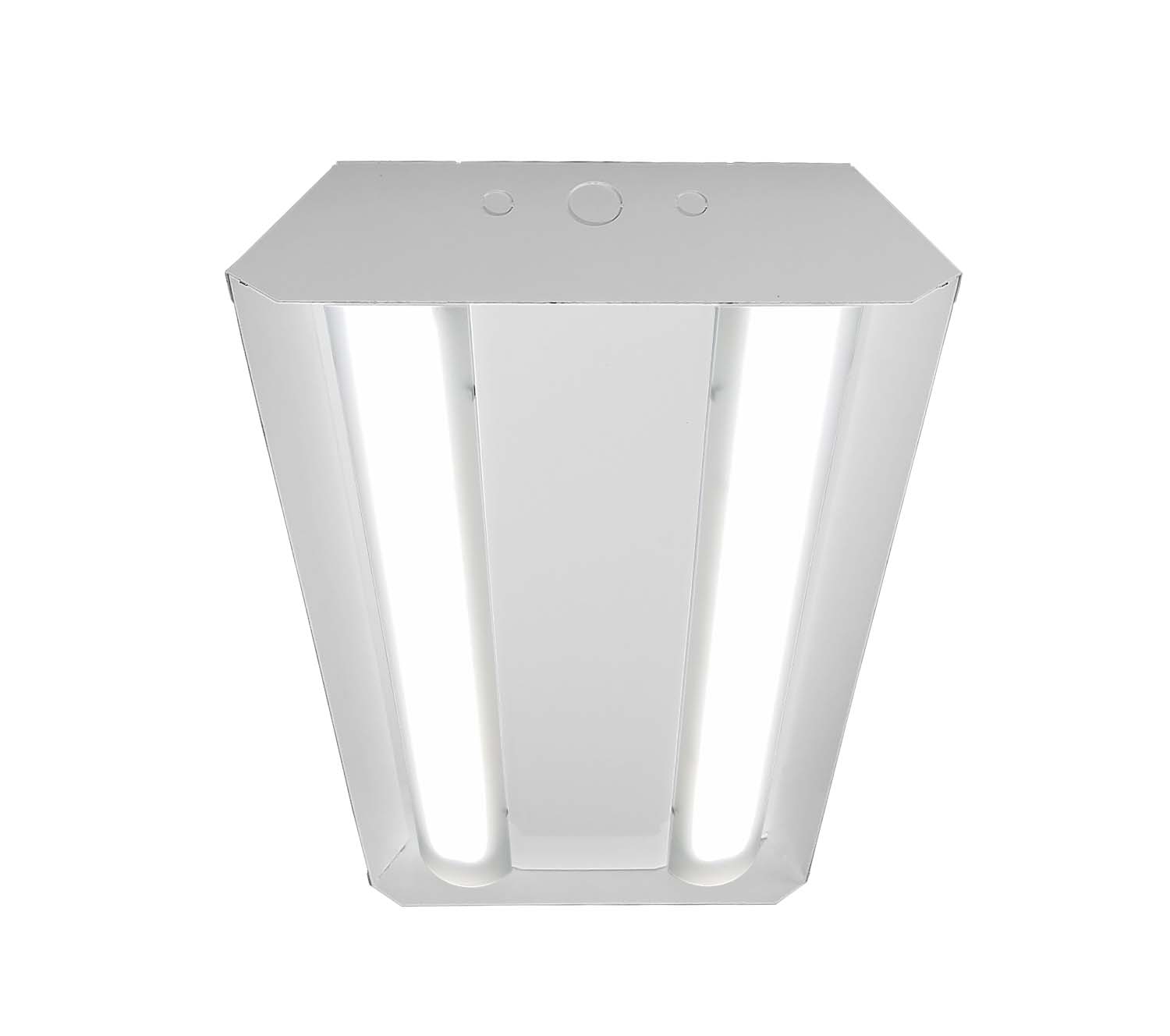

PBLG22FR-JPG2 PBLG22FR-JPG2
PBL G2 2, with lenses
PBL2WFR-1119-2JPG PBL2WFR-1119-2JPG
PBL G2 2W, with lenses
PBLG22FR-JPG1 PBLG22FR-JPG1
PBL G2 2, with lenses
PBL2WHI0719-1JPGOpt0819 PBL2WHI0719-1JPGOpt0819
PBL G2 2W, with lenses
PBL2WHI0719-3JPGOpt0819 PBL2WHI0719-3JPGOpt0819
PBL G2 2W, with lenses
PBL2WFR-1119-1JPG PBL2WFR-1119-1JPG
PBL G2 2W, with lenses

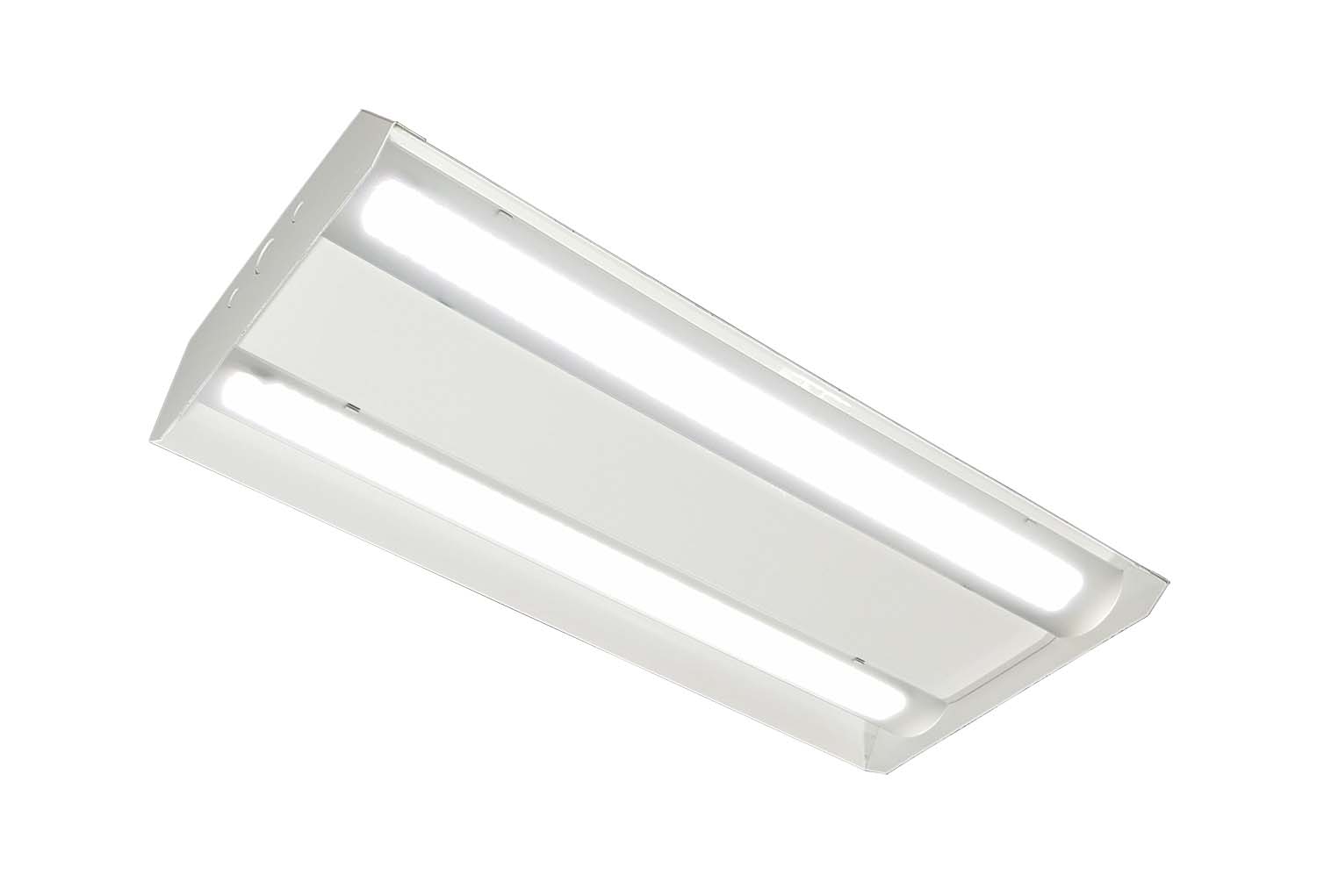

PBLG22FR-JPG3 PBLG22FR-JPG3
PBL G2 2, with lenses

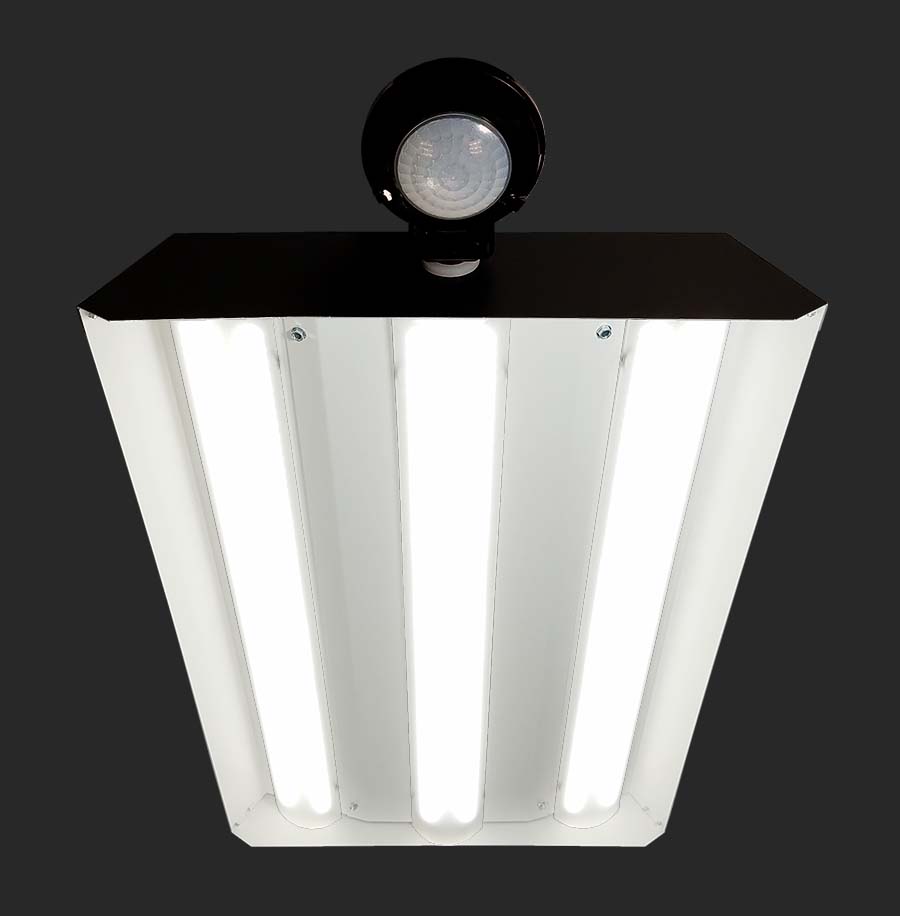

PBLMB8JPG PBLMB8JPG
PBL G2 2W, in Matte Black - with optional black FSP sensor
PBLMB7JPG PBLMB7JPG
PBL G2 2W, in Matte Black
PBLMB5JPG PBLMB5JPG
PBL G2 2W, in Matte Black
PBLMB4JPG PBLMB4JPG
PBL G2 2W, in Matte Black
PBLMB1JPG PBLMB1JPG
PBL G2 2W, in Matte Black
PBLMS-2 PBLMS-2
PBL G2 2W, in Metallic Silver
PBLMS-4 PBLMS-4
PBL G2 2W, in Metallic Silver
PBL4 with lens profile smaller PBL4 with lens profile smaller
PBL G2 4, with lenses
PBLMS-6 PBLMS-6
PBL G2 2W, in Metallic Silver
PBLMS-7 PBLMS-7
PBL G2 2W, in Metallic Silver
PBL4 with lens up close smaller PBL4 with lens up close smaller
PBL G2 4, with lenses
PBLMS-8 PBLMS-8
PBL G2 2W, in Metallic Silver
Every PBL G2 can be upgraded through our concept of Re-boardABILITY. Replacing boards is simple and only takes a few minutes! Time varies depending on the model.
DLC, cULus, MiA, DLC, 10yr 0720
Note: Table scrolls horizontally
Catalog #
Size/WidthLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedPredicted L70 LifetimePredicted L90 Lifetime
PBL G2 2 MD UV 8352-foot/Standard1170671164.280 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MD UV 8402-foot/Standard1212671170.180 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MD UV 8502-foot/Standard1212671170.180 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MH UV 8352-foot/Standard1367485160.780 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MH UV 8402-foot/Standard1416485166.580 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MH UV 8502-foot/Standard1416485166.580 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MD UV FR 8352-foot/Standard1100571154.380 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MD UV FR 8402-foot/Standard1139971159.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MD UV FR 8502-foot/Standard1139971159.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MH UV FR 8352-foot/Standard1278985150.580 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MH UV FR 8402-foot/Standard1324785155.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2 MH UV FR 8502-foot/Standard1324785155.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI HE UV 8352-foot/Wide1716499173.380 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI HE UV 8402-foot/Wide1777999179.580 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI HE UV 8502-foot/Wide1777999179.580 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI UV 8352-foot/Wide17257104166.480 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI UV 8402-foot/Wide17876104172.480 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI UV 8502-foot/Wide17876104172.480 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W VH UV 8352-foot/Wide1946111716680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W VH UV 8402-foot/Wide20159117171.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W VH UV 8502-foot/Wide20159117171.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W SH UV 8352-foot/Wide23458142164.680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W SH UV 8402-foot/Wide24299142170.580 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W SH UV 8502-foot/Wide24299142170.580 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI HE UV FR 8352-foot/Wide1613199162.980 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI HE UV FR 8402-foot/Wide1670999168.780 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI HE UV FR 8502-foot/Wide1670999168.780 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI UV FR 8352-foot/Wide16224104156.480 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI UV FR 8402-foot/Wide1680510416280 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W HI UV FR 8502-foot/Wide1680510416280 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W VH UV FR 8352-foot/Wide1829511715680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W VH UV FR 8402-foot/Wide18951117161.680 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W VH UV FR 8502-foot/Wide18951117161.680 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W SH UV FR 8352-foot/Wide2204214215580 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W SH UV FR 8402-foot/Wide22832142160.580 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 2W SH UV FR 8502-foot/Wide22832142160.580 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD HE UV 8354-foot/Standard19777115172.280 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD HE UV 8404-foot/Standard20486115178.480 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD HE UV 8504-foot/Standard20486115178.480 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI HE UV 8354-foot/Standard23965140170.880 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI HE UV 8404-foot/Standard24824140176.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI HE UV 8504-foot/Standard24824140176.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH HE UV 8354-foot/Standard27123161168.780 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH HE UV 8404-foot/Standard28095161174.780 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH HE UV 8504-foot/Standard28095161174.780 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD UV 8354-foot/Standard1946111716680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD UV 8404-foot/Standard20159117171.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD UV 8504-foot/Standard20159117171.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI UV 8354-foot/Standard23413142164.480 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI UV 8404-foot/Standard24252142170.380 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI UV 8504-foot/Standard24252142170.380 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH UV 8354-foot/Standard27049167162.180 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH UV 8404-foot/Standard28018167167.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH UV 8504-foot/Standard28018167167.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD HE UV FR 8354-foot/Standard18593115161.980 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD HE UV FR 8404-foot/Standard19259115167.780 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD HE UV FR 8504-foot/Standard19259115167.780 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI HE UV FR 8354-foot/Standard22529140160.580 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI HE UV FR 8404-foot/Standard23337140166.380 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI HE UV FR 8504-foot/Standard23337140166.380 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH HE UV FR 8354-foot/Standard25498161158.680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH HE UV FR 8404-foot/Standard26412161164.380 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH HE UV FR 8504-foot/Standard26412161164.380 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD UV FR 8354-foot/Standard1829511715680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD UV FR 8404-foot/Standard18951117161.680 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 MD UV FR 8504-foot/Standard18951117161.680 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI UV FR 8354-foot/Standard22010142154.680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI UV FR 8404-foot/Standard22799142160.180 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 HI UV FR 8504-foot/Standard22799142160.180 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH UV FR 8354-foot/Standard25485167152.980 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH UV FR 8404-foot/Standard26399167158.480 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4 VH UV FR 8504-foot/Standard26399167158.480 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW HE UV 8354-foot/Wide31232181172.880 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW HE UV 8404-foot/Wide3235218117980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW HE UV 8504-foot/Wide3235218117980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD HE UV 8354-foot/Wide35088205170.980 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD HE UV 8404-foot/Wide3634620517780 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD HE UV 8504-foot/Wide3634620517780 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI HE UV 8354-foot/Wide3892223516680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI HE UV 8404-foot/Wide40317235171.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI HE UV 8504-foot/Wide40317235171.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW UV 8354-foot/Wide3148018716880 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW UV 8404-foot/Wide3260918717480 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW UV 8504-foot/Wide3260918717480 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD UV 8354-foot/Wide35346215164.380 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD UV 8404-foot/Wide36613215170.280 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD UV 8504-foot/Wide36613215170.280 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI UV 8354-foot/Wide39908245163.180 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI UV 8404-foot/Wide41339245168.980 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI UV 8504-foot/Wide41339245168.980 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W VH UV 8354-foot/Wide51939320162.580 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W VH UV 8404-foot/Wide53801320168.480 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W VH UV 8504-foot/Wide53801320168.480 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW HE UV FR 8354-foot/Wide29361181162.580 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW HE UV FR 8404-foot/Wide30413181168.380 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW HE UV FR 8504-foot/Wide30413181168.380 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD HE UV FR 8354-foot/Wide32986205160.780 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD HE UV FR 8404-foot/Wide34168205166.480 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD HE UV FR 8504-foot/Wide34168205166.480 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI HE UV FR 8354-foot/Wide3659023515680 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI HE UV FR 8404-foot/Wide37902235161.680 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI HE UV FR 8504-foot/Wide37902235161.680 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW UV FR 8354-foot/Wide29594187157.980 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW UV FR 8404-foot/Wide30655187163.680 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W LW UV FR 8504-foot/Wide30655187163.680 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD UV FR 8354-foot/Wide33228215154.580 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD UV FR 8404-foot/Wide3441921516080 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W MD UV FR 8504-foot/Wide3441921516080 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI UV FR 8354-foot/Wide3764324515480 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI UV FR 8404-foot/Wide38992245159.580 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W HI UV FR 8504-foot/Wide38992245159.580 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W VH UV FR 8354-foot/Wide4889732015380 CRI / 3500K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W VH UV FR 8404-foot/Wide50649320158.580 CRI / 4000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
PBL G2 4W VH UV FR 8504-foot/Wide50649320158.580 CRI / 5000K120-277V, 347V, 480VYesGreater than 188,000 hrs (calculated)Greater than 60,000 hrs (reported)
*NOTE: Lumen Adjustment Factors - FR lens: 0.93; Wireguard: 0.90; FR and Wireguard: 0.85
Catalog #
Equivalent*
PBL G2 2 MD UV 835250W MH, 4L T8 with HBF
PBL G2 2 MD UV 840250W MH, 4L T8 with HBF
PBL G2 2 MD UV 850250W MH, 4L T8 with HBF
PBL G2 2 MH UV 8353L T5HO, 250W PSMH
PBL G2 2 MH UV 8403L T5HO, 250W PSMH
PBL G2 2 MH UV 8503L T5HO, 250W PSMH
PBL G2 2 MD UV FR 835250W MH, 4L T8 with HBF
PBL G2 2 MD UV FR 840250W MH, 4L T8 with HBF
PBL G2 2 MD UV FR 850250W MH, 4L T8 with HBF
PBL G2 2 MH UV FR 8353L T5HO, 250W PSMH
PBL G2 2 MH UV FR 8403L T5HO, 250W PSMH
PBL G2 2 MH UV FR 8503L T5HO, 250W PSMH
PBL G2 2W HI HE UV 835400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI HE UV 840400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI HE UV 850400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI UV 835400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI UV 840400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI UV 850400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W VH UV 835400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 2W VH UV 840400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 2W VH UV 850400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 2W SH UV 835400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 2W SH UV 840400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 2W SH UV 850400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 2W HI HE UV FR 835400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI HE UV FR 840400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI HE UV FR 850400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI UV FR 835400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI UV FR 840400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W HI UV FR 850400W MH, 4L T5HO, 6L T8 with HBF
PBL G2 2W VH UV FR 835400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 2W VH UV FR 840400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 2W VH UV FR 850400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 2W SH UV FR 835400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 2W SH UV FR 840400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 2W SH UV FR 850400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 MD HE UV 835400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD HE UV 840400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD HE UV 850400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 HI HE UV 835400W PSMH, 6L T5HO, 9L T8 with HBF
PBL G2 4 HI HE UV 840400W PSMH, 6L T5HO, 9L T8 with HBF
PBL G2 4 HI HE UV 850400W PSMH, 6L T5HO, 9L T8 with HBF
PBL G2 4 VH HE UV 8356L T5HO
PBL G2 4 VH HE UV 8406L T5HO
PBL G2 4 VH HE UV 8506L T5HO
PBL G2 4 MD UV 835400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD UV 840400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD UV 850400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 HI UV 835400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 HI UV 840400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 HI UV 850400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 VH UV 8356L T5HO
PBL G2 4 VH UV 8406L T5HO
PBL G2 4 VH UV 8506L T5HO
PBL G2 4 MD HE UV FR 835400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD HE UV FR 840400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD HE UV FR 850400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 HI HE UV FR 835400W PSMH, 6L T5HO, 9L T8 with HBF
PBL G2 4 HI HE UV FR 840400W PSMH, 6L T5HO, 9L T8 with HBF
PBL G2 4 HI HE UV FR 850400W PSMH, 6L T5HO, 9L T8 with HBF
PBL G2 4 VH HE UV FR 8356L T5HO
PBL G2 4 VH HE UV FR 8406L T5HO
PBL G2 4 VH HE UV FR 8506L T5HO
PBL G2 4 MD UV FR 835400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD UV FR 840400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 MD UV FR 850400W MH, 4L T5HO, 7L T8 with HBF
PBL G2 4 HI UV FR 835400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 HI UV FR 840400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 HI UV FR 850400W PSMH, 5L T5HO, 8L T8 with HBF
PBL G2 4 VH UV FR 8356L T5HO
PBL G2 4 VH UV FR 8406L T5HO
PBL G2 4 VH UV FR 8506L T5HO
PBL G2 4W LW HE UV 8357L T5HO, 10L T8 with HBF
PBL G2 4W LW HE UV 8407L T5HO, 10L T8 with HBF
PBL G2 4W LW HE UV 8507L T5HO, 10L T8 with HBF
PBL G2 4W MD HE UV 8358L T5HO, 12L T8 with HBF
PBL G2 4W MD HE UV 8408L T5HO, 12L T8 with HBF
PBL G2 4W MD HE UV 8508L T5HO, 12L T8 with HBF
PBL G2 4W HI HE UV 835750W PSMH, 9L T5HO
PBL G2 4W HI HE UV 840750W PSMH, 9L T5HO
PBL G2 4W HI HE UV 850750W PSMH, 9L T5HO
PBL G2 4W LW UV 8357L T5HO, 10L T8 with HBF
PBL G2 4W LW UV 8407L T5HO, 10L T8 with HBF
PBL G2 4W LW UV 8507L T5HO, 10L T8 with HBF
PBL G2 4W MD UV 8358L T5HO, 12L T8 with HBF
PBL G2 4W MD UV 8408L T5HO, 12L T8 with HBF
PBL G2 4W MD UV 8508L T5HO, 12L T8 with HBF
PBL G2 4W HI UV 835750W PSMH, 9L T5HO
PBL G2 4W HI UV 840750W PSMH, 9L T5HO
PBL G2 4W HI UV 850750W PSMH, 9L T5HO
PBL G2 4W VH UV 8351000W MH, 12L T5HO
PBL G2 4W VH UV 8401000W MH, 12L T5HO
PBL G2 4W VH UV 8501000W MH, 12L T5HO
PBL G2 4W LW HE UV FR 8357L T5HO, 10L T8 with HBF
PBL G2 4W LW HE UV FR 8407L T5HO, 10L T8 with HBF
PBL G2 4W LW HE UV FR 8507L T5HO, 10L T8 with HBF
PBL G2 4W MD HE UV FR 8358L T5HO, 12L T8 with HBF
PBL G2 4W MD HE UV FR 8408L T5HO, 12L T8 with HBF
PBL G2 4W MD HE UV FR 8508L T5HO, 12L T8 with HBF
PBL G2 4W HI HE UV FR 835750W PSMH, 9L T5HO
PBL G2 4W HI HE UV FR 840750W PSMH, 9L T5HO
PBL G2 4W HI HE UV FR 850750W PSMH, 9L T5HO
PBL G2 4W LW UV FR 8357L T5HO, 10L T8 with HBF
PBL G2 4W LW UV FR 8407L T5HO, 10L T8 with HBF
PBL G2 4W LW UV FR 8507L T5HO, 10L T8 with HBF
PBL G2 4W MD UV FR 8358L T5HO, 12L T8 with HBF
PBL G2 4W MD UV FR 8408L T5HO, 12L T8 with HBF
PBL G2 4W MD UV FR 8508L T5HO, 12L T8 with HBF
PBL G2 4W HI UV FR 835750W PSMH, 9L T5HO
PBL G2 4W HI UV FR 840750W PSMH, 9L T5HO
PBL G2 4W HI UV FR 850750W PSMH, 9L T5HO
PBL G2 4W VH UV FR 8351000W MH, 12L T5HO
PBL G2 4W VH UV FR 8401000W MH, 12L T5HO
PBL G2 4W VH UV FR 8501000W MH, 12L T5HO
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec SheetSell Sheet.ies & .pdf files
PBL G2 2 MD UV 835View Download Download Download
PBL G2 2 MD UV 840View Download Download Download
PBL G2 2 MD UV 850View Download Download Download
PBL G2 2 MH UV 835View Download Download Download | With WG
PBL G2 2 MH UV 840View Download Download Download
PBL G2 2 MH UV 850View Download Download Download
PBL G2 2 MD UV FR 835View Download Download Download | With WG
PBL G2 2 MD UV FR 840View Download Download Download
PBL G2 2 MD UV FR 850View Download Download Download
PBL G2 2 MH UV FR 835View Download Download Download | With WG
PBL G2 2 MH UV FR 840View Download Download Download
PBL G2 2 MH UV FR 850View Download Download Download
PBL G2 2W HI HE UV 835View Download Download Download
PBL G2 2W HI HE UV 840View Download Download Download
PBL G2 2W HI HE UV 850View Download Download Download
PBL G2 2W HI UV 835View Download Download Download
PBL G2 2W HI UV 840View Download Download Download
PBL G2 2W HI UV 850View Download Download Download
PBL G2 2W VH UV 835View Download Download Download
PBL G2 2W VH UV 840View Download Download Download
PBL G2 2W VH UV 850View Download Download Download
PBL G2 2W SH UV 835View Download Download Download
PBL G2 2W SH UV 840View Download Download Download
PBL G2 2W SH UV 850View Download Download Download
PBL G2 2W HI HE UV FR 835View Download Download Download
PBL G2 2W HI HE UV FR 840View Download Download Download
PBL G2 2W HI HE UV FR 850View Download Download Download
PBL G2 2W HI UV FR 835View Download Download Download
PBL G2 2W HI UV FR 840View Download Download Download
PBL G2 2W HI UV FR 850View Download Download Download
PBL G2 2W VH UV FR 835View Download Download Download
PBL G2 2W VH UV FR 840View Download Download Download
PBL G2 2W VH UV FR 850View Download Download Download
PBL G2 2W SH UV FR 835View Download Download Download
PBL G2 2W SH UV FR 840View Download Download Download
PBL G2 2W SH UV FR 850View Download Download Download
PBL G2 4 MD HE UV 835
Download Download Download
PBL G2 4 MD HE UV 840
Download Download Download
PBL G2 4 MD HE UV 850
Download Download Download
PBL G2 4 HI HE UV 835
Download Download Download
PBL G2 4 HI HE UV 840
Download Download Download
PBL G2 4 HI HE UV 850
Download Download Download
PBL G2 4 VH HE UV 835
Download Download Download
PBL G2 4 VH HE UV 840
Download Download Download
PBL G2 4 VH HE UV 850
Download Download Download
PBL G2 4 MD UV 835View Download Download Download
PBL G2 4 MD UV 840View Download Download Download
PBL G2 4 MD UV 850View Download Download Download
PBL G2 4 HI UV 835View Download Download Download
PBL G2 4 HI UV 840View Download Download Download
PBL G2 4 HI UV 850View Download Download Download
PBL G2 4 VH UV 835View Download Download Download
PBL G2 4 VH UV 840View Download Download Download
PBL G2 4 VH UV 850View Download Download Download
PBL G2 4 MD HE UV FR 835View Download Download Download
PBL G2 4 MD HE UV FR 840View Download Download Download
PBL G2 4 MD HE UV FR 850View Download Download Download
PBL G2 4 HI HE UV FR 835View Download Download Download
PBL G2 4 HI HE UV FR 840View Download Download Download
PBL G2 4 HI HE UV FR 850View Download Download Download
PBL G2 4 VH HE UV FR 835View Download Download Download
PBL G2 4 VH HE UV FR 840View Download Download Download
PBL G2 4 VH HE UV FR 850View Download Download Download
PBL G2 4 MD UV FR 835View Download Download Download
PBL G2 4 MD UV FR 840View Download Download Download
PBL G2 4 MD UV FR 850View Download Download Download
PBL G2 4 HI UV FR 835View Download Download Download
PBL G2 4 HI UV FR 840View Download Download Download
PBL G2 4 HI UV FR 850View Download Download Download
PBL G2 4 VH UV FR 835View Download Download Download
PBL G2 4 VH UV FR 840View Download Download Download
PBL G2 4 VH UV FR 850View Download Download Download
PBL G2 4W LW HE UV 835View Download Download Download
PBL G2 4W LW HE UV 840View Download Download Download
PBL G2 4W LW HE UV 850View Download Download Download
PBL G2 4W MD HE UV 835View Download Download Download
PBL G2 4W MD HE UV 840View Download Download Download
PBL G2 4W MD HE UV 850View Download Download Download
PBL G2 4W HI HE UV 835View Download Download Download
PBL G2 4W HI HE UV 840View Download Download Download
PBL G2 4W HI HE UV 850View Download Download Download
PBL G2 4W LW UV 835
Download Download Download
PBL G2 4W LW UV 840
Download Download Download
PBL G2 4W LW UV 850
Download Download Download
PBL G2 4W MD UV 835
Download Download Download
PBL G2 4W MD UV 840
Download Download Download
PBL G2 4W MD UV 850
Download Download Download
PBL G2 4W HI UV 835
Download Download Download
PBL G2 4W HI UV 840
Download Download Download
PBL G2 4W HI UV 850
Download Download Download
PBL G2 4W VH UV 835
Download Download Download
PBL G2 4W VH UV 840
Download Download Download
PBL G2 4W VH UV 850
Download Download Download
PBL G2 4W LW HE UV FR 835View Download Download Download
PBL G2 4W LW HE UV FR 840View Download Download Download
PBL G2 4W LW HE UV FR 850View Download Download Download
PBL G2 4W MD HE UV FR 835View Download Download Download
PBL G2 4W MD HE UV FR 840View Download Download Download
PBL G2 4W MD HE UV FR 850View Download Download Download
PBL G2 4W HI HE UV FR 835View Download Download Download
PBL G2 4W HI HE UV FR 840View Download Download Download
PBL G2 4W HI HE UV FR 850View Download Download Download
PBL G2 4W LW UV FR 835
Download Download Download
PBL G2 4W LW UV FR 840
Download Download Download
PBL G2 4W LW UV FR 850
Download Download Download
PBL G2 4W MD UV FR 835
Download Download Download
PBL G2 4W MD UV FR 840
Download Download Download
PBL G2 4W MD UV FR 850
Download Download Download
PBL G2 4W HI UV FR 835
Download Download Download
PBL G2 4W HI UV FR 840
Download Download Download
PBL G2 4W HI UV FR 850
Download Download Download
PBL G2 4W VH UV FR 835View Download Download Download
PBL G2 4W VH UV FR 840View Download Download Download
PBL G2 4W VH UV FR 850View Download Download Download
BlackFSPwSensorOPT0819

Variety & versatility

    The PBL G2 is available in a wide range of sizes and lumen packages, allowing us to ensure you get the light level you need. The G2 is available with several mounting options, control solutions, and many other options. See our spec sheets for more details.
PBL MS jpg dk grey

All the control you need

    Maximize the savings potential of your PBL G2 with one of our many control options. The Wattstopper FSP sensor equips your PBL G2 with multi-level control based on motion and/or daylight contribution. Rated for both wet and cold locations, every FSP comes pre-installed and pre-wired on the end cap. Three different lenses are available, tailored for the ideal detection area and mounting height. All parameters can be adjusted from the floor via a wireless configuration tool (the FSIR-100 – sold separately). The Bluetooth-enabled FSP-321B, also available for the PBL, is adjustable via iOS or Android app.
    The PBL G2 is also available with an optional on/off occupancy sensor (option "OS"). With the Leviton OSFHU-ITW (or an equivalent), each individual PBL G2 can be controlled based on occupancy in its detection zone. For added energy savings through daylight harvesting, an occupancy sensor with photocell (option "OSP") is available. The OSP turns the luminaire on or off based on occupancy or available natural light.

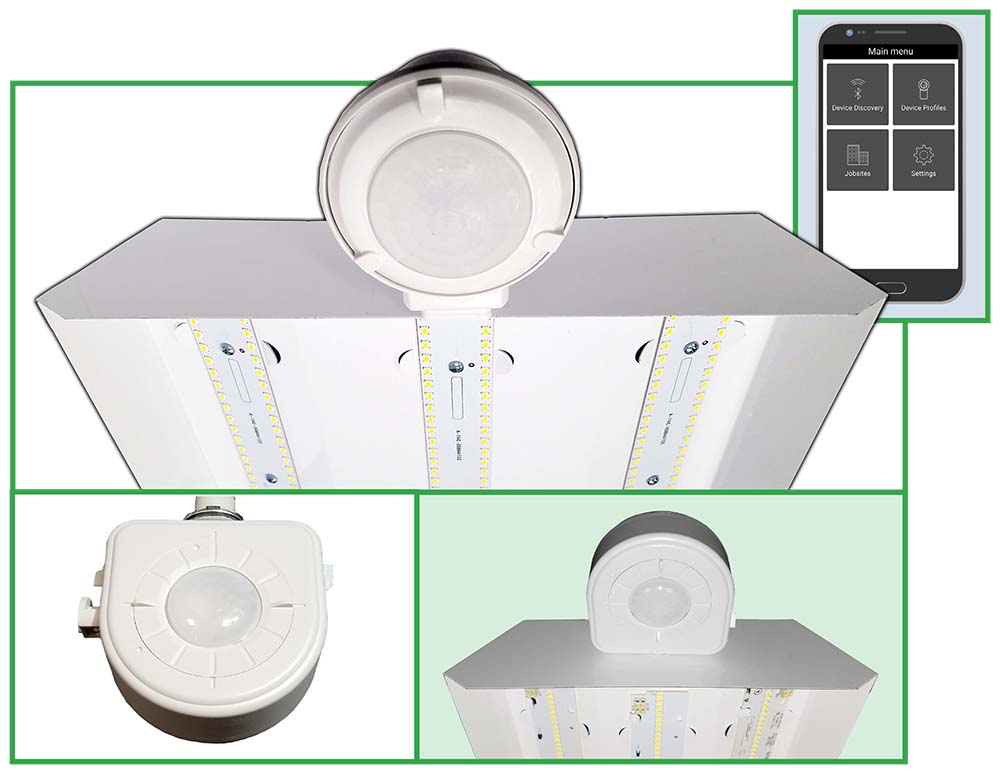

Sensor options for site 1119
    Clockwise from top: the Wattstopper FSP sensor with an L7 lens installed on a PBL; the iOS/Android app interface for the Bluetooth-enabled FSP-321B; the Leviton OSFHU-ITW occupancy sensor; the Leviton OSFHP-ITW occupancy sensor with photocell.
enlighted-logo tightcrop transparent

IoT compatibility

    We offer more robust network control options and Internet of Things (IoT) compatibility with products from Enlighted and Douglas. Contact us for more info. Also, if there's another control system you're looking for - such as Nedap, Daintree, or another IoT-based system - just contact us. We can incorporate it.
DouglasLightingControls_R-2-colour_CMYK
