The PBL is better than ever! This line of premium high bay luminaires is available in many of the same output packages as our standard PBL, but with even higher efficacies! Improved LED technology has allowed us to increase lumens per watt across the board. Like the standard PBL, the G2 is available in a wide variety of sizes, lumen output packages and control options. Diffuser lenses are available to minimize glare and improve aesthetics. The housing is precision brake formed from aluminum and pre-painted with a highly durable, highly reflective white finish. Several control options – including IoT-compatible sensors – can be incorporated. Every PBL G2 is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
At up to 179.5 lumens per watt, it’s our most efficient product to date!
Applications: Suitable for most commercial, industrial and institutional applications – retail, warehouse, manufacturing, cold/frozen storage
Lumen Output: From around 11,000 in the PBL G2 2 to over 53,000 in the PBL G2 4W
Max Lumens Per Watt: 179.5 LPW in the 2W model; 170.1 in the standard 2′; 179.0 LPW in the 4W model; 178.4 in the standard 4′
Size Options: Available in 4-foot and 2-foot, standard and wide widths
Finish Options: Available in White (Standard), Matte Black and Metallic Silver
Predicted L70 Lifetime: Greater than 188,000 hours (calculated)
Predicted L90 Lifetime: Greater than 60,000 hours (reported)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every PBL G2 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Variety & versatility

The PBL G2 is available in a wide range of sizes and lumen packages, allowing us to ensure you get the light level you need. The G2 is available with several mounting options, control solutions, and many other options. See our spec sheets for more details.

All the control you need
Maximize the savings potential of your PBL G2 with one of our many control options. The Wattstopper FSP sensor equips your PBL G2 with multi-level control based on motion and/or daylight contribution. Rated for both wet and cold locations, every FSP comes pre-installed and pre-wired on the end cap. Three different lenses are available, tailored for the ideal detection area and mounting height. All parameters can be adjusted from the floor via a wireless configuration tool (the FSIR-100 – sold separately). The Bluetooth-enabled FSP-321B, also available for the PBL, is adjustable via iOS or Android app.
The PBL G2 is also available with an optional on/off occupancy sensor (option “OS”). With the Leviton OSFHU-ITW (or an equivalent), each individual PBL G2 can be controlled based on occupancy in its detection zone. For added energy savings through daylight harvesting, an occupancy sensor with photocell (option “OSP”) is available. The OSP turns the luminaire on or off based on occupancy or available natural light.

IoT compatibility
We offer more robust network control options and Internet of Things (IoT) compatibility with products from Enlighted and Leviton. Contact us for more info. Also, if there’s another control system you’re looking for – such as Nedap, Daintree, or another IoT-based system – just contact us. We can incorporate it.

The PBL is a high performance, extremely versatile general area LED high bay available in a wide variety of sizes, lumen packages and control options. Diffuser lenses are available to minimize glare and improve aesthetics. The PBL’s housing and LED tray is precision brake formed from aluminum and pre-painted with a highly durable, highly reflective white finish. Several control options – including IoT-compatible sensors – can be incorporated. A “heavy duty” version of the PBL – with optional pendant mounting – is available here. Every PBL is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.
Applications: Suitable for most commercial, industrial and institutional applications – retail, warehouse, manufacturing, cold/frozen storage
Lumen Output: From around 9,000 lm in PBL2 to just under 52,000 in the PBL4W VH lumen package. The PBL4W SH (“Super High”) package ranges from ~64,000 lm up to just over 68,000
Max Lumens Per Watt: 175.2
Size Options: Available in 4-foot and 2-foot, standard and wide widths
Finish Options: Available in White (Standard), Matte Black and Metallic Silver
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every PBL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations. DLC Premium listing for PBL 4W SH UV 840.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Variety & versatility

If you need a high quality high bay, we have a PBL for you. With a wide range of sizes and lumen packages to choose from, we can make sure you get the exact light level you need. We offer a wide range of mounting, controls, and other options.

Assembled in the USA: Each PBL is assembled at our facility in Henderson, NC. BAA compliant options are available

PBL4. PBL2. PBL4W. PBL2W.

high bay
PBL2LW. PBL2MD. PBL2HI. PBL2VH.
PBL2WLW. PBL2WMD. PBL2WHI. PBL2WVH.
PBL4LW. PBL4MD. PBL4HI. PBL4VH.
PBL4WLW. PBL4WMD. PBL4WHI. PBL4WVH.
835. 840. 850.

PBL2 LW. PBL2 MD. PBL2 HI. PBL2 VH.
PBL2W LW. PBL2W MD. PBL2W HI. PBL2W VH.
PBL4 LW. PBL 4MD. PBL 4HI. PBL 4VH.
PBL4W LW. PBL4W MD. PBL4W HI. PBL4W VH.
PBL 4. PBL 2. PBL 4W. PBL 2W. PBL4 W. PBL2 W. PBL 2-foot. PBL 4-foot. PBL 2 foot. PBL 4 foot. PBL4′. PBL2′. PBL 4′. PBL 2′

10 year warranty. 10-year warranty. Extended warranty.

DLC listed

The PBL G2 HD is the newest version of our heavy duty high bay luminaire. The G2 has all the same features of the standard PBLHD, but with higher efficacy LED boards! Just like the PBL G2 LED high bay, the PBL G2 HD boasts efficacies up to 179.5 lumens per watt! Designed for areas where the luminaire may be struck, the housing is constructed of sturdy 0.063″ aluminum. Wireguards are optional for added durability. Pendant, surface and cable mounting options are available. Similar to the PBL, there is a wide range of lumen outputs and several control options. Frosted diffusers are available to minimize glare and improve aesthetics. Every PBL G2 HD is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial and institutional applications – ideal for gymnasiums, recreation centers, manufacturing, warehouse
Lumen Output: From around 11,000 in the PBL G2 2 to over 53,000 in the PBL G2 4W
Max Lumens Per Watt: 179.5 LPW in the 2W model; 170.1 in the standard 2′; 179.0 LPW in the 4W model; 178.4 in the standard 4′
Size Options: Available in 4-foot and 2-foot
Finish Options: Available in White (Standard), Matte Black and Metallic Silver
Predicted L70 Lifetime: Greater than 188,000 hours (calculated)
Predicted L90 Lifetime: Greater than 60,000 hours (reported)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every PBLHD is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

The PBLHD G2 can be surface-mounted, cable-mounted or pendant-mounted. The 4-foot version is offered with a stabilizer option (pictured). For surface mounting, the center portion of the LED tray can easily be removed to access the mounting holes underneath (see spec sheet for more information). Cable kits come pre-looped for easy installation and are designed for easy fixture height adjustment.

The PBLHD features high performance LED technology in a heavy duty luminaire. Designed for areas where the luminaire may be struck, the housing is constructed of sturdy 0.063″ aluminum. Wireguards are optional for added durability. Pendant, surface and cable mounting options are available. Similar to the PBL, there is a wide range of lumen outputs and several control options. Frosted diffusers are available to minimize glare and improve aesthetics. Every PBLHD is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial and institutional applications – ideal for gymnasiums, recreation centers, manufacturing, warehouse
Lumen Output: From around 9,000 lm in PBL2 to just under 52,000 in the PBL4W VH lumen package. The PBL4W SH (“Super High”) package ranges from ~64,000 lm up to just over 68,000
Max Lumens Per Watt: 175.2
Size Options: Available in 4-foot and 2-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every PBLHD is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
dimming
DLC Designlights Consortium
2-foot
4-foot
2 foot
4 foot
2′ 4′
HE high efficiency
FR frosted acrylic
835, 840, 850, 80 CRI, 3500K, 4000K, 5000K
heavy duty 0.063″ aluminum wide body housing
QC QC20 PM PMS ST ST(x) quick hang cable kit
pendant mount with stabilizer
3/4″ stem
extended warranty 10 year
photocell occupancy sensor cord wireguard wire guard
fuse emergency pack safety cable step down step-down transformer conformal coating

The PBLU is a general distribution high bay with up-light. It features high performance LED technology, with field-replaceable LED boards and drivers. A wide variety of lumen packages allows for flexibility in design and helps maximize energy savings. Multiple shielding options are available to minimize glare and improve aesthetics. Occupancy sensors, dimming sensors and photocells are all optional. A version without up-light is also available (click here to view the PBLX). Every PBLU is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.
Applications: Suitable for most commercial, industrial and institutional applications, including retail, warehousing, manufacturing and gymnasiums
Lumen Output: About 8,000 lm to 23,000 lm
Max Lumens Per Watt: About 139
Size Options: Available in 4-foot and 2-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
Re-BoardABILITY: Every PBLU is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Assembled in the United States

PBLU2. PBLU4. PBLU 2. PBLU 4. PBLU VL. PBLU LW. PBLU MD. PBLU HI. PBLUVL. PBLULW. PBLUMD. PBLUHI. PBLU2LW. PBLU 2LW. PBLU2MD. PBLU 2MD. PBLU2HI. PBLU 2HI. PBLU2VL. PBLU 2VL. PBLU4LW. PBLU 4LW. PBLU4MD. PBLU 4MD. PBLU4HI. PBLU 4HI. PBLU4VL. PBLU 4VL. 835. 840. 850. Uplight. Up-light. High-bay.

PBLU 4-foot. PBLU 2-foot.

PBLU 4 foot. PBLU 2 foot.

10 year warranty. 10-year warranty. Extended warranty.

DLC listed

The PBLX is a general distribution lensed LED high bay. Available in 23-pattern acrylic (clear or frosted), or impact resistant Lexan, the lens provides an aesthetically pleasing uniform look. The PBLX features high performance LED technology, with field-replaceable LED boards and drivers. A wide variety of lumen packages allows for flexibility in design and helps maximize energy savings. Occupancy sensors, dimming sensors and photocells are all optional. Wireguards are also available for extra protection and durability. A version with up-light is also available (click here to view the PBLU). Every PBLX is made in the USA – in our facility in Henderson, NC, utilizing mostly domestic and some foreign components.
Request a Quote

Applications: Suitable for most commercial, industrial and institutional applications, including retail, warehousing, manufacturing and gymnasiums
Lumen Output: About 8,000 lm to 24,000 lm
Max Lumens Per Watt: About 140
Size Options: Available in 4-foot and 2-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

A23 A23F L118 conformal coating buy American Act FSP

The PBLA is an ideal solution for most warehouse aisles and corridors. Its enhanced specular reflector is designed to provide even vertical illumination on shelving and optimize lighting in the aisleways. It comes in 4-foot (PBLA 4) and 8-foot (PBLA 8) lengths. The PBLA is offered in a wide variety of lumen packages, which allows for flexibility in design and helps maximize energy savings. Multiple control options are available – including occupancy sensors, dimming sensors and photocells. Each PBLA is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial, industrial and institutional applications. Ideal for warehouse aisles and corridors
Lumen Output: About 12,000 lm to 24,000 lm in 4-footer, 23,000 lm to 49,400 in the 8-footer
Max Lumens Per Watt: 168.3
Size Options: 4 foot and 8 foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every PBLA is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

PBLA4. PBLA8. PBLA 4. PBLA 8. PBLA 4-foot. PBLA 8-foot. PBLA 4 foot. PBLA 8 foot. PBLA4VL. PBLA4LW. PBLA4MD. PBLA4HI. PBLA 4VL. PBLA 4LW. PBLA 4MD. PBLA 4HI. PBLA 4VL. PBLA4 VL. PBLA4 LW. PBLA4 MD. PBLA4 HI.
PBLA8VL. PBLA8LW. PBLA8MD. PBLA 8VL. PBLA 8LW. PBLA 8MD. PBLA 8VL. PBLA8 VL. PBLA8 LW. PBLA8 MD.
Aisle light. Aisle lighter. Corridor. Corridor lighter. Corridor light. Corridor luminaire. Aisle luminaire. Reflector. 835. 840. 850.

DLC listed

The LumenFocus GAT raises the bar for indoor sports lighting. Designed to meet the demanding requirements of air dome/air-inflated structures, butler buildings and fabric over frame structures, the GAT weighs just 18 lbs. and can produce over 50,000 lumens of comfortable, indirect light. The GAT features LED optics designed for even illumination of the ceiling, minimizing hot spots while providing glare-free indirect lighting. Every GAT made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Each GAT is assembled in our Henderson, NC facility.

Applications: Suitable for applications where high output indirect light is needed – indoor tennis courts, soccer domes, gymnasiums, recreation facilities, convention centers, retail
Lumen Output: Around 46,000-55,000
Max Lumens Per Watt: 115.9
Predicted L80 Lifetime: >102,000 hours (reported)
Warranty: 5 year limited system warranty.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations.

Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

The GAT is offered with three mounting options: cable mount (left), strut mount (center), and trunnion mount (right).

wide optic
80 CRI
3500K 4000K 5000K 835 840 850 120-277V

The FFL is a high performance LED lay-in. Part of the FormFocus product line, a matching retrofit is also available – the FFR (click here to view the FFR page). These LED troffers are available in 2×2, 2×4, 1×2 and 1×4 sizes. They are offered in a wide variety of lumen outputs for maximum versatility. The low profile and lightweight housing allows for easy installation. The matching FFR retrofit kit installs in about 3-5 minutes (depending on model). The frosted diffuser is optimized to balance efficiency and style. Surface-mounting and frame-in kits are optional. Every FFL is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Ideal for classrooms, retail, offices and healthcare facilities.
Lumen Output: From 2,200 lm to 9,400 lm
Max Lumens Per Watt: 145
Size Options: 2×4, 2×2, 1×4, 1×2
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified, and DLC Premium qualified, on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

FFL24. FFL22. FFL14. FFL 24. FFL 22. FFL 14. 24. 22. 14. SL. VL. LM. ML. MD. HI. VH. SH. Super Low. Very low. Low. Medium low. Medium. High. Very High. Super High. FFL2x4. FFL2x2. FFL1x4. 2×2. 2×4. 1×4.
FFL24SL
FFL24VL
FFL24LW
FFL24ML
FFL24MD
FFL24HI
FFL24VH
FFL24SH
FFL 24SL
FFL 24VL
FFL 24LW
FFL 24ML
FFL 24MD
FFL 24HI
FFL 24VH
FFL 24SH
FFL24 SL
FFL24 VL
FFL24 LW
FFL24 ML
FFL24 MD
FFL24 HI
FFL24 VH
FFL24 SH

FFL22SL
FFL22VL
FFL22LW
FFL22ML
FFL22MD
FFL22HI
FFL22VH
FFL22SH
FFL 22SL
FFL 22VL
FFL 22LW
FFL 22ML
FFL 22MD
FFL 22HI
FFL 22VH
FFL 22SH
FFL22 SL
FFL22 VL
FFL22 LW
FFL22 ML
FFL22 MD
FFL22 HI
FFL22 VH
FFL22 SH

FFL14SL
FFL14VL
FFL14LW
FFL14ML
FFL14MD
FFL14HI
FFL14VH
FFL14SH
FFL 14SL
FFL 14VL
FFL 14LW
FFL 14ML
FFL 14MD
FFL 14HI
FFL 14VH
FFL 14SH
FFL14 SL
FFL14 VL
FFL14 LW
FFL14 ML
FFL14 MD
FFL14 HI
FFL14 VH
FFL14 SH
830. 835. 840. 850.
ES1SR. ES2SR. Acrylic. Lens. Diffuser. Dimming. Frosted.

DLC listed

Part of the FormFocus product line, the FFL2R offers an aesthetic, highly efficient LED troffer solution. The FFL2R features two rows of high efficacy LED boards shielded by frosted acrylic diffusers. The FFL2R is available in 2×2 and 2×4, in a wide array of lumen outputs for maximum flexibility. The housing features a highly reflective white enamel finish. The low profile and lightweight housing allows for easy installation. The FFL2R is available with an optional occupancy/daylight sensor. Every FFL2R is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Suitable for most commercial and institutional applications – office, retail, classrooms, healthcare facilities
Lumen Output: From 3,100 lm to almost 9,600 lm
Max Lumens Per Watt: Just over 150
Size Options: 2×2, 2×4
Predicted L70 Lifetime: > Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
ES1SR, ES2SR, Philips EasySense basic advanced grouping
FA frosted acyrlic
2 rows of LEDs
GC grid clip
emergency pack
whip
step dimming
SL VL LW ML MD HI VH SH
super low
very low
medium
high
very super

The FFL2R HO is an ideal troffer solution for retail and office settings with high grid ceilings, or other applications that require high lumen output from a recessed luminaire. With the FFL2R HO, you can have all the benefits of a high output luminaire with the aesthetics of the other products in our FormFocus product line. Lumen outputs range from just over 6,000 lumens in the 2×2 LW (low) package up to over 18,000 in the 2×4 VH (very high) model. The low profile, lightweight housing allows for easy installation. Two rows of high efficacy LED boards are shielded by frosted acrylic diffusers. Surface-mounting and frame-in kits are optional. Every FFL2R HO is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial and institutional applications – office, retail, classrooms, healthcare facilities
Lumen Output: From 6,100 lm to over 18,000 lm
Max Lumens Per Watt: 133
Size Options: 2×2, 2×4
Predicted L70 Lifetime: > 95,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
LW MD HI VH
ES1SR ES2SR W6 W10 whip SD step dimming EM1 emergency pack F Fuse GC grid clipe Philips EasySense Occupancy/Daylight Occupancy daylight sensor basic advanced grouping 2 rows of LEDs
FA frosted acrylic

The FFLD utilizes high performance disinfecting LEDs from IllumiPure. These LEDs continuously disinfect hard or soft surfaces, killing 99.9 percent of bacteria when the lights are kept on. IllumiPure LEDs are effective against MRSA, C. Difficile, Salmonella and E. Coli. Because IllumiPure LEDs are part of the normal visible LED spectrum (near-UV wavelength), the FFLD is completely harmless to humans and animals. You can remain working while the FFLD cleanses the room! The FFLD utilizes a frosted diffuser that is designed to balance efficiency, aesthetics, and disinfecting performance. The housing is die-formed heavy-gauge cold rolled steel, with a precision brake-formed aluminum LED tray and a highly reflective white enamel finish. A matching retrofit kit, the FFRD, is also available. The FFLD is part of the UVFocus line of pathogen eradicating luminaires. Every FFLD is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Note: These UVFocus products are designed utilizing proven anti-bacterial technology. UVC 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with the factory any questions or concerns.
For any questions about this product, or any UVFocus product, you can email us at uvfocus@lumenfocus.com, or call toll-free at 1-866-UVFOCUS.
Applications: Suitable for most commercial and institutional applications – offices, retail, classrooms, healthcare facilities, labs and clinics
Lumen Output: About 8,800 lm in the 2×4 and 1×4; 6,600 lm in the 2×2
Max Lumens Per Watt: 110
Size Options: 2×2, 2×4, 1×4
Warranty: 5 year limited system warranty
Re-BoardABILITY: Every FFLD is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Pure, clean illumination

Light emitted from IllumiPure’s LED LEDs shines onto surfaces and penetrates harmful micro-organisms. The light targets naturally occurring molecules that exist inside bacteria, and a reaction occurs inside the cell similar to what occurs when you use bleach. The bacteria is rendered inactive, which prevents it from re-populating on the surface or traveling to further hosts.

The FFRD utilizes high performance disinfecting LEDs from IllumiPure. This retrofit kit can upgrade existing fluorescent troffers quickly and easily – in 3-5 minutes! The LEDs continuously disinfect hard or soft surfaces, killing 99.9 percent of bacteria when the lights are kept on. IllumiPure LEDs are effective against MRSA, C. Difficile, Salmonella and E. Coli. Because IllumiPure LEDs are part of the normal visible LED spectrum (near-UV wavelength), the FFRD is completely harmless to humans and animals. You can remain working while the FFRD cleanses the room! The FFRD utilizes a frosted diffuser that is designed to balance efficiency, aesthetics, and disinfecting performance. A matching luminaire, the FFLD, is also available.The FFRD is part of the UVFocus line of pathogen eradicating luminaires. Every FFRD is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Note: These UVFocus products are designed utilizing proven anti-bacterial technology. UVC 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with the factory any questions or concerns.
For any questions about this product, or any UVFocus product, you can email us at uvfocus@lumenfocus.com, or call us toll-free at 1-866-UVFOCUS.

Applications: Suitable for most commercial and institutional applications – offices, retail, classrooms, healthcare facilities, labs and clinics
Lumen Output: About 8,800 lm in the 2×4 and the 1×4; 6,600 lm in the 2×2
Max Lumens Per Watt: 110
Size Options: 2×2, 2×4, 1×4
Warranty: 5 year limited system warranty
Re-BoardABILITY: Every FFRD is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Pure, clean illumination

Light emitted from IllumiPure’s LEDs shines onto surfaces and penetrates harmful micro-organisms. The light targets naturally occurring molecules that exist inside bacteria, and a reaction occurs inside the cell similar to what occurs when you use bleach. The bacteria is rendered inactive, which prevents it from re-populating on the surface or traveling to further hosts.

The ETL is available in 2×2, 2×4 and 1×4 variations for maximum flexibility. Its multiple shielding options are optimized to balance efficiency and aesthetics. Suitable for most commercial and institutional applications – office, retail, classrooms, healthcare facilities. Every ETL is assembled in our Henderson, NC facility.
Available in 2×2, 2×4 and 1×4 for maximum flexibility.
Multiple shielding options optimized to balance efficiency and aesthetics.
Predicted L70 Lifetime: Up to 189,000 hours (calculated).
UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations.
5 year limited system warranty.

Every ETL is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial and institutional applications – office, retail, hospitality, healthcare facilities
Lumen Output: From 2,200 lm – 9,400 lm
Max Lumens Per Watt: 139
Size Options: 2×2, 2×4, 1×4
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every ETL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

ETL22. ETL24. ETL14. ETL 22. ETL 24. ETL 14. ETL 2×2. ETL 2×4. ETL 1×4.
835. 840. 850.
A12. Pattern 12 Prismatic Acrylic Lens. PW. Prismatic White Acrylic Lens. A23F. Frosted High Efficiency Pattern 23 Acrylic Lens.
ETL22VL. ETL22LW. ETL22MD. ETL22HI. ETL22VH. ETL22SH.
ETL22 VL. ETL22 LW. ETL22 MD. ETL22 HI. ETL22 VH. ETL22 SH.
ETL 22VL. ETL 22LW. ETL 22MD. ETL 22HI. ETL 22VH. ETL 22SH.
ETL 22 VL. ETL 22 LW. ETL 22 MD. ETL 22 HI. ETL 22 VH. ETL 22 SH.

ETL24VL. ETL24LW. ETL24MD. ETL24HI. ETL24VH. ETL24SH.
ETL24 VL. ETL24 LW. ETL24 MD. ETL24 HI. ETL24 VH. ETL24 SH.
ETL 24VL. ETL 24LW. ETL 24MD. ETL 24HI. ETL 24VH. ETL 24SH.
ETL 24 VL. ETL 24 LW. ETL 24 MD. ETL 24 HI. ETL 24 VH. ETL 24 SH.

ETL14VL. ETL14LW. ETL14MD. ETL14HI. ETL14VH. ETL14SH.
ETL14 VL. ETL14 LW. ETL14 MD. ETL14 HI. ETL14 VH. ETL14 SH.
ETL 14VL. ETL 14LW. ETL 14MD. ETL 14HI. ETL 14VH. ETL 14SH.
ETL 14 VL. ETL 14 LW. ETL 14 MD. ETL 14 HI. ETL 14 VH. ETL 14 SH.

DLC listed

The FPB Select is an adjustable LED flat panel, with three wattage outputs and three color temperature options that are field selectable. Wattage and CCT are easily adjusted via switches on the back. The FPB Select features state-of-the-art backlit LED technology. Illumination is uniform, with minimal glare and no visible LED pixelation. PMMA lensing over the LEDs will not discolor over time. The FPB Select’s frame is aluminum, with a white finish. The rigid back enclosure is die-formed steel, which prevents warping. The FPB Select can be recessed into grid ceilings. Surface mount and suspension cable mount kits are available.

Applications: Suitable for most commercial, industrial and institutional applications – office, retail, classrooms, healthcare facilities
Lumen Output: 2,500 to 5,625 lm
Max Lumens Per Watt: 127.5
Predicted L70 Lifetime: >60,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL listed for US and Canada, suited for damp locations. IC-rated for insulated ceilings, RoHS, FCC

Mounting options

There are three mounting kit options that can be ordered separately. From left: the Surface Mount Kit (for 2×2 and 2×4 sizes), the 2-Cable Kit for suspension mounting, and the 4-Cable Kit for suspension mounting.

The FPB features state-of-the-art backlit LED technology. Illumination is uniform, with minimal glare and no visible LED pixelation. PMMA lensing over the LEDs will not discolor over time. The FPB’s frame is aluminum, with a white finish. The rigid back enclosure is die-formed steel, which prevents warping. The FPB can be recessed into grid ceilings. Surface mount and suspension cable mount kits are available.

Applications: Suitable for most commercial, industrial and institutional applications – office, retail, classrooms, healthcare facilities
Lumen Output: 3,750 to 6,375 lm
Max Lumens Per Watt: 127.5
Predicted L70 Lifetime: >60,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL listed for US and Canada, suited for damp locations. IC-rated for insulated ceilings, RoHS, FCC

Mounting options

There are three mounting kit options that can be ordered separately. From left: the Surface Mount Kit (for 2×2 and 2×4 sizes), the 2-Cable Kit for suspension mounting, and the 4-Cable Kit for suspension mounting.

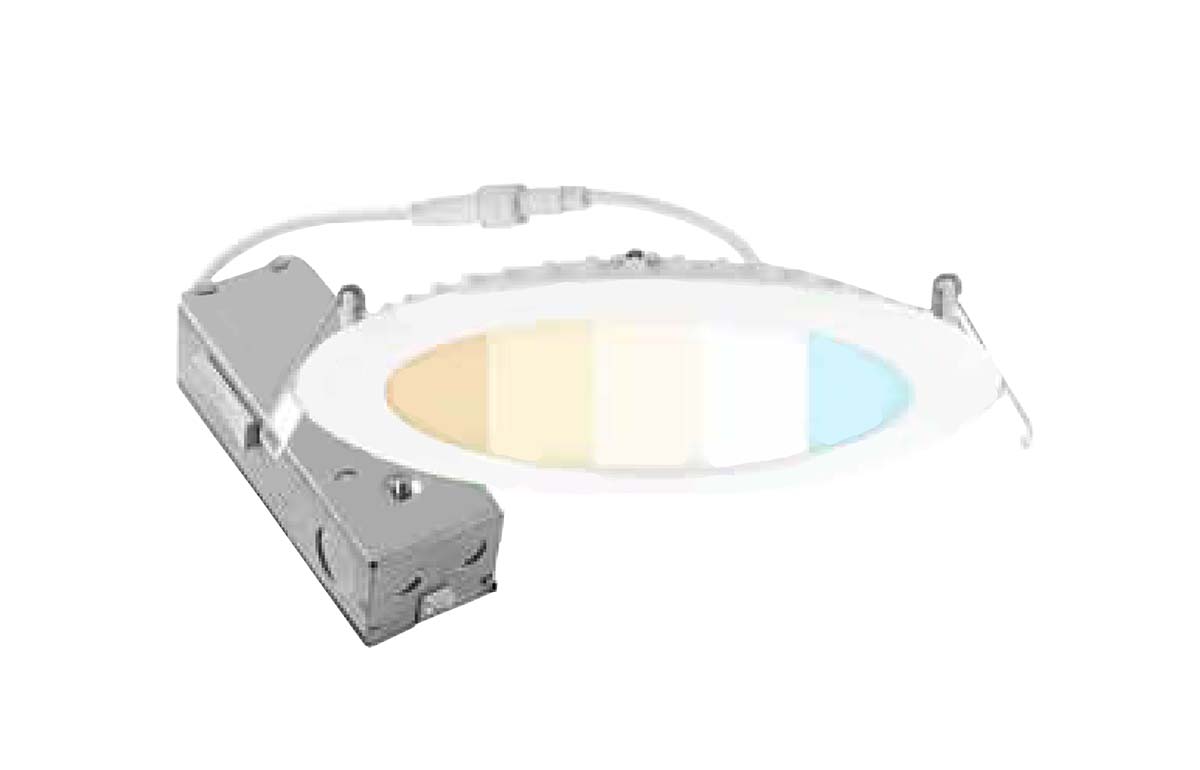

The DSS LED slim select down light is available in 4" (DSS 4) and 6" (DSS 6) sizes. Each size is offered in 90 CRI and features field selectable color temperature - 2700K, 3000K, 3500K, 4000K and 5000K. The DSS can be used in retrofit and new construction applications. These down lights are compatible with insulated and non-insulated ceilings. Both the DSS 4 and DSS 6 come with a smooth white reflector trim. Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications - retail, hospitality, office Lumen Output: 689 lm in the DSS 4; 1,169 in the DSS 6 Max Lumens Per Watt: 80.6 Predicted L70 Lifetime: 50,000 hours Warranty: 5 year limited system warranty Certifications: ETL listed for wet locations, IP43, RoHS compliant Durable construction The DSS features durable thermoplastic and aluminum construction. The DSS 4 fits 3" to 4" diameter openings, while the DSS 6 fits 5" to 6" diameter openings. Spring action clips secure the fixture to ceiling or existing frame.

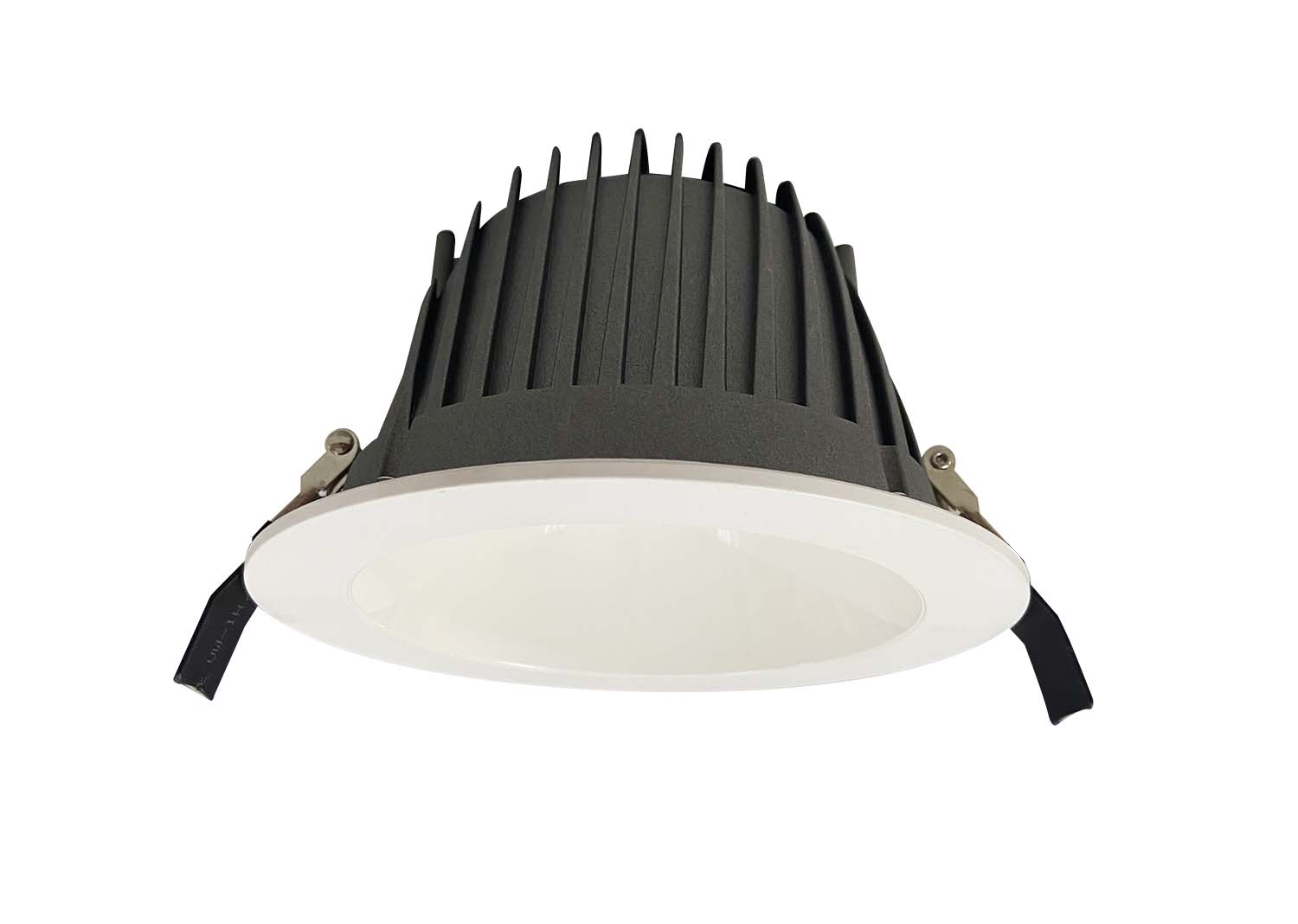

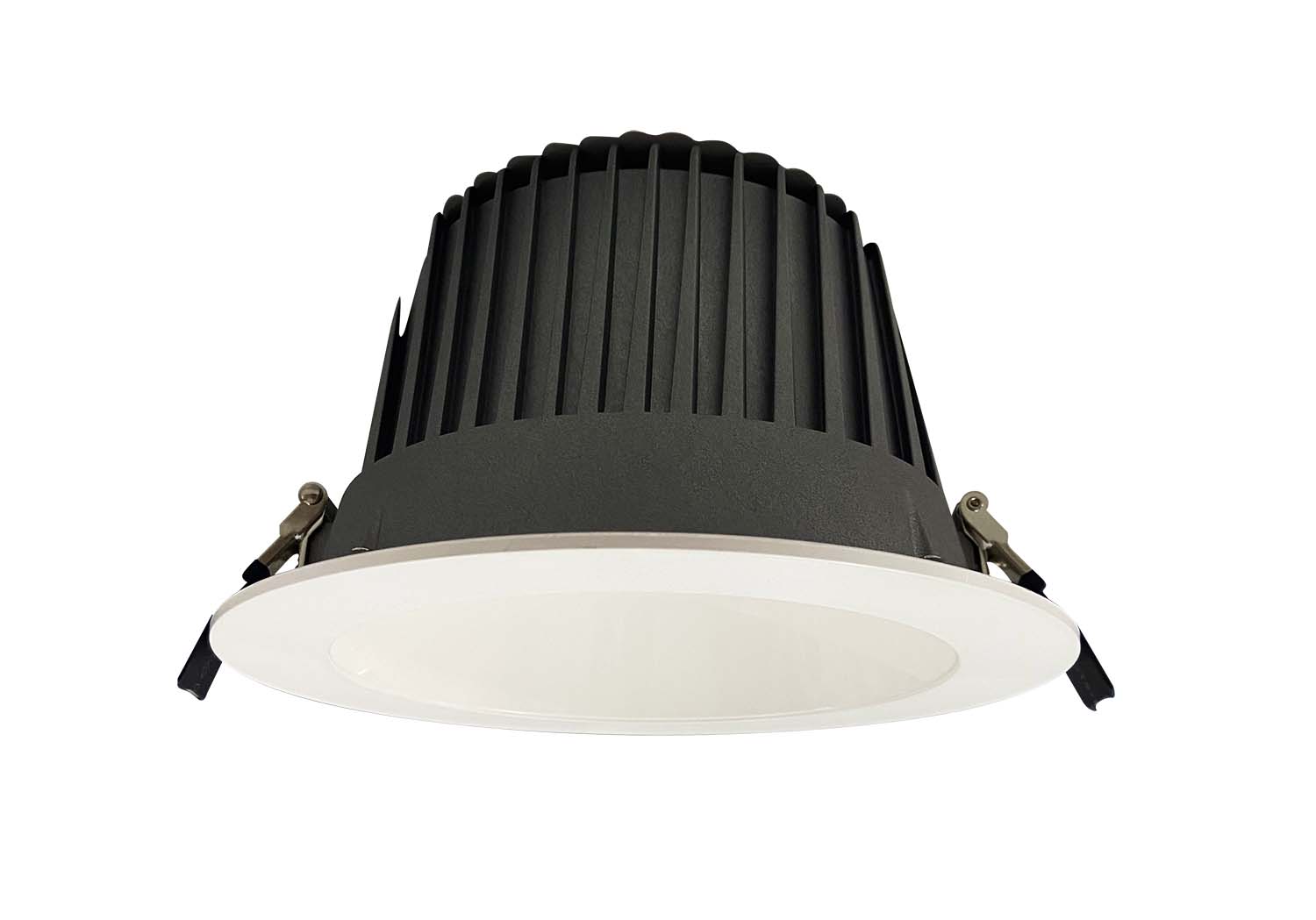

The DLT LED down light features field selectable color temperature and output. These down lights can be used for retrofit projects and new construction applications. Four color temperatures can be selected: 3000K, 3500K, 4000K and 5000K, at 90 CRI. There are two sizes - the DLT 6 is compatible with 6.25" ceiling cut outs and 6" mounting frames. The DLT 8 is compatible with 8.06" ceiling cut outs and 8" mounting frames. Spring action clips secure the fixture to the ceiling or existing frame. The DLT 6 is available with three selectable outputs, while the DLT 8 has four selectable outputs. Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications - retail, hospitality, office Lumen Output: 1,130-2,300 lm in the DLT 6; 2,120-5,560 in the DLT 8 Max Lumens Per Watt: 106.7 Predicted L70 Lifetime: 56,000 hours Warranty: 5 year limited system warranty Certifications: ETL listed for wet locations, complies with EN61000-4-5 surge protection (line neutral, 1kV), complies with FCC Part 15, class A Construction and installation The housing of the DLT is constructed of aluminum, with a smooth white reflector. A standard junction box (included) can be remote mounted or attached to the luminaire.

The DLS LED down light features field selectable color temperature and output. Three color temperatures can be selected: 3000K, 4000K and 5000K, at 90 CRI. There are two size options – the DLS 6, which fits 6″ to 7.4″ diameter openings, and the DLS 8, which fits 7.6″ to 9.4″ diameter openings. The DLS 6 has three selectable output levels: 10W, 15W and 22W. The DLS 8 can be set to 12W, 20W or 30W. The DLS works for retrofit and new construction applications, and is compatible with insulated and non-insulated ceilings. It features 0-10V dimming down to 10 percent.
Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications
Lumen Output: 850-1,950 lm in the DLS 6; 1,000-2,500 in the DLS 8
Max Lumens Per Watt: 90
Predicted L70 Lifetime: 50,000 hours
Warranty: 5 year limited system warranty
Certifications: ETL listed for wet locations, IP43, RoHS compliant
Durable construction

The DLS features durable thermoplastic and aluminum construction. It ships with 19 inches of 3/8″ flex cable for easy install into junction boxes.

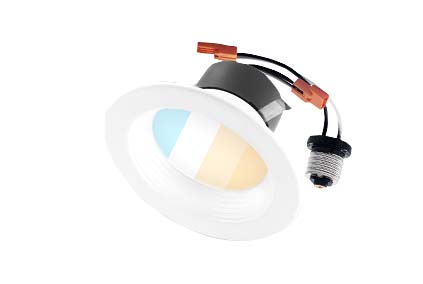

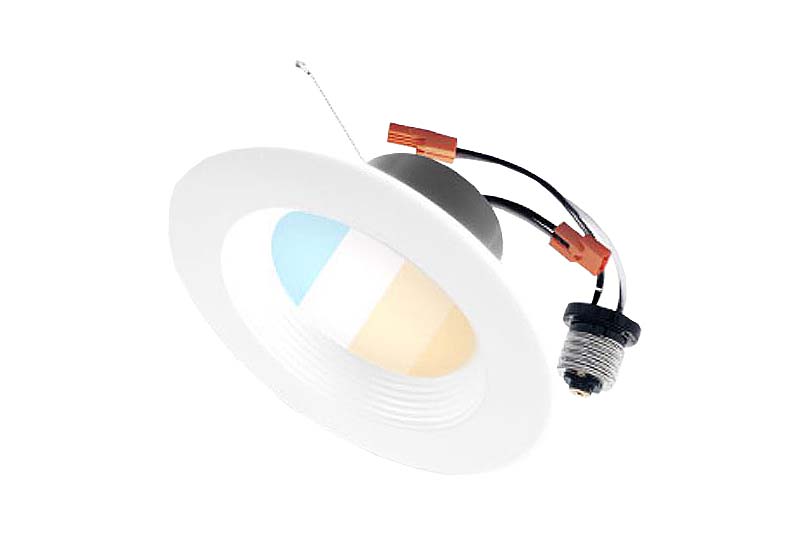

The DLR LED retrofit down light features field selectable color temperature. Four color temperatures can be selected: 2700K, 3000K, 4000K and 5000K, at 90 CRI. There are two size options – 4\” and 6\”. The DLS produces high quality, 90 CRI illumination. It is compatible with type IC and non-IC cans. It can be used for retrofit and new construction applications.
Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications
Lumen Output: 650-750 in the DLR 4; 1,000-1,200 in the DLR 6
Max Lumens Per Watt: 80
Predicted L70 Lifetime: 50,000 hours
Warranty: 5 year limited system warranty
Certifications: ETL listed for wet locations, IP43, RoHS compliant
Durable construction

The DLR features durable aluminum and polycarbonate construction, with an E26 medium base.

The DLL 3.5 is compatible with most 3.5″ housings, and is available in 90+ CRI. Frame-in kits are available for new construction or remodel applications. The DLL is dimmable to 5% with most drivers. An E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. The white baffle is available in square or round variations.
Applications: Suitable for most commercial, industrial and institutional applications – retail, hospitality, office, residential
Lumen Output: 560 lumens
Max Lumens Per Watt: 62
Predicted L70 Lifetime: 50,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL listed for damp and wet locations. RoHS compliant. Meets State of California Title 24 (2016 requirements)

The DLL 4 down light is compatible with most 4″ housings. It can be used with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K. 90 CRI is available in 2700K, 3000K and 4000K. The DLL 4 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Integral mounting clips allow for toolless installation in most 4″ recessed cans. The DLL 4 is available with frame-in kits for both remodeling and new construction.

Applications: Suitable for most commercial, industrial and institutional applications – retail, hospitality, office, residential
Lumen Output: From 550 lm to 730 lm
Max Lumens Per Watt: 91
Predicted L70 Lifetime: 50,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: ETL listed for wet locations; passes FCC Class B; RoHS compliant; Meets State of California Title 24, 2016 requirements (90 CRI models)

Compatible with most 4\\” housings, the DLE LED down light can be used with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 4000K, and Triac dimming. The housing is constructed of white aluminum, with a polycarbonate lens. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Integral torsion clips allow for toolless installation in most 4\\” recessed cans. The DLE 4 is available with frame-in kits for both remodeling and new construction.
Applications: Suitable for most commercial, industrial and institutional applications – retail, hospitality, office, residential
Lumen Output: 826 lm
Max Lumens Per Watt: 113.2
Predicted L70 Lifetime: 66,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations; passes FCC part 15, Class B; Complies with EN61000-4-5, input transient protection (1.0kV)
rame-in kits

The DLE 4 is available with two types of frame-in kits. The 4ICNC is designed for new construction, while the 4ICRM is designed for remodel applications. Air tight construction in both kits provides reduced energy costs. See spec sheet for more details.

The DLG LED gimbal down light can be used with insulated, non-insulated and air-tight ceilings. It is compatible with most 4″ housings. Color temperature options range from 2700K to 4000K. The DLG 4 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Integral mounting clips allow for toolless installation in most 4″ recessed cans. The DLG 4 is available with frame-in kits for both remodeling and new construction.

Applications: Suitable for most commercial, industrial and institutional applications – retail, hospitality, office, residential
Lumen Output: 675-750 lm
Max Lumens Per Watt: 75
Predicted L70 Lifetime: 50,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: ETL US and Canada listed for damp locations; passes FCC Class B

The DLE 56 down light is compatible with most 5” and 6” housings – with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K, with Triac dimming. The housing is white aluminum, with a polycarbonate lens. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Adjustable torsion springs, designed to fit 5” or 6” housing, allows for toolless installation. The DLE 56 is available with frame-in kits for both remodeling and new construction.
Applications: Suitable for most commercial, industrial and institutional applications – retail, hospitality, office, residential
Lumen Output: 865-1,494 lm
Max Lumens Per Watt: 131
Predicted L70 Lifetime: 66,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations; Passes FCC Part 15, Class Bi; complies with EN161000-4-5, input transient protection (1.0kV)

The DLG 56 down light is compatible with most 5″ and 6″ housings – with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 4000K. The DLG 56 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. An adjustable torsion spring, designed to fit 5″ or 6″ housing, allows for toolless installation. The DLG 56 is available with frame-in kits for both remodeling and new construction.

Applications: Suitable for most commercial, industrial and institutional applications – retail, hospitality, office, residential
Lumen Output: 975-1,080 lm
Max Lumens Per Watt: 75
Predicted L70 Lifetime: 50,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: ETL US and Canada listed for damp locations; Passes FCC Class B

About 3-5 minutes is all it takes to install the FFR LED troffer retrofit. The FFR is part of the FormFocus product line. A matching luminaire is also available – the FFL (click here to view the FFL page). The FFR is available in 2×2, 2×4, 1×4, 1×2 and 1×4 tandem options. It features a wide variety of lumen outputs for maximum versatility. The frosted diffuser is optimized to balance efficiency and style. Every FFR is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Applications: Ideal for classrooms, retail, offices and healthcare facilities.
Lumen Output: From 2,200 lm in the 2×2 to over 10,000 lm in the 1x4T
Max Lumens Per Watt: About 148
Size Options: 2×2, 2×4, 1×4, 1×2, 1x4T
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every FFR is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified, and DLC Premium qualified, on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

FFR24. FFR22. FFR14. FFR 24. FFR 22. FFR 14. FFR 2×4. FFR 2×2. FFR 1×4.
830. 835. 840. 850.
FA. Frosted Acrylic.
FFR24SL. FFR 24SL. FFR24 SL.
FFR24VL. FFR 24VL. FFR24 VL.
FFR24LW. FFR 24LW. FFR24 LW
FFR24ML. FFR 24ML. FFR24 ML.
FFR24MD. FFR 24MD. FFR24 MD.
FFR24HI. FFR 24HI. FFR24 HI.
FFR24VH. FFR 24VH. FFR24 VH.
FFR24SH. FFR 24SH. FFR24 SH.

FFR22SL. FFR 22SL. FFR22 SL.
FFR22VL. FFR 22VL. FFR22 VL.
FFR22LW. FFR 22LW. FFR22 LW
FFR22ML. FFR 22ML. FFR22 ML.
FFR22MD. FFR 22MD. FFR22 MD.
FFR22HI. FFR 22HI. FFR22 HI.
FFR22VH. FFR 22VH. FFR22 VH.
FFR22SH. FFR 22SH. FFR22 SH.

FFR14SL. FFR 14SL. FFR14 SL.
FFR14VL. FFR 14VL. FFR14 VL.
FFR14LW. FFR 14LW. FFR14 LW
FFR14ML. FFR 14ML. FFR14 ML.
FFR14MD. FFR 14MD. FFR14 MD.
FFR14HI. FFR 14HI. FFR14 HI.
FFR14VH. FFR 14VH. FFR14 VH.
FFR14SH. FFR 14SH. FFR14 SH.
ES1SR. ES2SR.

DLC listed.

Part of the FormFocus product line, the FFRP is a custom fit retrofit kit designed for existing 4-foot or 8-foot industrial-style louvered luminaires. Specifications of the existing fixture is required to ensure proper fit. A new industrial luminaire with a similar appearance, the FFLP, is also available (view FFLP product page here). The FFRP’s lift and shift design allows for quick and easy installation in a matter of just a few minutes. The frosted diffuser is optimized to balance efficiency and aesthetics. The tray is precision brake formed from cold rolled steel, with a matte white finish. Every FFRP is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Custom fit for 4-foot or 4-foot industrial-style louvered luminaires. Specifications of existing fixture required to ensure proper fit.
Lumen Output: From about 2,500 lm up to nearly 17,000
Max Lumens Per Watt: 157.4
Size Options: 4-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every FFRP is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Lift and shift

The FFRP utilizes a ”lift and shift” design concept, which allows it to quickly and easily be installed in the field. The kit ships with the LED drivers and boards installed on the tray. With the original lamps and ballasts removed, the retrofit unit is hung on one side of the existing housing. Safety tethers on both ends of the kit (two for the 4-footer, four for the 8-footer) are screwed into the existing housing for added security. The installer wires the driver to the existing power via a quick-disconnect before swinging the kit around to attach the other side. The whole process takes just a few minutes.

The FFRW is a custom fit retrofit kit designed for existing 4-foot wrap luminaires that are 9 inches wide or wider. It is part of the FormFocus product line. The easy lift and shift design allows for easy and quick installation, saving on labor costs. The FFRW features high performance, field replaceable LED boards and drivers. Like all FormFocus products, features a frosted acrylic diffuser that is optimized to balance efficiency and aesthetics. The FFRW is precision brake formed from cold rolled steel and features a matte white finish. Every FFRP is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Custom fit for 4-foot wrap luminaires 9 inches or wider. Specifications of existing fixture are required to ensure a proper fit. Note: See Page 3 of spec sheet for a required form that must be filled out prior to ordering.
Lumen Output: From about 4,100 lumens up to 8,100
Max Lumens Per Watt: 144.2
Size Options: 4-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

The RCL retrofit is a great application to save on installation cost, material cost and waste all while getting the benefit of upgrading your fluorescent luminaire to a highly efficient LED system. With a customer-provided width, the RCL can retrofit most existing strips. A “Variable” width option is available as well, which fits channel widths from 4.00 inches up to 5.00 inches. A wide variety of lumen packages and lengths allows for flexibility in design and helps maximize energy savings. Optional frosted diffuser lenses help minimize glare and improve aesthetics. Every RCL is made in the USA – in our facility in Henderson, NC, utilizing mostly domestic and some foreign components.

Applications: Suitable for most commercial, industrial and institutional applications – office, retail, warehouses, coves, valences
Lumen Output: From 800 lm in the 2-foot version to 18,000 lm in the 8-footer
Max Lumens Per Watt: Over 150
Size Options: 2-foot, 3-foot, 4-foot, 6-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

2′. 3′. 4′. 6′. 8′. Low Medium Low. Medium. Medium High. High. Very High. 835, 840, 850. Clear acrylic. Frosted Acrylic.
RCL2. RCL 2. RCL 2-foot. RCL 2′.
RCL3. RCL 3. RCL 3-foot. RCL 3′.
RCL4. RCL 4. RCL 4-foot. RCL 4′.
RCL6. RCL 6. RCL 6-foot. RCL 6′.
RCL8. RCL 8. RCL 8-foot. RCL 8′.

RCL2LW. RCL 2LW. RCL2 LW.
RCL2ML. RCL 2ML. RCL2 ML.
RCL2MD. RCL 2MD. RCL2 MD.
RCL2MH. RCL 2MH. RCL2 MH.
RCL2HI. RCL 2HI. RCL2 HI.
RCL2VH. RCL 2VH. RCL2 VH.

RCL3LW. RCL 3LW. RCL3 LW.
RCL3ML. RCL 3ML. RCL3 ML.
RCL3MD. RCL 3MD. RCL3 MD.
RCL3MH. RCL 3MH. RCL3 MH.
RCL3HI. RCL 3HI. RCL3 HI.
RCL3VH. RCL 3VH. RCL3 VH.

RCL4LW. RCL 4LW. RCL4 LW.
RCL4ML. RCL 4ML. RCL4 ML.
RCL4MD. RCL 4MD. RCL4 MD.
RCL4MH. RCL 4MH. RCL4 MH.
RCL4HI. RCL 4HI. RCL4 HI.
RCL4VH. RCL 4VH. RCL4 VH.

RCL6LW. RCL 6LW. RCL6 LW.
RCL6ML. RCL 6ML. RCL6 ML.
RCL6MD. RCL 6MD. RCL6 MD.
RCL6MH. RCL 6MH. RCL6 MH.
RCL6HI. RCL 6HI. RCL6 HI.
RCL6VH. RCL 6VH. RCL6 VH.

RCL8LW. RCL 8LW. RCL8 LW.
RCL8ML. RCL 8ML. RCL8 ML.
RCL8MD. RCL 8MD. RCL8 MD.
RCL8MH. RCL 8MH. RCL8 MH.
RCL8HI. RCL 8HI. RCL8 HI.
RCL8VH. RCL 8VH. RCL8 VH.

DLC listed.

The RCLS allows for quick and easy installation – it slips right over existing 4 1/4″ wide strip fixtures. All kits come prewired with the necessary branch circuit wiring and quick-connects to plug into a continuous row. This retrofit solution will save on installation cost, material cost and waste. The RCLS is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Suitable for most commercial and institutional applications – office, retail
Lumen Output: From about 2,400 lm – just under 13,000 lm
Max Lumens Per Watt: 164.2
Size Options: 4-foot, 8-foot, 12-foot, 16-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

The RTL is a retrofit for existing troffer luminaires, available in 2×2, 2×4 and 1×4 options. Easy lift and shift installation saves for labor costs. Each kit comes boxed with the necessary hardware for install. Frosted diffusers are available for use in louvered troffers to help minimize glare and improve aesthetics. The RTL is made in the USA – in Henderson, NC, utilizing mostly domestic and some foreign components.

Applications: For use in existing troffer luminaires
Lumen Output: From 2,500 lm to 10,000 lm
Max Lumens Per Watt: Over 150
Size Options: 2×2, 2×4, 1×4
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

RTL22. RTL24. RTL14. RTL 22. RTL 24. RTL 14. RTL 2X2. RTL 2X4. RTL 1X4.
Clear acrylic. Frosted Acrylic. 835. 840. 850. EXT10. 10-year extended warranty. 10 year.

RTL22VL. RTL 22VL. RTL22 VL. RTL 22 VL.
RTL24VL. RTL 24VL. RTL24 VL. RTL 24 VL.
RTL14VL. RTL 14VL. RTL14 VL. RTL 14 VL.

RTL22LW. RTL 22LW. RTL22 LW. RTL 22 LW.
RTL24LW. RTL 24LW. RTL24 LW. RTL 24 LW.
RTL14LW. RTL 14LW. RTL14 LW. RTL 14 LW.

RTL22MD. RTL 22MD. RTL22 MD. RTL 22 MD.
RTL24MD. RTL 24MD. RTL24 MD. RTL 24 MD.
RTL14MD. RTL 14MD. RTL14 MD. RTL 14 MD.

RTL22HI. RTL 22HI. RTL22 HI. RTL 22 HI.
RTL24HI. RTL 24HI. RTL24 HI. RTL 24 HI.
RTL14HI. RTL 14HI. RTL14 HI. RTL 14 HI.

RTL22VH. RTL 22VH. RTL22 VH. RTL 22 VH.
RTL24VH. RTL 24VH. RTL24 VH. RTL 24 VH.
RTL14VH. RTL 14VH. RTL14 VH. RTL 14 VH.

RTL22SH. RTL 22SH. RTL22 SH. RTL 22 SH.
RTL24SH. RTL 24SH. RTL24 SH. RTL 24 SH.
RTL14SH. RTL 14SH. RTL14 SH. RTL 14 SH.

10 year warranty. 10-year warranty. Extended warranty.

DLC listed.

The RLK series offers quick and efficient retrofit solutions for prismatic troffers (2×2 and 2×4) and wrap luminaires (2-footers and 4-footers). Components come pre-wired, and the driver quick-disconnect allows for easy installation, saving on labor costs. Magnetic fasteners come standard on the LED boards, allowing for easy application and adjustment onto existing housings. The RLK is available in a wide variety of lumen packages, allowing for flexibility in design and helping to maximize energy savings. The LED boards and 0-10V drivers are powered by Universal Lighting Technology.

Applications: RLK T22/T24: For use in most existing 2×2/2×4 prismatic troffer and surface box luminaires. RLK W2/W4: For use in most existing 2-foot/4-foot wrap luminaires. The RLK series is suitable for dry/indoor use only.
Lumen Output: RLK T22: 1,400-4,360 lumens; RLK T24: 2,600-8,900 lumens; RLK W2: 1,500-4,300 lumens; RLK W4: 1,500-9,100 lumens
Max Lumens Per Watt: About 145 (in the RLK T24)
Size Options: For 2×2 and 2×4 prismatic troffers, and 2-foot and 4-foot wrap luminaires
Predicted L70 Lifetime: >200,000 hrs (calculated) for the RLK T22/T24; >160,000 hrs (calculated) for the RLK W2/W4
Warranty: 5 year limited system warranty
Certifications: UL 1598c listed for US and Canada. RoHS compliant
Assembled in the USA: Each RLK kit is assembled at our facility in Henderson, NC. BAA compliant options are available

The GUA P is a pendant-mounted luminaire designed for upper air germicidal irradiation. These fixtures utilize low-wattage, ozone-free GUVT8 lamps that reduce airborne pathogens using 254nm UVC. The electronic ballast is specifically matched to the lamps for optimal performance and lifetime. A wall sconce version is also available – the GUA S. The GUA P is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call toll-free at 1-866-UVFOCUS.

Applications: Suitable for most commercial and institutional applications: lobbies, hallways, offices, bathrooms, conference rooms, hotels, retail
Size Options: 4 foot and 2 foot
Finish Options: Silver (standard), white, black
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: Do not ascend into the path of irradiation emitted from this product. Make sure unit is powered off before climbing ladders, stairs, etc., or in any other situation where you are above the mounting height of the unit. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

Engineered for pathogen irradiation

The GUA P is constructed of durable cold rolled steel with a silver (standard), white or black powder coat finish. The polished aluminum reflector is engineered for optimal dispersion of UVC wavelength for irradiation of pathogens.

The GUA S is a wall-mounted sconce designed for upper air germicidal irradiation. These fixtures utilize low-wattage, ozone-free GUVT8 lamps that reduce airborne pathogens using 254nm UVC. The electronic ballast is specifically matched to the lamps for optimal performance and lifetime. The GUA S is constructed of durable cold rolled steel with a silver (standard), white or black powder coat finish. The polished aluminum reflector is engineered for optimal dispersion of UVC wavelength for irradiation of pathogens. A pendant mount version is also available – the GUA P. The GUA S is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll-free at 1-866-UVFOCUS.
Applications: Suitable for most commercial and institutional wall mount applications: lobbies, hallways, offices, bathrooms, conference rooms, hotels, retail
Size Options: 2 foot (15W) and 4 foot (36W)
Finish Options: Silver (standard), white, black
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: Do not ascend into the path of irradiation emitted from this product. Make sure unit is powered off before climbing ladders, stairs, etc., or in any other situation where you are above the mounting height of the unit. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.
AirFocus

The AirFocus (”AF”) option provides added fans to help maximize air flow, and allow a greater percentage of air and pathogens to traverse the eradication zone.

The GUL P is a pendant luminaire designed for upper air germicidal irradiation. These fixtures provide 360 degrees of 254nm UVC irradiation from low-wattage, ozone-free PLL lamps to reduce airborne pathogens. The electronic ballast is specifically matched to the lamps for optimal performance and lifetime. The GUL P is constructed of durable aluminum with a silver (standard), white or black powder coat finish. A wall sconce version is also available – the GUL S. The GUL P is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll-free at 1-866-UVFOCUS.
Applications: Suitable for most commercial and institutional wall mount applications: lobbies, offices, bathrooms, conference rooms, hotels, retail
Finish Options: Silver (standard), white, black
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: Do not ascend into the path of irradiation emitted from this product. Make sure unit is powered off before climbing ladders, stairs, etc., or in any other situation where you are above the mounting height of the unit. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

AirFocus

An AirFocus fan comes standard on the GUL P. Installed on the bottom of the unit, this fan helps maximize air flow into the eradication zone, allowing for a greater percentage of air and pathogens to be irradiated from the UVC.

The GUL S is a wall-mounted sconce designed for upper air germicidal irradiation. These sconces provide 180 degrees of 254nm UVC irradiation from low-wattage, ozone-free PLL lamps to reduce airborne pathogens. The electronic ballast is specifically matched to the lamps for optimal performance and lifetime. The GUL S is constructed of durable aluminum with a silver (standard), white or black powder coat finish. A pendant mount version is also available – the GUL P. The GUL S is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll-free at 1-866-UVFOCUS.
Applications: Suitable for most commercial and institutional wall mount applications: lobbies, offices, bathrooms, conference rooms, hotels, retail
Finish Options: Silver (standard), white, black
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: Do not ascend into the path of irradiation emitted from this product. Make sure unit is powered off before climbing ladders, stairs, etc., or in any other situation where you are above the mounting height of the unit. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

AirFocus

An AirFocus fan comes standard on the GUL S. Installed on the bottom of the unit, this fan helps maximize air flow into the eradication zone, allowing for a greater percentage of air and pathogens to be irradiated from the UVC.

Germicidal Wall-Mounted Direct Luminaire
The GCD provides germicidal luminaire provides pathogen eradication in unoccupied rooms. The GCD hangs in the corner where the wall meets the ceiling. It utilizes low-wattage, ozone-free GUVT8 lamps to provide 254nm UVC illumination to reduce airborne pathogens. UVC at 254nm is capable of inactivating 99-plus percent of all bacteria and viruses (including SARS-CoV-2). Eradication time for specific pathogens varies depending on time and dose. The electronic ballast on the GCD is specifically matched to the lamps for optimal performance and lifetime. The GCD is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll free at 1-866-UVFOCUS.

Applications: Suitable for most commercial and institutional applications: lobbies, hallways, offices, bathrooms, conference rooms, hotels, retail
UVC Out of Fixture: 11,757 mW
Input Watts: 42W
Size Options: 4 foot
Finish Options: Silver (standard), white, black, stainless steel
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: This product is intended for use in unoccupied rooms only. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

Durable design, high performance

The GCD housing is constructed of durable cold rolled steel, with a silver (standard), white or black powder coat finish. A stainless steel option is available. The aluminum reflector is optimized for dispersion of UVC wavelength for the irradiation of pathogens.

The GLS provides germicidal luminaire provides pathogen eradication in unoccupied rooms. This surface-mounted fixture utilizes low-wattage, ozone-free GUVT8 lamps to provide 254nm UVC illumination to reduce airborne pathogens. UVC at 254nm is capable of inactivating 99-plus percent of all bacteria and viruses (including SARS-CoV-2). Eradication time for specific pathogens varies depending on time and dose. Wireguards come standard. The electronic ballast on the GLS is specifically matched to the lamps for optimal performance and lifetime. The GLS is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll free at 1-866-UVFOCUS.

Applications: Suitable for most commercial and institutional applications: lobbies, hallways, offices, bathrooms, conference rooms, hotels, retail
UVC Out of Fixture: 11,757 mW
Input Watts: 42W
Size Options: 1×4
Finish Options: Silver (standard), white, black, stainless steel
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: This product is intended for use in unoccupied rooms only. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

Sturdy design, direct irradiation

The GLS housing is constructed of durable cold rolled steel, with a silver (standard), white or black powder coat finish. A stainless steel option is available. The aluminum reflector is optimized for dispersion of UVC wavelength for the irradiation of pathogens.

The GLR provides germicidal luminaire provides pathogen eradication in unoccupied rooms. This recessed lay-in fixture utilizes low-wattage, ozone-free PLL lamps to provide 254nm UVC illumination to reduce airborne pathogens. UVC at 254nm is capable of inactivating 99-plus percent of all bacteria and viruses (including SARS-CoV-2). Eradication time for specific pathogens varies depending on time and dose. Wireguards come standard. The electronic ballast on the GLR is specifically matched to the lamps for optimal performance and lifetime. A surface-mount version is also available – the GLS. The GLR is part of the UVFocus product line of pathogen eradicating luminaires.
Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll free at 1-866-UVFOCUS.

Applications: Suitable for most commercial and institutional applications: lobbies, hallways, offices, bathrooms, conference rooms, hotels, retail
Size Options: 1×4, 1×2
Finish Options: Silver (standard), white, black, stainless steel
Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
Caution: This product is intended for use in unoccupied rooms only. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

Sturdy design, direct irradiation

The GLR housing is constructed of durable cold rolled steel, with a silver (standard), white or black powder coat finish. The aluminum reflector is optimized for dispersion of UVC wavelength for the irradiation of pathogens.

The ECL LED strip is available in a wide variety of lumen packages and lengths, which allows for flexibility in design and helps maximize energy savings. Frosted diffuser lenses are available to help minimize glare and improve aesthetics. Occupancy sensors, dimming sensors, emergency packs and step-down transformers are among the options available. All ECLs feature field-replaceable LED boards and drivers. Every ECL is made in the USA – in our facility in Henderson, NC, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial, industrial and institutional applications – office, retail, warehouse, coves, valences
Lumen Output: From 800 lm in the 2-foot version to 18,000 lm in the 8-footer
Max Lumens Per Watt: 150
Size Options: 2-foot, 3-foot, 4-foot, 6-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
Re-BoardABILITY: Every ECL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

10 year warranty. 10-year warranty. Extended warranty.

2-foot. 3-foot. 4-foot. 6-foot. 8-foot. 2′. 3′. 4′. 6′. 8′. ECL2. ECL3. ECL4. ECL6. ECL8. Low. Medium Low. Medium. Medium-High Efficiency. Medium High Efficiency. Medium High. High. Very High. Clear Acrylic. Frosted Acrylic. Lens. 835. 840. 850.

ECL2LW. ECL 2LW. ECL2 LW. ECL 2 LW.
ECL2ML. ECL 2ML. ECL2 ML. ECL 2 ML.
ECL2MD. ECL 2MD. ECL2 MD. ECL 2 MD.
ECL2MDHE. ECL2 MDHE. ECL 2MDHE. ECL 2 MDHE. ECL 2 MD HE.
ECL2MH. ECL 2MH. ECL2 MH. ECL 2 MH.
ECL2HI. ECL 2HI. ECL2 HI. ECL 2 HI.
ECL2VH. ECL 2VH. ECL2 VH. ECL 2 VH.

ECL3LW. ECL 3LW. ECL3 LW. ECL 3 LW.
ECL3ML. ECL 3ML. ECL3 ML. ECL 3 ML.
ECL3MD. ECL 3MD. ECL3 MD. ECL 3 MD.
ECL3MDHE. ECL3 MDHE. ECL 3MDHE. ECL 3 MDHE. ECL 3 MD HE.
ECL3MH. ECL 3MH. ECL3 MH. ECL 3 MH.
ECL3HI. ECL 3HI. ECL3 HI. ECL 3 HI.
ECL3VH. ECL 3VH. ECL3 VH. ECL 3 VH.

ECL4LW. ECL 4LW. ECL4 LW. ECL 4 LW.
ECL4ML. ECL 4ML. ECL4 ML. ECL 4 ML.
ECL4MD. ECL 4MD. ECL4 MD. ECL 4 MD.
ECL4MDHE. ECL4 MDHE. ECL 4MDHE. ECL 4 MDHE. ECL 4 MD HE.
ECL4MH. ECL 4MH. ECL4 MH. ECL 4 MH.
ECL4HI. ECL 4HI. ECL4 HI. ECL 4 HI.
ECL4VH. ECL 4VH. ECL4 VH. ECL 4 VH.

ECL6LW. ECL 6LW. ECL6 LW. ECL 6 LW.
ECL6ML. ECL 6ML. ECL6 ML. ECL 6 ML.
ECL6MD. ECL 6MD. ECL6 MD. ECL 6 MD.
ECL6MDHE. ECL6 MDHE. ECL 6MDHE. ECL 6 MDHE. ECL 6 MD HE.
ECL6MH. ECL 6MH. ECL6 MH. ECL 6 MH.
ECL6HI. ECL 6HI. ECL6 HI. ECL 6 HI.
ECL6VH. ECL 6VH. ECL6 VH. ECL 6 VH.

ECL8LW. ECL 8LW. ECL8 LW. ECL 8 LW.
ECL8ML. ECL 8ML. ECL8 ML. ECL 8 ML.
ECL8MD. ECL 8MD. ECL8 MD. ECL 8 MD.
ECL8MDHE. ECL8 MDHE. ECL 8MDHE. ECL 8 MDHE. ECL 8 MD HE.
ECL8MH. ECL 8MH. ECL8 MH. ECL 8 MH.
ECL8HI. ECL 8HI. ECL8 HI. ECL 8 HI.
ECL8VH. ECL 8VH. ECL8 VH. ECL 8 VH.

DLC listed.

The highly efficient ECLN is available in a wide array of different lengths and lumen output packages. Frosted diffusers help minimize glare and improve aesthetics. The highly durable housing features a finish in either the standard Matte White, Matte Black or Metallic Silver. Every ECLN is made in the USA – in our facility in Henderson, NC, utilizing mostly domestic and some foreign components.
Applications: Suitable for most commercial, industrial and institutional applications – office, retail, warehouse, coves, valences
Lumen Output: From 1,000 lumens in the 2-foot version up to about 16,900 in the 8-foot \”VH\” model
Max Lumens Per Watt: 170.8
Size Options: 2-foot, 3-foot, 4-foot, 6-foot, 8-foot, 12-foot, 16-foot
Color Options: Matte White (standard), Matte Black, Metallic Silver
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
Re-BoardABILITY: Every ECLN is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Options and controls

The ECLN is available with a wide variety of options: three different finishes, seven lengths, and multiple lumen output packages allow you to specify the exact light level you need. There are also multiple control options to choose from, including the Wattstopper FSP dimming sensor (pictured). This sensor comes pre-installed on the end cap and provides multi-level control based on motion and/or daylight contribution. An optional microwave occupancy sensor sits discreetly behind the frosted lens on the ECLN. See spec sheet for more details.

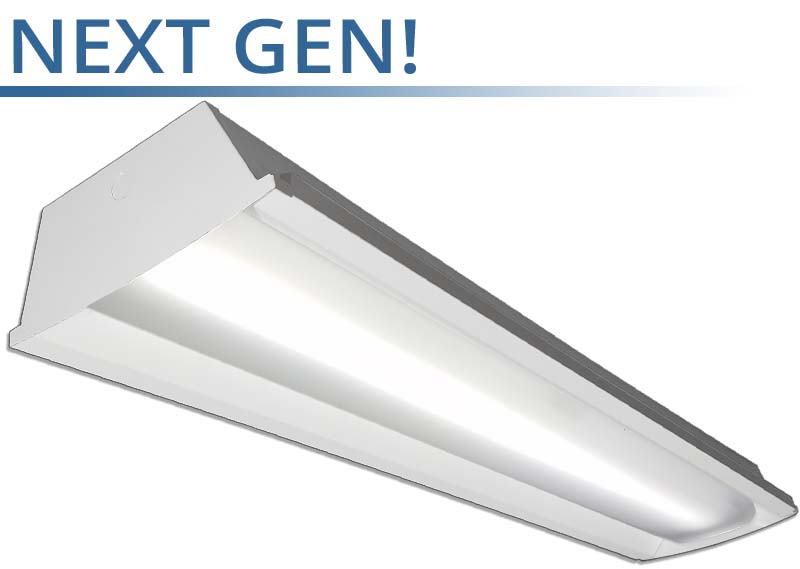

Part of the FormFocus product line, the FFLP provides modern aesthetics and performance in a lensed LED industrial luminaire. The FFLP is available in a wide variety of lumens outputs for maximum flexibility. The frosted acrylic diffuser is optimized to balance efficiency and aesthetics. Microwave occupancy sensors are optional. A retrofit kit in a similar styling is also available – the FFRP (click here to view the FFRP product page). Every FFLP is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.

Applications: Suitable for most indoor industrial, commercial and institutional applications: office, retail, warehouse, classrooms
Lumen Output: From about 2,500 lm up to nearly 17,000
Max Lumens Per Watt: 157.4
Size Options: 4-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every FFLP is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Durability and style

The housing of the FFLP is constructed of precision brake fromed cold rolled steel, with a matte white finish. The lens, like all FormFocus products, is engineered to minimize glare and minimize LED pixelation, while providing a modern, stylish appearance.

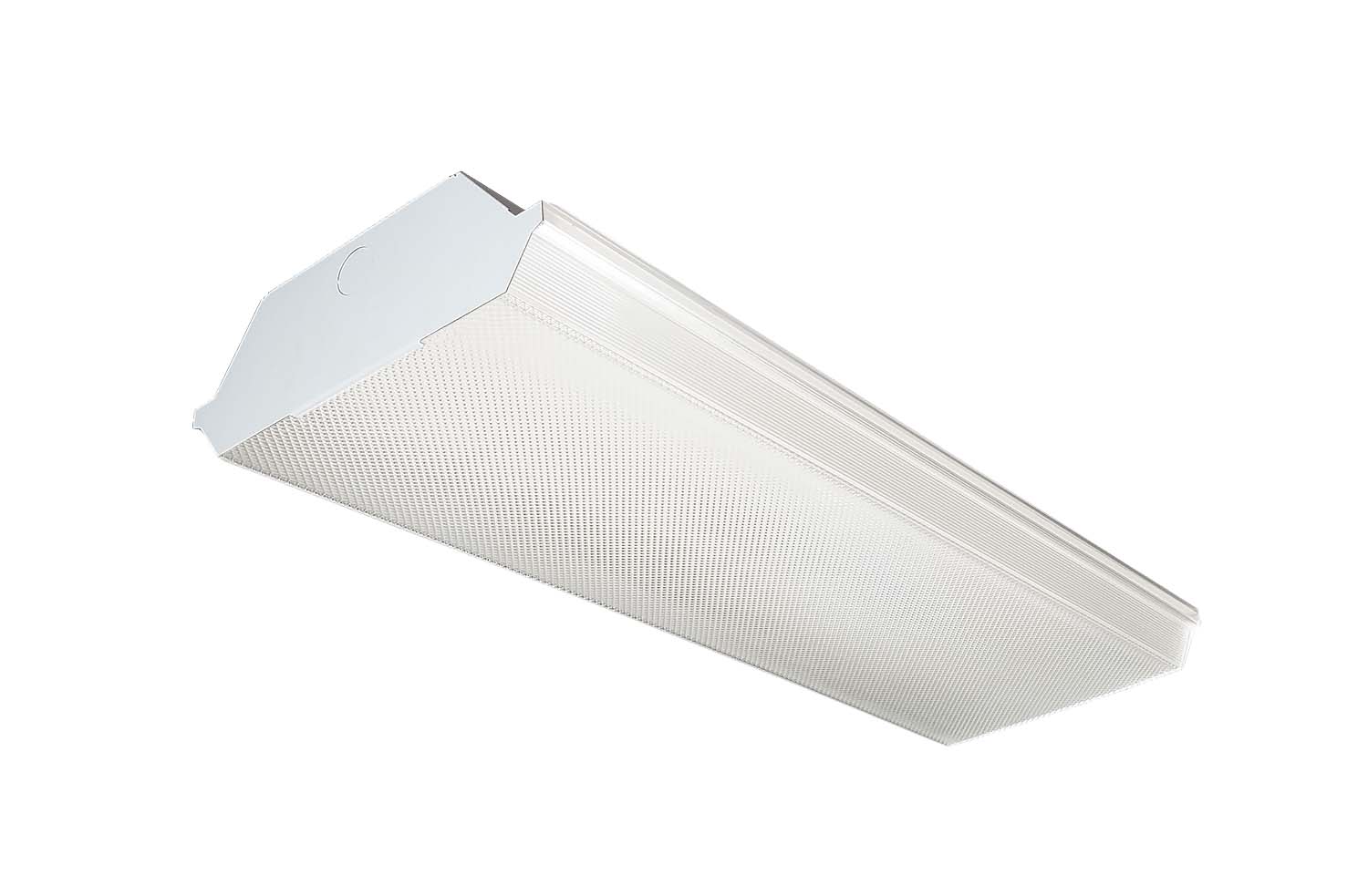

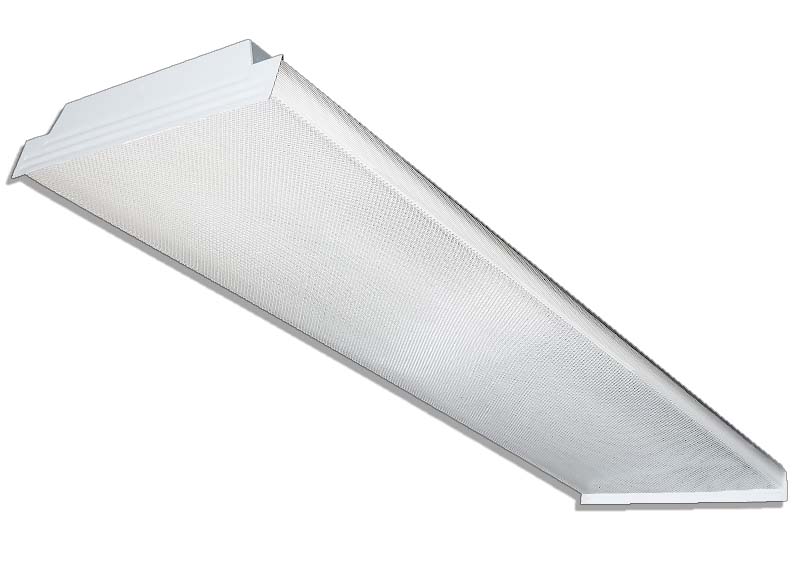

The EWL LED wrap can be surface-, stem- or cable-mounted as individual units or in continuous rows. Three are three width sizes and two lengths to choose from. The housing is constructed of highly durable and highly reflective white cold rolled steel. The lens is made of clear prismatic acrylic. Every EWL is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.

Applications: Suitable for industrial, retail and institutional applications – warehouse, manufacturing facility, stock room, classroom
Lumen Output: From ~1,960 to 8,400
Max Lumens Per Watt: 153.3
Size Options: 2-foot and 4-foot lengths; 9-inch, 11.25-inch, and 16-inch widths
Predicted L70 Lifetime: Up to 189,000 hrs (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for wet locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Pick your size

The EWL is available in three different widths: 9-inch, 11-inch and 16-inch. There are two lengths to choose from: 2-foot and 4-foot. It can be equipped with controls, including on/off/dim sensors and microwave sensors. See spec sheet for more details.

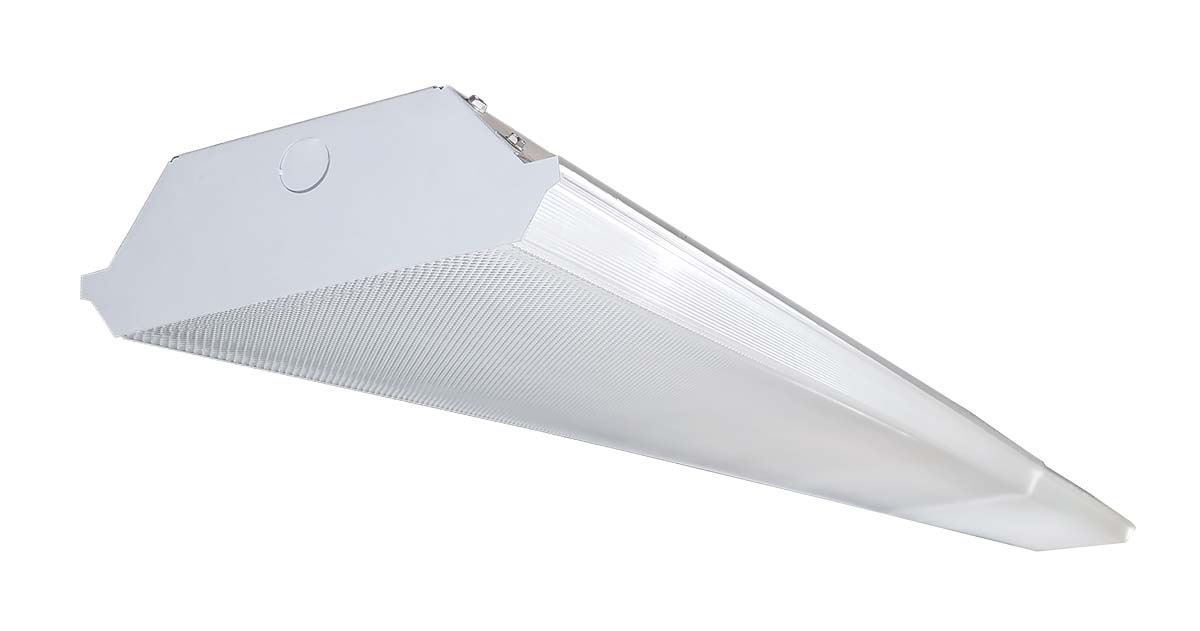

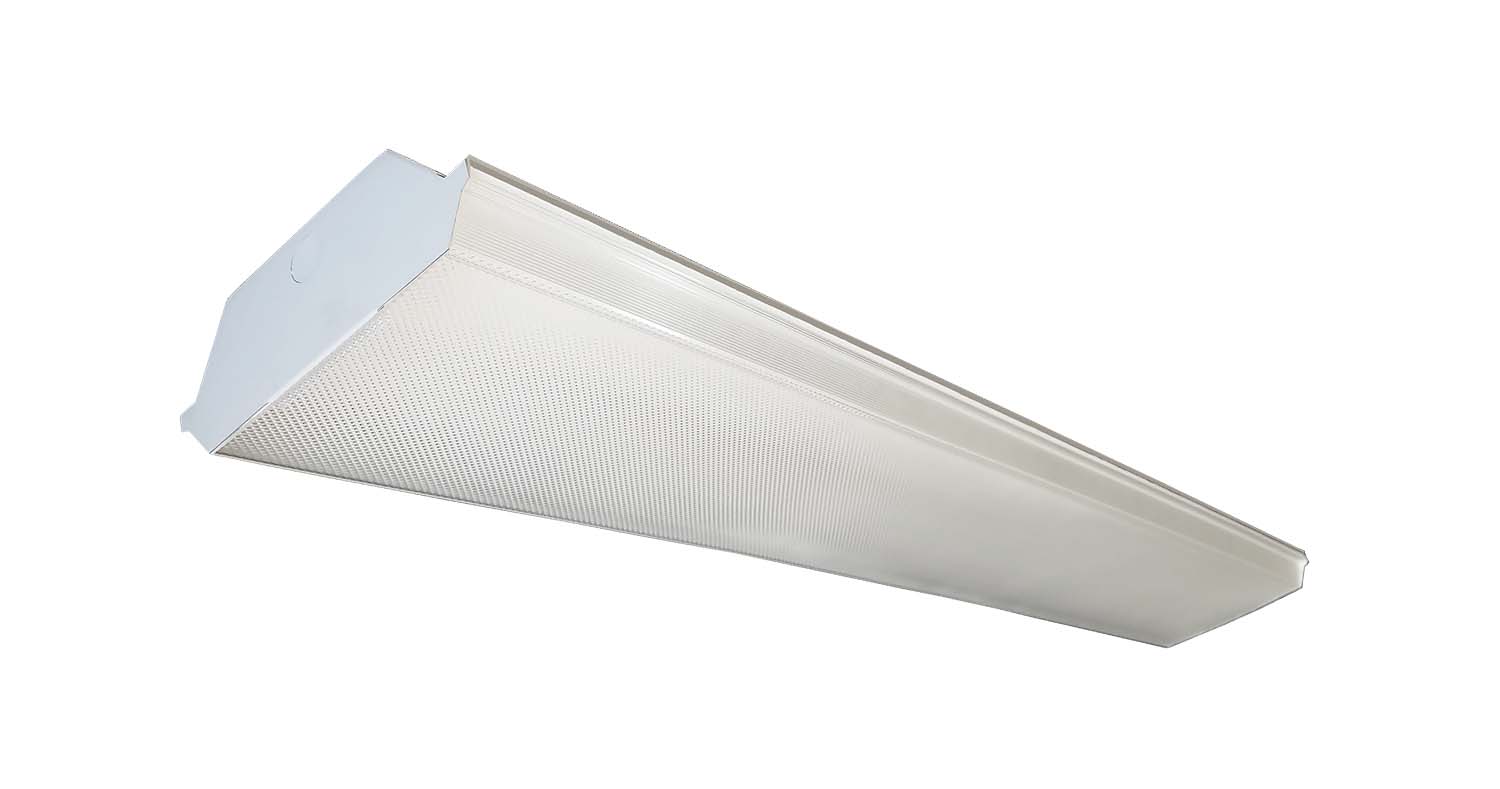

The EWLN is an LED wrap suitable for many applications. It can be surface, stem or cable mounted individually or in continuous rows. The EWLN features highly efficient LED boards and drivers, and is available in multiple lumen output packages to help you get the exact light level you need. There are multiple controls options available, including programmable photo/motion sensors, occupancy sensors, microwave sensors and photocells (see spec sheet for more info). The EWLN is available in 2-foot, 4-foot and 8-foot lengths. Every EWLN is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.
Applications: Suitable for industrial, retail and institutional applications: warehouses, manufacturing facilities, stock rooms, classrooms
Lumen Output: About 1,400 lumens in the 2-foot version up to 17,000 in the 8-foot version
Max Lumens Per Watt: 143.1
Size Options: 2-foot, 4-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every EWLN is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Durable construction

The EWLN is constructed of die-formed, heavy-guage cold rolled steel. It is pre-painted with a highly durable and highly reflective white finish. The lens is clear prismatic acrylic.

The EVL is a high performance LED lensed luminaire suitable for many wall and ceiling mount applications. The housing and end caps are constructed out of heavy-gauge cold rolled steel with a white powder coat finish. The lens is prismatic acrylic. An optional motion/sound sensor is available. Every EVL is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.

Applications: Suitable for wall and ceiling mount applications: bathrooms, corridors and stairwells
Lumen Output: About 1,000 lumens up to 4,000 lumens
Max Lumens Per Watt: About 135
Size Options: 2-foot, 3-foot, 4-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
Certifications: UL 1598 listed for US and Canada, suitable for wet locations
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Sensor option
The optional motion/sound sensor (MSS) is pictured. The EVL is also available with mouse hold or tapped hole end caps. See spec sheet for more info.

Durable materials and craftsmanship allow the WVL vaportight to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. It is available in 4-foot or compact 2-foot lengths. Multiple hanging options are also available, including surface, chain and aircraft cable, for easy installation (more info below). Impact resistant acrylic and UV stabilized polycarbonate lenses are available as well. Every WVL is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.
Applications: Suitable for most industrial, retail and recreational low bay and high bay applications – warehouses, manufacturing facilities, food processing, freezers, gymnasiums, car washes.
Lumen Output: From 8,000 lm to 18,000 lm in the WVL2; 16,000 lm to 32,000 lm in the WVL4
Max Lumens Per Watt: 159 in the WVL4
Size Options: 2-foot and 4-foot lengths
Predicted L70 Lifetime: > 100,000 hours (calculated)
Warranty: 5 year limited system warranty
Re-BoardABILITY: Every WVL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: IP65, IP66, IP67 (optional on WVL2), IP69 (WVL2 only), NEMA 4X, NSF, PSI 1500, RoHS.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Mounting options

The WVL is available with multiple hanging options, including the Flexible Ceiling Mount (FCM). The Rigid Mounting Beam is another option, available in both stainless steel and zinc-plated variations (RBS and RBZ). Also, the V-hook (VHK) can be purchased for chain or cable mounting.

Your choice of lens

The WVL has three shielding options to choose from: UV-stabilized clear polycarbonate, along with impact-resistant clear or frosted acrylic.

Certifications

The WVL2 has numerous certifications – including an IP69 rating, meaning it is dust-tight and can stand up to high pressure and high temperature water jets. Other certifications include: IP65, IP66, IP67 (optional), NEMA 4X, PSI 1500, RoHS, and DLC QPL (specific configurations).

Up to 32,000+ lumens

The WVL4 “Super High (SH)” lumen output package produces 30,000-32,000 lumens, with efficacies still ranging from 133-141.5 lumens per watt! Controls (including on/off/dim sensors) are also available to maximize energy savings. See spec sheet for more details about controls and other options.

Durable materials and craftsmanship allows the NVL to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. Multiple hanging options available, including surface, chain and aircraft cable, for easy installation (more info below). Impact resistant acrylic lenses are available, as well as UV-stabilized polycarbonate lenses. Every NVL is made in the USA – in our Henderson, NC facility, using mostly domestic and some foreign components.

Applications: Suitable for most industrial, retail and recreational low bay and high bay applications – warehouse, manufacturing facility, food processing, freezer, gymnasium, parking garage, car wash
Lumen Output: From 1,200 lm to 24,000 lm
Max Lumens Per Watt: 150
Size Options: 8-foot, 4-foot, 2-foot
Predicted L70 Lifetime: > 72,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. Other certifications: IP65, IP66, IP67, NEMA 4X, NSF, PSI 1500, RoHS
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
The NVL can be hung with a surface mounting bracket (SM) or a mounting bracket bail (SMBB). The SMBB can be included with a 10′ quick hang cable kit (the SMBBQC option) or a 20′ quick hang cable kit (SMBBQC20).

NVL2. NVL4. NVL8. NVL 2 foot. NVL 4 foot. NVL 8 foot. NVL 2-foot. NVL 4-foot. NVL 8-foot. NVL 4′. NVL 8′. NVL 2′. NVL 2 footer. NVL 4 footer. NVL 8 footer. NVL 2-footer. NVL4-footer. NVL 8-footer.
LW. MD. HI. VH. SH. Low. Medium. High. Very high. Super high. CRP. FRP. CRA. FRA. CDA. FDA. Clear ribbed polycarbonate. Frosted. Acrylic. Ribbed. Clear Deep acrylic. 835. 840. 850.
SM. SMBB. SMBBQC. SMBBQC20. Surface mounting bracket. Mounting bracket bail for chain or cable mounting. Bracket bail 10′ quick hang cable kit. 10 foot. 10-foot. 20′. 20 foot. 20-foot.
NVL2LW. NVL2 LW. NVL 2LW. NVL 2 LW.
NVL2MD. NVL2 MD. NVL 2MD. NVL 2 MD.
NVL2HI. NVL2 HI. NVL 2HI. NVL 2 HI.
NVL2VH. NVL2 VH. NVL 2VH. NVL 2 VH.
NVL2SH. NVL2 SH. NVL 2SH. NVL 2 SH.

NVL4LW. NVL4 LW. NVL 4LW. NVL 4 LW.
NVL4MD. NVL4 MD. NVL 4MD. NVL 4 MD.
NVL4HI. NVL4 HI. NVL 4HI. NVL 4 HI.
NVL4VH. NVL4 VH. NVL 4VH. NVL 4 VH.
NVL4SH. NVL4 SH. NVL 4SH. NVL 4 SH.

NVL8LW. NVL8 LW. NVL 8LW. NVL 8 LW.
NVL8MD. NVL8 MD. NVL 8MD. NVL 8 MD.
NVL8HI. NVL8 HI. NVL 8HI. NVL 8 HI.
NVL8VH. NVL8 VH. NVL 8VH. NVL 8 VH.
NVL8SH. NVL8 SH. NVL 8SH. NVL 8 SH.

The unique design of the EVT features an (f1) rated acrylic co-extruded lens and housing – with the lens and housing being all one piece – and gasketed end caps. It is available in 2-foot, 4-foot and 8-foot variations. The EVT is UL approved and evaluated for daisy chaining. Multiple hanging options are available for easy installation – including surface, chain/cable, or pendant. High efficiency LED boards and drivers are field replaceable. Maximize your energy savings further with an optional microwave occupancy sensor. Every EVT is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Suitable for most commercial, industrial and institutional applications: warehouses, manufacturing facilities, food processing, stairwells, car washes
Lumen Output: 1,930 to nearly 8,600 lumens
Max Lumens Per Watt: 134.5
Size Options: 2-foot, 4-foot and 8-foot lengths
Predicted L70 Lifetime: > 100,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: NSF, IP65, IP66, RoHS
Assembled in the USA: Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
The Snap On Bracket comes standard on the EVT, and can be used for surface mounting. Selecting the SMBB option adds the bracket bail for chain and cable mounting. The bracket bail can also be purchased with a 10′ Quick Hang Cable Kit (SMBBQC) or a 20′ Quick Hang Cable Kit (SMBBQC20). An optional Safety Bail provides added security for the mounting.

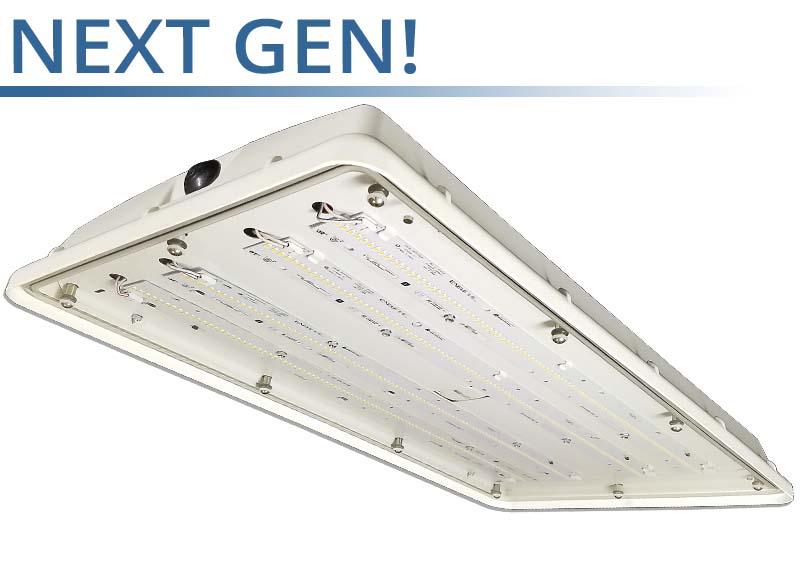

The Altor series is designed for the high demands of food and meat industry facilities. The unique design is bacteria and debris resistant, with minimal external features that limit particulate accumulation. It features a true water seal – no condensation will get inside the luminaire. The IP66-rated, dust-tight enclosure is easy to clean and can withstand high pressure water jets. Control options are available to maximize energy savings, and all sensors are IP-rated. The housing is made of UL 5VA fiberglass and will not melt or burn. Lenses are available in clear polycarbonate. The Altor is available in 2-foot (WVL2F) and 4-foot (WVL4F) options, with multiple lumen output packages, color temperatures and hanging options. Every WVLF is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Designed for food processing and meat processing facilities, or other applications that require similar requirements from a vaportight luminaire. Also suitable for most industrial, retail and recreational low bay and high bay applications – warehouse, manufacturing facility, freezer, gymnasium
Lumen Output: From 8,200 in the 2-footer up to 23,500+ in the 4-footer
Max Lumens Per Watt: 138.2
Size Options: 2-foot (WVL2F) and 4-foot (WVL4F)
Predicted L70 Lifetime: ≥ 99,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: NSF, IP66, RoHS, NEMA 4X, PSI 1500
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Ideal for food and meat processing
The Altor WVLF is bacteria and debris resistant, with minimal external features that limit particulate accumulation. A true water seal means no condensation will get inside the fixture. It’s easy to clean: the dust-tight, IP66-rated enclosure can withstand high pressure water jets.

Mounting options
The WVLF features multiple hanging options, including the Flexible Ceiling Mount (FCM), the Rigid Mounting Beam in both stainless steel and zinc-plated variations (RBS and RBZ), and the V-hook (VHK – 2-foot version pictured) for chain or cable mount.

Buy Now Request a Quote

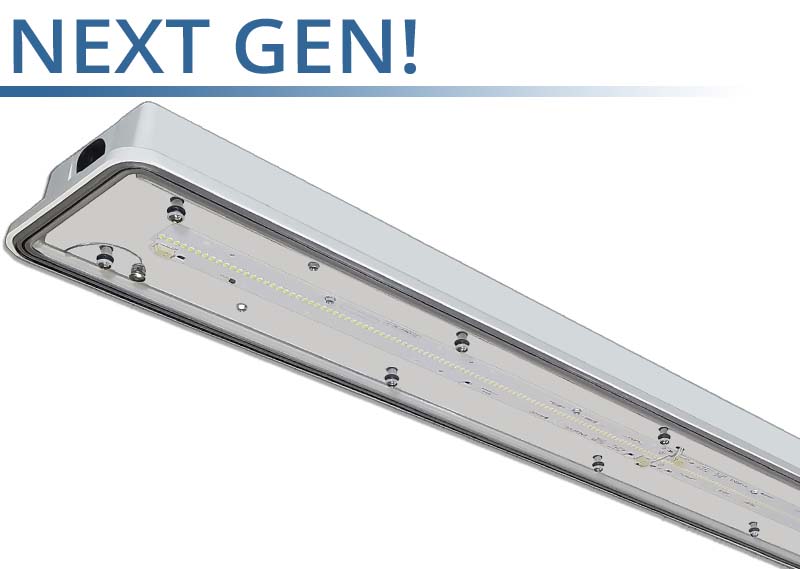

The Altor series is designed for the high demands of food and meat industry facilities. The NVLF’s unique narrow profile design is bacteria and debris resistant, with minimal external features that limit particulate accumulation. It features a true water seal – no condensation will get inside the luminaire. The IP66-rated, dust-tight enclosure is easy to clean and can withstand high pressure water jets. Control options are available to maximize energy savings, and all sensors are IP-rated. The housing is made of UL 5VA fiberglass and will not melt or burn. Lenses are available in clear polycarbonate. The Altor NVLF is available in 4-foot and 8-foot versions, with multiple lumen output packages, color temperatures and hanging options. Every NVLF is made in the USA – in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Applications: Designed for food processing and meat processing facilities, or other applications that require similar requirements from a vaportight luminaire. Also suitable for most industrial, retail and recreational low bay and high bay applications – warehouse, manufacturing facility, freezer
Lumen Output: From 2,200 in the 4-footer up to 17,000+ in the 4-footer
Max Lumens Per Watt: 135.2
Size Options: 4-foot and 8-foot
Predicted L70 Lifetime: >72,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. Other certifications: NSF, IP66, RoHS, NEMA 4X, PSI 1500
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
The NVLF can be hung with a surface mounting bracket (SM) or a mounting bracket bail (SMBB). The SMBB can be included with a 10′ quick hang cable kit (the SMBBQC option) or a 20′ quick hang cable kit (SMBBQC20).

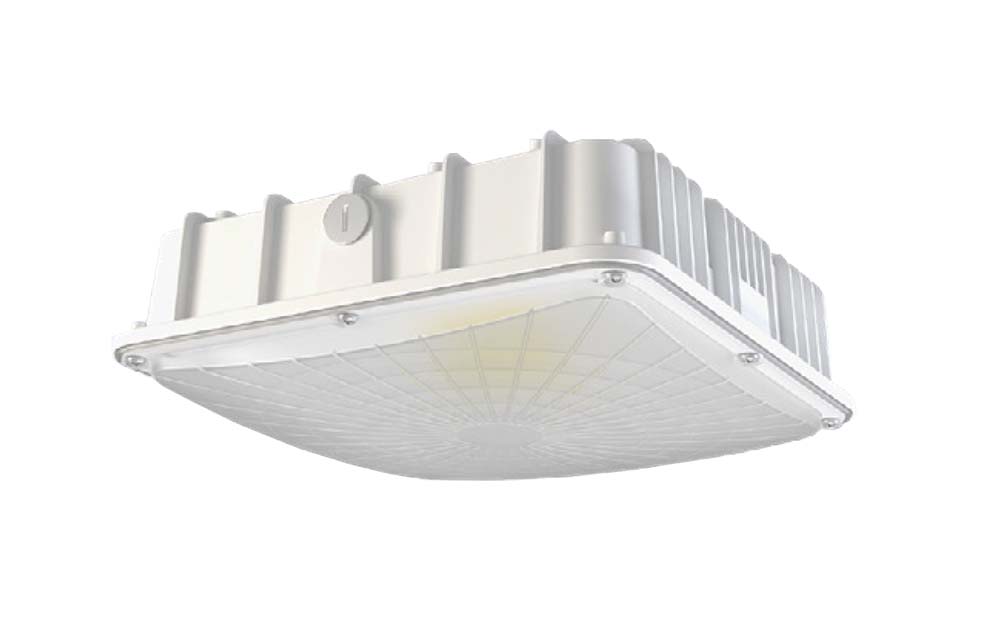

The CPL is a highly efficient LED canopy luminaire that is lightweight and easy to install. If features a compact, low-profile design. The CPL produces bright, uniform illumination providing added security lighting. 0-10V dimming down to 10 percent comes standard. An optional 360-degree bi-level and daylight harvesting microwave sensor can be ordered separately. The CPL is available in black or white finish.

Applications: Suitable for most canopy applications – gas stations, pathways, perimeter lighting, storage areas, underpasses
Lumen Output: 2,890 to 8,625 lumens
Max Lumens Per Watt: 138
Predicted Lifetime: 50,000 hrs
Finish Options: Black and white
Warranty: 5 year limited system warranty
Certifications: ETL listed for wet locations. IP65 rated. RoHS compliant

Durability

The CPL has a one-piece, sealed, die cast aluminum housing. The UV-stabilized optical lens is made of frosted polycarbonate.

The PGx is a highly efficient LED canopy light suitable for most parking garage and canopy applications. It is available in two sizes – small (PGS – 9.5″ x 9.5″) and medium (PGM – 11.8″ x 11.8″). An optional microwave sensor maximizes energy savings by providing multi-level control based on motion and/or daylight detection. The housing is constructed of die cast aluminum, and it comes in a bronze or white powdercoat finish. The lens is polycarbonate.

Buy Now Request a Quote
Applications: Suitable for most parking garage and canopy applications
Lumen Output: From 3,100 in the PGS up to 12,700 in the PGM
Max Lumens Per Watt: 131
Predicted L70 Lifetime: >150,000 hrs
Warranty: 5 year limited system warranty
Certifications: cULus listed for wet locations. IP65 rated

High performance LED technology
• 0-10V dimming drivers standard on all
models except PGS LW
• 2kV surge protection on PGS LW, 4kV surge
protection on all other models. 10kV surge
protection optional.
• Can be surface or pendant mounted for
added flexibility
• Multi-level control based on motion and/or
daylight detection allows for maximum
energy savings with optional microwave
sensor.
Construction:
• Die cast aluminum housing
• Polycarbonate lens
• Bronze or white powdercoat finish
Applications:
Suitable for most parking garage and canopy
applications.
Warranty:
• 5 year limited system warranty
• see www.LumenFocus.com for complete
warranty terms and conditions

MSD Microwave daylight motion sensor dimming bronze white

The CPE is a highly efficient LED canopy luminaire that is suitable for indoor or outdoor use. The housing is constructed of die cast aluminum. The prismatic lens is impact resistant, UV-stabilized polycarbonate. The CPE has a fade-, weather-, and abrasion-resistant textured polyester powdercoat finish.

Applications: For use in canopy applications, suitable for indoor or outdoor use: loading docks, entryways, stairwells, corridors
Lumen Output: 2,219
Max Lumens Per Watt: 94.2 in the CPE 12
Predicted L70 Lifetime: >50,000 hrs
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP65 rated

Mounting

The CPE fits to any standard junction box, or mounts directly to any surface, via a detachable mounting plate. An included hook allows for hands-free installation while making electrical connections.

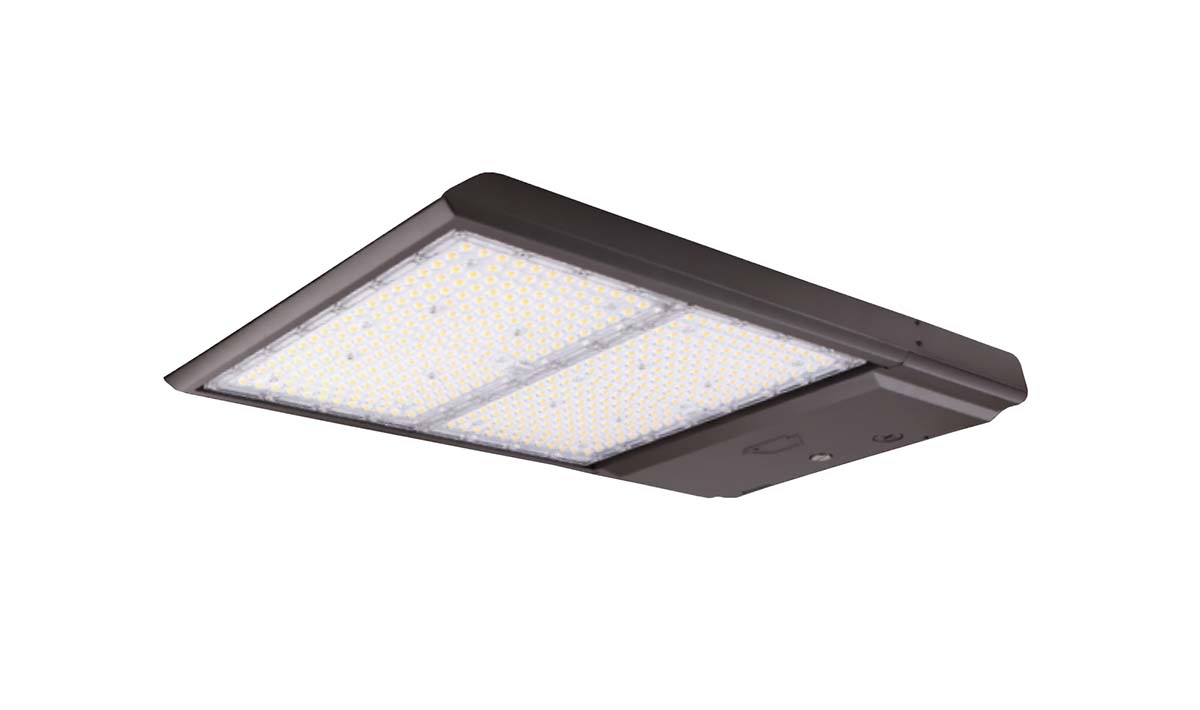

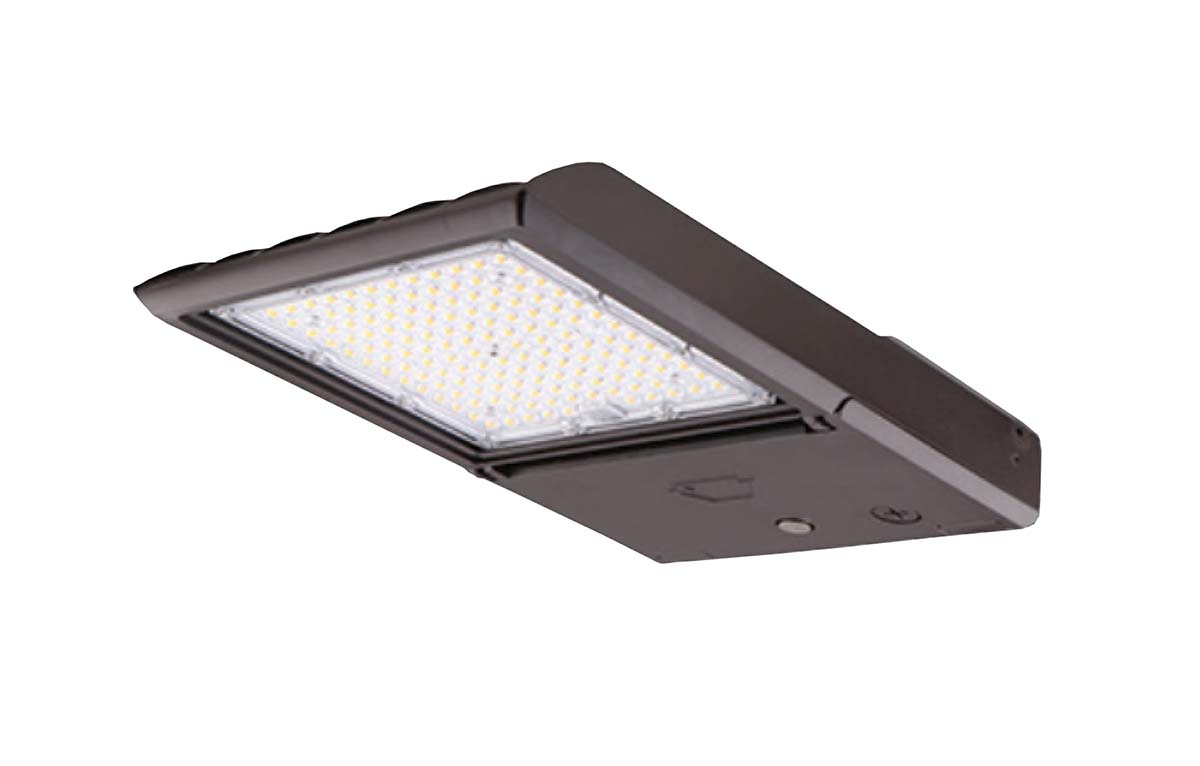

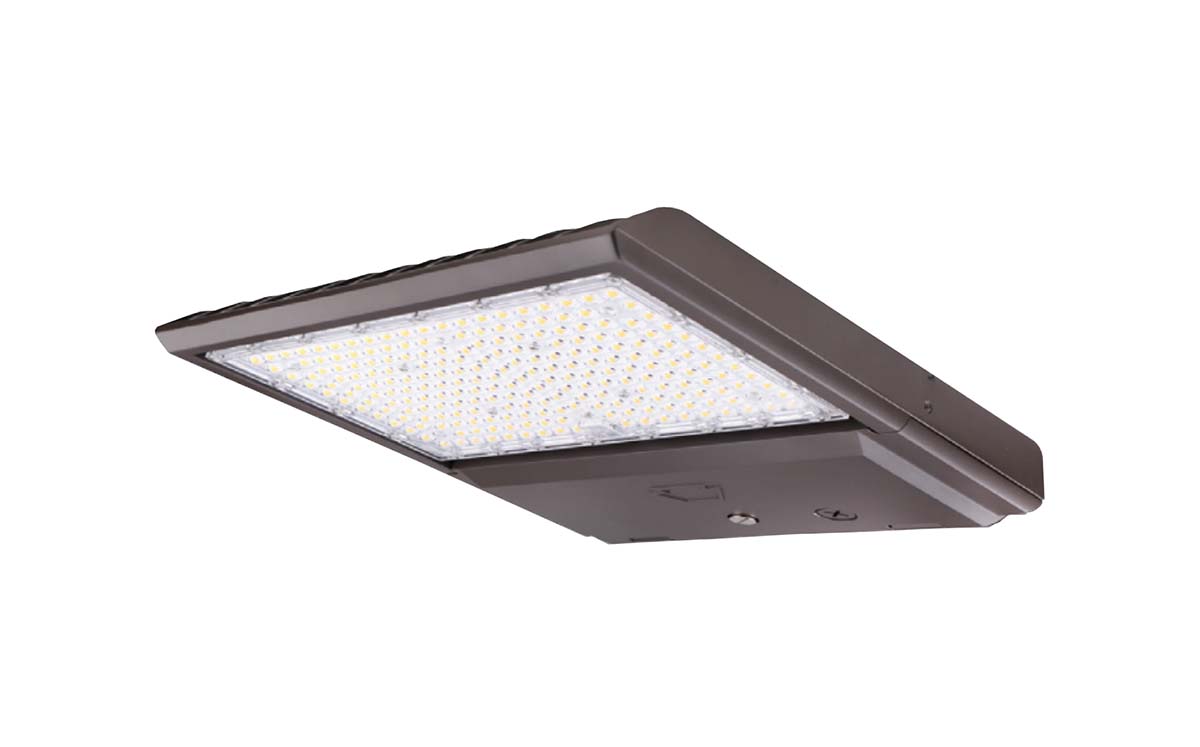

The AMx is a versatile, multi-purpose LED area light available in two sizes – medium (AMM) and large (AML). There are multiple mounting options available, as well as multiple roadway and floodlight optics, making the AMx suitable for many applications. The housing is made of die cast aluminum, with a durable dark bronze powder coat finish. The lens is heat-resistant polycarbonate. It features 6kV surge protection. The AMx is IP66-rated, and rated for 3G vibration. Full or half shields are available, as is a wireguard. Highly efficient LEDs provide a drastic energy savings and longevity upgrade over more traditional outdoor lighting. The AMx boasts a predicted L70 lifetime of over 300,000 calculated hours.

Applications: Suitable for most exterior street or area light applications: street lighting, parking lots, exterior sport courts, sign lighting, building facades
Lumen Output: From 10,000 lm in the AMM up to nearly 36,000 in the AML
Max Lumens Per Watt: 134
Predicted L70 Lifetime: >300,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP66 rated. Rated for 3G vibration

The AFL features high performance, highly efficient LED technology. It is suitable for many exterior site lighting applications. A photocell comes standard, as do 0-10V dimming drivers. There are two mounts to choose from: the Extension Arm for direct mounting to poles or walls, and the Slipfitter Knuckle for round tenons. AFL’s housing is made of precision die cast aluminum. It is coated with a chip and fade resistant textured polyester powdercoat finish. The lens is UV-stabilized polycarbonate.

Buy Now Request a Quote
Applications: Suitable for exterior site lighting applications: parking lots, loading docks, roadways, sign lighting
Lumen Output: 18,345
Max Lumens Per Watt: 125
Predicted L70 Lifetime: >50,000 hours
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP66 rated

The PFxE is an efficient LED flood light suitable for exterior use. It comes in two sizes. The PF1E is a 20-watt luminaire producing 2,148 lumens. the PF2E is a 50-watt unit producing 5,006 lumens. The PFxE features wide beam flood distribution, providing even illumination over the target area.

Applications: Suitable for most exterior floodlight applications
Lumen Output: 2,148 lumens in the PF1E, 5,006 in the PF2E
Max Lumens Per Watt: 108.5 (PF1E)
Predicted L70 Lifetime: >50,000 hours
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP66-rated

The AMx is a versatile, multi-purpose LED area light available in two sizes – medium (AMM) and large (AML). There are multiple mounting options available, as well as multiple roadway and floodlight optics, making the AMx suitable for many applications. The housing is made of die cast aluminum, with a durable dark bronze powder coat finish. The lens is heat-resistant polycarbonate. It features 6kV surge protection. The AMx is IP66-rated, and rated for 3G vibration. Full or half shields are available, as is a wireguard. Highly efficient LEDs provide a drastic energy savings and longevity upgrade over more traditional outdoor lighting. The AMx boasts a predicted L70 lifetime of over 300,000 calculated hours.

Applications: Suitable for most exterior street or area light applications: street lighting, parking lots, exterior sport courts, sign lighting, building facades
Lumen Output: From 10,000 lm in the AMM up to nearly 36,000 in the AML
Max Lumens Per Watt: 134
Predicted L70 Lifetime: >300,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP66 rated. Rated for 3G vibration

The AFL features high performance, highly efficient LED technology. It is suitable for many exterior site lighting applications. A photocell comes standard, as do 0-10V dimming drivers. There are two mounts to choose from: the Extension Arm for direct mounting to poles or walls, and the Slipfitter Knuckle for round tenons. AFL’s housing is made of precision die cast aluminum. It is coated with a chip and fade resistant textured polyester powdercoat finish. The lens is UV-stabilized polycarbonate.

Buy Now Request a Quote
Applications: Suitable for exterior site lighting applications: parking lots, loading docks, roadways, sign lighting
Lumen Output: 18,345
Max Lumens Per Watt: 125
Predicted L70 Lifetime: >50,000 hours
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP66 rated

The ADS is an LED dusk to dawn area light with field selectable output and color temperatures. There are three selectable CCTs - 3000K, 4000K and 5000K. It features an integral photocell and Type 5S optics. There are three selectable wattages - 35W, 50W and 65W. Wattage and CCT are easily adjusted in the field. Simply remove the cap from the top of the fixture to access the dip switches underneath, which adjust wattage, CCT and photocell settings. Applications: Suitable for most exterior site lighting applications: parking lots, entry ways, loading docks, pathways, building security Lumen Output: 4,375 lumens at 35W; 6,250 at 50W; 8,125 at 65W Max Lumens Per Watt: 125 Predicted L70 Lifetime: 50,000 hours Warranty: 5 year limited system warranty Certifications: UL listed for wet locations. IP66 rated, RoHS Durable, long-lasting construction The housing of the ADS is constructed of durable, corrosion resistant, cold-forged aluminum, with a bronze finish. The lens is made of polycarbonate.

The WPS LED select wall pack is a high performance wall pack with field-adjustable color temperature and output settings. It is available in two sizes – small (WPS S) and large (WPS L). Each has four output settings – 20W/30W/40W/50W for the WPS S, and 80W/90W/100W/120W for the WPS L. There are three CCT settings – 3000K, 4000K and 5000K. The WPS housing is constructed of durable weather resistant, die-cast aluminum. The lens is UV-resistant polycarbonate. The WPS is available in white or bronze finish.

Applications: Suitable for most exterior wall mount applications – industrial, retail, commercial
Lumen Output: 2,300 to 6,300 in the WPS S; 9,600 to 14,500 in the WPS L
Max Lumens Per Watt: 127.0
Predicted L70 Lifetime: 50,000 hours
Warranty: 5 year limited system warranty
Certifications: ETL listed for wet locations. IP65 rated

Field-selectable wattage and CCT

The wattage/output and color temperatures on the WPS are easily adjustable in the field via switches on the unit. There are four output settings, and three CCT settings (3000K, 4000K, 5000K).

The WLP is a high performance LED wall pack suitable for commercial or residential exterior wall mount applications. It features an integral photocell and attractive architectural styling. Both the housing and the frosted white lens are constructed out of impact resistant, UV-stabilized polycarbonate. A detachable mounting plate with hanging wire allows for simple hands-free installation when making electrical connections.

Applications: Suitable for commercial or residential exterior wall mount applications: entryways, perimeter/security lighting
Lumen Output: 932 lumens
Max Lumens Per Watt: 79.5
Predicted L70 Lifetime: >50,000 hours
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP65 rated

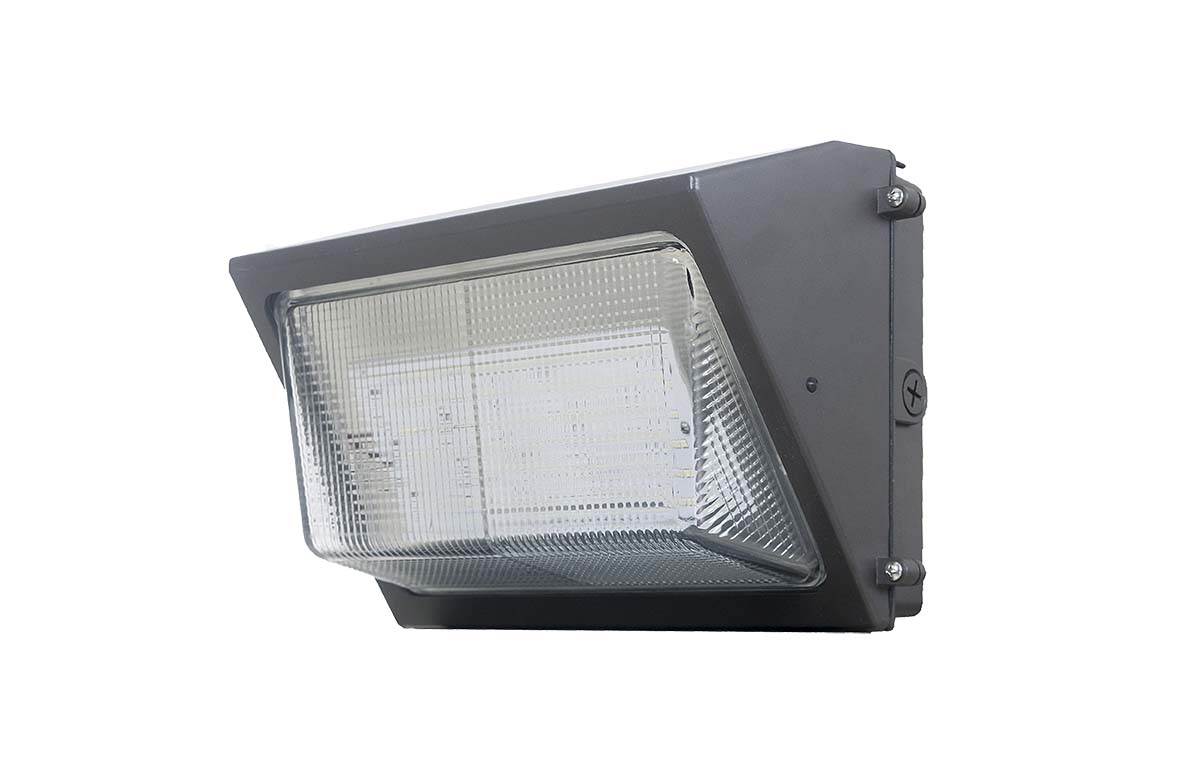

The EPN v2 is a high performance LED wall pack that features uniform illumination with no visible LED pixilation. The housing is die cast aluminum with a dark bronze powder coat finish. The tempered borosilicate glass lens is sealed with a seamless silicone gasket to prevent leaks. The EPN v2 has three half-inch NPT threaded openings for rigid electrical conduit, or for button photocells.

Applications: Suitable for most exterior wall mount applications – industrial, retail, commercial
Lumen Output: From about 6,400 lm to over 15,700 lm
Max Lumens Per Watt: 151
Predicted L70 Lifetime: Greater than or equal to 158,000 hrs (calculated)
Predicted L90 Lifetime: Greater than or equal to 49,000 hrs (calculated)
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP65 rated. FCC Par 15, Class A compliant. IEEE C.62.41-2002, 2kV Surge Protection compliant. RoHS compliant

Multiple output options

The EPN v2 is available in five different outputs, in both 4000K and 5000K. The VL (\”Very Low\”) output option produces 6400+ lumens at 42 watts. On the high end, the VH (\”Very High\”) output option produces 15,500+ lumens at 111 watts.

The EPP is a highly efficient LED wall pack. A photocell and 0-10V dimming drivers come standard. The housing is constructed of precision die cast aluminum, with a chip and fade resistant textured polyester powdercoat finish in dark bronze. THe lens is made of UV-stabilized borosilicate prismatic glass. Easy knock-outs on the back box of the EPP allow for mounting to any standard 3 1/2-inch to 4-inch square or octagonal, or 4-inch round applications.

Applications: Suitable for exterior wall mount applications
Lumen Output: 6,650 lumens
Max Lumens Per Watt: 132.2
Predicted L70 Lifetime: >50,000 hours
Warranty: 5 year limited system warranty
Certifications: UL listed for wet locations. IP65 rated

The DEM features a 4.8V long-life, maintenance-free, rechargeable NiCd battery. An internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination. The DEM features 2 LEDs per head (6 watts total per unit). A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Lumen Output: 350 lm when running on DC mode, 1,286 when running on AC mode
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for wet locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, certified to CEC under Title 20 Regulations (optional)
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Lumen Output: 350 lm when running on DC mode, 1,286 when running on AC mode
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for wet locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, certified to CEC under Title 20 Regulations (optional)

Options and colors

The DEM housing features die cast aluminum construction, sealed and gasketed, with a durable powder coat finish. It is available in four housing colors: white, black, bronze and nickel. The refractor is prismatic polycarbonate. Photocells come standard. The self-diagnostic test feature continually diagnoses the performance of the luminaire, and tests the system to ensure reliable operation and to meet electrical and life safety codes.

The EDL is suitable for recessed ceiling mount applications where emergency lighting is needed. It is compatible with drop ceiling mount applications. Bar hangers are included. Illumination comes from an ultra-bright, long life 1.5W LED lamp. The adjustable gimbal trim is made of impact resistant thermoplastic. The trim, available in white or black, securely attaches to the housing with spring clips. An internal solid-state transfer switch automatically connects the internal battery to the LED board and LED lamp heads for a minumum of 90 minutes of emergency illumination.

Buy Now Request a Quote
Applications: Suitable for recessed ceiling mount applications where emergency lighting is needed
Lumen Output: 116 lm
Max Lumens Per Watt: 77
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 2 years
Certifications: UL listed for dry locations at 25-degrees C. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Energy efficient, long-life red or green LED exit sign illumination. Ultra-bright, long-life white LED lamp heads. Eight LEDs per head. (1 watt total per head)
Adjustable LED lamp heads allow for optimal center-to-center spacing.
Dual 120/277V. Charge/rate power “ON” LED indicator light and push to test switch for mandated code compliance testing.
9.6V long-life, maintenance free, rechargeable NiCd battery.
Injection molded 5VA flame retardant, high-impact resistant thermoplastic housing.
Easy snap mounting canopy included for top or end mount.
UL listed for damp locations. Other certifications: UL924, NFPA 101 Life Safety Code, NEC, OSHA, state and local codes.
5 year limited warranty on housing and electronics. Battery prorated for five years.

Exit. Emergency. Combo. Single Face. Universal Double Face. Single/Double. Letter Color. Faces. R. G. Red. Green. DV. Dual voltage. White housing. Black housing. RC. Remote capacity. SD. Self-diagnostics. Self diagnostics. HL. High lumen 12-LED 12 LED heads. 1.5W 1.5 watts per head.
EME1R. EME 1R. EME1 R. EME 1 R.
EME1G. EME 1G. EME1 G. EME 1 G.

EME2R. EME 2R. EME2 R. EME 2 R.
EME2G. EME 2G. EME2 G. EME 2 G.

The EMEW is an energy efficient exit/emergency unit suitable for wet locations. It provides long life red or green exit sign illumination. Each ultra-bright, long life LED lamp head features 3 LEDs per head. An internal solid-state transfer switch automatically connects the internal battery to the LED board and lamp heads for a minimum of 90 minutes of emergency illumination. A discharged battery can be recharged in 24 hours. The EMEW is available in white, black or gray.
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for wet locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, Certified to CEC under Title 20 regulations
The EMEW includes a die-cast aluminum mounting canopy for top or end mount. A universal knockout pattern on the back plate allows for wall mounting as well. The housing is constructed of 5VA flame retardant and UV stabilized polycarbonate. The lens is high-impact resistant, UV stabilized polycarbonate. The enclosure is corrosion resistant with engineering grade silicone gasket.

The EMEF provides energy efficient, long life red or green LED exit sign illumination. This unit has many certifications – including NSF, IP66, and UL certified for use in food service operations. The EMEF features fully adjustable, ultra-bright 3.3W MR-16 base white LED lamp heads for optimized center-to-center spacing. The 12W and 15W models feature 6V/12V long life, maintenance-free rechargeable NiCd batteries, while the 28W option features a 6V/12V rechargeable lead acid battery. The EMEF offers 4.8W, 7.8W and 20.8W of remote capacity standard on the 12W, 15W and 28W models. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. NiCd battery prorated for 5 years. Lead acid battery prorated for 2 years.
Certifications: UL listed for wet locations, UL certified for use in food service operations. Other certifications – NEMA 4X-rated, IP66, UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

Installation and construction

The housing on the EMEF is constructed of reinforced polycarbonate in white, gray or black. The corrosion-resistant enclosure features a one-piece, high-impact resistant, UV-stabilized polycarbonate lens and molded gasket with stainless steel screws. A polycarbonate mounting canopy is included for top or end mount. A universal knockout pattern on the back, for back mounting, is gasketed for a watertight seal.

For use in dry or damp locations where exit signage is needed.
Ultra-bright, long-life red or green LED. Dual 120/277V.
4.8V long-life, maintenance-free rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination. Fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Easy snap-out chevron directional indicators.
Easy snap mounting canopy.
UL listed for damp locations. Other certifications: UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

LED Exit. Single face. Universal single double face. Single/double. Number of faces. Letter color. R. G. Red. Green. Dual voltage. Housing color. W. B. White. Black. AC Only. EM. Battery Backup. SD. Self-diagnostics. Self diagnostics. 2C. Dual circuit. US. Assembled in the USA. Custom wording.
LEX1R. LEX1 R. LEX 1R. LEX 1 R.
LEX1G. LEX1 G. LEX 1G. LEX 1 G.
LEX2R. LEX2 R. LEX 2R. LEX 2 R.
LEX2G. LEX2 G. LEX 2G. LEX 2 G.

The EMX provides energy efficient, long-life red or green LED exit sign illumination. Each lightpipe features 36 LEDs at 4.5W. Optimal light distribution is achieved with the acrylic, UV-stabilized lightpipe lens, and the adjustable high-performance, chrome-plated, metallized reflector. The EMX features a 4.8V long life, maintenance free rechargeable NiCd battery. An internal solid-state transfer switch automatically connects the internal battery to the LED board and LED lamp heads for a minimum of 90 minutes of emergency illumination. The EMX is compatible with the LumenFocus REH luminaire. An easy snap mounting canopy is included for top or end mount.

Applications: Suitable for indoor use where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for damp locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

single face universal double face red green white housing black remote capacity self-diagnostics self diagnostics

For use in damp or wet locations where exit signage is needed.
Ultra-bright, long-life red or green LED. Dual 120/277V.
Unique bi-color LED indicator light alerts occupant on battery condition (green = normal; red = check battery).
4.8V long-life, maintenance-free rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination. Fully automated solid-state, two-rate charger initiates battery charging to recharge.
Custom signs available with custom wording.
Corrosion-resistant enclosure with engineering grade silicone gasket.
Polycarbonate mounting canopy included for top or end mount.
UL listed for wet locations. Other certifications: UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes.
5 year limited warranty on housing and electronics. Battery prorated for 5 years.

Single Face. Double. R. G. Red. Green. Dual voltage. Housing color. W. B. G. White. Black. Gray. faceplate. face plate. CW. cold weather. AC Only. EM. Battery Backgup. SD. Self-diagnostics. Self diagnostics. TP. Tamper-proof. Tamper proof. 2C. Dual circuit. Custom wording.
WLE1R. WLE 1R. WLE1 R. WLE 1 R.
WLE1G. WLE 1G. WLE1 G. WLE 1 G.

WLE2R. WLE 2R. WLE2 R. WLE 2 R.
WLE2G. WLE 2G. WLE2 G. WLE 2 G.

The ELR features a premium-grade extruded aluminum housing, and is also available in black or white powder-coat finishes. The edgelit panel is made of UV-stabilized ultra-clear acrylic. The ELR is compatible with drywall or drop ceiling mount installations, and bar hangers are included. An internal solid-state transfer switch automatically connects the internal battery to the LED board for a minimum 90 minutes of emergency illumination. The ELR features ultra-bright, long-life red or green LEDs. Custom signs with custom wording are available.

Applications: For use in dry or damp locations where exit signage is needed

Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years

Certifications: UL listed for damp locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

LED Recessed Edgelit Exit Sign
Dual 120/277V
4.8V long life, maintenance free, rechargeable NiCd battery
Internal solid-state transfer switch
Fully automated solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24
hours
Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
Dual-circuit option on the AC-only unit enables it to be connected to two different supplies at the same time,
one acting as a back-up to the other
Self-adhesive Chevron appliques and guide template provided for directional indication
ELR1RDV
ELR2RDV
ELR1GDV
ELR2GDV

single face, double face. red. green. clear. mirror. white. aluminum. white. black. AC only. battery backup. SD. self diagnostics. self-diagnostics. 2C. dual circuit. Assembled in the USA

The ELX features ultra-bright, long-life red or green LEDs. The premium-grade extruded aluminum housing is also available in black or white powder-coat finishes. The aluminum mounting canopy is suitable for top, end or back mounting. The edgelit panel is made of UV-stabilized ultra-clear acrylic. The double face of the ELX utilizes a factory-installed silver or white mylar background cover. An internal solid-state transfer switch automatically connects the internal battery to the LED board for a minimum 90 minutes of emergency illumination. Custom signs with custom wording are available.

Applications: For use in dry or damp locations where exit signage is needed

Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years

Certifications: UL listed for damp locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

LED Edgelit Exit Sign
Dual 120/277V
4.8V long life, maintenance free, rechargeable NiCd battery
Fully automated solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
Dual-circuit option on the AC-only unit enables it to be connected to two different supplies at the same time,
one acting as a back-up to the other
Self-adhesive Chevron appliques and guide template provided for directional indication
ELX1RDV
ELX2RDV
ELX1GDV
ELX2GDV
single face. double face. red. green. clear. mirror. white. aluminum. white. black. AC only. EM. Battery backup. Self diagnostics. Self-diagnostics. SD. 2C. Dual Circuit. Assembled in the USA. US

The EMW features semi-recessed, ultra-bright, long-life LED lamp heads. Adjustable LED lamp heads allow for optimal center to center spacing. It has a 6V long-life, maintenance-free, rechargeable and sealed lead acid battery. An internal solid-state transfer switch automatically connects the internal battery to the LED board and lamp heads for a minimum of 90 minutes of emergency illumination. A discharged battery can be recharged in 24 hours with its fully automated solid-state, two-rate charger.
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for wet locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, Certified to CEC under Title 20 regulations (options)

The EMW features semi-recessed, ultra-bright, long-life LED lamp heads. Adjustable LED lamp heads allow for optimal center to center spacing. It has a 6V long-life, maintenance-free, rechargeable and sealed lead acid battery. An internal solid-state transfer switch automatically connects the internal battery to the LED board and lamp heads for a minimum of 90 minutes of emergency illumination. A discharged battery can be recharged in 24 hours with its fully automated solid-state, two-rate charger.
Spec Sheet High Res Image
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for wet locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, Certified to CEC under Title 20 regulations (options)

The EMRW is a wet location emergency unit with a remote capacity of 3.7 watts standard in operating temperatures of 0º C to 50º C. It features ultra-bright, long life white LED lamps heads, with 15 LEDs per head. An internal solid-state transfer switch automatically connects the internal battery to the LED board and lamp heads for a minimum of 90 minutes of emergency illumination. A discharged battery is recharged in 24 hours using the EMRW’s fully automated solid-state, two-rate charger.
Applications: Suitable for indoor or outdoor use where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
Certifications: UL listed for wet locations. Other certifications – UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, Certified to CEC under Title 20 regulations (optional)

Ultra-bright, long-life white LED lamp heads. Eight LEDs per head (1 watt total per head).
Adjustable LED lamps allow for optimal center-to-center spacing.
Dual 120/277V. Charge rate/power “ON” LED indicator light and push to test switch for mandated code compliance testing. 3.6V long life, maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
Surface mount via quick-connect back plate. Fits most standard size junction boxes and snaps into place to make internal electrical connections. Top and side knockout for conduit applications.
UL listed for damp locations. Other certifications: UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes
5 year limited warranty on housing and electronics. Battery prorated for 5 years.

The MREM utilizes 3.3W high performance and high output MR-16 base LED lamps. These LED lamp heads feature ultra-bright, long life illumination. The lamp heads are adjustable to allow for optimal center to center spacing. The 6V sealed lead acid battery is maintenance-free and rechargeable. An internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for a minimum of 90 minutes of emergency illumination. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The MREM offers 13W of remote capacity (6V DC output) when using standard 3.3W lamps, and 10W of remote capacity (6V DC output) when using optional 5.0W lamps.
Applications: Suitable for wall mount in dry or damp locations where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics. Battery prorated for 5 years
Certifications: UL listed for damp locations. UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
Installation and construction

The MREM is available in white or black finish. The housing is injection-molded, engineering grade, 5VA flame retardant, high-impact resistant thermoplastic. A universal knockout pattern on the back plate is used for wall mounting. For easy installation, the unit snaps into place making internal electrical connections.

The MREHF features ultra-bright, long life white LED lamp heads. These remote emergency luminaires can be wall or ceiling mounted. The adjustable lamp heads allow for optimal center to center spacing. Power comes from a low voltage 6V/12V DC power source, with low voltage wiring (not provided). The MREHF is compatible with LumenFocus’ EMEF, MREM and EMEW exit/emergency units with RC option. It is available in white, gray or black finish.
Applications: Suitable for most indoor wall or ceiling mount applications where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics
Certifications: UL listed for wet locations, UL certified for use in food service operations. Other certifications – NEMA 4X-rated, IP66, UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
Installation and construction

The MREHF housing is reinforced polycarbonate. The corrosion-resistant enclosure features a one-piece, high-impact resistant, UV-stabilized polycarbonate lens and molded gasket with stainless steel screws. A universal knockout pattern on the back is provided for back mounting, with a gasket for watertight seal. There is a one-lamp head option and a two-lamp head option.

The MREH utilizes ultra-bright, long life white LED lamp heads for emergency illumination. These MR-16 base LED lamps are high output and high performance, at 3.3W. Optional 5.0W high-lumen heads are available for increased center-to-center spacing. It comes in white or black finish. It is suitable for wall or ceiling mount. The MREH is powered from a low voltage power source with low voltage wiring (not provided). It is compatible with the LumenFocus EMEF, MREM and EMEW exit/emergency products with RC option.
Applications: Suitable for most indoor wall or ceiling mount applications where emergency lighting is needed
Warranty: 5 year limited warranty on housing and electronics
Certifications: UL listed with approved LumenFocus products. Other certifcations: UL924, NFPA 101 Life Safety Code, NEC, OSHA
Installation and construction

The MREH is constructed of injection-molded, engineering grade, 5VA flame retardant, high-impact resistant thermoplastic. The universal mounting base mounts to a single-gang switch box.

The REH provides illumination from ultra-bright, long-life white LED lamp heads. There are eight LEDs per head (1 watt total per head). The lamps heads are adjustable to allow for optimal center-to-center spacing. The REH is powered from low voltage power source with low voltage wiring (not provided). The REH is compatible with the LumenFocus EME, EMX, LEM, EMEF, MREM and EMEW exit/emergency units with RC option. The outdoor “WP” model is constructed of die cast aluminum, and is sealed and gasketed with a glass lens. The REH can be wall or ceiling mounted.
Adjustable LED lamp heads allow for optimal center-to-center spacing.
Compatible with LumenFocus EME LED Exit/Emergency Combo.
Universal mounting base mounts to single-gang switch box. Suitable for wall or ceiling mount.
Indoor model: injection molded 5VA flame retardant, high-impact resistant. Outdoor “WP” model: die cast aluminum, sealed and gasketed with glass lens.
Ul listed with approved LumenFocus products. Other certifications: UL924, NFPA 101 Life Safety Code, NEC, OSHA.
5 year limited warranty on housing and electronics.

REH 2 9.6. REH 1 9.6. REH 2 9.6 WP. REH 2 9.6-WP. REH 1 9.6-WP. REH 1 9.6 WP. 1 lamp head. 2 lamp heads. 9.6 volt. WP. Weather-proof. Weather proof. SD. Self-diagnostics. Self diagnostics. HL. High lumen 12-LED 12 led heads. 1.5W watts per head.

The PBL is better than ever! This line of premium high bay luminaires is available in many of the same output packages as our standard PBL, but with even higher efficacies! Improved LED technology has allowed us to increase lumens per watt Read More
The PBL is a high performance, extremely versatile general area LED high bay available in a wide variety of sizes, lumen packages and control options. Diffuser lenses are available to minimize glare and improve aesthetics. The PBL’s h Read More
The PBL G2 HD is the newest version of our heavy duty high bay luminaire. The G2 has all the same features of the standard PBLHD, but with higher efficacy LED boards! Just like the PBL G2 LED high bay, the PBL G2 HD boasts efficacies up to Read More
The PBLHD features high performance LED technology in a heavy duty luminaire. Designed for areas where the luminaire may be struck, the housing is constructed of sturdy 0.063″ aluminum. Wireguards are optional for added durability. Pe Read More
The PBLU is a general distribution high bay with up-light. It features high performance LED technology, with field-replaceable LED boards and drivers. A wide variety of lumen packages allows for flexibility in design and helps maximize ener Read More
The PBLX is a general distribution lensed LED high bay. Available in 23-pattern acrylic (clear or frosted), or impact resistant Lexan, the lens provides an aesthetically pleasing uniform look. The PBLX features high performance LED technolo Read More
The PBLA is an ideal solution for most warehouse aisles and corridors. Its enhanced specular reflector is designed to provide even vertical illumination on shelving and optimize lighting in the aisleways. It comes in 4-foot (PBLA 4) and 8-f Read More
The LumenFocus GAT raises the bar for indoor sports lighting. Designed to meet the demanding requirements of air dome/air-inflated structures, butler buildings and fabric over frame structures, the GAT weighs just 18 lbs. and can produce ov Read More
The FFL is a high performance LED lay-in. Part of the FormFocus product line, a matching retrofit is also available – the FFR (click here to view the FFR page). These LED troffers are available in 2×2, 2×4, 1×2 and 1 Read More
Part of the FormFocus product line, the FFL2R offers an aesthetic, highly efficient LED troffer solution. The FFL2R features two rows of high efficacy LED boards shielded by frosted acrylic diffusers. The FFL2R is available in 2×2 and 2×4 Read More
The FFL2R HO is an ideal troffer solution for retail and office settings with high grid ceilings, or other applications that require high lumen output from a recessed luminaire. With the FFL2R HO, you can have all the benefits of a high out Read More
The FFLD utilizes high performance disinfecting LEDs from IllumiPure. These LEDs continuously disinfect hard or soft surfaces, killing 99.9 percent of bacteria when the lights are kept on. IllumiPure LEDs are effective against MRSA, C. Diff Read More
The FFRD utilizes high performance disinfecting LEDs from IllumiPure. This retrofit kit can upgrade existing fluorescent troffers quickly and easily – in 3-5 minutes! The LEDs continuously disinfect hard or soft surfaces, killing 99.9 Read More
The ETL is available in 2×2, 2×4 and 1×4 variations for maximum flexibility. Its multiple shielding options are optimized to balance efficiency and aesthetics. Suitable for most commercial and institutional applications – o Read More
The FPB Select is an adjustable LED flat panel, with three wattage outputs and three color temperature options that are field selectable. Wattage and CCT are easily adjusted via switches on the back. The FPB Select features state-of-the-art Read More
The FPB features state-of-the-art backlit LED technology. Illumination is uniform, with minimal glare and no visible LED pixelation. PMMA lensing over the LEDs will not discolor over time. The FPB’s frame is aluminum, with a white fin Read More
The DSS LED slim select down light is available in 4" (DSS 4) and 6" (DSS 6) sizes. Each size is offered in 90 CRI and features field selectable color temperature - 2700K, 3000K, 3500K, 4000K and 5000K. The DSS can be used in retr Read More
The DLT LED down light features field selectable color temperature and output. These down lights can be used for retrofit projects and new construction applications. Four color temperatures can be selected: 3000K, 3500K, 4000K and 5000K, at Read More
The DLS LED down light features field selectable color temperature and output. Three color temperatures can be selected: 3000K, 4000K and 5000K, at 90 CRI. There are two size options – the DLS 6, which fits 6″ to 7.4″ diam Read More
The DLR LED retrofit down light features field selectable color temperature. Four color temperatures can be selected: 2700K, 3000K, 4000K and 5000K, at 90 CRI. There are two size options – 4\” and 6\”. The DLS produces hig Read More
The DLL 3.5 is compatible with most 3.5″ housings, and is available in 90+ CRI. Frame-in kits are available for new construction or remodel applications. The DLL is dimmable to 5% with most drivers. An E26 medium screw-base Edison con Read More
The DLL 4 down light is compatible with most 4″ housings. It can be used with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K. 90 CRI is available in 2700K, 3000K and 4000K. The DLL Read More
Compatible with most 4\\” housings, the DLE LED down light can be used with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 4000K, and Triac dimming. The housing is constructed of white a Read More
The DLG LED gimbal down light can be used with insulated, non-insulated and air-tight ceilings. It is compatible with most 4″ housings. Color temperature options range from 2700K to 4000K. The DLG 4 is dimmable to 10% with most dimmer Read More
The DLE 56 down light is compatible with most 5” and 6” housings – with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K, with Triac dimming. The housing is white aluminu Read More
The DLG 56 down light is compatible with most 5″ and 6″ housings – with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 4000K. The DLG 56 is dimmable to 10% with most dimmers. Read More
About 3-5 minutes is all it takes to install the FFR LED troffer retrofit. The FFR is part of the FormFocus product line. A matching luminaire is also available – the FFL (click here to view the FFL page). The FFR is available in 2 Read More
Part of the FormFocus product line, the FFRP is a custom fit retrofit kit designed for existing 4-foot or 8-foot industrial-style louvered luminaires. Specifications of the existing fixture is required to ensure proper fit. A new industrial Read More
The FFRW is a custom fit retrofit kit designed for existing 4-foot wrap luminaires that are 9 inches wide or wider. It is part of the FormFocus product line. The easy lift and shift design allows for easy and quick installation, saving on l Read More
The RCL retrofit is a great application to save on installation cost, material cost and waste all while getting the benefit of upgrading your fluorescent luminaire to a highly efficient LED system. With a customer-provided width, the RCL ca Read More
The RCLS allows for quick and easy installation – it slips right over existing 4 1/4″ wide strip fixtures. All kits come prewired with the necessary branch circuit wiring and quick-connects to plug into a continuous row. This re Read More
The RTL is a retrofit for existing troffer luminaires, available in 2×2, 2×4 and 1×4 options. Easy lift and shift installation saves for labor costs. Each kit comes boxed with the necessary hardware for install. Frosted diffu Read More
The RLK series offers quick and efficient retrofit solutions for prismatic troffers (2×2 and 2×4) and wrap luminaires (2-footers and 4-footers). Components come pre-wired, and the driver quick-disconnect allows for easy installati Read More
The GUA P is a pendant-mounted luminaire designed for upper air germicidal irradiation. These fixtures utilize low-wattage, ozone-free GUVT8 lamps that reduce airborne pathogens using 254nm UVC. The electronic ballast is specifically matche Read More
The GUA S is a wall-mounted sconce designed for upper air germicidal irradiation. These fixtures utilize low-wattage, ozone-free GUVT8 lamps that reduce airborne pathogens using 254nm UVC. The electronic ballast is specifically matched to t Read More
The GUL P is a pendant luminaire designed for upper air germicidal irradiation. These fixtures provide 360 degrees of 254nm UVC irradiation from low-wattage, ozone-free PLL lamps to reduce airborne pathogens. The electronic ballast is speci Read More
The GUL S is a wall-mounted sconce designed for upper air germicidal irradiation. These sconces provide 180 degrees of 254nm UVC irradiation from low-wattage, ozone-free PLL lamps to reduce airborne pathogens. The electronic ballast is spec Read More
Germicidal Wall-Mounted Direct Luminaire The GCD provides germicidal luminaire provides pathogen eradication in unoccupied rooms. The GCD hangs in the corner where the wall meets the ceiling. It utilizes low-wattage, ozone-free GUVT8 lamps Read More
The GLS provides germicidal luminaire provides pathogen eradication in unoccupied rooms. This surface-mounted fixture utilizes low-wattage, ozone-free GUVT8 lamps to provide 254nm UVC illumination to reduce airborne pathogens. UVC at 254nm Read More
The GLR provides germicidal luminaire provides pathogen eradication in unoccupied rooms. This recessed lay-in fixture utilizes low-wattage, ozone-free PLL lamps to provide 254nm UVC illumination to reduce airborne pathogens. UVC at 254nm is Read More
The ECL LED strip is available in a wide variety of lumen packages and lengths, which allows for flexibility in design and helps maximize energy savings. Frosted diffuser lenses are available to help minimize glare and improve aesthetics. O Read More
The highly efficient ECLN is available in a wide array of different lengths and lumen output packages. Frosted diffusers help minimize glare and improve aesthetics. The highly durable housing features a finish in either the standard Matte W Read More
Part of the FormFocus product line, the FFLP provides modern aesthetics and performance in a lensed LED industrial luminaire. The FFLP is available in a wide variety of lumens outputs for maximum flexibility. The frosted acrylic diffuser i Read More
The EWL LED wrap can be surface-, stem- or cable-mounted as individual units or in continuous rows. Three are three width sizes and two lengths to choose from. The housing is constructed of highly durable and highly reflective white cold ro Read More
The EWLN is an LED wrap suitable for many applications. It can be surface, stem or cable mounted individually or in continuous rows. The EWLN features highly efficient LED boards and drivers, and is available in multiple lumen output packag Read More
The EVL is a high performance LED lensed luminaire suitable for many wall and ceiling mount applications. The housing and end caps are constructed out of heavy-gauge cold rolled steel with a white powder coat finish. The lens is prismatic a Read More
Durable materials and craftsmanship allow the WVL vaportight to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. It is available in 4-foot or compact 2-foot lengths. Multiple hanging options Read More
Durable materials and craftsmanship allows the NVL to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. Multiple hanging options available, including surface, chain and aircraft cable, for eas Read More
The unique design of the EVT features an (f1) rated acrylic co-extruded lens and housing – with the lens and housing being all one piece – and gasketed end caps. It is available in 2-foot, 4-foot and 8-foot variations. The EVT i Read More
The Altor series is designed for the high demands of food and meat industry facilities. The unique design is bacteria and debris resistant, with minimal external features that limit particulate accumulation. It features a true water seal &# Read More
Buy Now Request a Quote The Altor series is designed for the high demands of food and meat industry facilities. The NVLF’s unique narrow profile design is bacteria and debris resistant, with minimal external features that limit partic Read More
The CPL is a highly efficient LED canopy luminaire that is lightweight and easy to install. If features a compact, low-profile design. The CPL produces bright, uniform illumination providing added security lighting. 0-10V dimming down to 10 Read More
The PGx is a highly efficient LED canopy light suitable for most parking garage and canopy applications. It is available in two sizes – small (PGS – 9.5″ x 9.5″) and medium (PGM – 11.8″ x 11.8″). An Read More
The CPE is a highly efficient LED canopy luminaire that is suitable for indoor or outdoor use. The housing is constructed of die cast aluminum. The prismatic lens is impact resistant, UV-stabilized polycarbonate. The CPE has a fade-, weathe Read More
The AMx is a versatile, multi-purpose LED area light available in two sizes – medium (AMM) and large (AML). There are multiple mounting options available, as well as multiple roadway and floodlight optics, making the AMx suitable for Read More
The AFL features high performance, highly efficient LED technology. It is suitable for many exterior site lighting applications. A photocell comes standard, as do 0-10V dimming drivers. There are two mounts to choose from: the Extension Arm Read More
The PFxE is an efficient LED flood light suitable for exterior use. It comes in two sizes. The PF1E is a 20-watt luminaire producing 2,148 lumens. the PF2E is a 50-watt unit producing 5,006 lumens. The PFxE features wide beam flood distribu Read More
The AMx is a versatile, multi-purpose LED area light available in two sizes – medium (AMM) and large (AML). There are multiple mounting options available, as well as multiple roadway and floodlight optics, making the AMx suitable for Read More
The AFL features high performance, highly efficient LED technology. It is suitable for many exterior site lighting applications. A photocell comes standard, as do 0-10V dimming drivers. There are two mounts to choose from: the Extension Arm Read More
The ADS is an LED dusk to dawn area light with field selectable output and color temperatures. There are three selectable CCTs - 3000K, 4000K and 5000K. It features an integral photocell and Type 5S optics. There are three selectable watta Read More
The WPS LED select wall pack is a high performance wall pack with field-adjustable color temperature and output settings. It is available in two sizes – small (WPS S) and large (WPS L). Each has four output settings – 20W/30W/40 Read More
The WLP is a high performance LED wall pack suitable for commercial or residential exterior wall mount applications. It features an integral photocell and attractive architectural styling. Both the housing and the frosted white lens are con Read More
The EPN v2 is a high performance LED wall pack that features uniform illumination with no visible LED pixilation. The housing is die cast aluminum with a dark bronze powder coat finish. The tempered borosilicate glass lens is sealed with a Read More
The EPP is a highly efficient LED wall pack. A photocell and 0-10V dimming drivers come standard. The housing is constructed of precision die cast aluminum, with a chip and fade resistant textured polyester powdercoat finish in dark bronze. Read More
The DEM features a 4.8V long-life, maintenance-free, rechargeable NiCd battery. An internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination Read More
The EDL is suitable for recessed ceiling mount applications where emergency lighting is needed. It is compatible with drop ceiling mount applications. Bar hangers are included. Illumination comes from an ultra-bright, long life 1.5W LED lam Read More
Energy efficient, long-life red or green LED exit sign illumination. Ultra-bright, long-life white LED lamp heads. Eight LEDs per head. (1 watt total per head) Adjustable LED lamp heads allow for optimal center-to-center spacing. Dual 120/2 Read More
The EMEW is an energy efficient exit/emergency unit suitable for wet locations. It provides long life red or green exit sign illumination. Each ultra-bright, long life LED lamp head features 3 LEDs per head. An internal solid-state transfer Read More
The EMEF provides energy efficient, long life red or green LED exit sign illumination. This unit has many certifications – including NSF, IP66, and UL certified for use in food service operations. The EMEF features fully adjustable, u Read More
For use in dry or damp locations where exit signage is needed. Ultra-bright, long-life red or green LED. Dual 120/277V. 4.8V long-life, maintenance-free rechargeable NiCd battery. Internal solid-state transfer switch automatically connects Read More
The EMX provides energy efficient, long-life red or green LED exit sign illumination. Each lightpipe features 36 LEDs at 4.5W. Optimal light distribution is achieved with the acrylic, UV-stabilized lightpipe lens, and the adjustable high-pe Read More
For use in damp or wet locations where exit signage is needed. Ultra-bright, long-life red or green LED. Dual 120/277V. Unique bi-color LED indicator light alerts occupant on battery condition (green = normal; red = check battery). 4.8V lon Read More
The ELR features a premium-grade extruded aluminum housing, and is also available in black or white powder-coat finishes. The edgelit panel is made of UV-stabilized ultra-clear acrylic. The ELR is compatible with drywall or drop ceiling mou Read More
The ELX features ultra-bright, long-life red or green LEDs. The premium-grade extruded aluminum housing is also available in black or white powder-coat finishes. The aluminum mounting canopy is suitable for top, end or back mounting. The ed Read More
The EMW features semi-recessed, ultra-bright, long-life LED lamp heads. Adjustable LED lamp heads allow for optimal center to center spacing. It has a 6V long-life, maintenance-free, rechargeable and sealed lead acid battery. An internal so Read More
The EMRW is a wet location emergency unit with a remote capacity of 3.7 watts standard in operating temperatures of 0º C to 50º C. It features ultra-bright, long life white LED lamps heads, with 15 LEDs per head. An internal solid-state t Read More
Ultra-bright, long-life white LED lamp heads. Eight LEDs per head (1 watt total per head). Adjustable LED lamps allow for optimal center-to-center spacing. Dual 120/277V. Charge rate/power “ON” LED indicator light and push to te Read More
The MREM utilizes 3.3W high performance and high output MR-16 base LED lamps. These LED lamp heads feature ultra-bright, long life illumination. The lamp heads are adjustable to allow for optimal center to center spacing. The 6V sealed lead Read More
The MREHF features ultra-bright, long life white LED lamp heads. These remote emergency luminaires can be wall or ceiling mounted. The adjustable lamp heads allow for optimal center to center spacing. Power comes from a low voltage 6V/12V D Read More
The MREH utilizes ultra-bright, long life white LED lamp heads for emergency illumination. These MR-16 base LED lamps are high output and high performance, at 3.3W. Optional 5.0W high-lumen heads are available for increased center-to-center Read More
The REH provides illumination from ultra-bright, long-life white LED lamp heads. There are eight LEDs per head (1 watt total per head). The lamps heads are adjustable to allow for optimal center-to-center spacing. The REH is powered from lo Read More
Hover over your state to find a sales rep near you.
AL AK AZ AR CA CO CT DE FL GA HI ID IL IN IA KS KY LA ME MD MA MI MN MS MO MT NE NV NH NJ NM NY NC ND OH OK OR PA RI SC SD TN TX UT VT VA WA WV WI WY DC
CANADA For Distributors in Alberta: GOTO AGENCIES | Edmonton, Alberta | Phone: (780) 224-1279 | www.gotoagencies.com
PUERTO RICO AND THE CARIBBEAN For Distributors in Puerto Rico and the Caribbean: ARTI LIGHT GROUP | Caguas, Puerto Rico | Phone: (787) 310-8000 | www.artilight.com
Click here to view our Sales Network directory.



Click on a link below to download the files you need. Hover over a product name in the first column to view an image of that product.
Click on a link below to download the files you need. Tap a product name in the first column to view an image of that product. Tap again to collapse.
ProductCategoryTypeSpec SheetPhotometry FilesProduct Page Link
ADSLED OutdoorArea Light Download Spec .ies | .pdf Product Page
AFLLED OutdoorArea/Flood Light Download Spec .ies | .pdf Product Page
AMxLED OutdoorMulti-Purpose Area Download Spec .ies | .pdf Product Page
CPELED OutdoorCanopy Download Spec .ies | .pdf Product Page
CPLLED OutdoorCanopy Download Spec .ies | .pdf Product Page
DEMSpecialtyExit/Emergency Download Spec .ies | .pdf Product Page
DLALED IndoorDown Light Download Spec .ies Product Page
DLE 4LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLE 56LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLG 4LED IndoorGimbal Down Light Download Spec .ies Product Page
DLG 56LED IndoorGimbal Down Light Download Spec .ies Product Page
DLL 3.5LED IndoorDown Light Download Spec .ies Product Page
DLL 4LED IndoorDown Light Download Spec .ies Product Page
DLR 4LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLR 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLS 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLS 8LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLT 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLT 8LED IndoorDown Light Download Spec .ies | .pdf Product Page
DSS 4LED IndoorDown Light Download Spec .ies | .pdf Product Page
DSS 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
ECL 2LED IndoorStrip Download Spec .ies | .pdf Product Page
ECL 3LED IndoorStrip Download Spec Contact Factory Product Page
ECL 4LED IndoorStrip Download Spec .ies | .pdf Product Page
ECL 6LED IndoorStrip Download Spec Contact Factory Product Page
ECL 8LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 2LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 3LED IndoorStrip Download Spec Contact Factory Product Page
ECLN 4LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 6LED IndoorStrip Download Spec Contact Factory Product Page
ECLN 8LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 12LED IndoorStrip Download Spec Contact Factory Product Page
ECLN 16LED IndoorStrip Download Spec Contact Factory Product Page
EDLSpecialtyExit/Emergency Download Spec .ies | .pdf Product Page
ELRSpecialtyExit/Emergency Download Spec Not Applicable Product Page
ELXSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMESpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMEFSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMEWSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMRWSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMWSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMXSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EPN v2LED OutdoorWall Pack Download Spec .ies | .pdf Product Page
EPPLED OutdoorWall Pack Download Spec .ies | .pdf Product Page
ETL 14LED IndoorTroffer Download Spec Contact Factory Product Page
ETL 22LED IndoorTroffer Download Spec .ies | .pdf Product Page
ETL 24LED IndoorTroffer Download Spec .ies | .pdf Product Page
EVL 2LED IndoorLensed Utility Download Spec Contact Factory Product Page
EVL 3LED IndoorLensed Utility Download Spec Contact Factory Product Page
EVL 4LED IndoorLensed Utility Download Spec Contact Factory Product Page
EVT 2LED IndoorVaportight Download Spec .ies | .pdf Product Page
EVT 4LED IndoorVaportight Download Spec .ies | .pdf Product Page
EVT 8LED IndoorVaportight Download Spec .ies | .pdf Product Page
EWL 2LED IndoorWrap Download Spec .ies | .pdf Product Page
EWL 4LED IndoorWrap Download Spec .ies | .pdf Product Page
EWLN 2LED IndoorWrap Download Spec .ies | .pdf Product Page
EWLN 4LED IndoorWrap Download Spec .ies | .pdf Product Page
EWLN 8LED IndoorWrap Download Spec .ies | .pdf Product Page
FFL 12LED Indoor1x2 Lay-In Download Spec Contact Factory Product Page
FFL 14LED Indoor1x4 Lay-In Download Spec .ies | .pdf Product Page
FFL 22LED Indoor2x2 Lay-In Download Spec .ies | .pdf Product Page
FFL 24LED Indoor2x4 Lay-In Download Spec .ies | .pdf Product Page
FFL2R HO 22LED IndoorRecessed High Bay Download Spec .ies | .pdf Product Page
FFL2R HO 24LED IndoorRecessed High Bay Download Spec .ies | .pdf Product Page
FFL2R 22LED IndoorLay-In Download Spec .ies | .pdf Product Page
FFL2R 24LED IndoorLay-In Download Spec .ies | .pdf Product Page
FFLD 14LED IndoorDisinfection Lay-In Download Spec Contact Factory Product Page
FFLD 22LED IndoorDisinfection Lay-In Download Spec Contact Factory Product Page
FFLD 24LED IndoorDisinfection Lay-In Download Spec Contact Factory Product Page
FFLPLED IndoorIndustrial Download Spec Contact Factory Product Page
FFR 12LED IndoorTroffer Retrofit Download Spec Contact Factory Product Page
FFR 14LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
FFR 14TLED IndoorTroffer Retrofit Download Spec Contact Factory Product Page
FFR 22LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
FFR 24LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
FFRD 14LED IndoorDisinfection Retrofit Download Spec Contact Factory Product Page
FFRD 22LED IndoorDisinfection Retrofit Download Spec Contact Factory Product Page
FFRD 24LED IndoorDisinfection Retrofit Download Spec Contact Factory Product Page
FFRPLED IndoorIndustrial Retrofit Download Spec Contact Factory Product Page
FFRWLED IndoorWrap Retrofit Download Spec .ies | .pdf Product Page
FPBLED IndoorBacklit Flat Panel Download Spec .ies | .pdf Product Page
FPB SelectLED IndoorSelectable Backlit Flat Panel Download Spec .ies | .pdf Product Page
GATLED IndoorIndirect High Bay Download Spec .ies | .pdf Product Page
GCDUV IndoorGermicidal Direct Download Spec Contact Factory Product Page
GLRUV IndoorGermicidal Direct Download Spec Contact Factory Product Page
GLSUV IndoorGermicidal Direct Download Spec .ies | .pdf Product Page
GUA PUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
GUA SUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
GUL PUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
GUL SUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
LEMSpecialtyExit/Emergency Download Spec .ies | .pdf Product Page
LEXSpecialtyExit/Emergency Download Spec Not Applicable Product Page
MREHSpecialtyExit/Emergency Download Spec Contact Factory Product Page
MREHFSpecialtyExit/Emergency Download Spec Not Applicable Product Page
MREMSpecialtyExit/Emergency Download Spec Contact Factory Product Page
NVL 2LED IndoorVaportight Download Spec .ies | .pdf Product Page
NVL 4LED IndoorVaportight Download Spec .ies | .pdf Product Page
NVL 8LED IndoorVaportight Download Spec .ies | .pdf Product Page
NVL 4FLED IndoorVaportight Download Spec Contact Factory Product Page
NVL 8FLED IndoorVaportight Download Spec Contact Factory Product Page
PBL G2 2LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL G2 2WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL G2 4LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL G2 4WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 2LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 2WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 4LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 4WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBLA 4LED IndoorAisle High/Low Bay Download Spec .ies | .pdf Product Page
PBLA 8LED IndoorAisle High/Low Bay Download Spec Contact Factory Product Page
PBL G2 HD-2LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBL G2 HD-2WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBL G2 HD-4LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBL G2 HD-4WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 2LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 2WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 4LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 4WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLU 2LED IndoorHigh Bay w/ Uplight Download Spec .ies | .pdf Product Page
PBLU 4LED IndoorHigh Bay w/ Uplight Download Spec .ies | .pdf Product Page
PBLX 2LED IndoorHigh Bay Download Spec Contact Factory Product Page
PBLX 4LED IndoorHigh Bay Download Spec Contact Factory Product Page
PFxELED OutdoorFlood Download Spec .ies | .pdf Product Page
PGxLED OutdoorCanopy Download Spec .ies | .pdf Product Page
RCL 2LED IndoorStrip Retrofit Download Spec .ies | .pdf Product Page
RCL 3LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCL 4LED IndoorStrip Retrofit Download Spec .ies | .pdf Product Page
RCL 6LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCL 8LED IndoorStrip Retrofit Download Spec .ies | .pdf Product Page
RCLS 4LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCLS 8LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCLS 12LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCLS 16LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
REHSpecialtyRemote Lamp Head Download Spec .ies | .pdf Product Page
RLK T22LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
RLK T24LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
RLK W2LED IndoorWrap Retrofit Download Spec Contact Factory Product Page
RLK W4LED IndoorWrap Retrofit Download Spec Contact Factory Product Page
RTL 14LED IndoorTroffer Retrofit Download Spec Contact Factory Product Page
RTL 22LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
RTL 24LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
VPJESpecialtyVaporproof Download Spec .ies | .pdf Product Page
WLESpecialtyWet Location Exit Download Spec Not Applicable Product Page
WLPLED OutdoorArchitectural Wall Pack Download Spec .ies | .pdf Product Page
WPS LLED OutdoorWall Pack Download Spec .ies | .pdf Product Page
WPS SLED OutdoorWall Pack Download Spec .ies | .pdf Product Page
WVL2LED IndoorVaportight Download Spec .ies | .pdf Product Page
WVL4LED IndoorVaportight Download Spec .ies | .pdf Product Page
WVL 2FLED IndoorVaportight Download Spec .ies | .pdf Product Page
WVL 4FLED IndoorVaportight Download Spec Contact Factory Product Page
Note for mobile users: Table scrolls horizontally.
ProductCategoryTypeSpec SheetPhotometry FilesProduct Page Link
ADSLED OutdoorArea Light Download Spec .ies | .pdf Product Page
AFLLED OutdoorArea/Flood Light Download Spec .ies | .pdf Product Page
AMxLED OutdoorMulti-Purpose Area Download Spec .ies | .pdf Product Page
CPELED OutdoorCanopy Download Spec .ies | .pdf Product Page
CPLLED OutdoorCanopy Download Spec .ies | .pdf Product Page
DEMSpecialtyExit/Emergency Download Spec .ies | .pdf Product Page
DLALED IndoorDown Light Download Spec .ies Product Page
DLE 4LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLE 56LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLG 4LED IndoorGimbal Down Light Download Spec .ies Product Page
DLG 56LED IndoorGimbal Down Light Download Spec .ies Product Page
DLL 3.5LED IndoorDown Light Download Spec .ies Product Page
DLL 4LED IndoorDown Light Download Spec .ies Product Page
DLR 4LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLR 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLS 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLS 8LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLT 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
DLT 8LED IndoorDown Light Download Spec .ies | .pdf Product Page
DSS 4LED IndoorDown Light Download Spec .ies | .pdf Product Page
DSS 6LED IndoorDown Light Download Spec .ies | .pdf Product Page
ECL 2LED IndoorStrip Download Spec .ies | .pdf Product Page
ECL 3LED IndoorStrip Download Spec Contact Factory Product Page
ECL 4LED IndoorStrip Download Spec .ies | .pdf Product Page
ECL 6LED IndoorStrip Download Spec Contact Factory Product Page
ECL 8LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 2LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 3LED IndoorStrip Download Spec Contact Factory Product Page
ECLN 4LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 6LED IndoorStrip Download Spec Contact Factory Product Page
ECLN 8LED IndoorStrip Download Spec .ies | .pdf Product Page
ECLN 12LED IndoorStrip Download Spec Contact Factory Product Page
ECLN 16LED IndoorStrip Download Spec Contact Factory Product Page
EDLSpecialtyExit/Emergency Download Spec .ies | .pdf Product Page
ELRSpecialtyExit/Emergency Download Spec Not Applicable Product Page
ELXSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMESpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMEFSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMEWSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMRWSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMWSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EMXSpecialtyExit/Emergency Download Spec Not Applicable Product Page
EPN v2LED OutdoorWall Pack Download Spec .ies | .pdf Product Page
EPPLED OutdoorWall Pack Download Spec .ies | .pdf Product Page
ETL 14LED IndoorTroffer Download Spec Contact Factory Product Page
ETL 22LED IndoorTroffer Download Spec .ies | .pdf Product Page
ETL 24LED IndoorTroffer Download Spec .ies | .pdf Product Page
EVL 2LED IndoorLensed Utility Download Spec Contact Factory Product Page
EVL 3LED IndoorLensed Utility Download Spec Contact Factory Product Page
EVL 4LED IndoorLensed Utility Download Spec Contact Factory Product Page
EVT 2LED IndoorVaportight Download Spec .ies | .pdf Product Page
EVT 4LED IndoorVaportight Download Spec .ies | .pdf Product Page
EVT 8LED IndoorVaportight Download Spec .ies | .pdf Product Page
EWL 2LED IndoorWrap Download Spec .ies | .pdf Product Page
EWL 4LED IndoorWrap Download Spec .ies | .pdf Product Page
EWLN 2LED IndoorWrap Download Spec .ies | .pdf Product Page
EWLN 4LED IndoorWrap Download Spec .ies | .pdf Product Page
EWLN 8LED IndoorWrap Download Spec .ies | .pdf Product Page
FFL 12LED Indoor1x2 Lay-In Download Spec Contact Factory Product Page
FFL 14LED Indoor1x4 Lay-In Download Spec .ies | .pdf Product Page
FFL 22LED Indoor2x2 Lay-In Download Spec .ies | .pdf Product Page
FFL 24LED Indoor2x4 Lay-In Download Spec .ies | .pdf Product Page
FFL2R HO 22LED IndoorRecessed High Bay Download Spec .ies | .pdf Product Page
FFL2R HO 24LED IndoorRecessed High Bay Download Spec .ies | .pdf Product Page
FFL2R 22LED IndoorLay-In Download Spec .ies | .pdf Product Page
FFL2R 24LED IndoorLay-In Download Spec .ies | .pdf Product Page
FFLD 14LED IndoorDisinfection Lay-In Download Spec Contact Factory Product Page
FFLD 22LED IndoorDisinfection Lay-In Download Spec Contact Factory Product Page
FFLD 24LED IndoorDisinfection Lay-In Download Spec Contact Factory Product Page
FFLPLED IndoorIndustrial Download Spec Contact Factory Product Page
FFR 12LED IndoorTroffer Retrofit Download Spec Contact Factory Product Page
FFR 14LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
FFR 14TLED IndoorTroffer Retrofit Download Spec Contact Factory Product Page
FFR 22LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
FFR 24LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
FFRD 14LED IndoorDisinfection Retrofit Download Spec Contact Factory Product Page
FFRD 22LED IndoorDisinfection Retrofit Download Spec Contact Factory Product Page
FFRD 24LED IndoorDisinfection Retrofit Download Spec Contact Factory Product Page
FFRPLED IndoorIndustrial Retrofit Download Spec Contact Factory Product Page
FFRWLED IndoorWrap Retrofit Download Spec .ies | .pdf Product Page
FPBLED IndoorBacklit Flat Panel Download Spec .ies | .pdf Product Page
FPB SelectLED IndoorSelectable Backlit Flat Panel Download Spec .ies | .pdf Product Page
GATLED IndoorIndirect High Bay Download Spec .ies | .pdf Product Page
GCDUV IndoorGermicidal Direct Download Spec Contact Factory Product Page
GLRUV IndoorGermicidal Direct Download Spec Contact Factory Product Page
GLSUV IndoorGermicidal Direct Download Spec .ies | .pdf Product Page
GUA PUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
GUA SUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
GUL PUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
GUL SUV IndoorGermicidal Upper Air Download Spec Contact Factory Product Page
LEMSpecialtyExit/Emergency Download Spec .ies | .pdf Product Page
LEXSpecialtyExit/Emergency Download Spec Not Applicable Product Page
MREHSpecialtyExit/Emergency Download Spec Contact Factory Product Page
MREHFSpecialtyExit/Emergency Download Spec Not Applicable Product Page
MREMSpecialtyExit/Emergency Download Spec Contact Factory Product Page
NVL 2LED IndoorVaportight Download Spec .ies | .pdf Product Page
NVL 4LED IndoorVaportight Download Spec .ies | .pdf Product Page
NVL 8LED IndoorVaportight Download Spec .ies | .pdf Product Page
NVL 4FLED IndoorVaportight Download Spec Contact Factory Product Page
NVL 8FLED IndoorVaportight Download Spec Contact Factory Product Page
PBL G2 2LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL G2 2WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL G2 4LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL G2 4WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 2LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 2WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 4LED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBL 4WLED IndoorHigh Bay Download Spec .ies | .pdf Product Page
PBLA 4LED IndoorAisle High/Low Bay Download Spec .ies | .pdf Product Page
PBLA 8LED IndoorAisle High/Low Bay Download Spec Contact Factory Product Page
PBL G2 HD-2LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBL G2 HD-2WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBL G2 HD-4LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBL G2 HD-4WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 2LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 2WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 4LED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLHD 4WLED IndoorHeavy Duty High Bay Download Spec .ies | .pdf Product Page
PBLU 2LED IndoorHigh Bay w/ Uplight Download Spec .ies | .pdf Product Page
PBLU 4LED IndoorHigh Bay w/ Uplight Download Spec .ies | .pdf Product Page
PBLX 2LED IndoorHigh Bay Download Spec Contact Factory Product Page
PBLX 4LED IndoorHigh Bay Download Spec Contact Factory Product Page
PFxELED OutdoorFlood Download Spec .ies | .pdf Product Page
PGxLED OutdoorCanopy Download Spec .ies | .pdf Product Page
RCL 2LED IndoorStrip Retrofit Download Spec .ies | .pdf Product Page
RCL 3LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCL 4LED IndoorStrip Retrofit Download Spec .ies | .pdf Product Page
RCL 6LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCL 8LED IndoorStrip Retrofit Download Spec .ies | .pdf Product Page
RCLS 4LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCLS 8LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCLS 12LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
RCLS 16LED IndoorStrip Retrofit Download Spec Contact Factory Product Page
REHSpecialtyRemote Lamp Head Download Spec .ies | .pdf Product Page
RLK T22LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
RLK T24LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
RLK W2LED IndoorWrap Retrofit Download Spec Contact Factory Product Page
RLK W4LED IndoorWrap Retrofit Download Spec Contact Factory Product Page
RTL 14LED IndoorTroffer Retrofit Download Spec Contact Factory Product Page
RTL 22LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
RTL 24LED IndoorTroffer Retrofit Download Spec .ies | .pdf Product Page
VPJESpecialtyVaporproof Download Spec .ies | .pdf Product Page
WLESpecialtyWet Location Exit Download Spec Not Applicable Product Page
WLPLED OutdoorArchitectural Wall Pack Download Spec .ies | .pdf Product Page
WPS LLED OutdoorWall Pack Download Spec .ies | .pdf Product Page
WPS SLED OutdoorWall Pack Download Spec .ies | .pdf Product Page
WVL2LED IndoorVaportight Download Spec .ies | .pdf Product Page
WVL4LED IndoorVaportight Download Spec .ies | .pdf Product Page
WVL 2FLED IndoorVaportight Download Spec .ies | .pdf Product Page
WVL 4FLED IndoorVaportight Download Spec Contact Factory Product Page
